Adastra RMC Series Mixer Amplifier with CD, DAB, Bluetooth & USB

100V line mixer-amplifiers with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs.

A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner.

A Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers.

A comprehensive solution for commercial sound installations.

FEATURES

• 5 input channels
• DAB+ and FM radio tuner
• Slot feed CD player
• Bluetooth connectivity
• USB/SD mp3 player
• 100V or 4-16 Ohms output
• Supplied with 19" rack-mount ears
• Optional remote control available SPR000708

Note: Amplifier power will vary depending on your selection

• Weight: 7.0 kg
• Power (RMS): 120W RMS (100V or 4Ω)
• Fuse: T3.15A
• Power Supply: 170-264Vac, 50Hz (IEC)
• DC Power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input Sensitivity (Mic 1 - Balanced): -53dBV
• Input Impedance (Mic 1): 5kΩ
• Input Sensitivity (Line - Unbalanced): -15dBV (-18.5dBV Line 5)
• Input Impedance (Inputs 2-5): 1kΩ
• Line Output: RCA

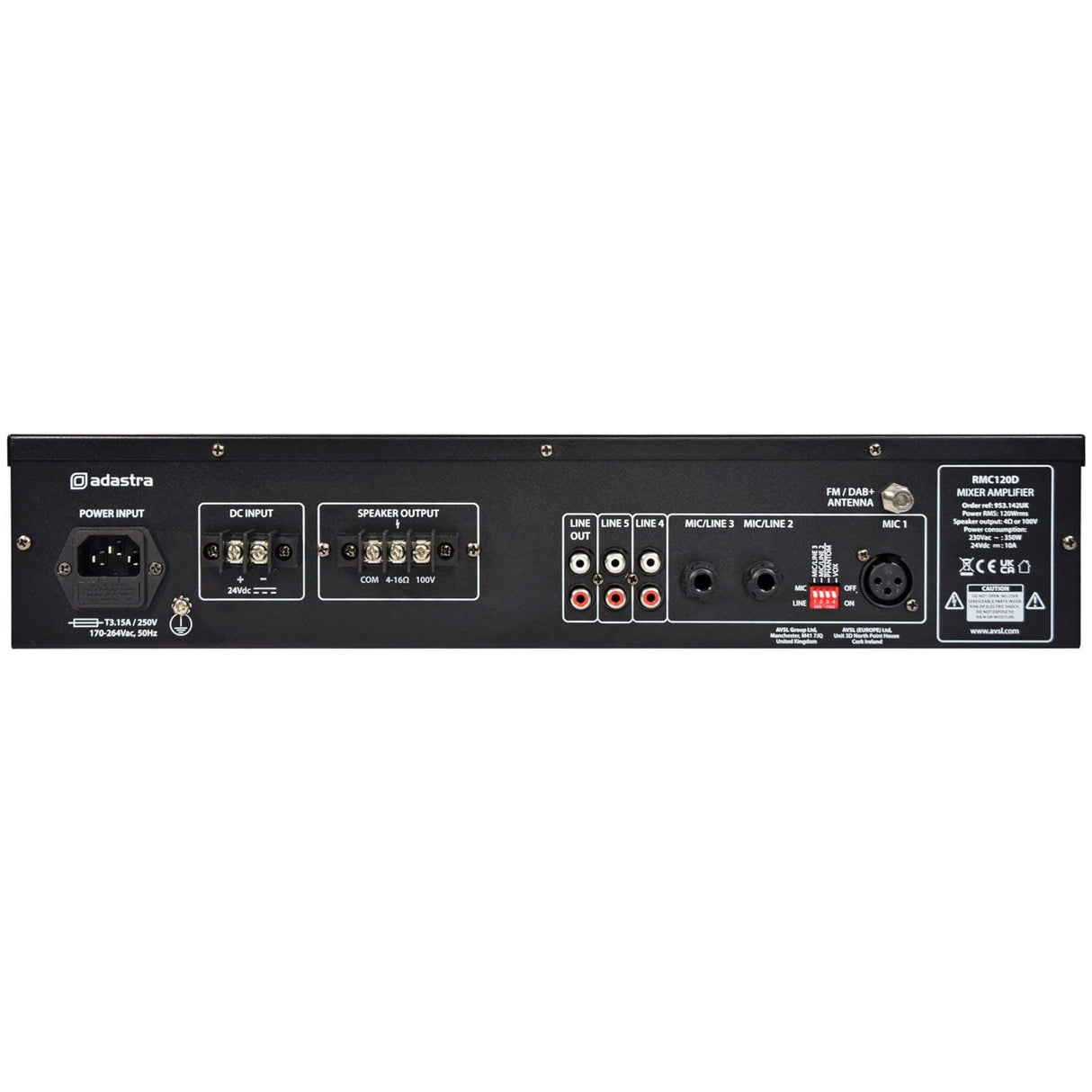

• Speaker Outputs: 100V / 4-16Ω / COM terminals
• Bluetooth Version: 5.0

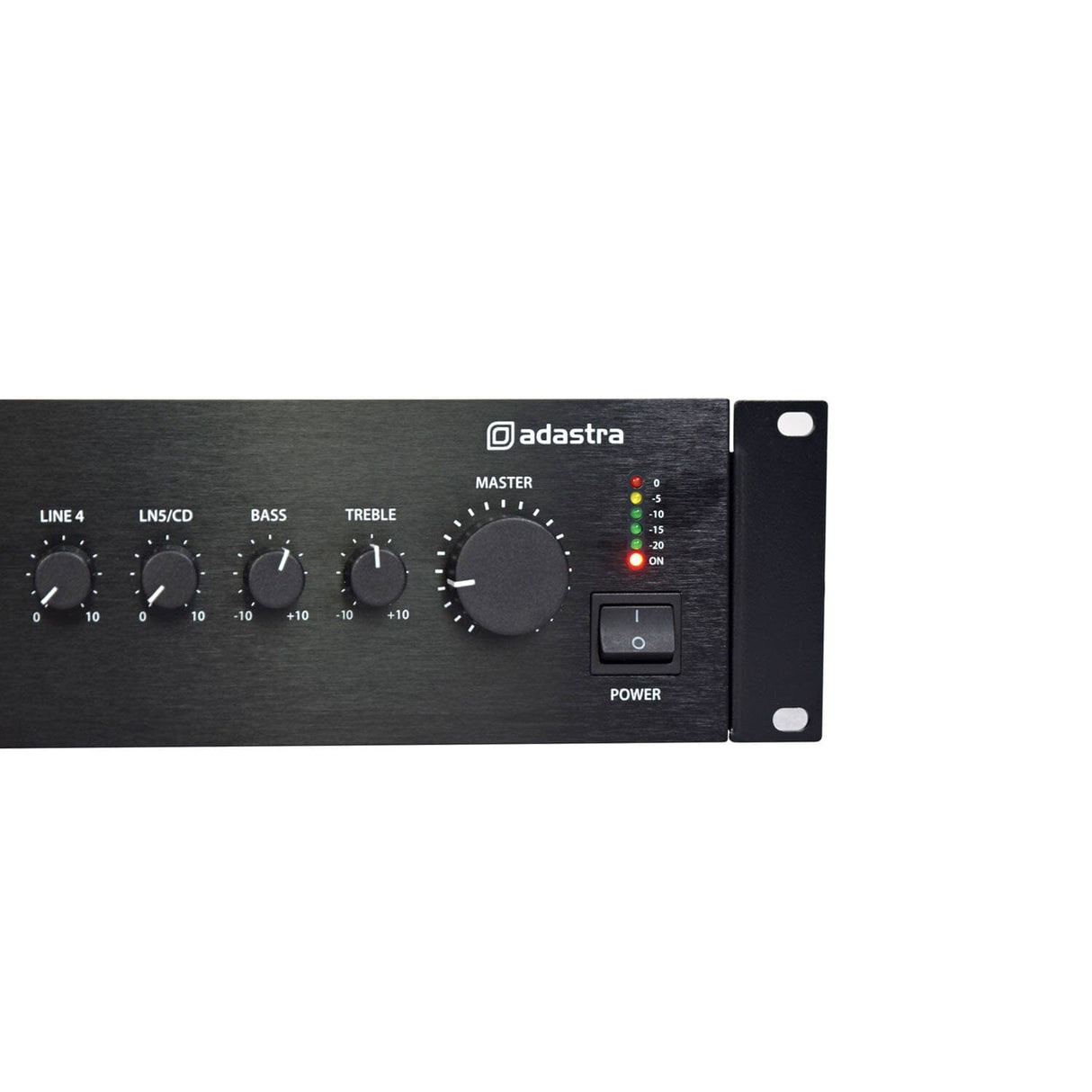

• Controls: Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
• Equaliser (Bass): 100Hz ±10dB
• Equaliser (Treble): 10kHz ±10dB
• Rear Panel Switches: Mic/Line (2 + 3), Phantom, Vox
• Phantom Power: +20V (MIC 1 input)
• Total Harmonic Distortion (THD): <1.0%
• Dimensions (W x H x D): 433 x 320 x 89 mm

• 1 x RMC-D series mixer-amplifier

• 1 x IEC power lead(s)

• User Manual
