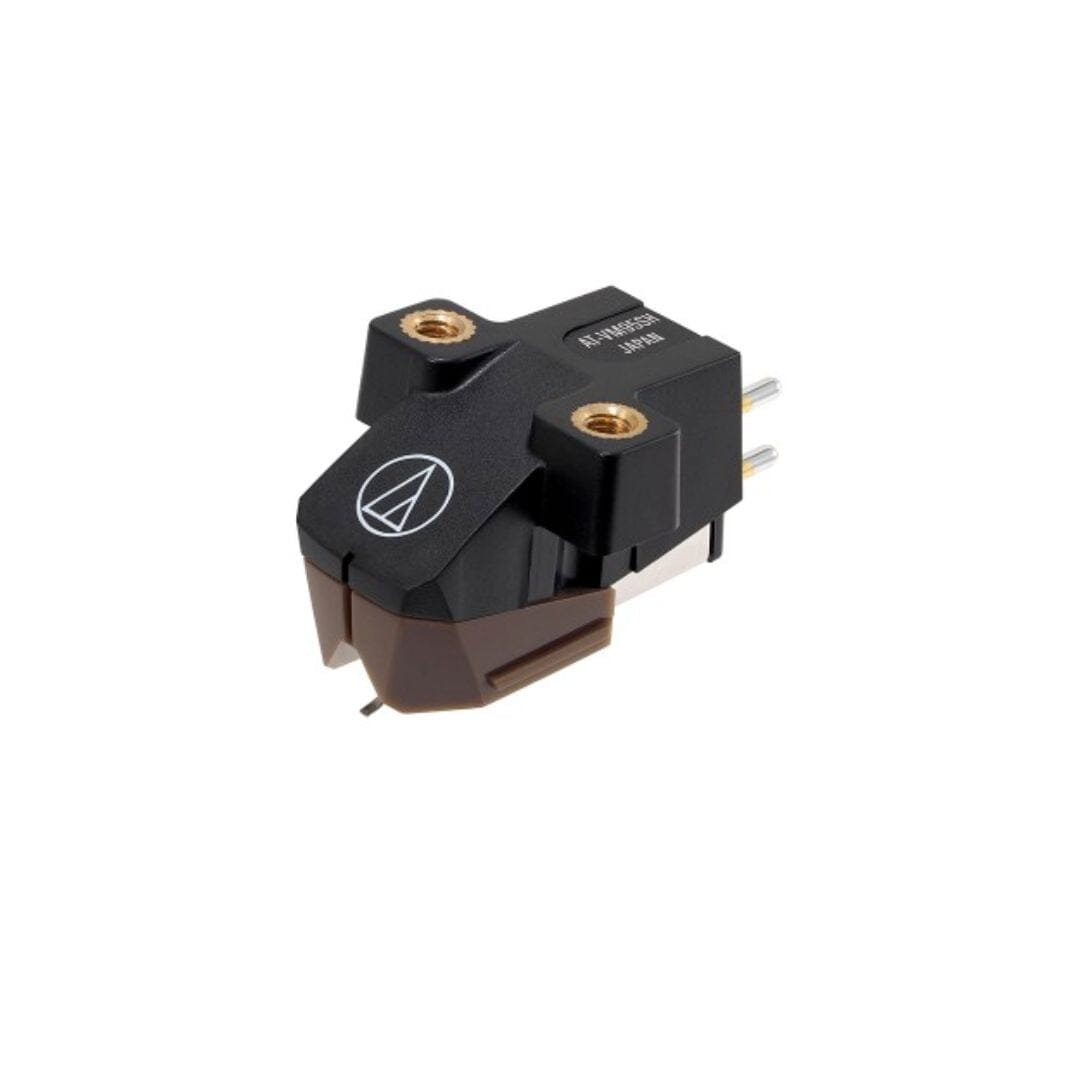

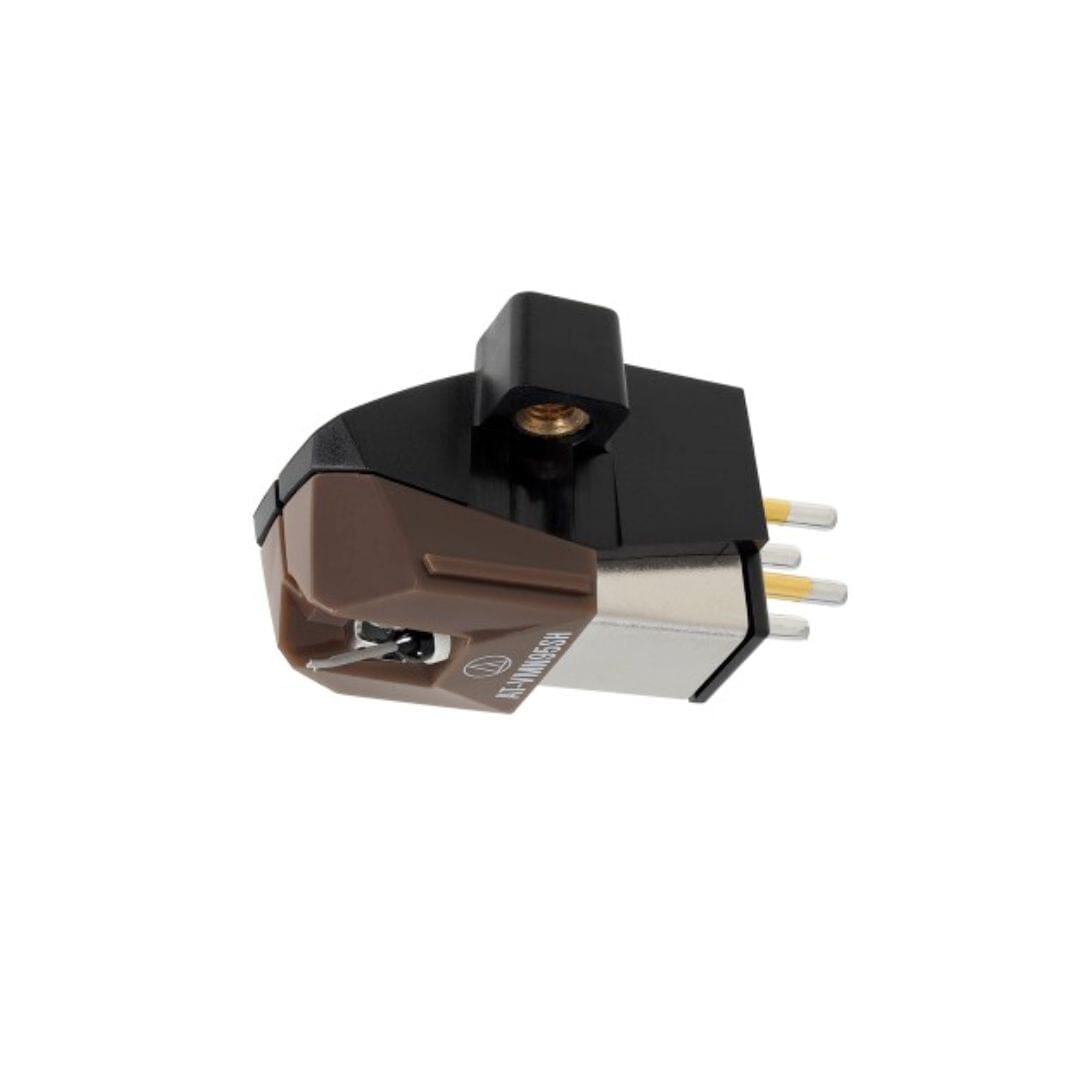

Audio-Technica AT-VM95SH Shibata Stereo Turntable Cartridge
Need Advice? Call 02393 190955
Need Advice? Call 02393 190955
We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.
Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More
2 Years Warranty + 60 Day Returns
2 Years Warranty + 60 Day Returns
DELIVERY
All orders to mainland UK over £99 are eligible for free standard delivery.
Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More
RETURNS
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Description
Description
The AT-VM95SH, features a Nude Shibata stylus, one of the most acclaimed stylus format by high end audiophiles.
The Shibata stylus produces mid and bass sounds strong and rich in addition to offer a frequency response up to 25,000 Hz.
FEATURES
-
Aluminium Cantilever: Provides durability and precise tracking for accurate playback of your vinyl records.
-
3.5mV Output Voltage: Delivers a robust output signal, ensuring clear and dynamic sound reproduction.
-
Compatible Body with all VM95 Series Stylus Assemblies: Offers versatility and convenience, allowing you to interchange stylus assemblies to suit your audio preferences.
- 20 to 25,000Hz Frequency Response: Provides an extended frequency range, capturing a wide spectrum of audio frequencies for lifelike sound reproduction.
Key Features
Key Features
-
Warranty
Specifications
Specifications
- Model: AT-VM95SH
- Type: VM Stereo Dual Magnet
- Mounting: 1/2” centres
- Frequency Response: 20 - 25,000 Hz
- Channel Separation: 23 dB (1 kHz)
- Output Channel Balance: 1.5 dB (1 kHz)
- Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)
- Stylus Shape: Shibata
- Stylus Size: 2.7 x 0.26mil
- Stylus Construction: Nude Square Shank
- Cantilever: Aluminium Pipe
- Coil Impedance: 3.3 kΩ (1 kHz)
- Coil Inductance: 550 mH (1 kHz)
- DC Resistance: 485 Ω
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
- Wire Used for Coil: T.P. Copper
- Recommended Load Impedance: 47,000 Ω
- Recommended Load Capacitance: 100-200 pF
- Cartridge Weight: 6.1g
- Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
- Replacement Stylus: AT-VMN95SH
