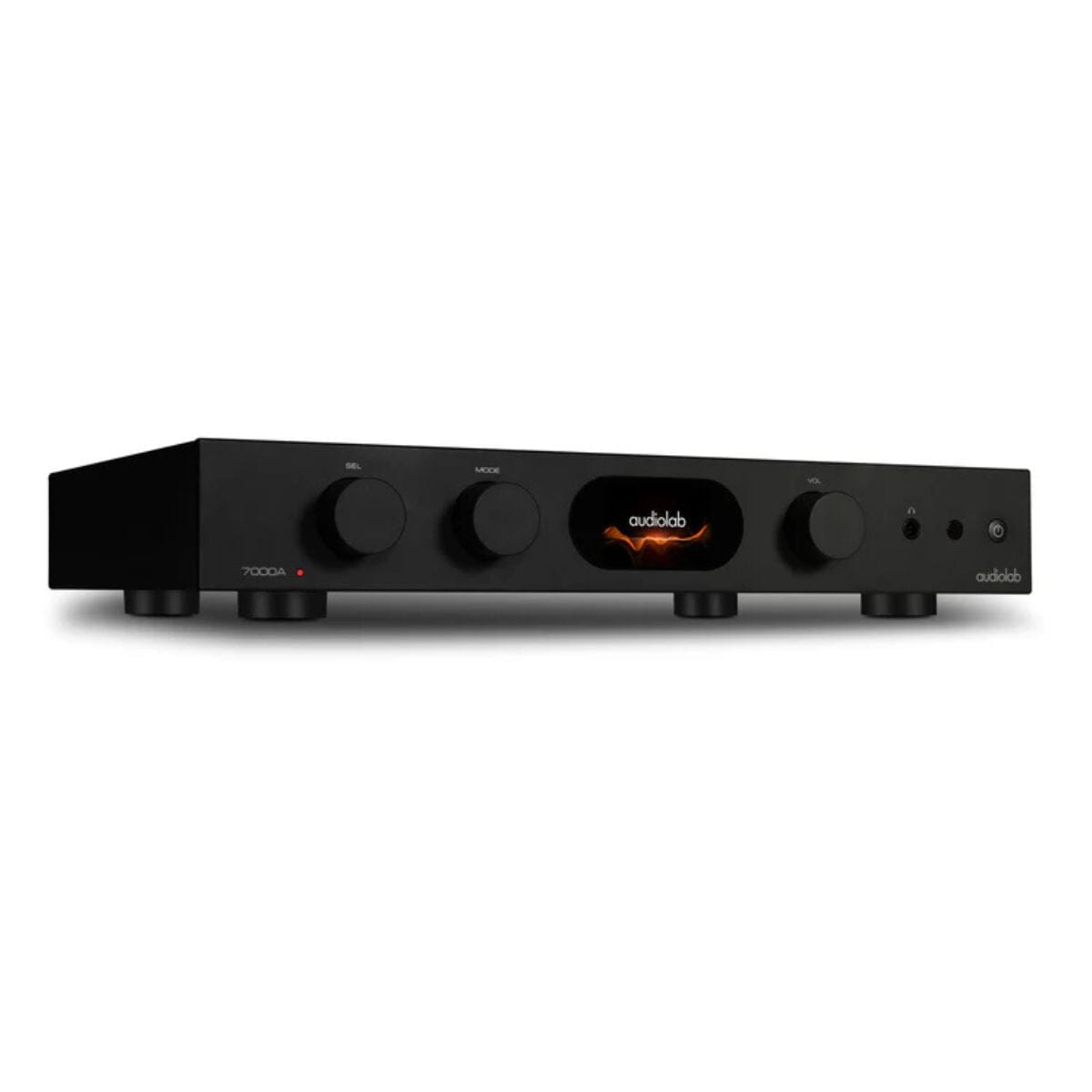

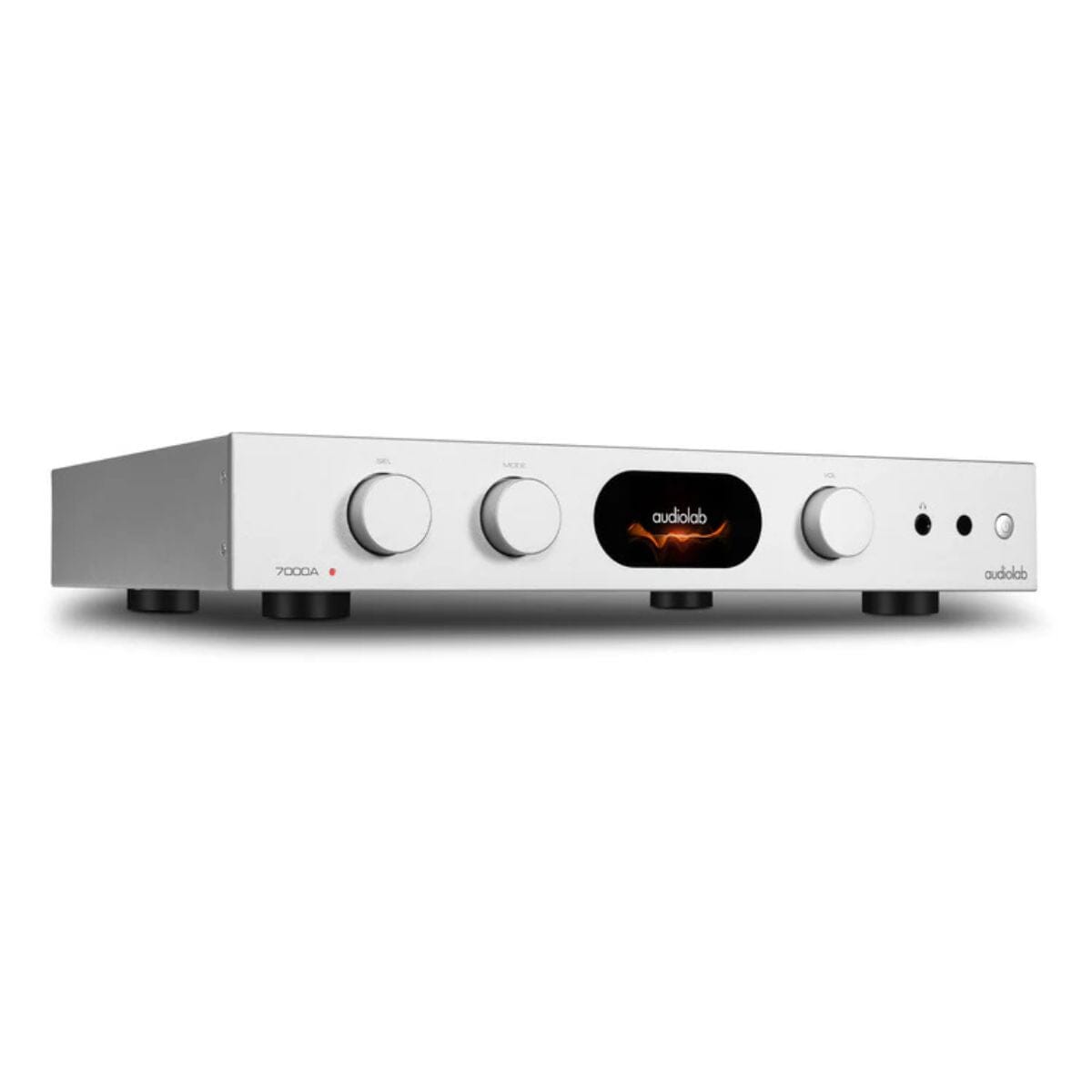

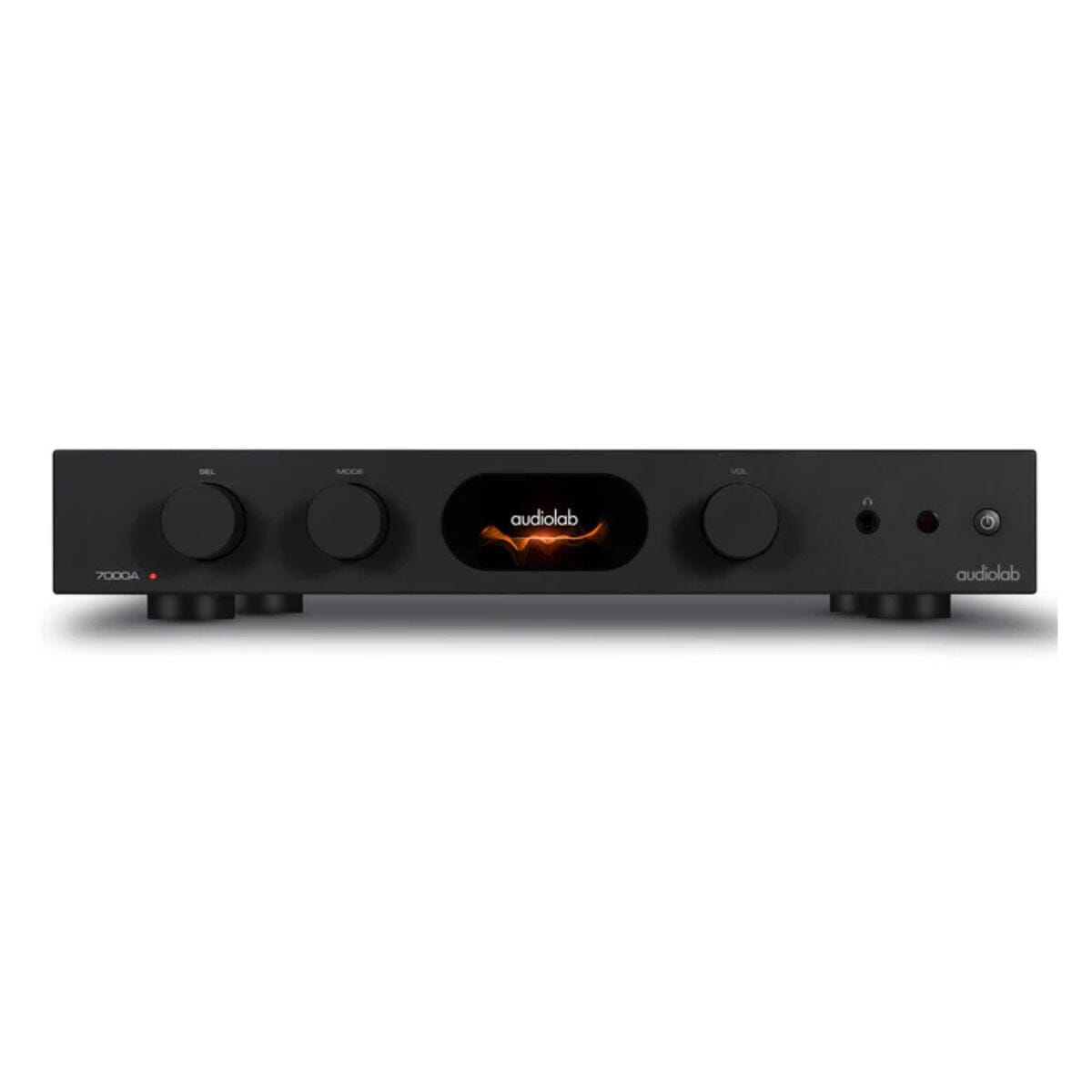

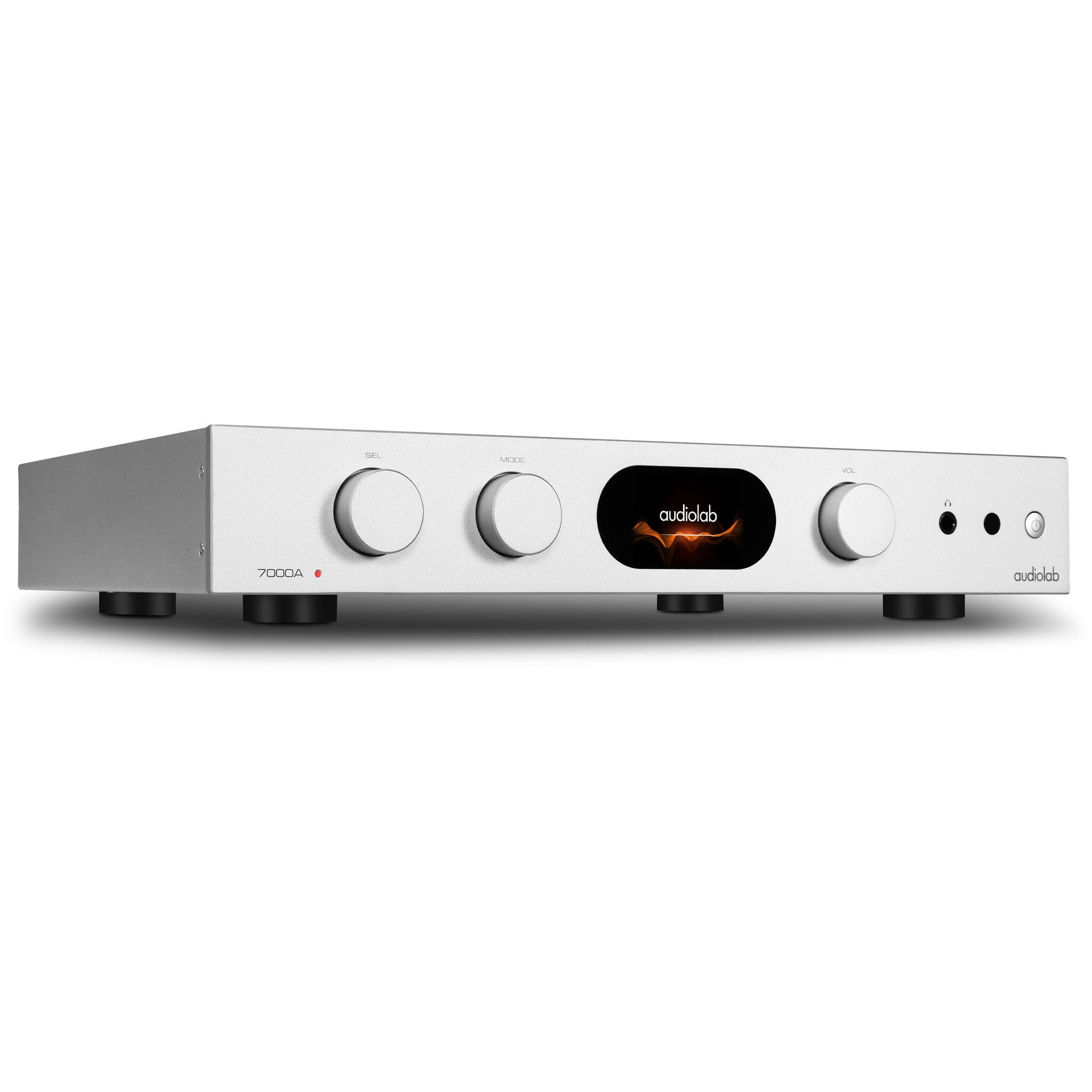

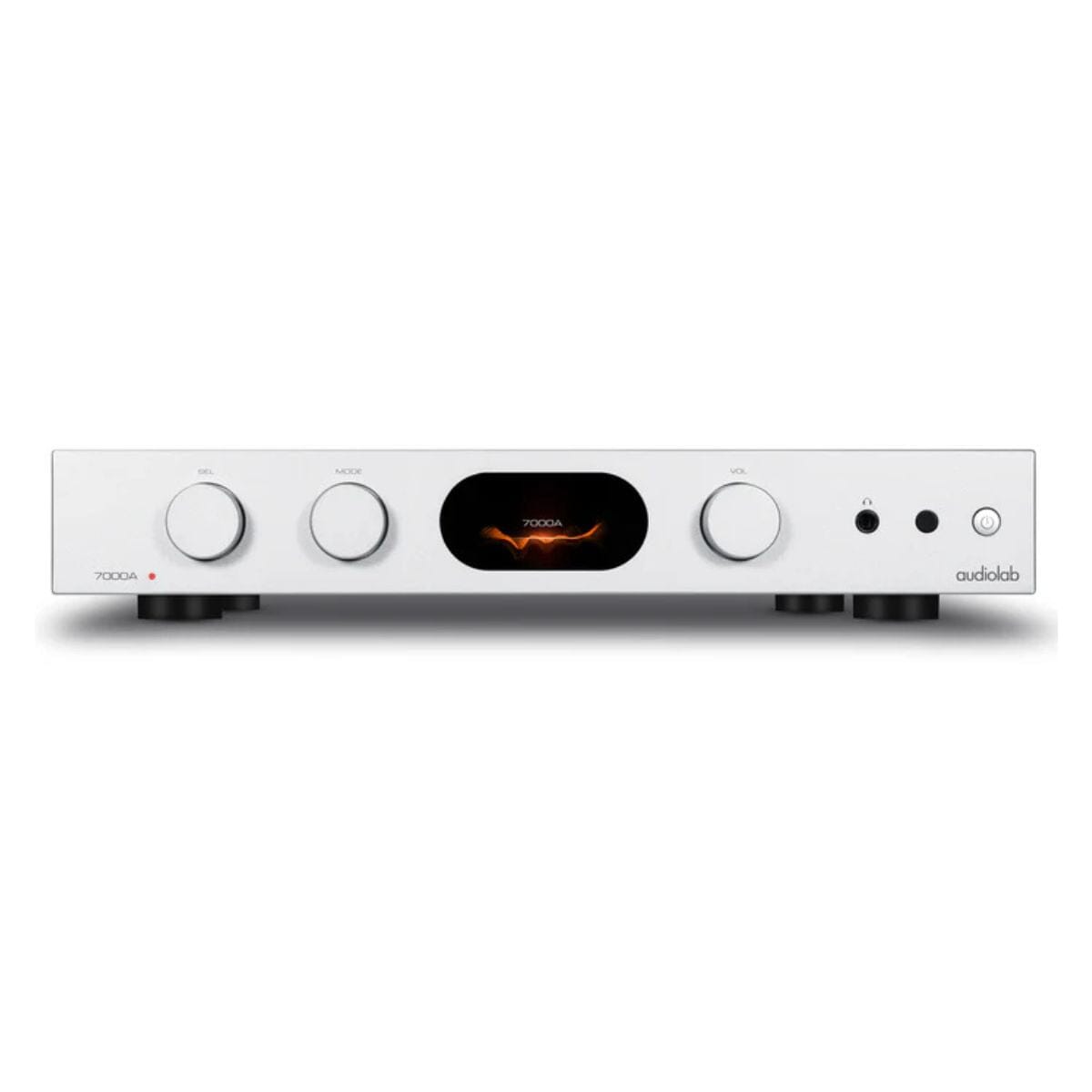

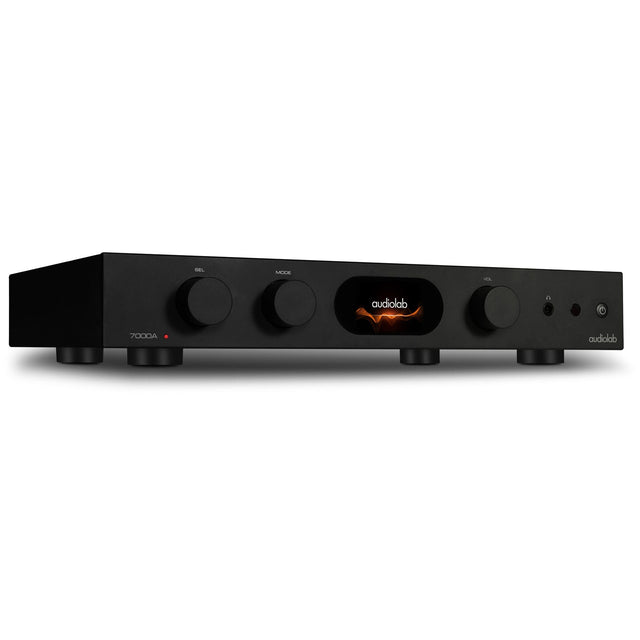

Audiolab 7000A Integrated Amplifier

Introducing the Audiolab 7000A, a versatile integrated amplifier that redefines quality in its price class, building upon the celebrated 6000A while drawing advanced features from the flagship 9000 series.

The 7000A provides 70W per channel output, an upgraded DAC, and expanded connectivity options, making it a perfect choice for music lovers and audiophiles alike. With a sleek design and a full-colour IPS LCD, the 7000A integrates cutting-edge technology for an immersive and customisable listening experience.

FEATURES

• Class AB Amplification: Delivers a robust 70W per channel into 8 ohms, featuring a high-performance Complementary Feedback (CFB) topology for superior linearity and thermal stability.
• High-Power 250VA Toroidal Transformer: With a total reservoir capacity of 60,000µF, the power supply ensures consistent dynamics and control, even during demanding playback.
• Advanced ESS ES9038Q2M DAC: The 32-bit DAC with Time Domain Jitter Eliminator ensures ultra-low noise, clarity, and dynamic range, achieving exceptional sound quality across digital sources.
• Extensive Connectivity Options: Includes dual analogue inputs, dual coaxial and SPDIF digital inputs, Bluetooth aptX for wireless streaming, and a USB Audio Return Channel (ARC) for seamless TV integration.
• Comprehensive MQA Decoding: Full three-step MQA decoding supports Tidal Masters, enabling playback of high-resolution audio with unmatched detail and clarity.
• Enhanced Phono Stage: An optimised, low-noise MM Phono preamp with RIAA equalisation provides the perfect interface for vinyl playback, adding warmth and precision to the listening experience.
• Dedicated Headphone Amplifier: With current-feedback circuitry, high slew rate, and gain bandwidth, it supports a dynamic, engaging performance for all types of headphones.
• Roon Tested: Certified for Roon, offering an exceptional user experience that seamlessly integrates with the Roon ecosystem.

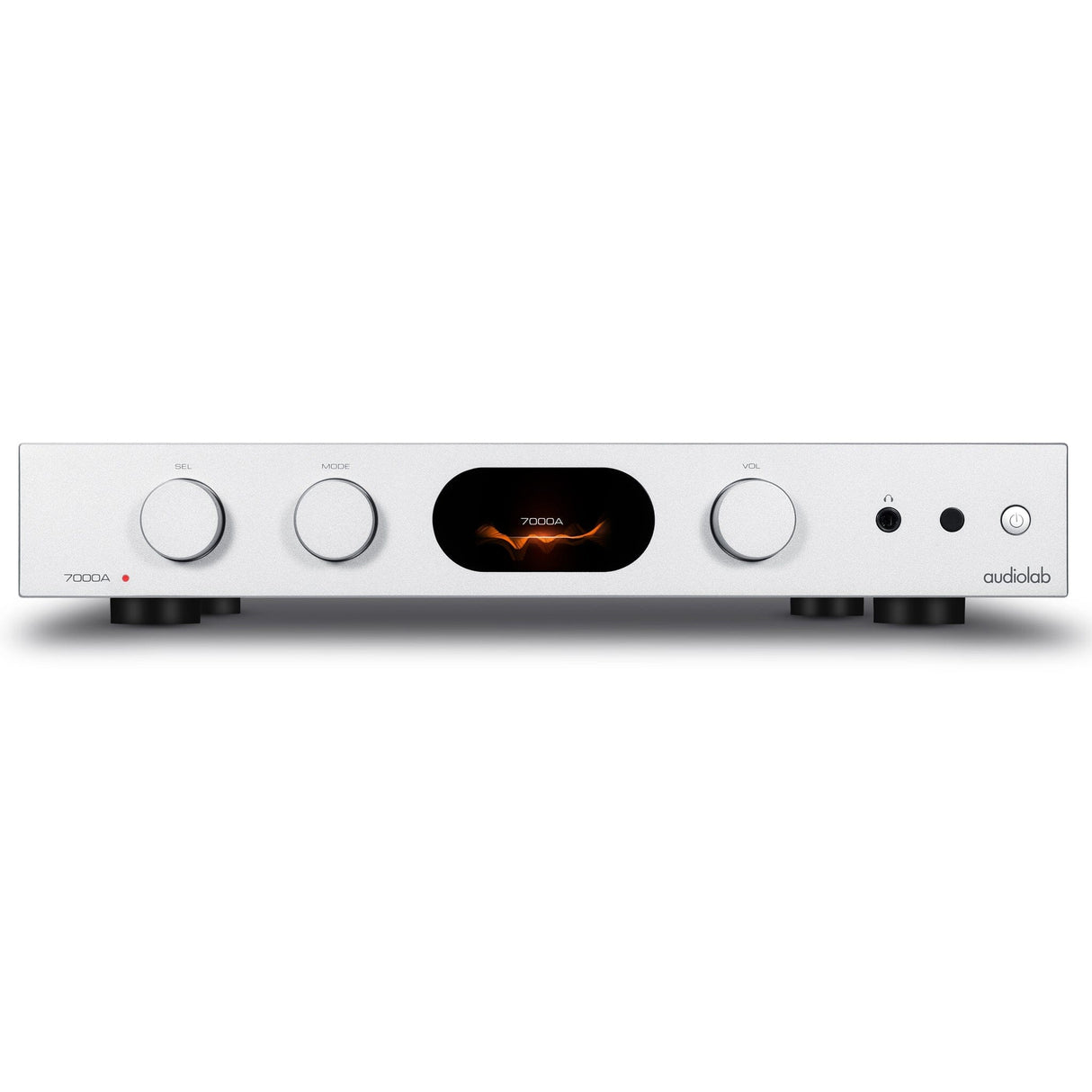

• Customisable 2.8” IPS Display: The intuitive GUI displays track details, settings, and a VU meter in either analogue or digital form, combining style with functionality.
• Three Operational Modes: Use as an integrated amplifier, preamp, or power amp to meet your specific audio system needs, offering ultimate flexibility and integration.

With high-power performance, a wide range of source compatibility, and an improved user interface, the Audiolab 7000A amplifies every musical detail with precision, power, and elegance. Step into the new era of home audio with Audiolab’s class-leading integrated amplifier.

• Model: 7000A
• General Description: Integrated Amplifier
• Design Philosophy and Core Technology: 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB, ES9038Q2M 32-bit DAC, 2.8" (480x640mm) Full View IPS LCD, Built-in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical), Bluetooth 5.0 (aptX / aptX LL) support, Low Noise Moving Magnet Phono Stage, Dedicated Current-Feedback Headphone amp, Integrated / PRE-POWER / PRE-only modes, VU Digital / VU Analog Meter, USB Upgrade Support

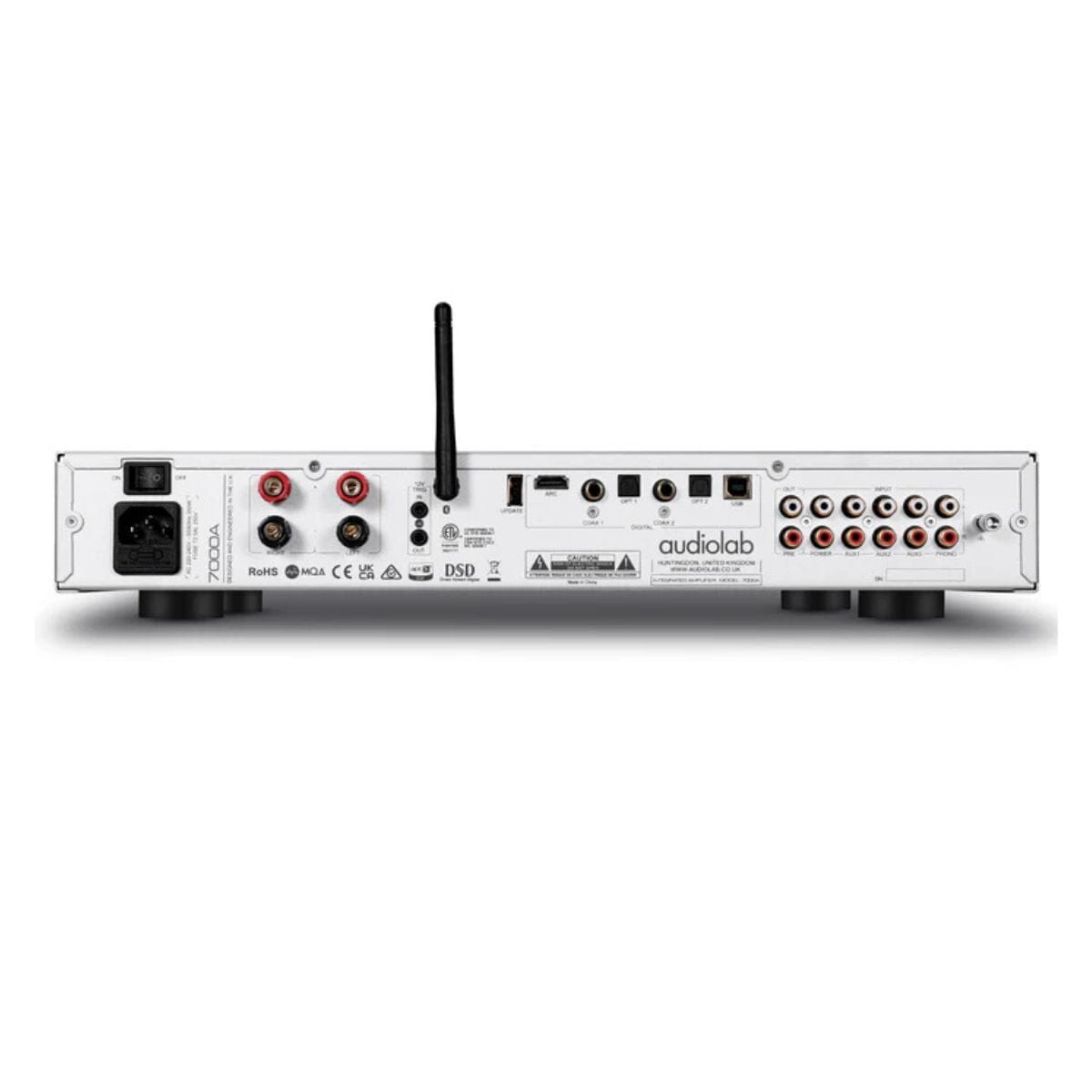

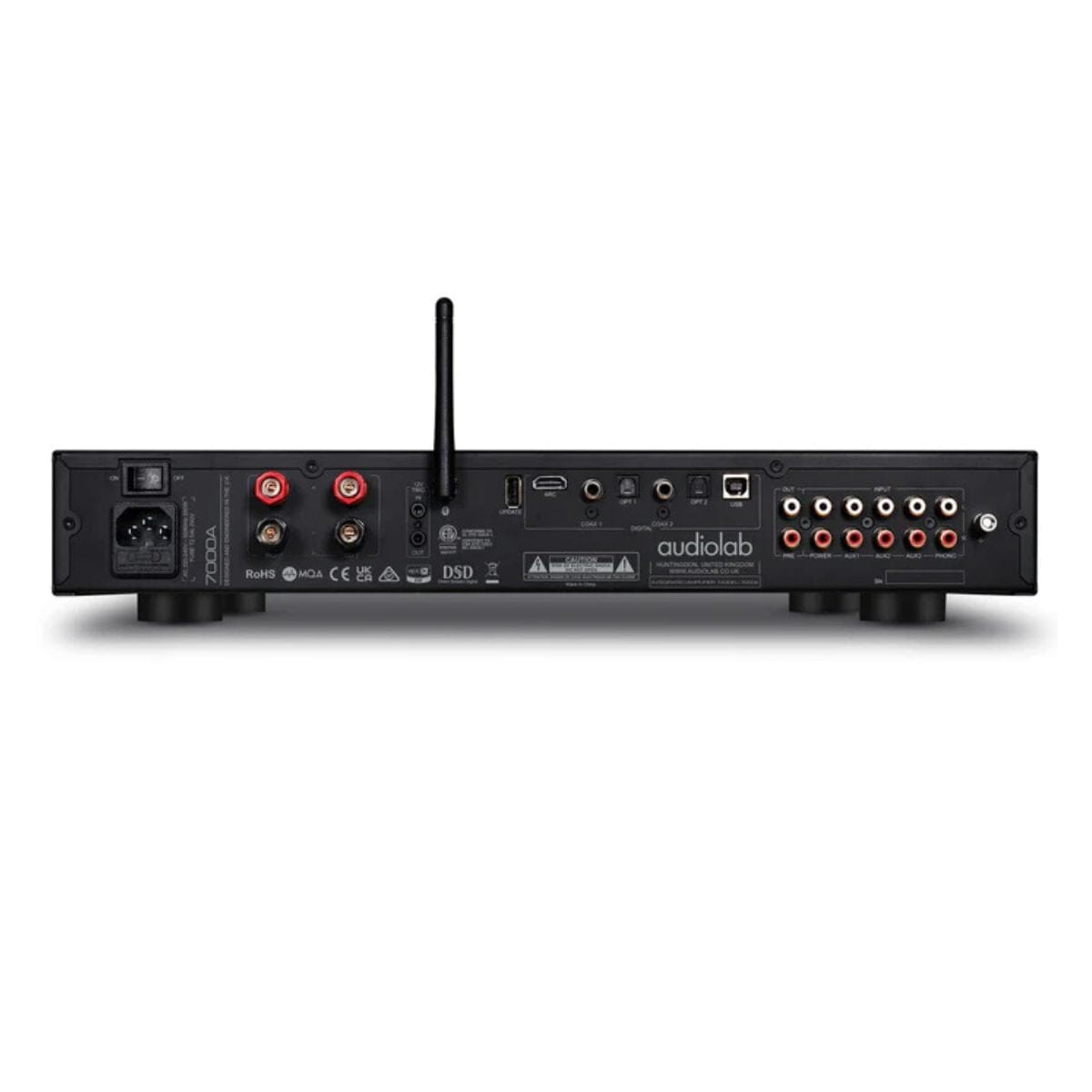

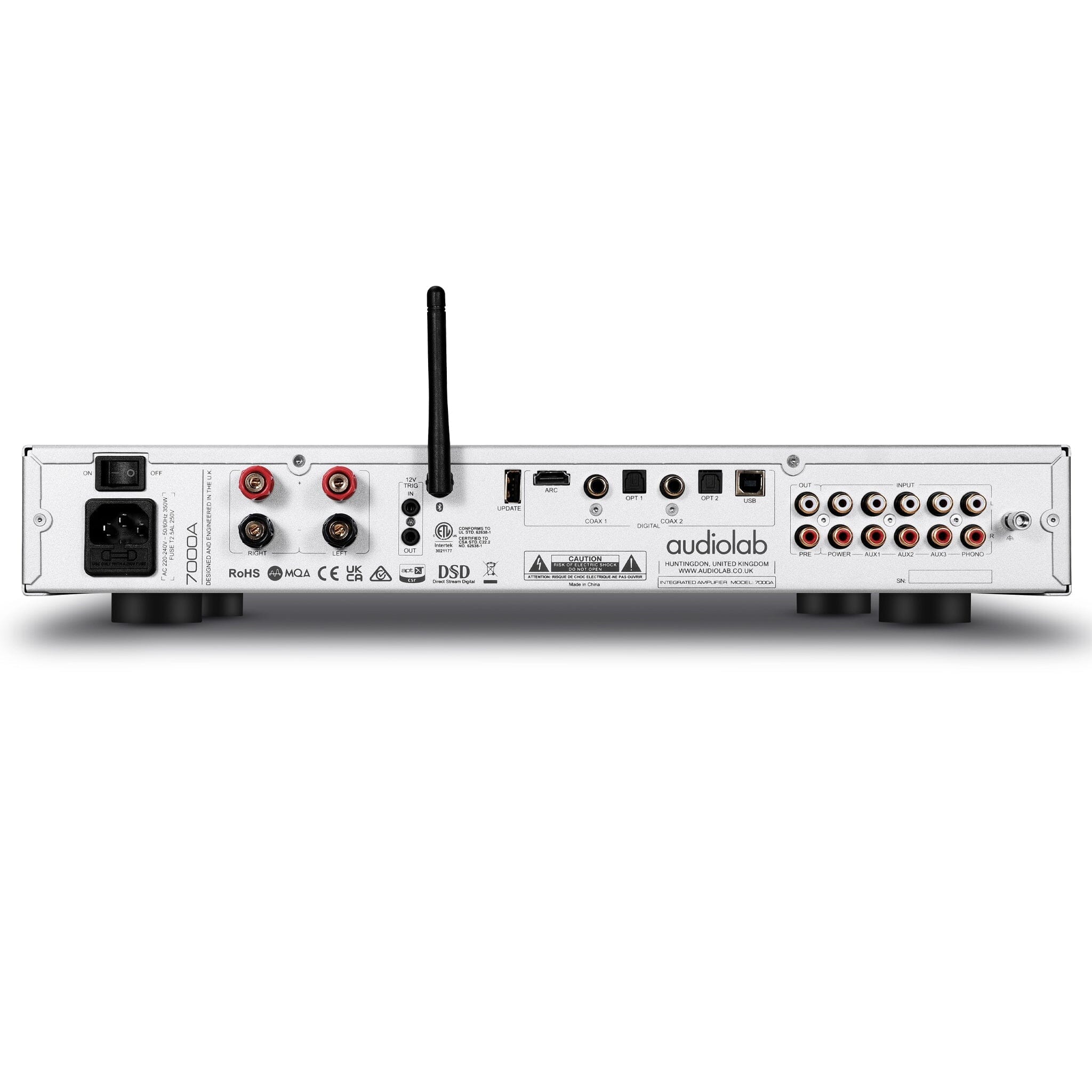

• Inputs: 3 x Analog, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, 1 x PC USB (USB B - Windows / macOS only), 1 x Bluetooth (aptX / aptX LL), 1 x 12V Trigger
• Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
• Sampling Frequency: Optical / Coaxial: 44.1kHz - 192kHz; PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
• Preamplifier Section: Gain: +6dB (Line); +55dB (Phono MM), Input Sensitivity: 820mV (Line, Volume = 0dB); 3.1mV (Phono MM, Volume = 0dB), Input Impedance: 10K (Line); 47K // 100pF (Phono MM), Total Harmonic Distortion (THD): < 0.0005% (1kHz @ 2V, Volume = 0dB), Frequency Response: 20Hz-20kHz (+/-0.1dB), Output Voltage: 2.3V max. (Volume = 0dB), Output Impedance: 100 ohms, Signal-to-Noise Ratio: > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted)
• DAC: D to A Converter: ES9038Q2M, Total Harmonic Distortion (THD): < 0.0005% (1kHz @ 0dBFS), Output Level (0dBFS, 1kHz): 2.1Vrms, Max. Sampling Frequency: Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512
• Power Amplifier Section: Gain: +29dB, Rated Power Output: 2 x 70W (8 ohms, THD < 1%); 2 x 110W (4 ohms, THD < 1%), Frequency Response: 20Hz-20kHz (+/-0.3dB), Total Harmonic Distortion (THD): <0.003% (1kHz @ 40W / 8 ohms), Input Sensitivity: 720mV, Signal-to-Noise Ratio (S/N): > 110dB (A-weighted), Max. Output Current: 9A
• Headphone Amplifier: Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW), Output Impedance: 10 ohms, Load Impedance: 20-600 ohms
• General: Standby Power Consumption: <0.5W, Net Weight: 8.4kg, Gross Weight: 10.7kg, Dimensions (mm) (W x D x H): 444 x 340 x 78, Carton Size (mm) (W x D x H): 500 x 455 x 140, Finish: Black / Silver, Power Requirements: 220-240V ~ 50/ 60Hz; 100-120V ~ 50/ 60Hz, Standard Accessories: Power Cord, Remote Control, User Manual, Antennas

• 1 x 7000A Amplifier
• 1 x Power Cable
• 1 x Remote Control
• 1 x Antenna
• 1 x User Manual

• User Manual
