Description
Description

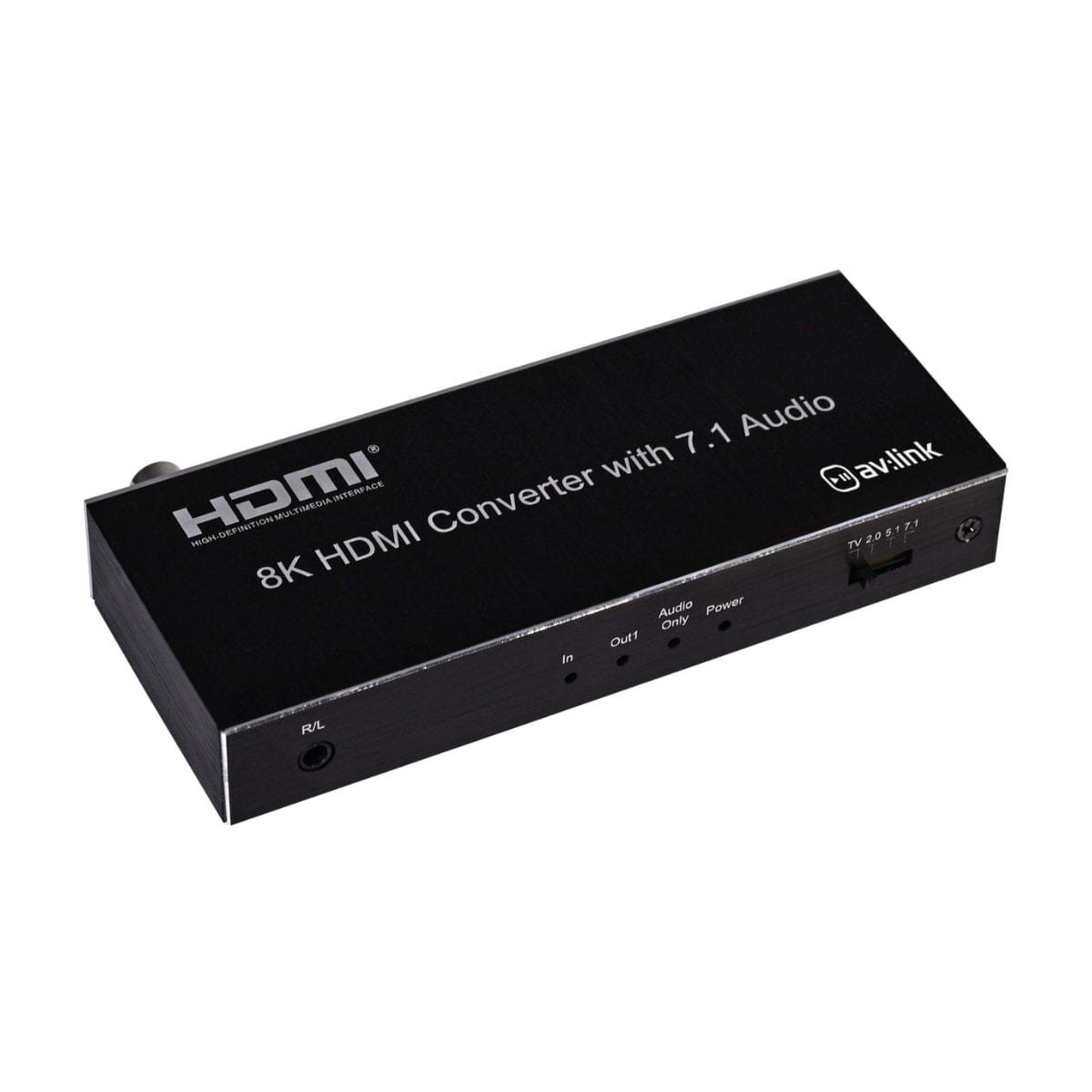

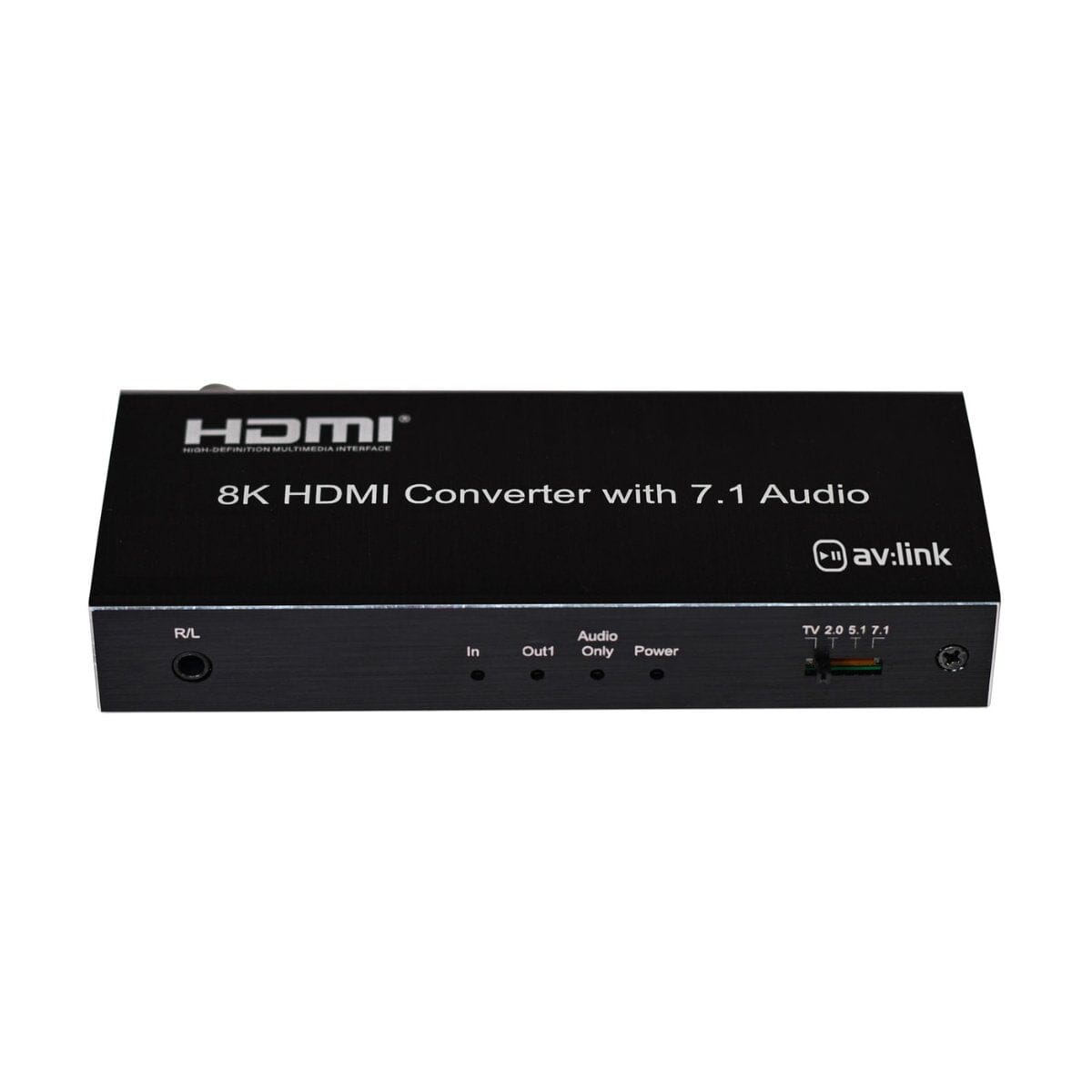

State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device.
With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.
FEATURES
- Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
- Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
- Supports Variable Refresh Rate (VRR) and HDR10
- Simple plug and play installation and instant synchronisation without delay
- Attractive brushed metal finish
- UK mains adaptor supplied (DC5V/1A)
Key Features
Key Features
-
Warranty
Specifications
Specifications
- Input Connections: HDMI (8K), USB-C (DC/5V power input)

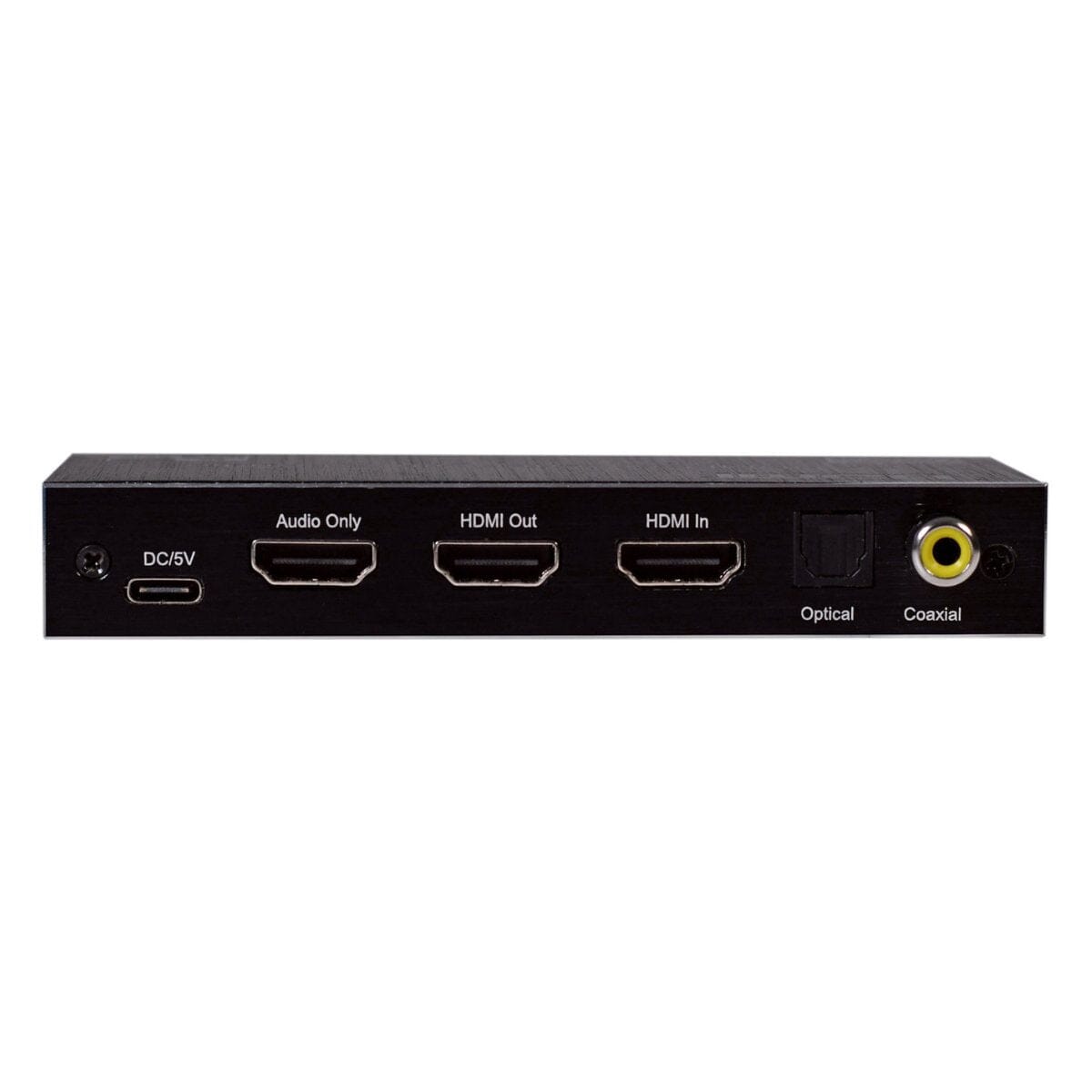

- Output Connections: HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
- Video Resolution: Up to 7680 × 4320 @ 60Hz
- Video Format: 8/10/12-bit deep colour
- Max. Baud Rate: 40Gbps
- Audio Output (HDMI): PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- Audio Output (SPDIF/COAX): LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
- Audio Output (3.5mm Jack): Analogue stereo 2.0ch
- Max. Cable Length: Input: 8K/60Hz ≤3m, Output: 8K/60Hz ≤5m
- Power Supply: Input AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
- Dimensions (W x H x D): 121 x 57 x 19 mm
- Weight: 118 g
What's In The Box
What's In The Box
1 x 8K audio extractor

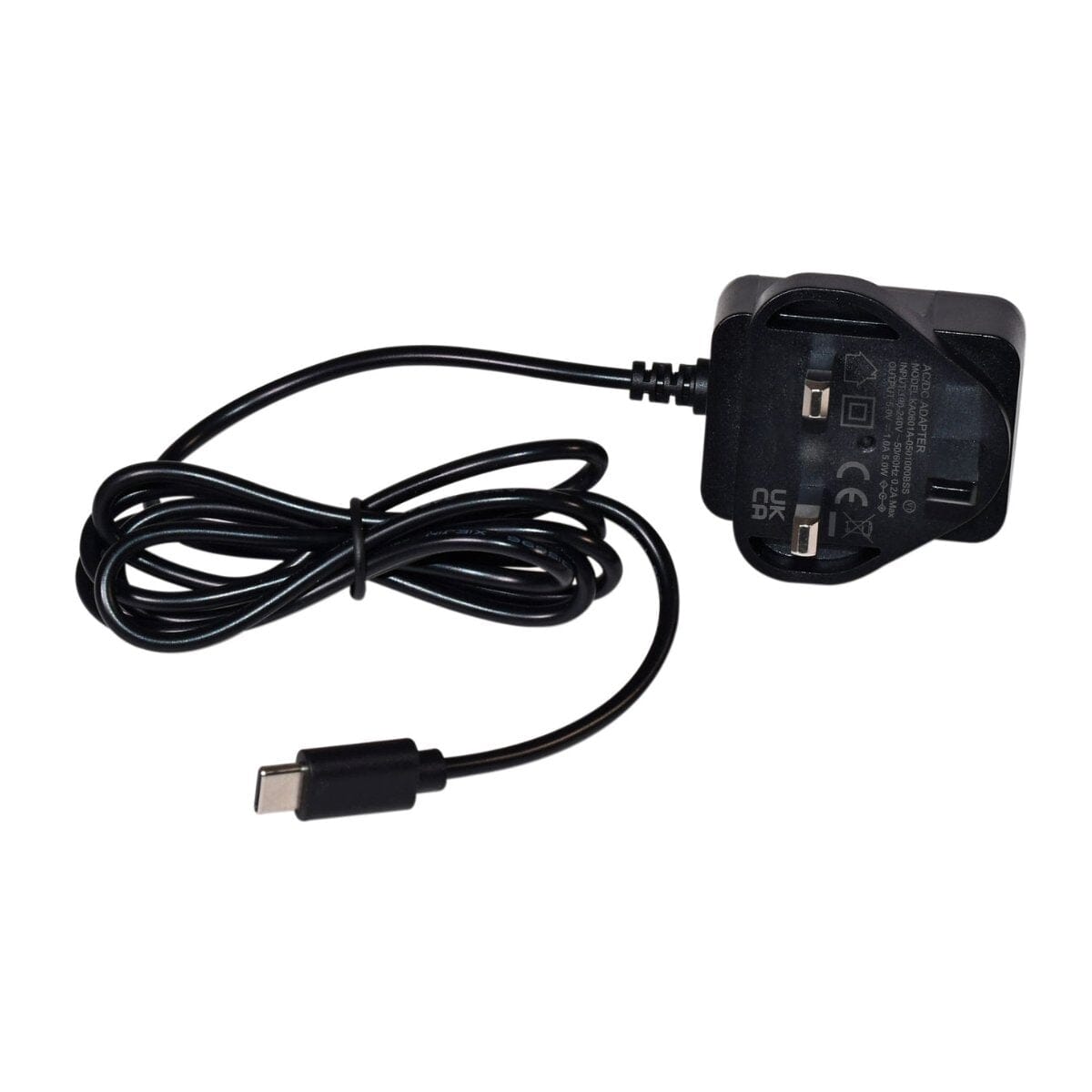

1 x 5V DC USB power supply
4 x Self-adhesive rubber feet
1 x User manual
