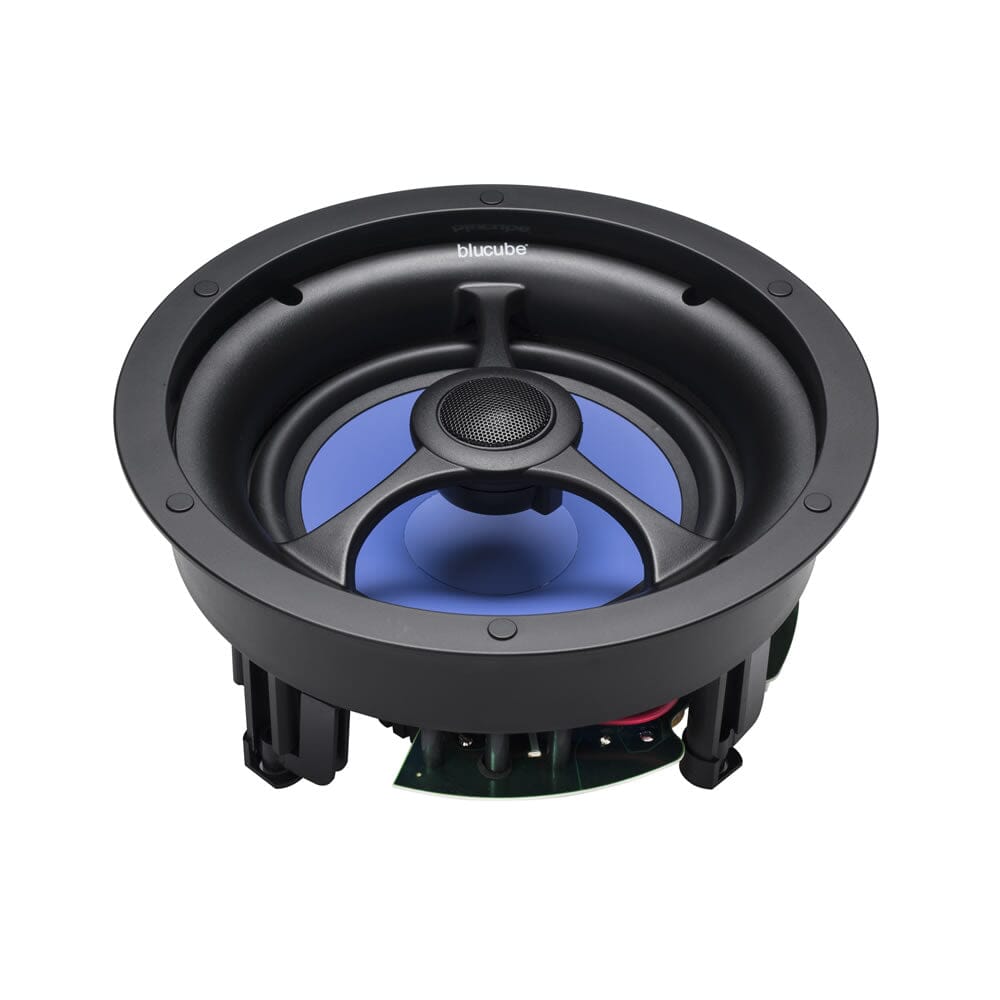

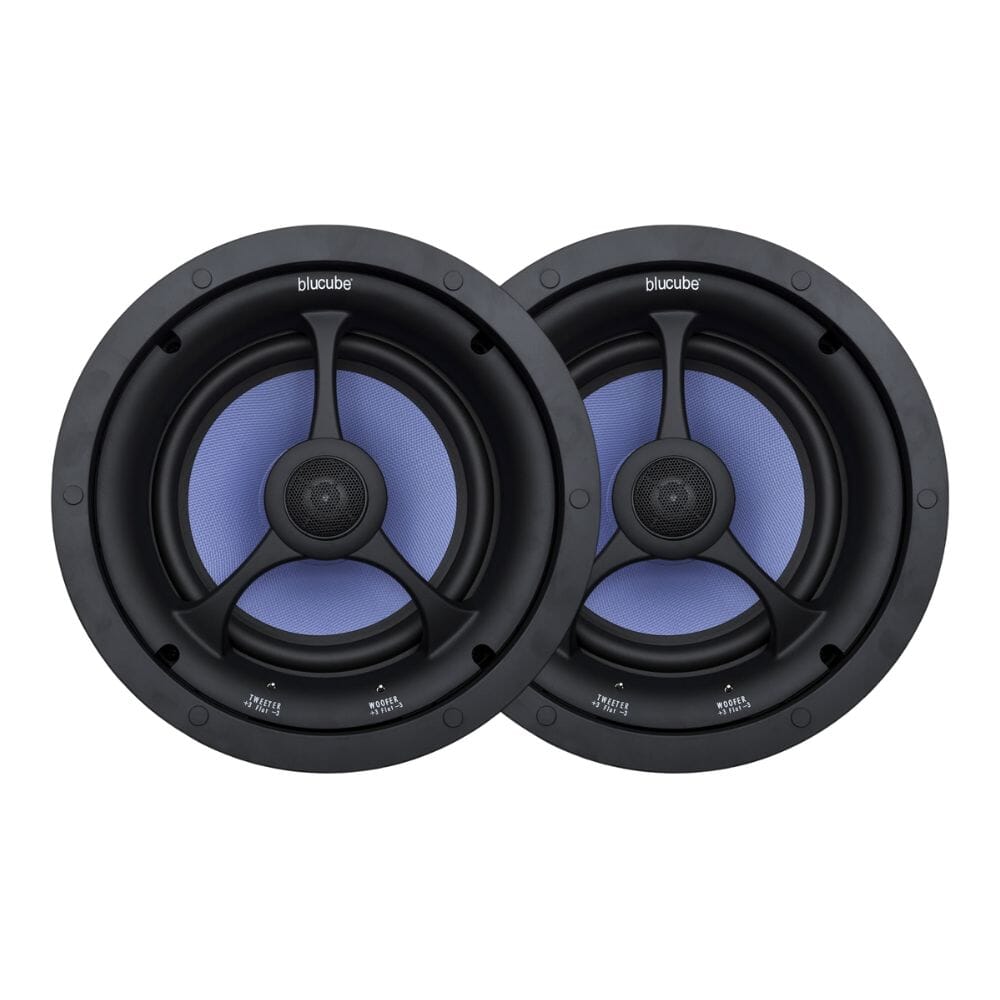

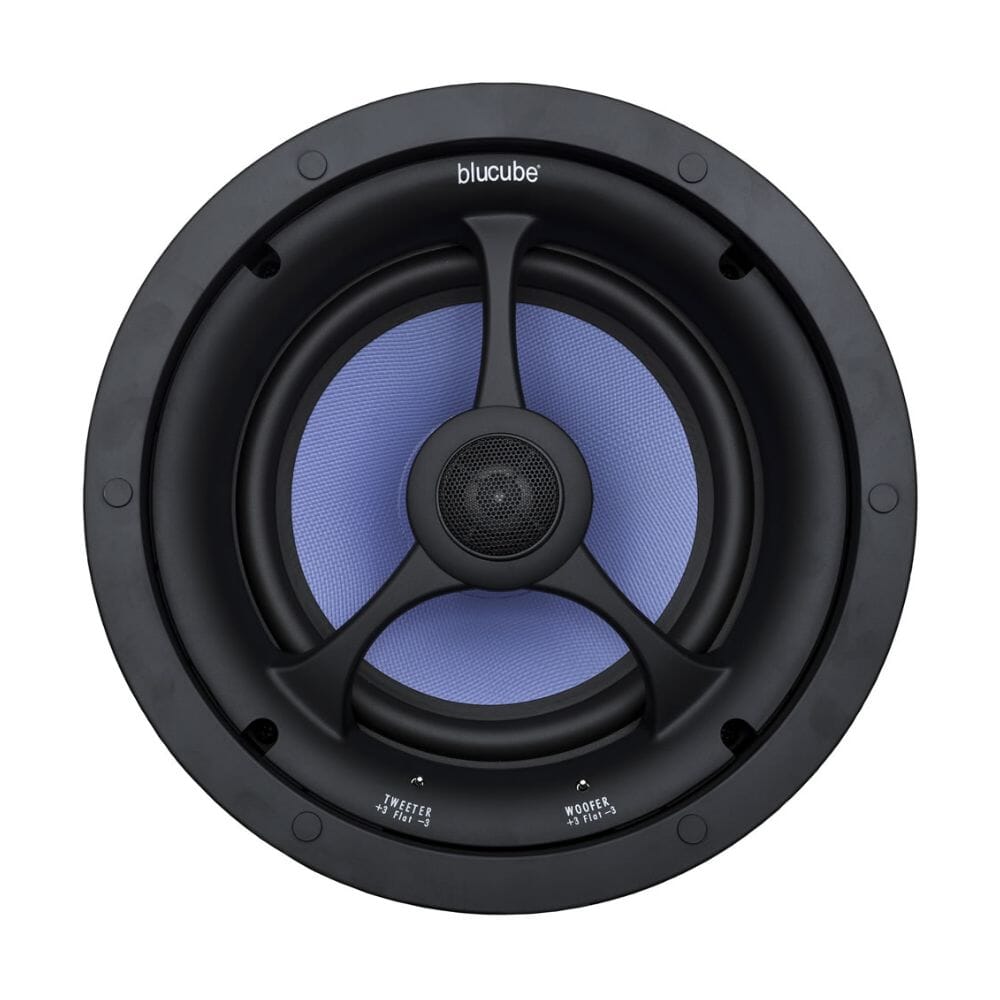

Blucube BCK80 8" Ceiling Speakers (Pair)

The Blucube BCK80 is the highest performance in-ceiling speaker in the Blucube range, designed to deliver exceptional sound quality for larger rooms or for installations where more depth of sound is desired.

This two-way speaker features a larger 200mm (8in) woven Kevlar bass/midrange driver and a 1″ titanium dome tweeter, providing a rich and immersive audio experience.

FEATURES

• Superior Sound Quality: The BCK80 includes an 8" woven Kevlar woofer with a 1.25" voice coil, a 25 oz magnet, and a vented pole piece, delivering deep bass and clear midrange tones.
• Advanced Tweeter: Equipped with a 1" titanium dome tweeter, ferro-fluid cooled with a 30° swivel and pivot neodymium magnet for precise and clear high frequencies.
• High-Quality Crossover: Utilizes an FR4 board with an 18dB per octave network, ensuring precise frequency distribution. Features +/- 3dB attenuation switches on both the woofer and tweeter for customizable sound tuning.
• Flexible Impedance: The speaker supports both 4ohm and 8ohm configurations, selectable via a switch on the PCB, making it compatible with a wide range of amplifiers and systems.
• Easy Installation: Designed for straightforward in-ceiling installation with gold-plated terminals that accept 14AWG wire, ensuring a secure connection.
• Wide Frequency Response: Covers a frequency range from 40Hz to 22kHz, delivering detailed and rich audio across the spectrum.
• High Sensitivity: With a sensitivity of 89dB at 1W/1M, the speaker efficiently converts power into clear and powerful sound.

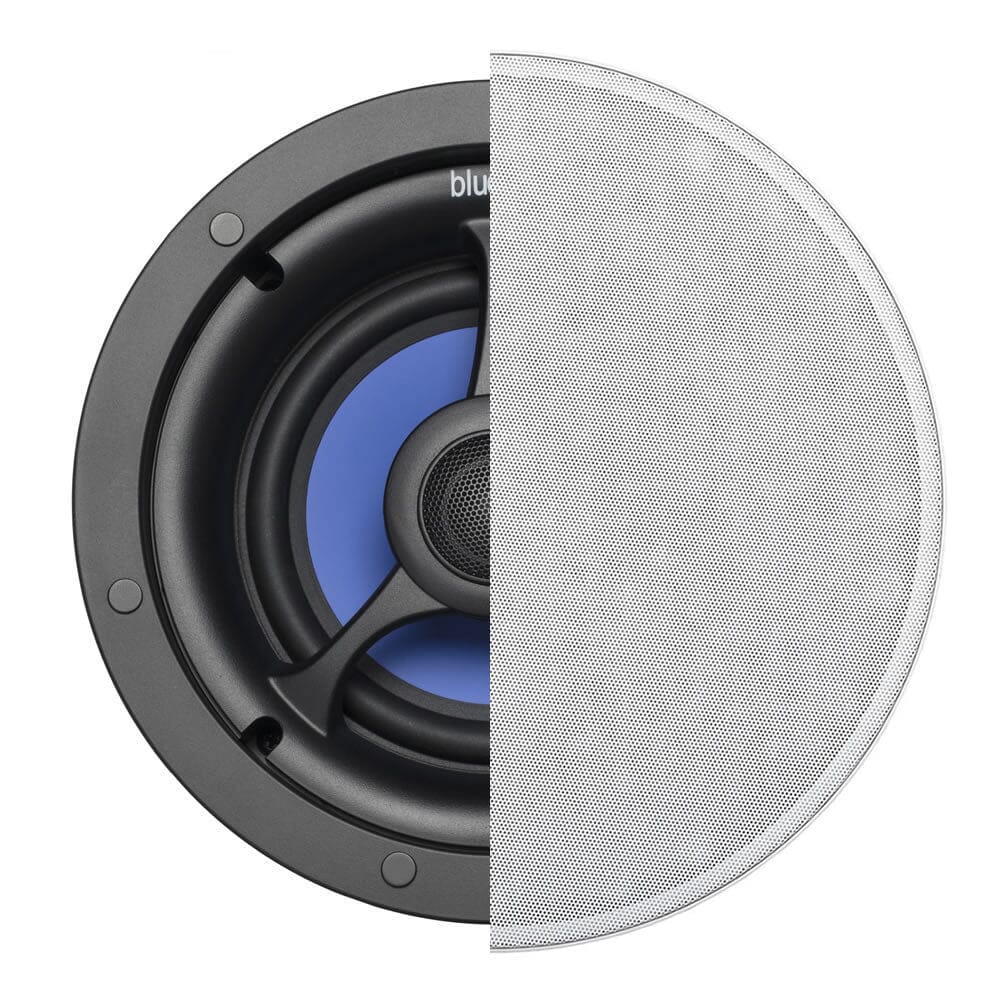

• Sleek Design: Features a magnetically fitted rimless flat grille for a modern, unobtrusive appearance that blends seamlessly into any ceiling.

Enhance your audio experience with the Blucube BCK80 in-ceiling speaker, offering exceptional sound quality, flexible installation, and a comprehensive audio solution for larger rooms or spaces where rich, deep sound is desired.

• Woofer: 8″ woven Kevlar, 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
• Tweeter: 1″ titanium dome, ferro-fluid cooled, 30° swivel and pivot, neodymium magnet

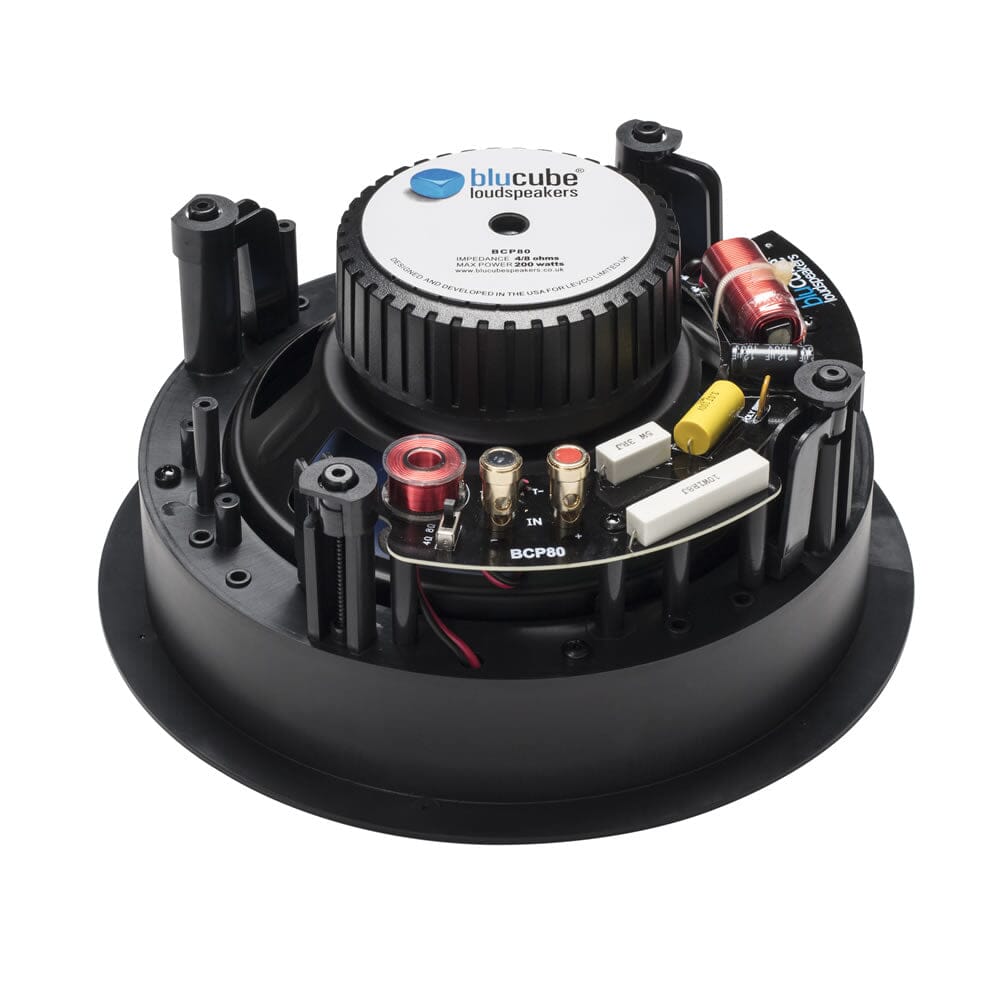

• Crossover: FR4 board with 18dB per octave network, +/- 3dB attenuation switches on woofer & tweeter 4ohm/8ohm switchable on PCB, Polyimide switch-auto protect reset switch, 14AWG connection to woofer section. Gold Plated terminals will accept 14AWG wire
• Frequency Response: 40Hz-22KHz
• Sensitivity: 89dB at 1W/1 M
• Recommended Amplifier Power: 10-150 watts
• Impedance: 4ohm/8ohm selectable on PCB
• Cut out size: 241 mm (9.5″)
• Depth: 120mm (4.72″)

• 2 x BCK80 8" Ceiling Speakers

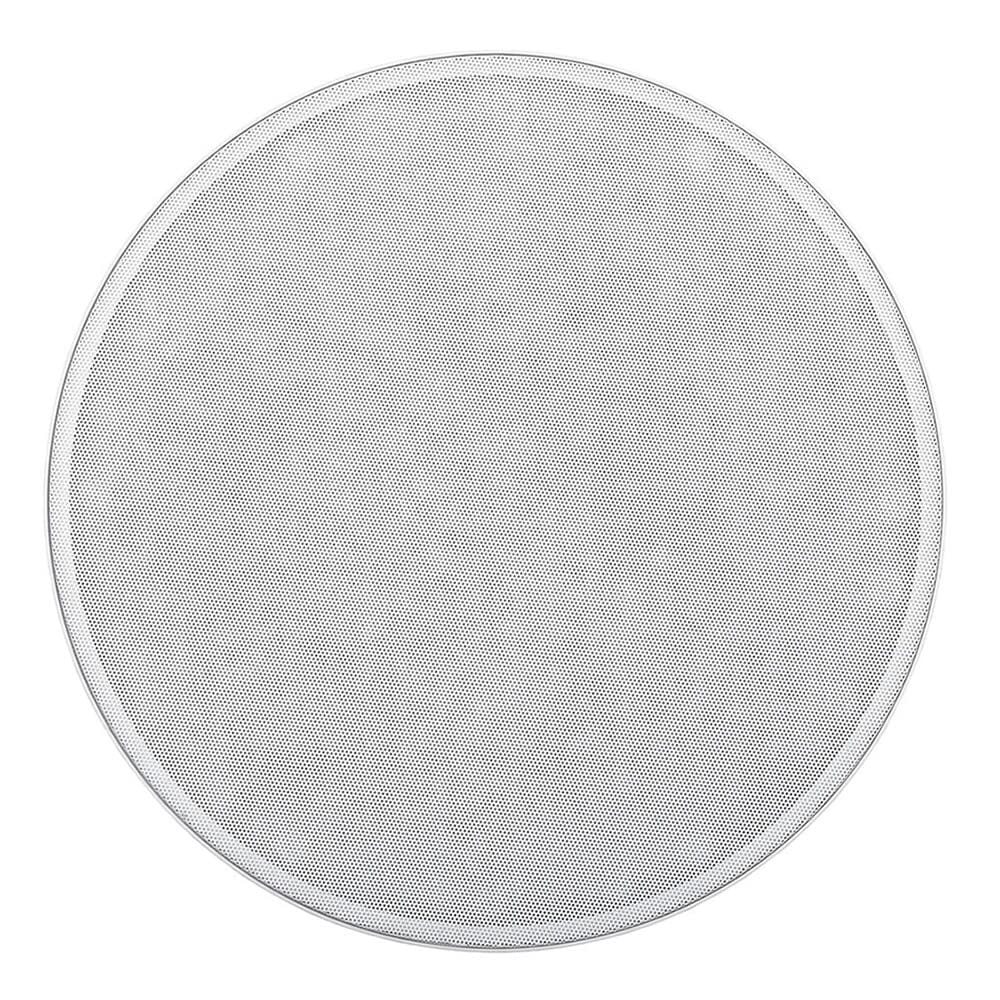

• 2 x Low Profile Magnetic Grilles
• 2 x Cut Out Templates
