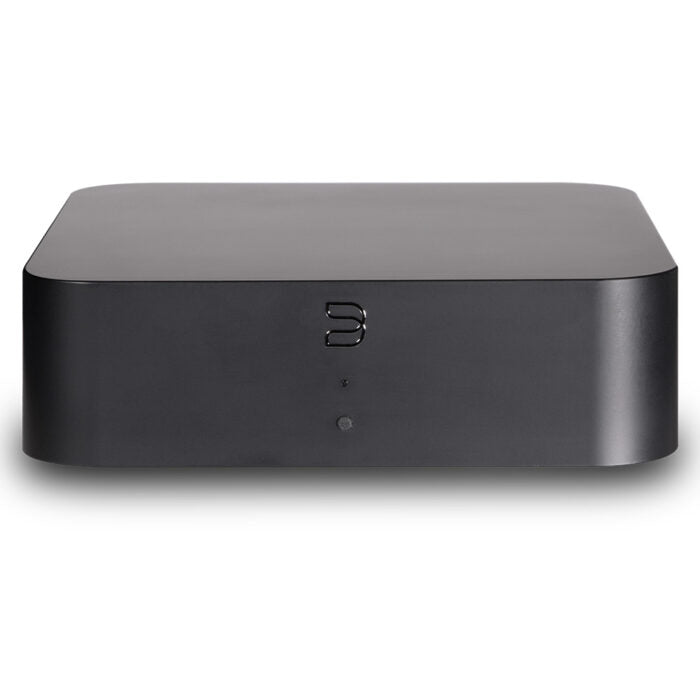

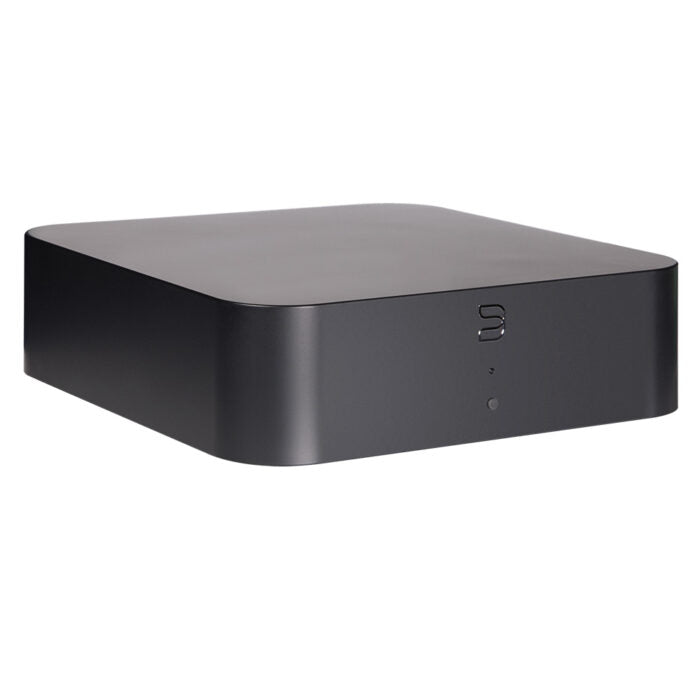

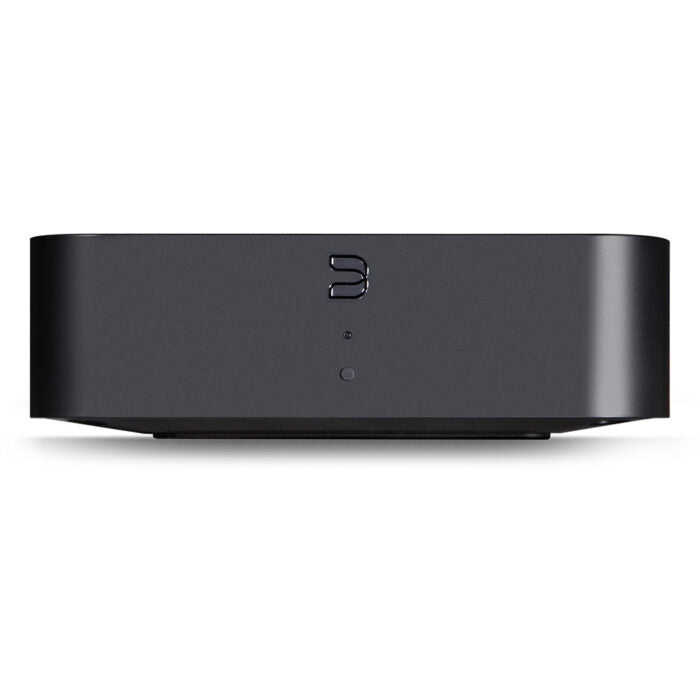

Bluessound HUB Wireless Audio Source Adaptor

Streaming audio is more flexible than ever with the HUB. Turn any wired audio device into a multi-room player by adding a HUB to transmit music to one or many Bluesound players around the home, wirelessly.

This means you can now stream virtually any audio source, anywhere.

FEATURES

• Connect Wired Audio Sources to Bluesound Ecosystem:Connect any wired audio source to the HUB to bring it into your Bluesound ecosystem.

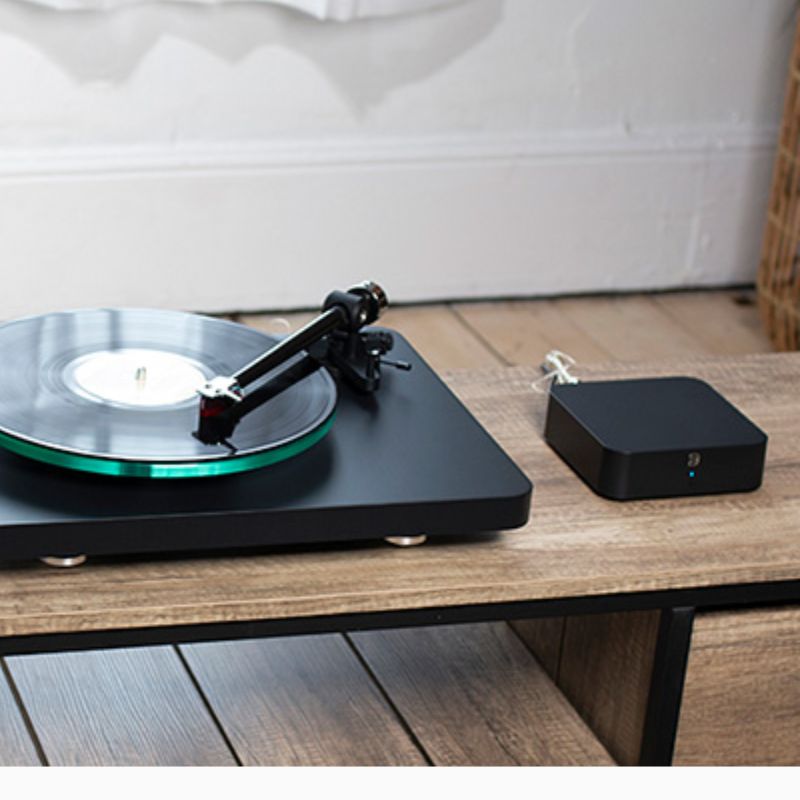

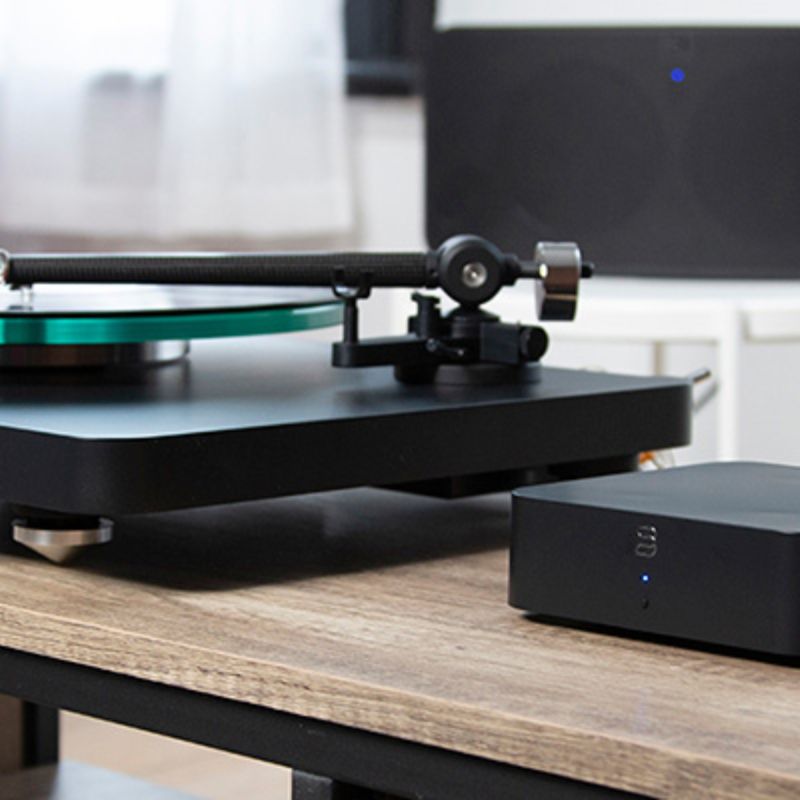

• Stream CD and Vinyl Collections Wirelessly:Stream your CD and vinyl collections anywhere in the house without being limited by wires or proximity.


• High-Quality Phono Stage for Vinyl Playback:Low noise, wide-band moving magnet phono stage acts as a network turntable preamp for hi-res playback of vinyl.


• Enhance TV Sound with Bluesound Pulse Speakers:Use the HUB with a pair of Bluesound Pulse speakers to upgrade your TV sound


• Five Input Options:Enjoy five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog and a moving magnet Phono stage to support your music devices.


• Simultaneous Playback of Analog and Digital Streams:Play one analog and one digital stream simultaneously to different Bluesound or BluOS players.


• Convenient Source Selection with BluOS App:Easily choose any HUB input as the audio source for your Bluesound player with the BluOS app.


• Dual-Band Wi-Fi or Gigabit Ethernet Connectivity:Connect to the network with dual-band Wi-Fi or Gigabit ethernet.


• Universal USB-C Power for Easy Setup:Universal USB-C plug and play power

AUDIO & OPERATING SYSTEM

• Operating System: BluOS
• BluOS Controller Operating System: iOS, Android, Windows, MacOS
• *Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
• Simutaneous Audio Streams: 2 per HUB, 1 x analog audio input, 1 x digital audio input
• Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
• Native Sampling Rates: up to 192 kHz
• Bit Depth: 16-24
• Signal-to-Noise Ratio: >100 dB (Line input), >80 dB (Phono MM input)
• Distortion: <0.03% 20-20 kHz -1dBFS output
• Frequency Response: 20-20 kHz +/-0.3dB; 50 kHz -3dB


*via software update

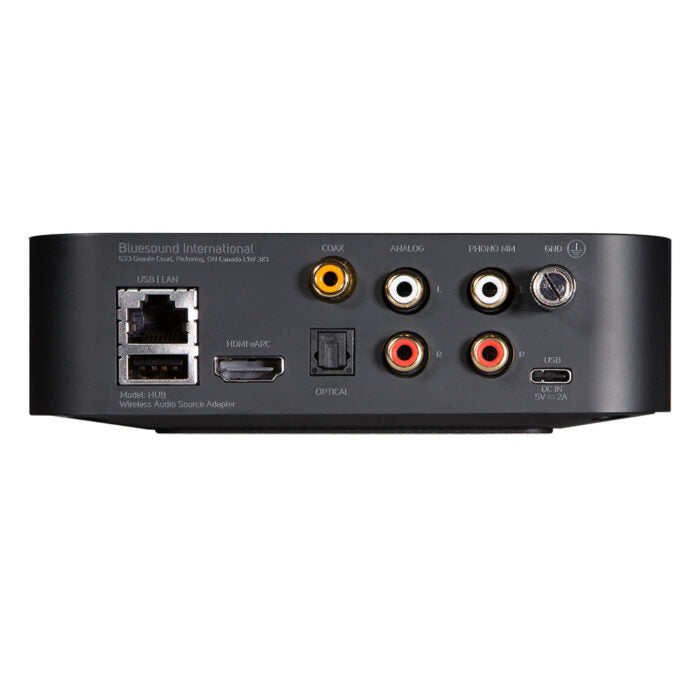

CONNECTIONS

• Power Supply: Universal USB-C Power adapter,  (Input:100-240V AC/0.3A Output:5V/2A)
• Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
• Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
• Analog Line Input: 1 x Stereo RCA
• Phono Input: 1 x Stereo RCA (Moving Magnet)
• Optical Input: 1 x TOSLINK digital optical
• Coaxial Input: 1 x RCA (75 ohms)
• HDMI Input: HDMI eARC with CEC
• USB Input: Type A (for BluOS firmware upgrade only)
• Audio Output: Network



FEATURES

• Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
• Status Indicator: Front Panel LED
• Function Button: Front Panel Function Button
• Power Consumption: 0.5W Network Standby
• Finish: Black; Matte Satin Paint
• Version: CB130
• Product Dimensions: 143 x 153 x 45mm (W x D x H) 5.6 x 6 x 1.8 in (W x D x H)
• Weight: 0.63kg / 1.39 lbs

• 1 x Bluesound HUB
• 1 x 5V Power Adapter
• 1 x 3 x International Plug Adapters
• 1 x USB-C Power Cable
• 1 x Ethernet Cable
• 1 x Mounting Template
• 1 x Safety/Warranty Guide
• 1 x Quick Setup Guide

• Bluessound HUB Data Sheet
• Bluessound HUB User Manual
• Bluessound HUB Quick Setup Guide
