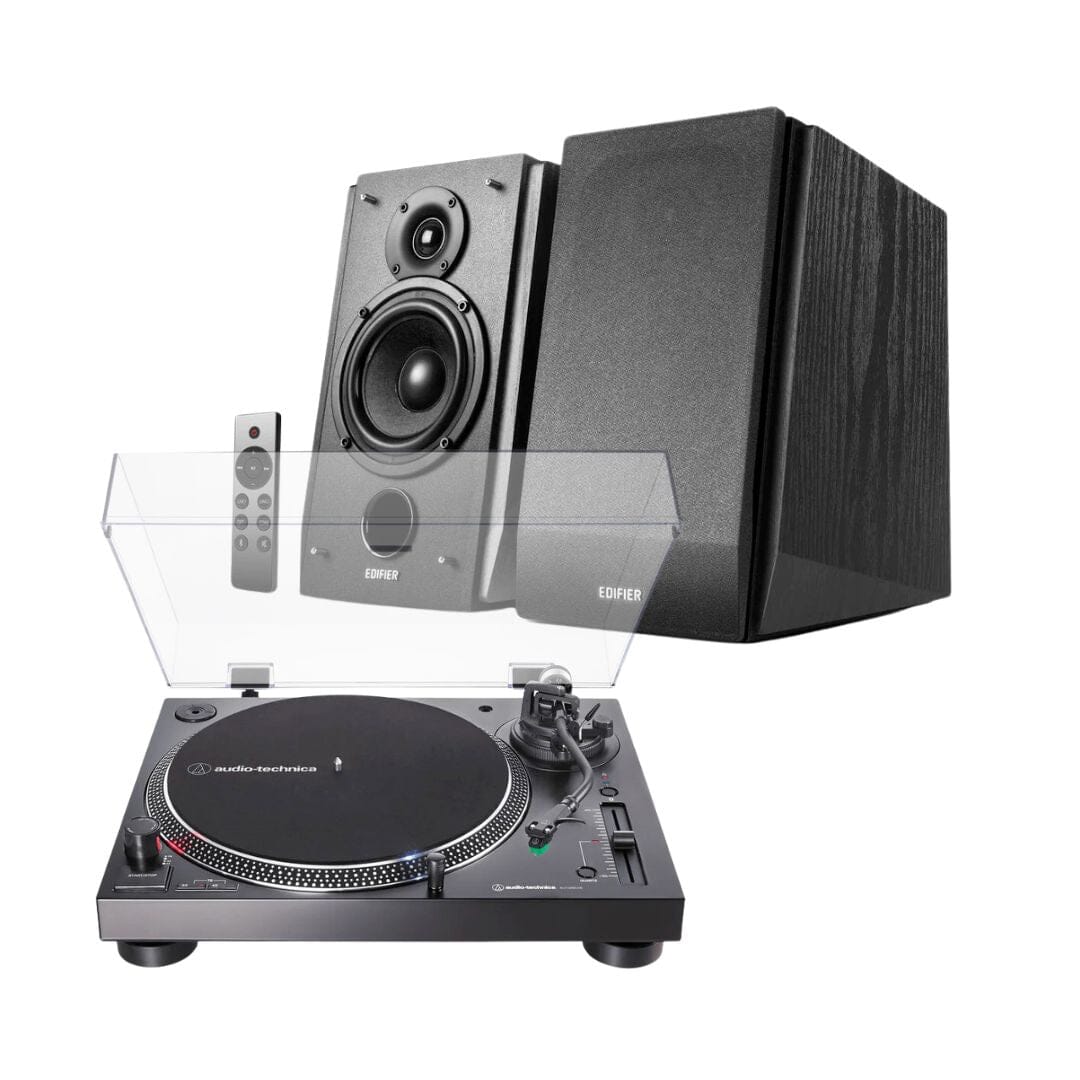

Audio-Technica AT-LP120XBT-USB Turntable + Edifier R1855DB Active Bluetooth Speakers

Elevate your audio experience with the Edifier R1855DB Active Bookshelf Speakers paired with the Audio-Technica AT-LP120XBT-USB Bluetooth Turntable.

This plug & play set-up not only ensures convenience but also offers a range of features to enhance your listening pleasure.

FEATURES

• Plug & Play Set Up: Enjoy a hassle-free and straightforward set-up, allowing you to immerse yourself in your favourite music with ease.


• Bluetooth from Any Streaming Device: Connect wirelessly via Bluetooth to the Edifier R1855DB Speakers from any streaming device, providing a seamless and versatile streaming experience.


• 3 Speed Setting 33 / 45 / 78 RPM: Customise your listening experience with the Audio-Technica AT-LP120XBT-USB Turntable's adjustable speed settings, accommodating various vinyl record formats.


• USB Function: Connect your turntable to other devices via USB, offering additional flexibility in enjoying your vinyl collection.


• Powerful 70W Speakers: Immerse yourself in the rich and powerful sound produced by the Edifier R1855DB 70W speakers, delivering an enhanced audio experience.

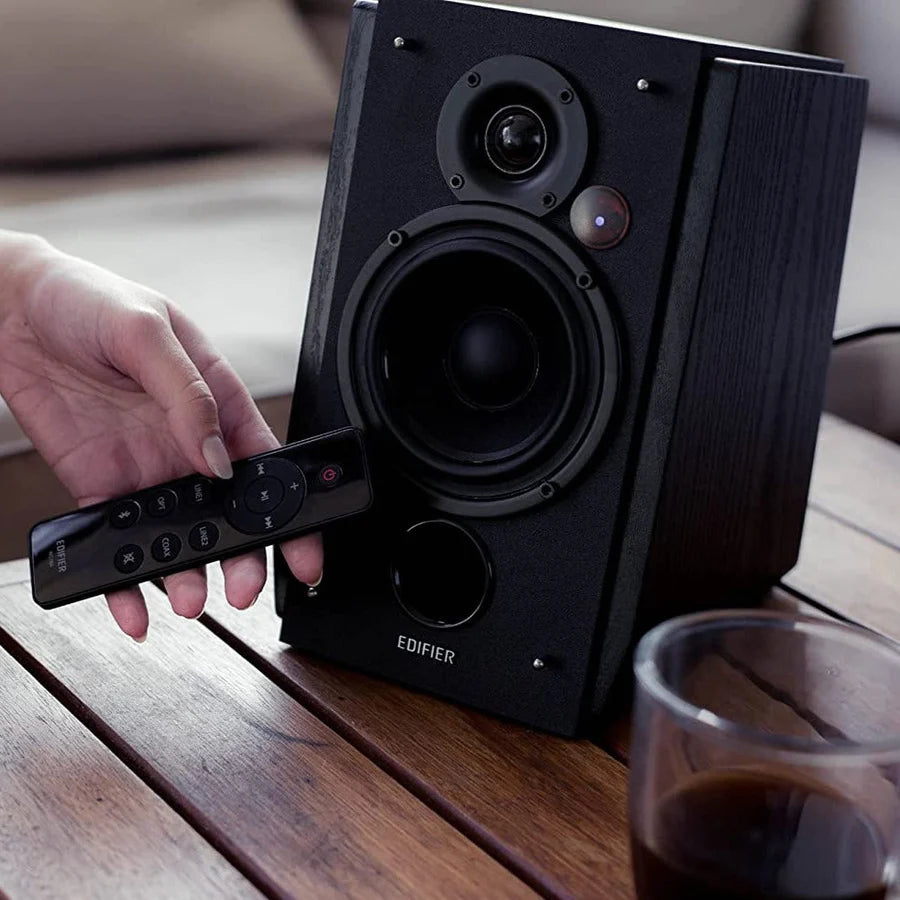

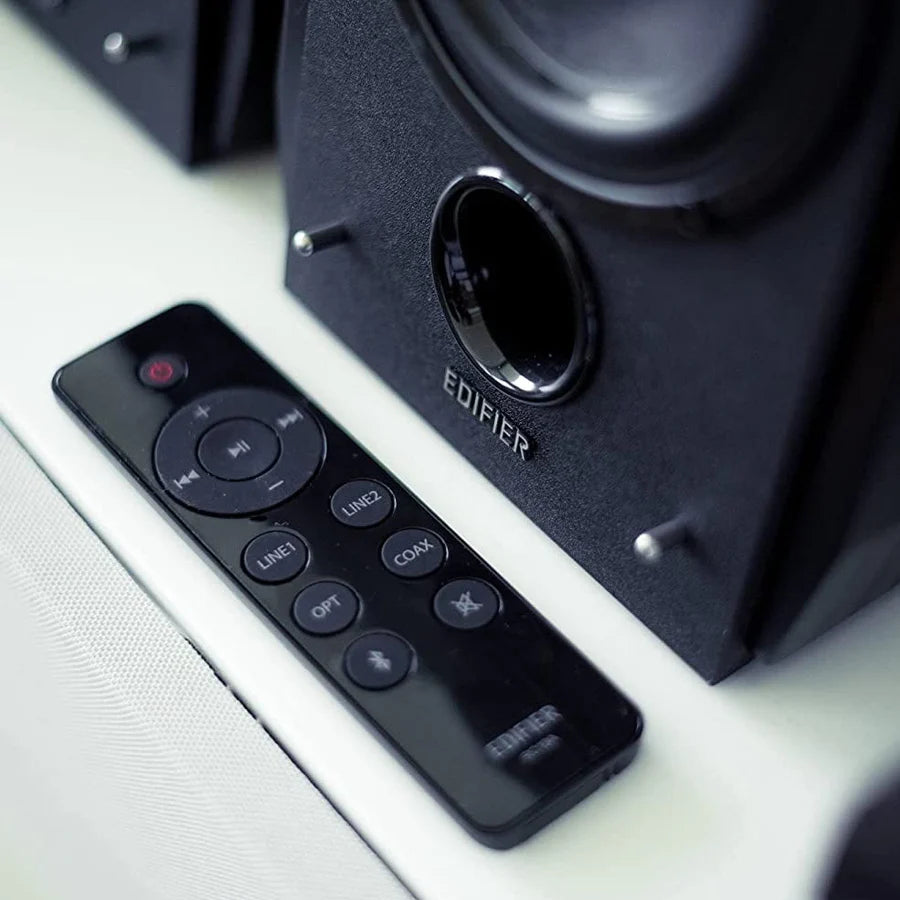

• Wireless Remote: Easily control your audio settings with the included wireless remote, providing convenient access to volume control, playback settings, and more.

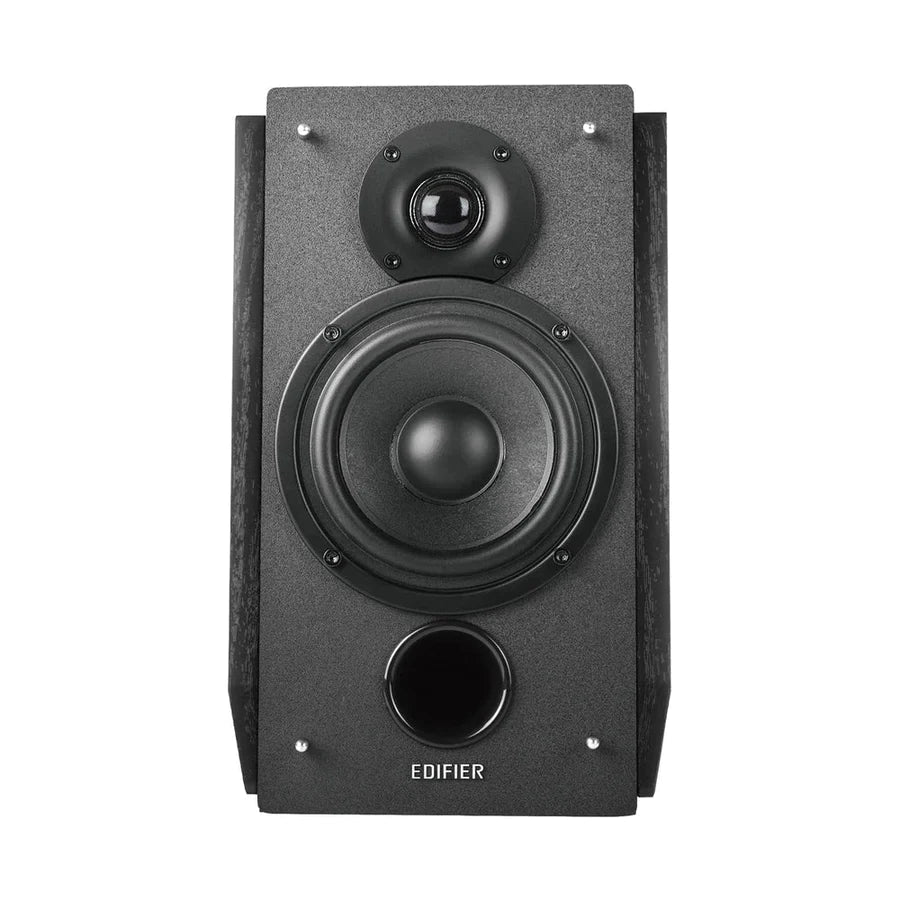

Speakers

• Total Power Output: 19W×2+16W×2 (RMS)
• Frequency Response: 60Hz-20kHz
• Signal-to-Noise Ratio: ≥ 80dBA
• THD + N: ≤ 0.2%
• Tweeter Unit: Φ19mm silk diaphragm, 6 ohm
• Mid-Bass Unit: 4" (116mm) Nomex diaphragm, 6 ohm

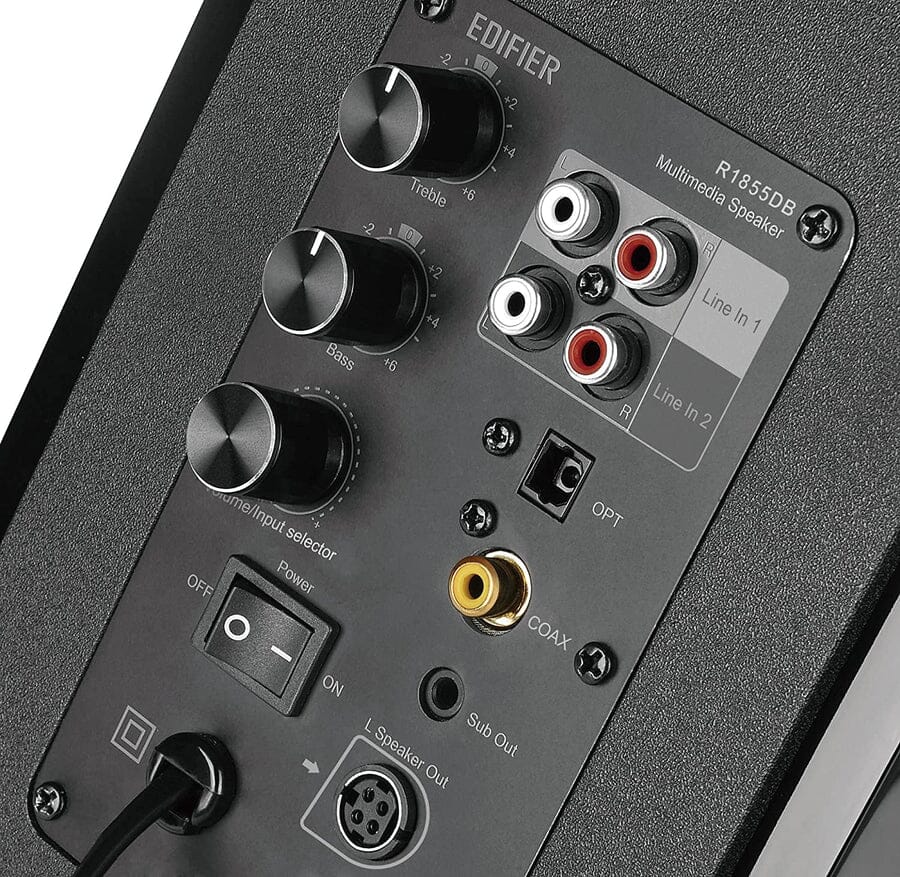

• Audio Inputs: Bluetooth, Line In, Optical, Coaxial
• Audio Output: Subwoofer output
• Input Sensitivity: Line In 1: 400±50 mV; Line In 2: 600±50 mV; OPT: 350±50 mFFS; COAX: 350±50 mFFS; Bluetooth: 500±50 mFFS
• Bluetooth Version: V5.1
• Dimensions:155×254×223mm (W×H×D)
• Product Weight: 7kg

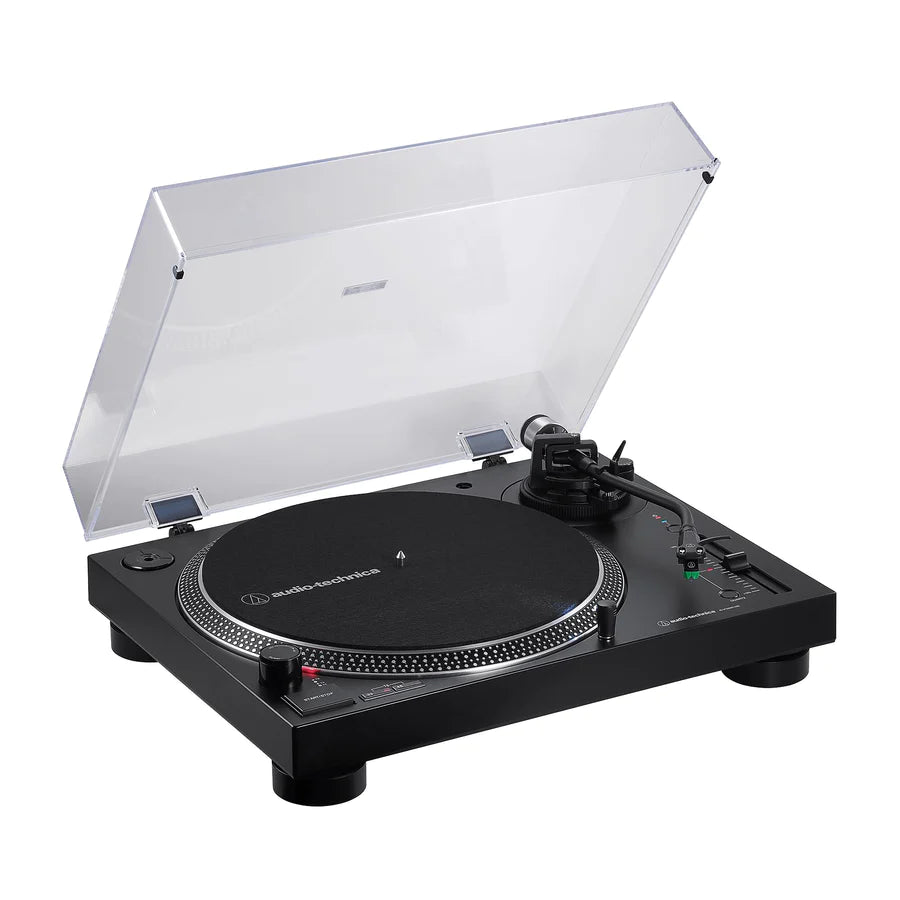

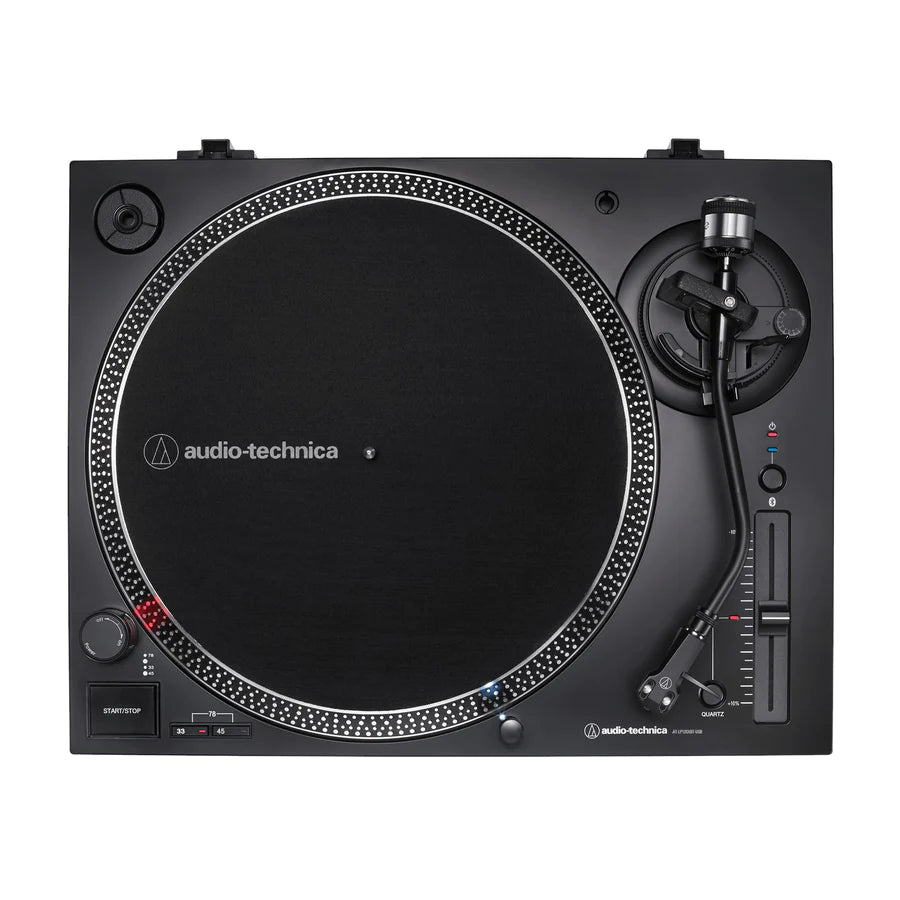

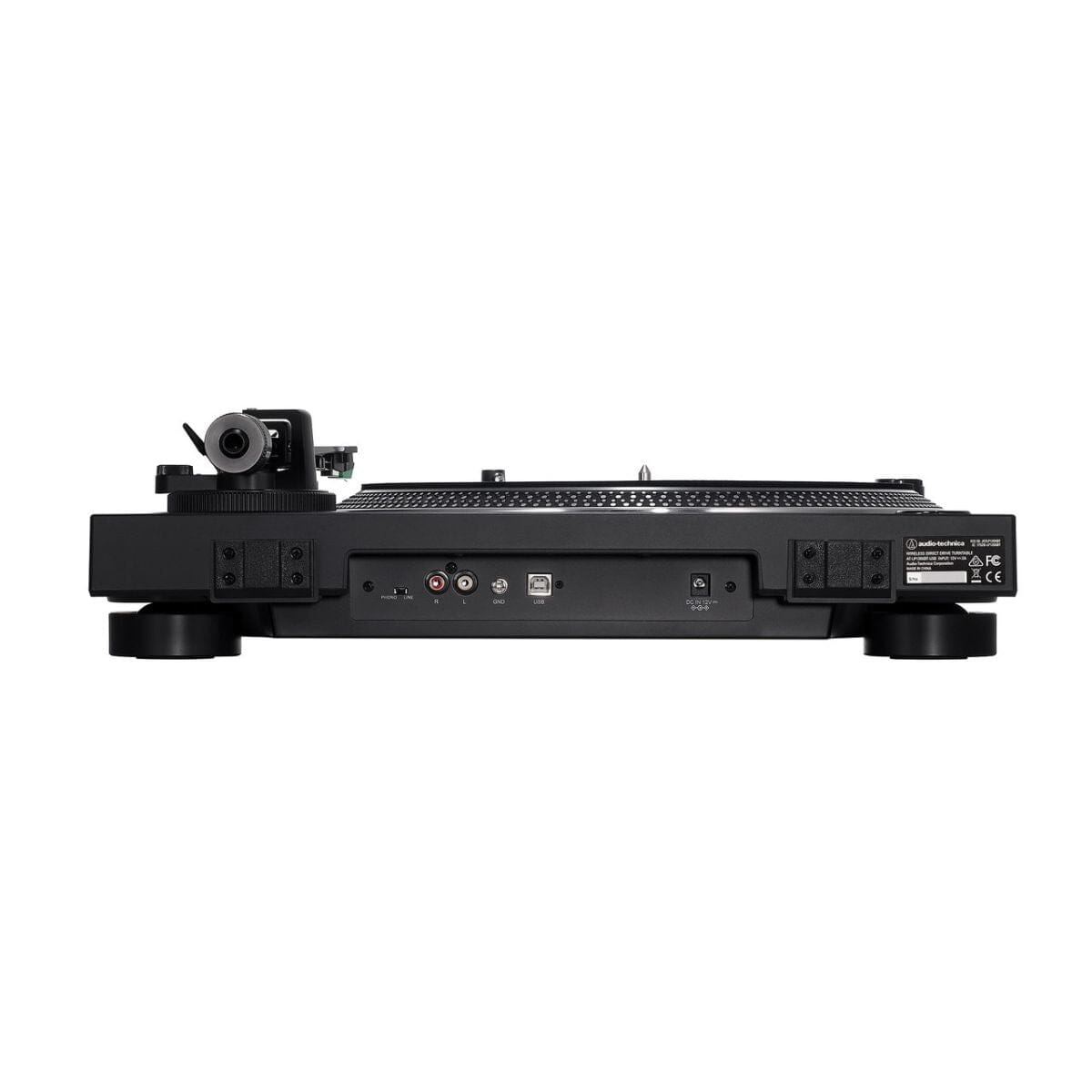

Turntable

• Type: 3-speed, fully manual operation
• Motor: DC servo motor
• Drive Method: Direct drive
• Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
• Turntable Platter: Die-cast aluminum
• Starting Torque: >1.0 kgf.cm
• Braking System: Electronic brake
• Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
• Signal-to-Noise Ratio: >50 dB
• Output Level Pre-amp: “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp: “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
• Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max
• Power Consumption: 2.75 W
• Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
• Weight: 8 kg (17.6 lbs.), without dust cover

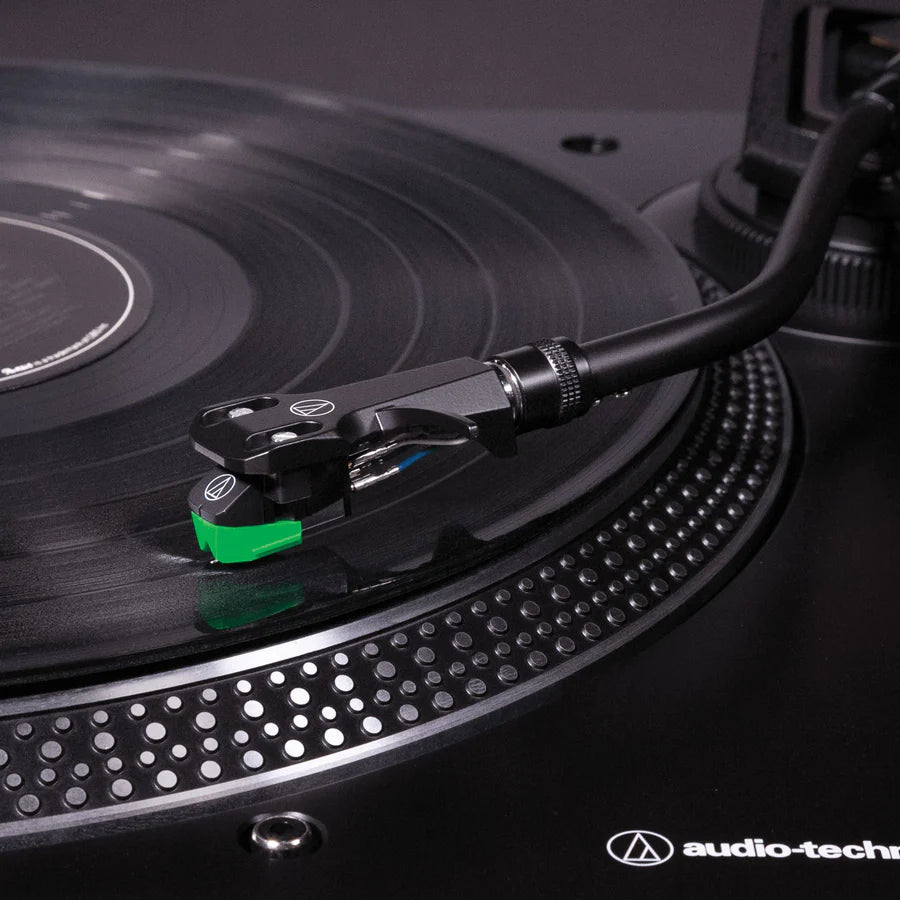

• Tonearm Type: Balanced S-shaped tonearm with detachable headshell
• Effective Arm Length: 230.5 mm
• Overhang: 16 mm
• Tracking Error Angle: Less than 3 degrees
• Applicable Cartridge Weight: 3.5-8.5 g
• Anti-skating Range: 0-4 g
• Replacement Stylus: AT-VMN95E
• Communication System: Bluetooth Version 5.0
• Maximum Communication Range: Line of sight - approx. 10 m (33')
• Compatible Bluetooth Profile: A2DP
• Support Codec: SBC, Qualcomm® aptX™ audio

Speakers

• 1 x R1855DB Active Speaker
• 1 x R1855DB Passive Speaker
• 1 x Speaker Connecting Cable
• 1 x 3.5mm - RCA Audio Cable
• 1 x RCA - RCA Audio Cable
• 1 x Optical Audio Cable
• 1 x Remote Control
• 1 x User Manual

Turntable

• 1 x LP120XBT-USB Turntable
• 1 x AT-VM95E phono cartridge
• 1 x AT-HS6 headshell
• 1 x 1.9 m (6.2') USB cable
• 1 x Dual RCA (male) to dual RCA (male) cable with ground wire
• 1 x Counterweight
• 1 x Felt Mat
• 1 x Dust Cover
• 1 x 45 RPM adapter
• 1 x Plug-type stylus target light

Speakers

• Edifier R1855DB User Manual

Turntable

• AT-LP120XBT-USB Quick Start Guide
• AT-LP120XBT-USB Quick User Manual
