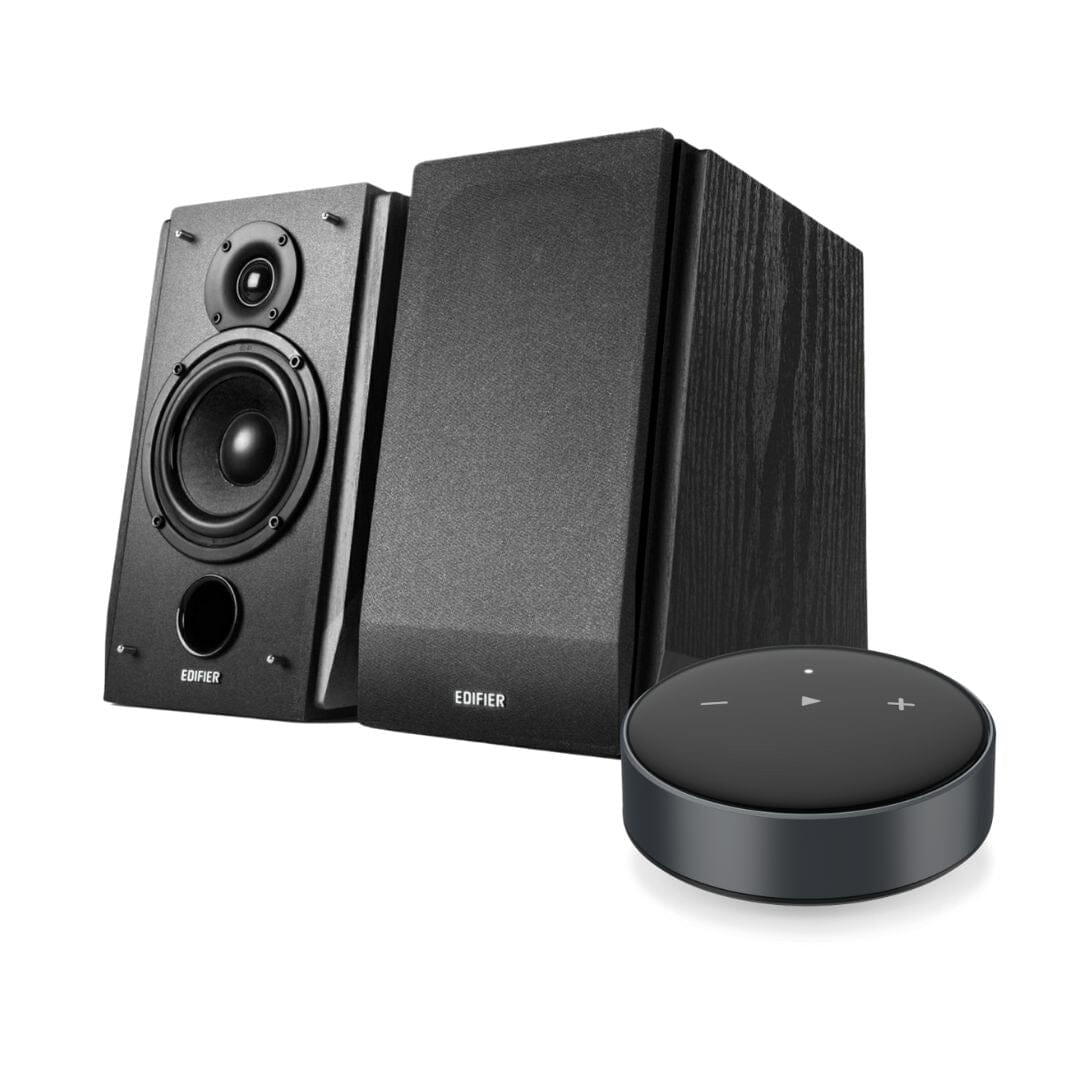

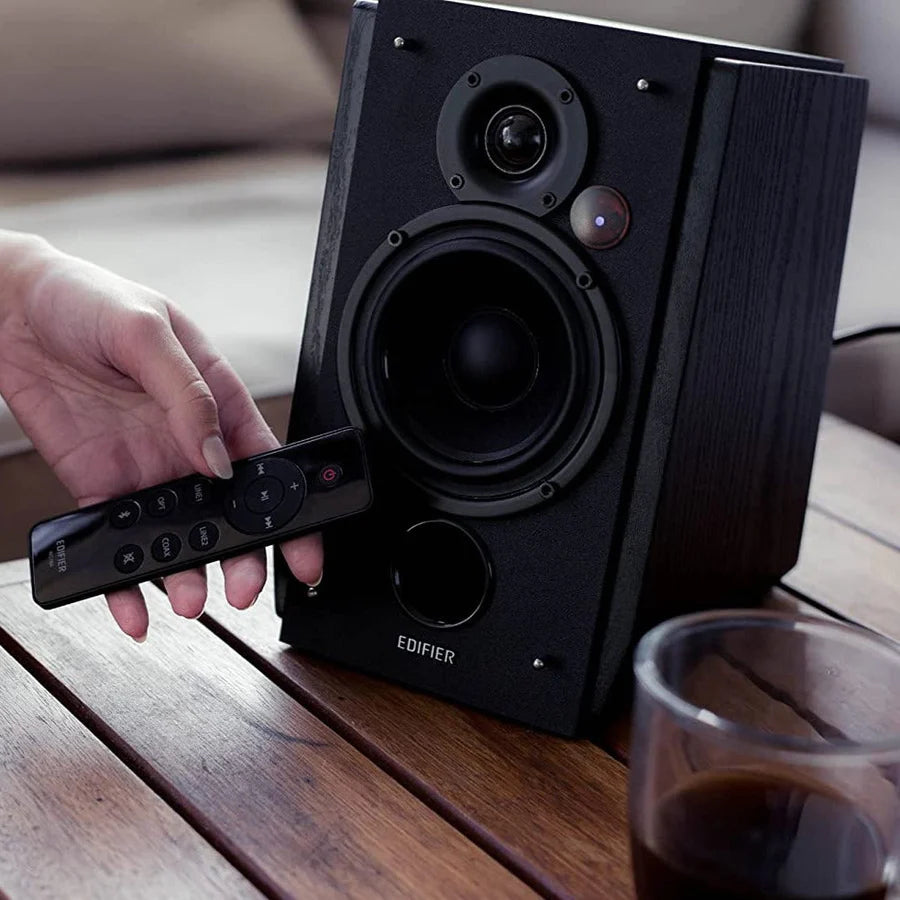

Edifier R1855DB Active Bookshelf Speakers + WiiM Mini Music Streamer

Immerse yourself in the exceptional combination of the Edifier R1855DB Bluetooth Bookshelf Speakers and the WiiM Mini WiFi Music Streamer.

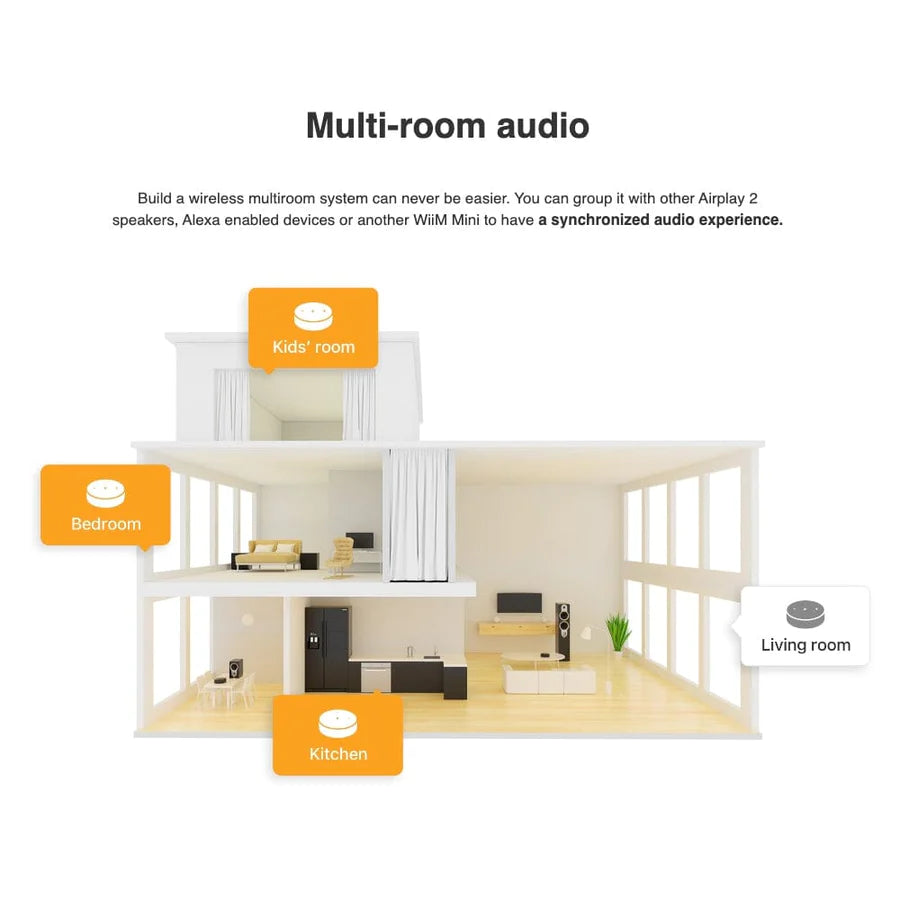

This powerful duo offers wireless streaming, multiroom capability, and seamless integration with popular platforms, providing a versatile and immersive listening experience.

FEATURES

• Wireless Streaming: Enjoy the freedom of wireless audio streaming, allowing you to play your favourite music without the constraints of cables.


• Multi-Platform Compatibility: Seamlessly connect to various platforms, including Airplay 2, Spotify Connect, and Alexa, providing versatile options for your music sources.


• User-Friendly Interface: Navigate through your music effortlessly with a user-friendly interface, ensuring a hassle-free and enjoyable experience.


• Compact: Save space with the compact design of both the bookshelf speakers and the WiFi music streamer, making them suitable for any room.


• Regular Updates: Stay up-to-date with the latest features and improvements through regular updates, ensuring your audio system is always at its best.


• Hassle-Free Setup: Set up your audio system with ease, allowing you to start enjoying your music without unnecessary complications.


• Multiple Inputs & Sub Output: Connect various devices with multiple inputs and enhance your audio setup with a subwoofer, achieving a well-rounded and powerful sound.


• Room Filling Sound: Immerse your space with room-filling sound, creating a captivating and immersive audio environment.


• Bluetooth Music Streaming: Stream music from your Bluetooth-enabled devices, adding another layer of convenience to your audio experience.

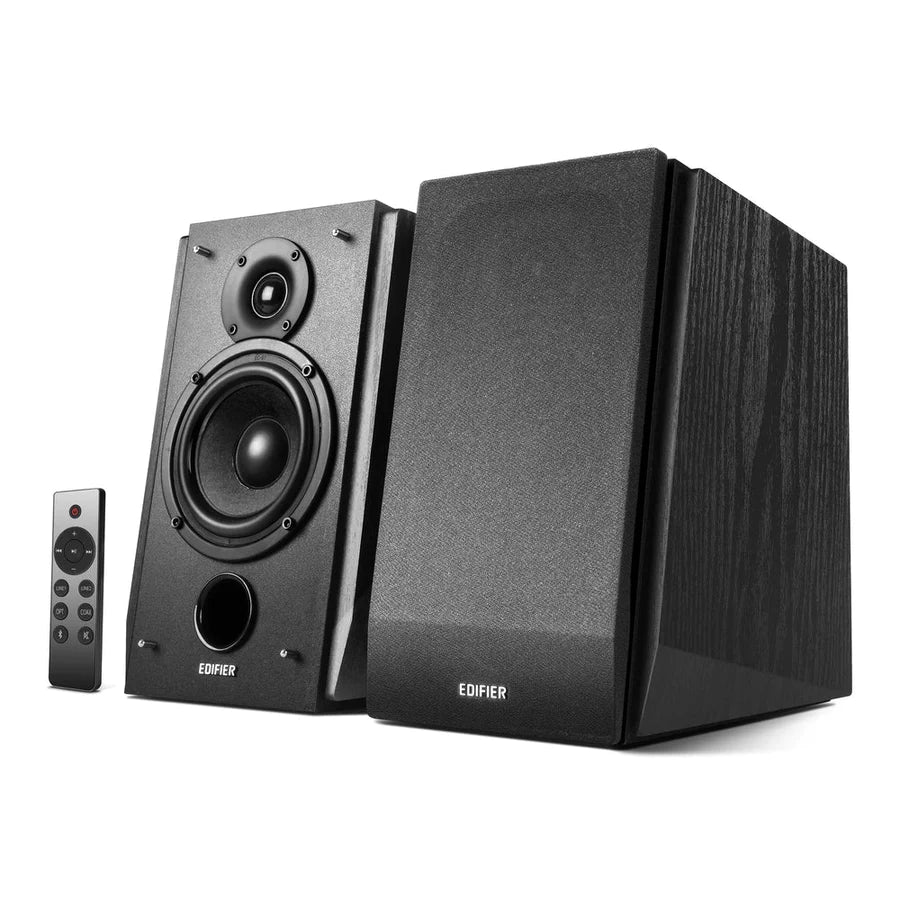

SPEAKERS

• Total Power Output: 19W×2+16W×2 (RMS)
• Frequency Response: 60Hz-20kHz
• Signal-to-Noise Ratio: ≥ 80dBA
• THD + N: ≤ 0.2%
• Tweeter Unit: Φ19mm silk diaphragm, 6 ohm
• Mid-Bass Unit: 4" (116mm) Nomex diaphragm, 6 ohm

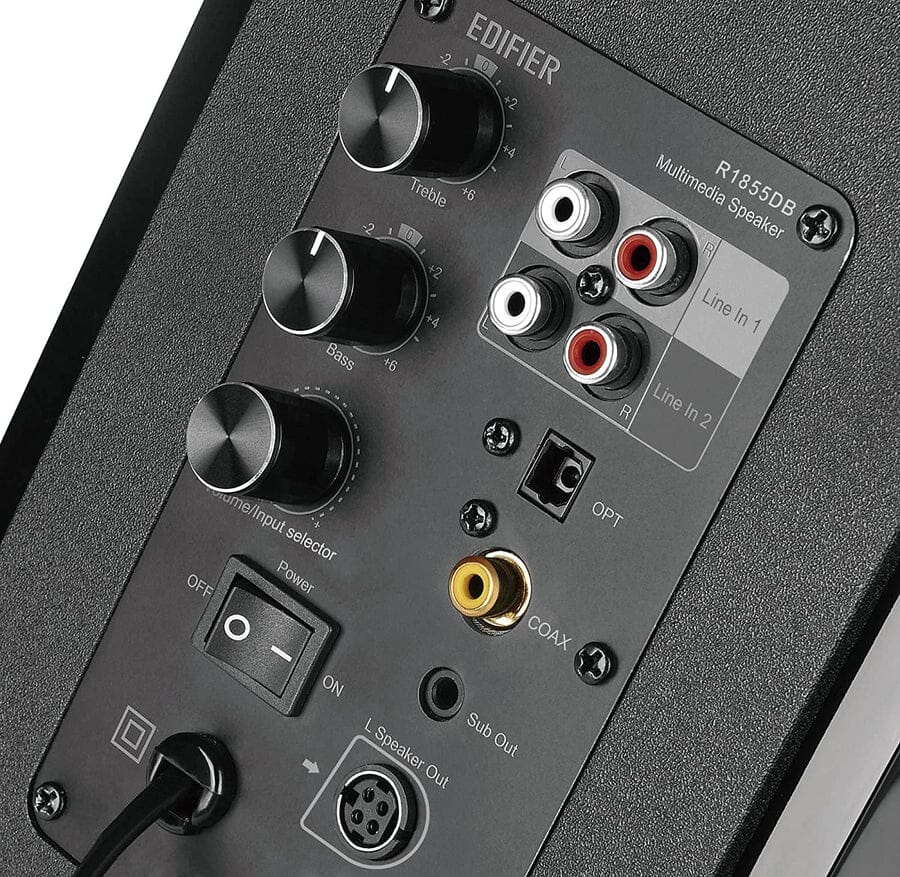

• Audio Inputs: Bluetooth, Line In, Optical, Coaxial
• Audio Output: Subwoofer output
• Input Sensitivity: Line In 1: 400±50 mV; Line In 2: 600±50 mV; OPT: 350±50 mFFS; COAX: 350±50 mFFS; Bluetooth: 500±50 mFFS
• Bluetooth Version: V5.1
• Dimensions:155×254×223mm (W×H×D)
• Product Weight: 7kg

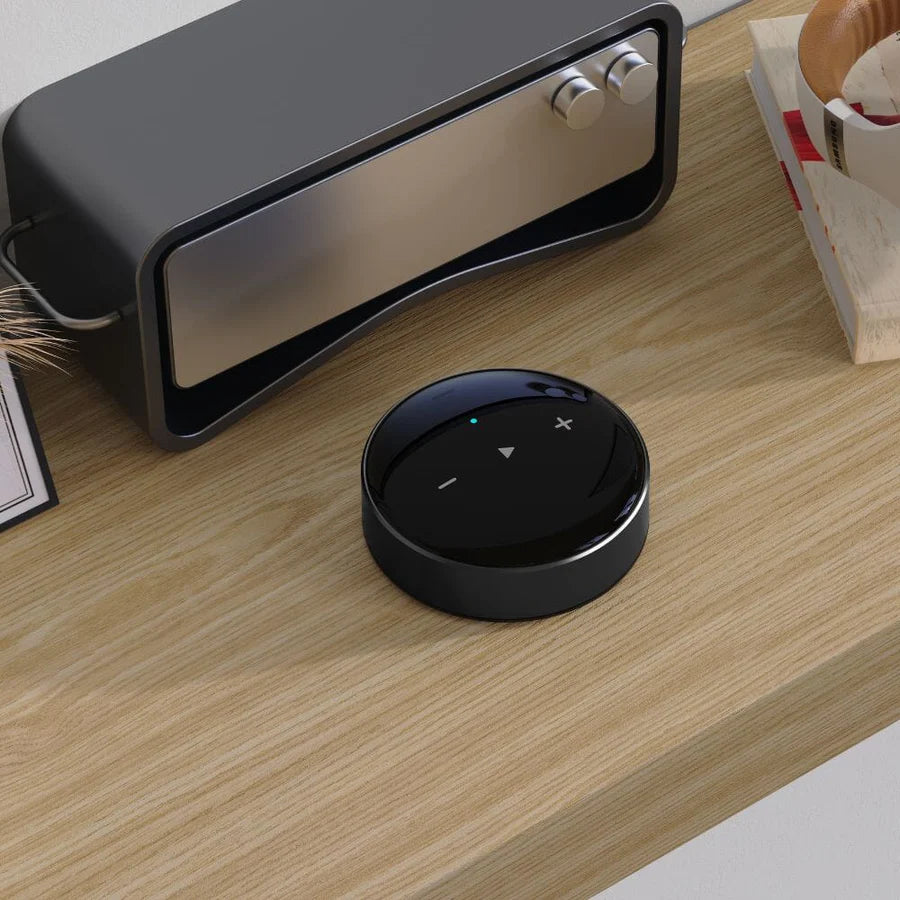

WIIM MINI

• Wireless Network: 802.11 b/g/n/ac 2.4G and 5G Dual Bands
• Bluetooth: Bluetooth 5.1
• Audio Input: 1 x 3.5mm Analog Aux Input, 1 Vrms, 48 kHz/16-bit (up to 24-bit)
• Audio Output: 1 x 3.5mm Analog Aux Output, 1 x Digital Optical (SPDIF) Output
• Line Out:

• Aux In To Aux Out:

  Power Output: 2 Vrms

  THD+N Ratio: 0.009%

  SNR: 102 dB

  Crosstalk: 106 dB

  Dynamic Range: 96 dB




• BT In To Aux Out:

  Power Output: 2 Vrms

  THD+N Ratio: 0.05%

  SNR: 103 dB

  Crosstalk: 107 dB

  Dynamic Range: 96 dB



• SPDIF:

  Aux In To SPDIF Out:

  Power Output: 3 dBFS

  THD+N Ratio: 0.005%

  SNR: 105 dB

  Crosstalk: 103 dB

  Dynamic Range: 97 dB





• BT In To SPDIF Out:

  Power Output: 0 dBFS

  THD+N Ratio: 0.005%

  SNR: 297 dB

  Crosstalk: 364 dB

  Dynamic Range: 213 dB



• Power Input: USB Type-C, 5V 1A
• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• Protocol: Airplay 2, DLNA, Spotify Connect, Tidal Connect, Works With Alexa
• Streaming Services: Spotify, Amazon Music, Deezer, TuneIN, Tidal, Qobuz, iHeartRadio, Napster, Sound Machine etc.
• LED: Three Colour Status LED (Red, Green, White)
• Button: Capacitive Touch Buttons - Play/Pause, Volume +, Volume -
• Weight: 40g
• Dimensions: 69 x 69 x24 mm

SPEAKERS

• 1 x R1855DB Active Speaker
• 1 x R1855DB Passive Speaker
• 1 x Speaker Connecting Cable
• 1 x 3.5mm - RCA Audio Cable
• 1 x RCA - RCA Audio Cable
• 1 x Optical Audio Cable

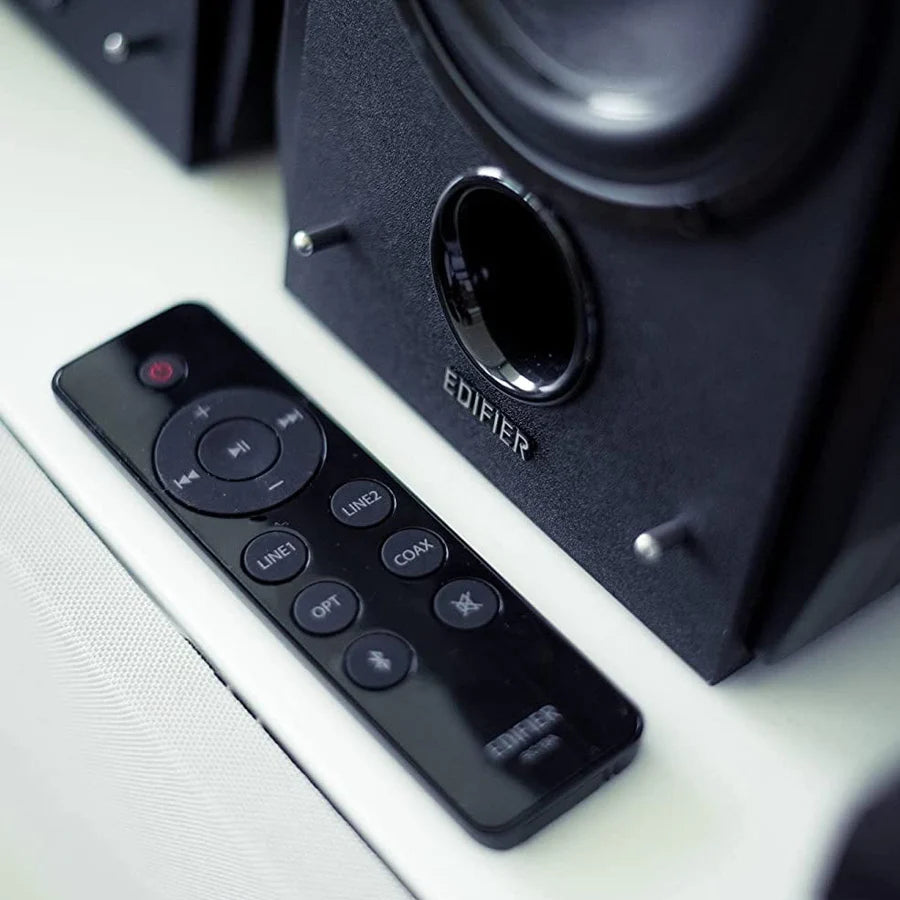

• 1 x Remote Control
• 1 x User Manual

WII MINI

• 1 x WiiM Mini
• 1 x User Guide
• 1 x USB Power Adapter
• 1 x USB C Cable
• 1 x 3.5mm - RCA Cable
• 1 x 3.5mm - 3.5mm Cable
• 1 x TOS Link Optical Audio Cable

SPEAKERS

• Edifier R1855DB User Manual

WIIN MINI

• Spec Sheet
• User Manual
