Description
Description

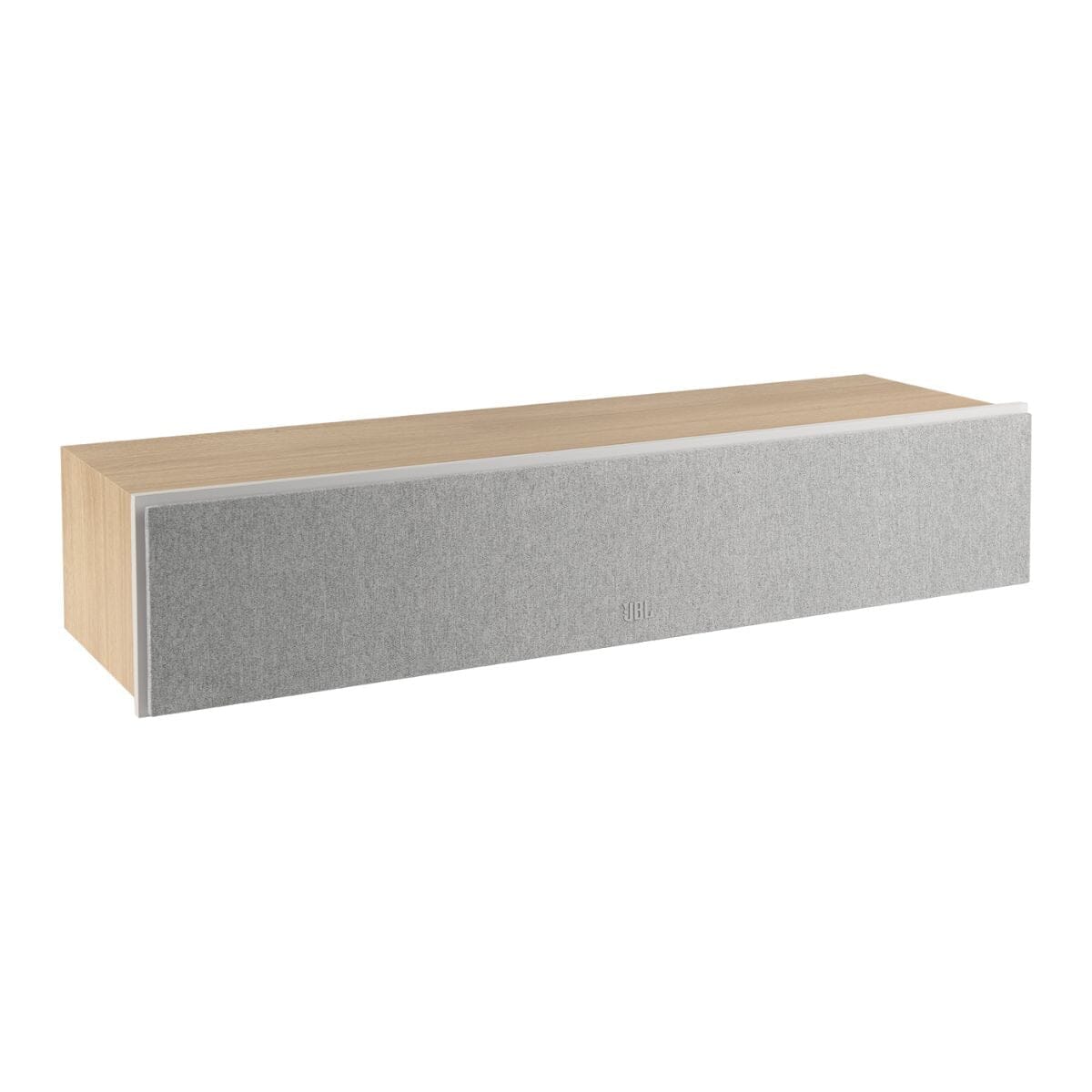

Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 245C is a centre channel loudspeaker perfectly matched with the entire Stage series.

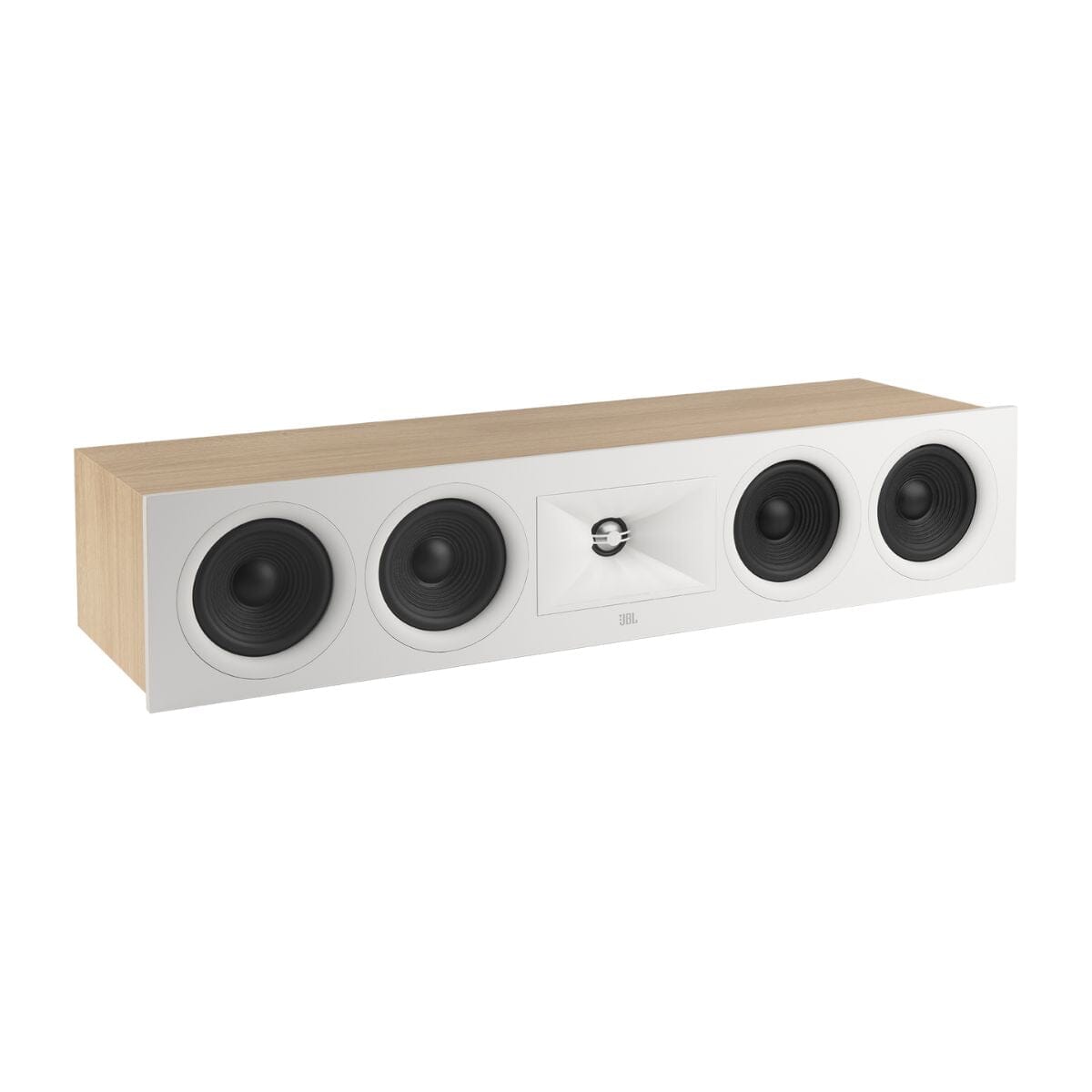

This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodised Aluminium dome tweeter, and quad 4.5-inch (114mm) Polycellulose cone woofers that provides deep, signature JBL bass.

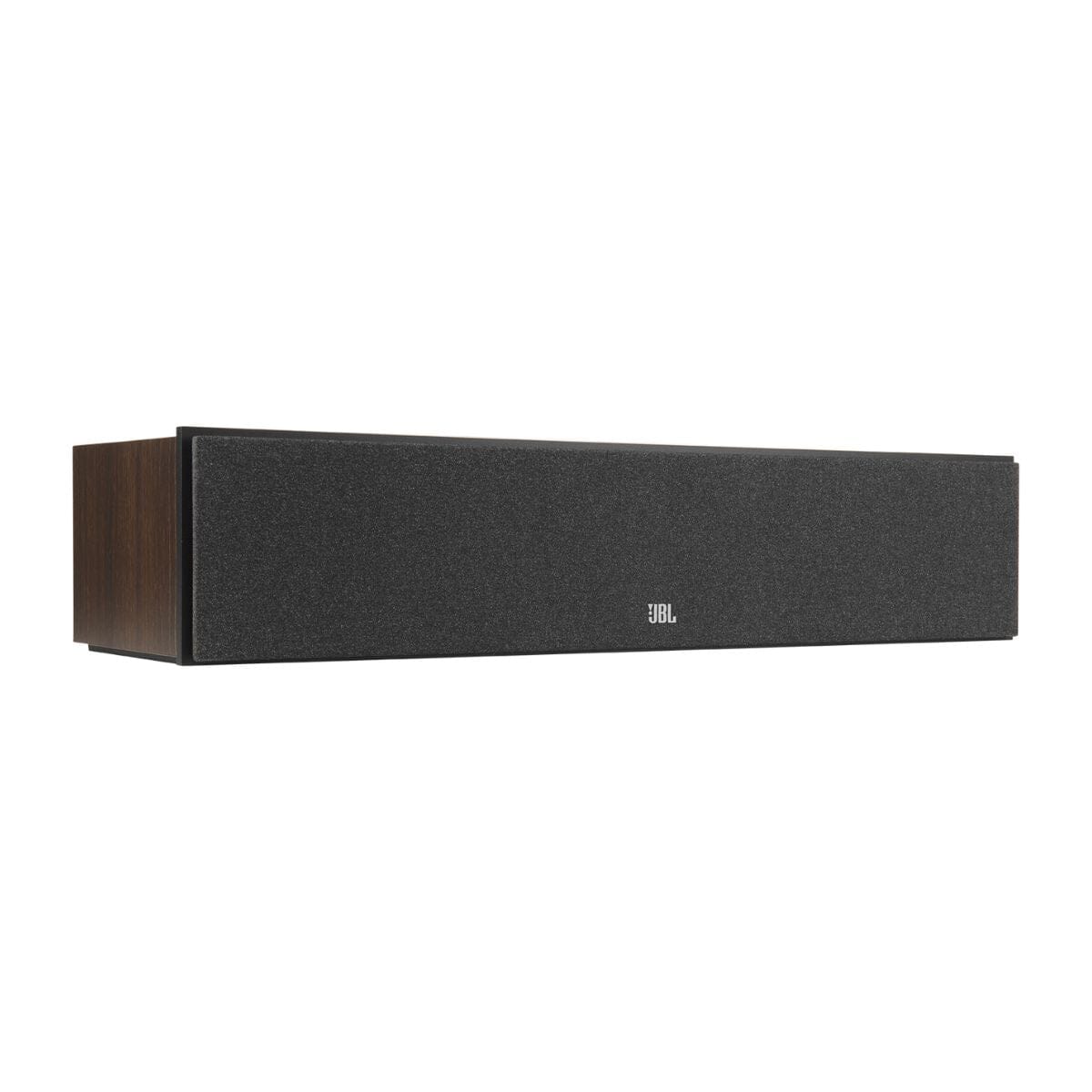

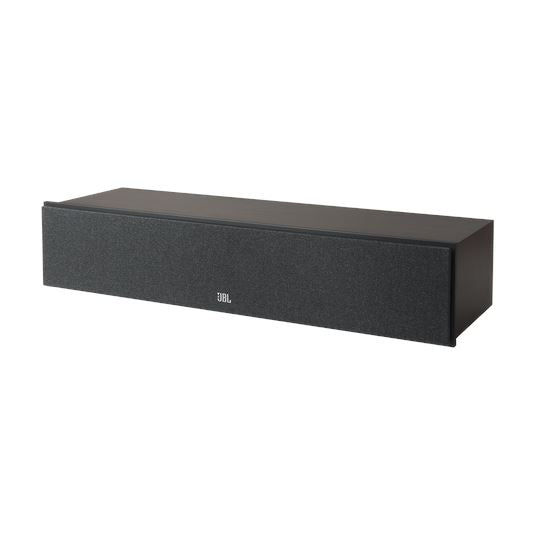

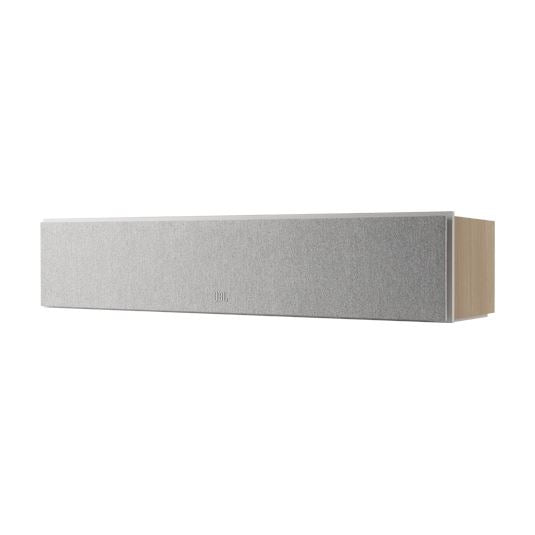

Available in Espresso or Latte woodgrain finish with solid colour front baffles and matching grilles.
FEATURES
- Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
- Precision 2.5-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter

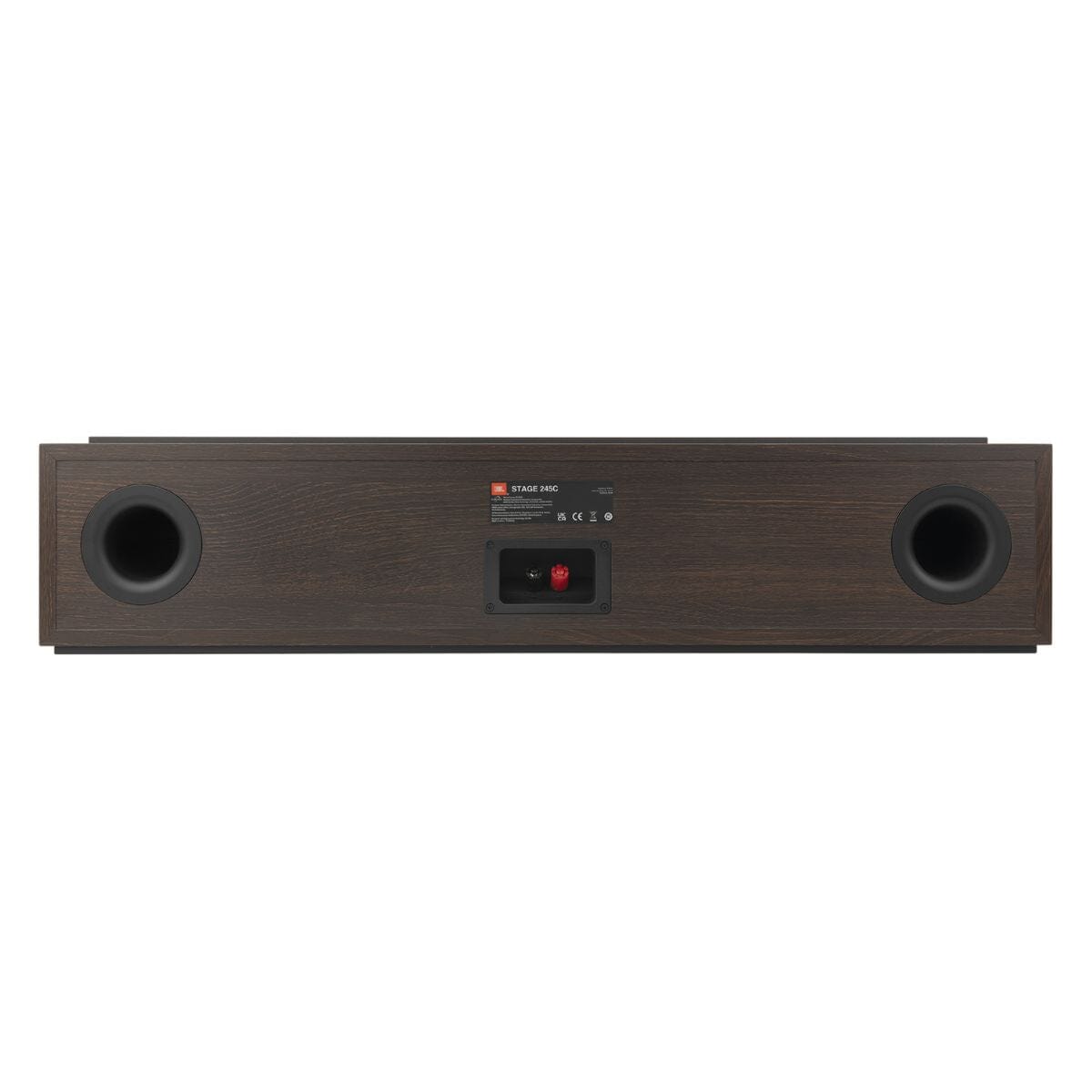

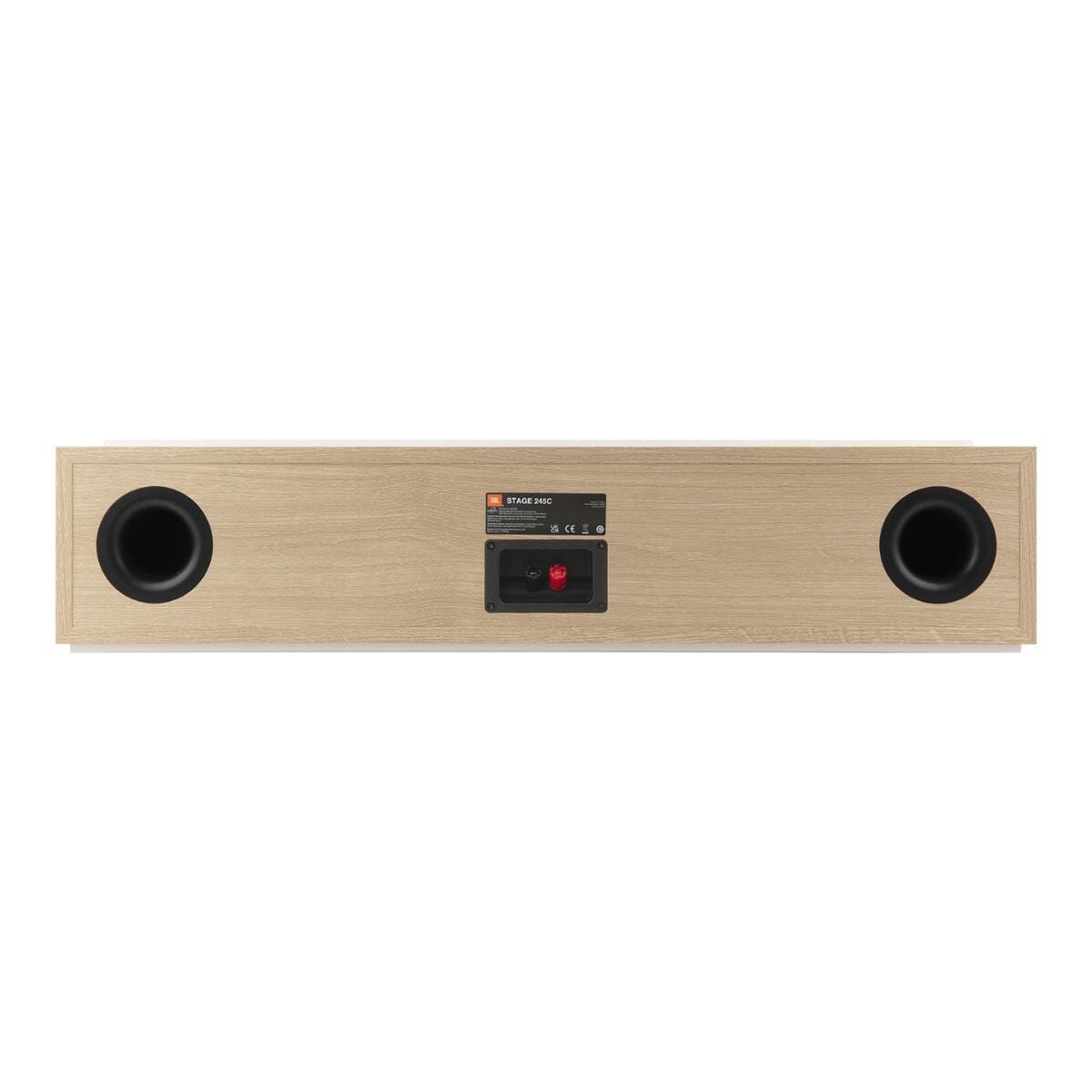

- Dual Rear-Firing Tuned Ports
Key Features
Key Features
-
Connection
-
PlacementBookshelf
-
InputsRCA
-
Impedance
-
Driver Size
-
Sensitivity
-
Warranty
Specifications
Specifications
- Type: Center Channel Loudspeaker System
- Low Frequency Driver: Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-150W
- Frequency Response ≡ 6dB: 55Hz-25kHz
- Sensitivity @ 1M, 2.83V: 91dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.3kHz/2.0kHz
- Enclosure Tuning: Bass Reflex via Dual Rear-Firing Tuned Ports
- Finish: Espresso or Latte
- Dimensions (HxWxD): 6.1in x 29.1in x 8.5in (156mm x 740mm x 217mm)
- Product Weight: 26.4 lbs. (12.0kg)
- Shipping Weight: 32.2 lbs. (14.7kg)
- Shipping Units of Measure: Each
