Description
Description

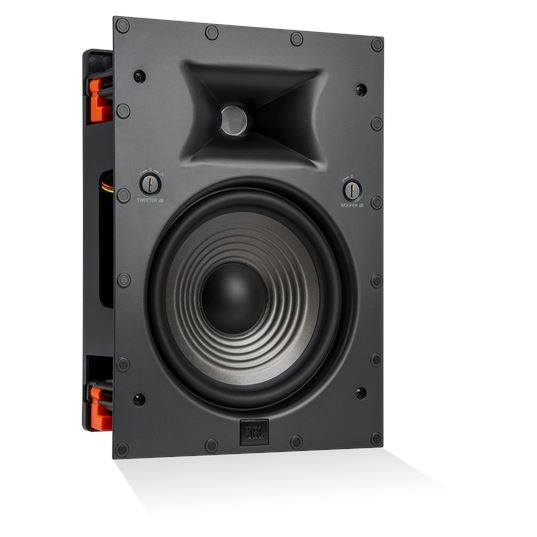

For more powerful bass, the Studio 8IW features an 8" (203mm) Polyplas® cone woofer and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide for more impact from front, side, and rear channels.

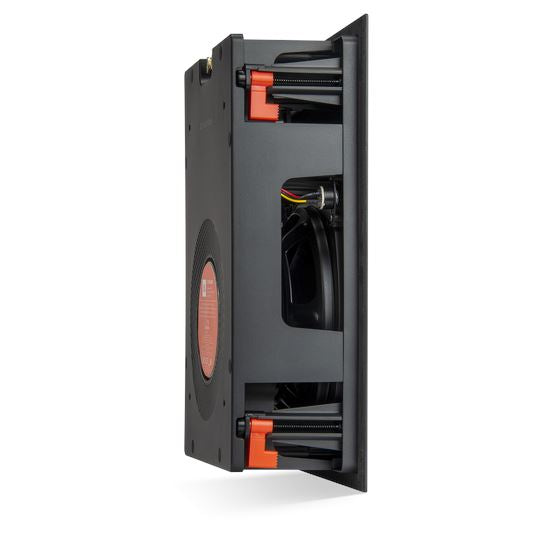

The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 8IW visually discrete so they blend into the walls seamlessly.
FEATURES
- 1 x 8" Main Woofer
- 1 x 1" High Definition Compression Driver
- High Frequency Level Adjustment
- Premium Air Core Inductors
- Mylar Capacitor Crossovers
- Dog Leg Installation System

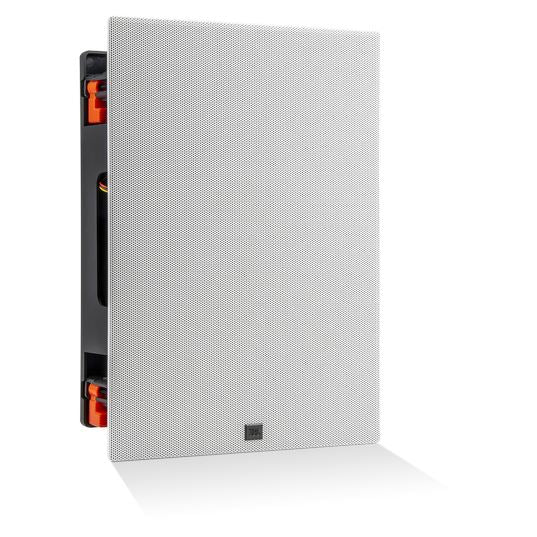

- Zero Bezel Magnetic Grille (Paintable)
Key Features
Key Features
-
PlacementIn Wall
-
Cut-Out Diameter
-
Mounting Depth
-
Power Handling
-
Impedance
-
Driver Size
-
Sensitivity
-
Frequency Response
-
Warranty
Specifications
Specifications
- Nominal Impedance: 6-Ohm
- Power RMS/Peak: 60W/250W
- Recommend Amplifier Power: 25W–125W
- Frequency Response: 43–20kHz
- Loudspeaker Sensitivity: 93dB
- Woofer: 8" (203mm) Polyplas® woofer
- Tweeter: High Definition Imaging (HDI) Waveguide with 1" (25mm) High Frequency
- Compression Driver: Crossover Frequency: 2.5kHz, • Cutout Dimensions: 8.7" x 12.5" (221mm x 318mm)
- Grille Finished Dimensions: 9.9" x 13.7" (251mm x 349mm)
- Mounting Depth: 3.7" (94.5mm)
What's In The Box
What's In The Box
- 1 x Speaker
- 1 x Magnetic Grill
- 1 x Owners Manual
- 1 x Printed Mounting Template
- 1 x Warranty Card
