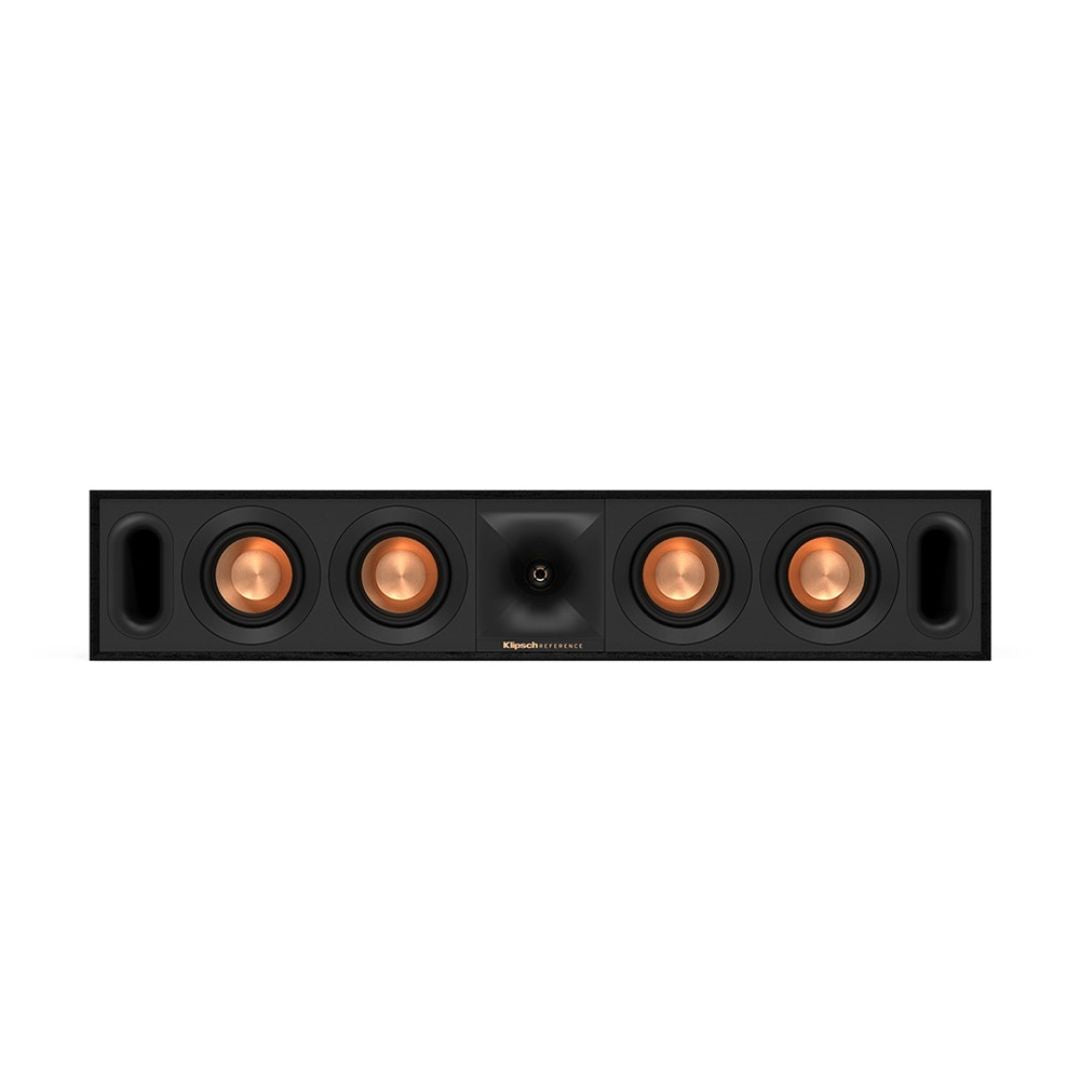

Klipsch R-30C Centre Channel Speaker

The most compact Reference Series Centre Channel, but with all the big sound you can expect from Klipsch speakers. The R-30C features four 3.5" woofers as opposed to the R-50C's two 5.25" ones. The result? A wider, more detailed centre sound field that produces crystal clear dialogue thanks to the broader spread of the woofers and LTS tweeters.

FEATURES

• ALL NEW 90° X 90° TRACTRIX HORN Our exclusive Tractrix® horn technology delivers the power, detail and emotion of the live music experience with the cleanest, most natural sound possible. The increased outer horn dimensions allow for directivity control over a larger bandwidth of frequencies, resulting in improved high frequency directivity and a more accurate sound stage.


• LINEAR TRAVEL SUSPENSION (LTS) ALUMINIUM TWEETER WITH KAPTON SUSPENSION :The exclusive Linear Travel Suspension (LTS) minimises distortion for enhanced, detailed performances.

  Aluminium is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.


• SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS: Utilising trickle-down technology from Klipsch’s highly acclaimed Reference Premiere series, the TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency. The additional ribbing increases the overall rigidity for less cone breakup at higher frequencies.


• SLEEK, MODERN APPEARANCE: Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance. SLIM DESIGN Compliments todays flat panel TVs with an unobtrusive footprint.


• TAPERED CROSSOVER: Tapered array crossovers improve dispersion resulting in improved midrange definition - critical for dialog rich material in centre channels.


• MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL: Stylish aesthetic with absolute durability that results in a seamless integration into any décor.


• HIGH QUALITY CABINET DESIGN: Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy

• FREQUENCY RESPONSE: 78Hz - 21kHz +/- 3dB
• SENSITIVITY: 96 dB (In-Room)
• POWER HANDLING (CONT/PEAK): 100W/400W
• NOMINAL IMPEDANCE: 8 ohms Compatible
• CROSSOVER FREQUENCY: 1,650 Hz
• HIGH FREQUENCY DRIVER: 1" Aluminium LTS tweeter mated to a 90 x 90 square Tractrix® Horn
• LOW FREQUENCY DRIVER: Quad 3.5" spun-copper TCP woofers
• ENCLOSURE MATERIAL: MDF
• ENCLOSURE TYPE: Bass-Reflex via forward-firing Tractrix®ports

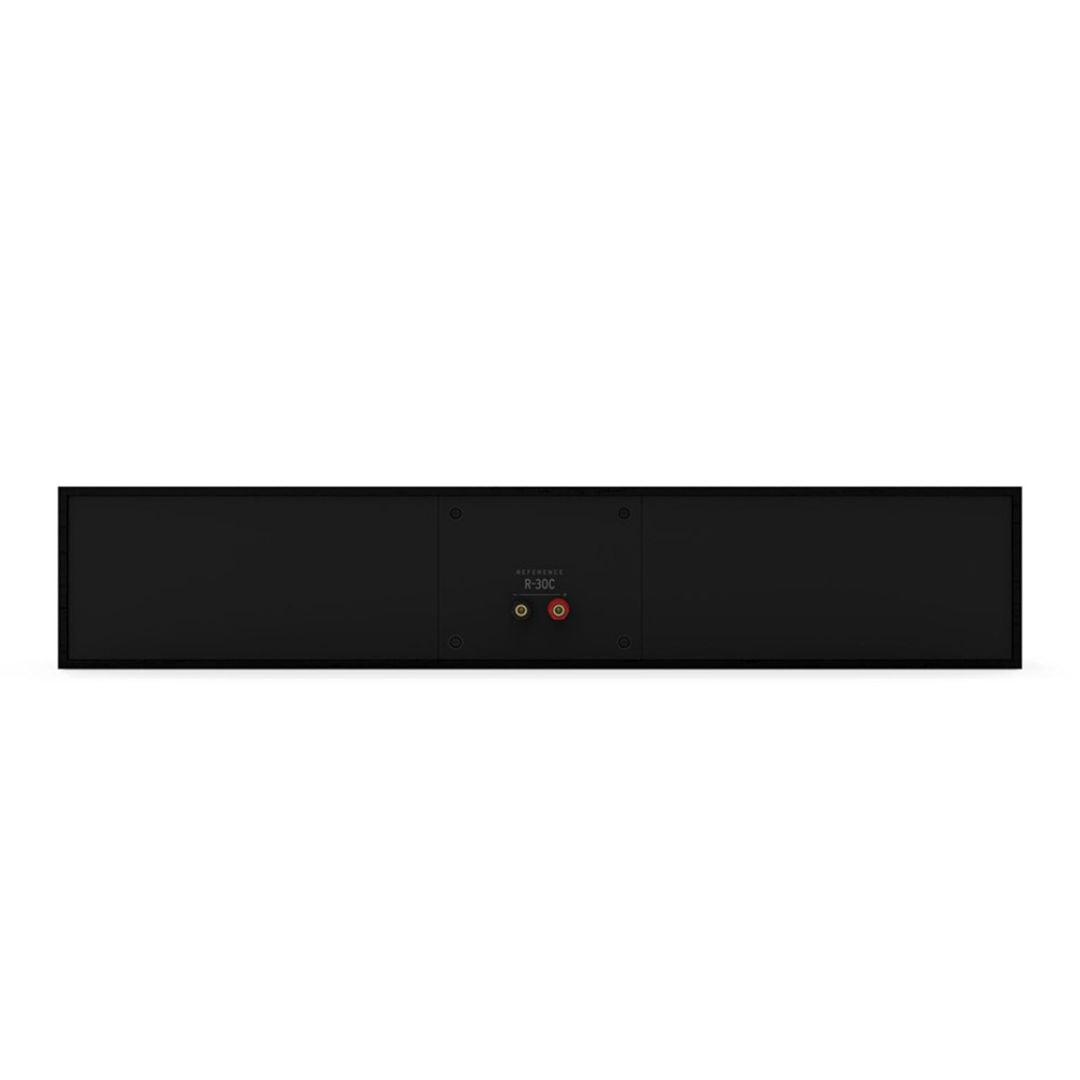

• INPUTS Single Gold Plated Binding Posts
• HEIGHT INCHES (MM) 5.0" (126 mm)
• WIDTH INCHES (MM) 26" (660 mm)
• DEPTH INCHES (MM) 6.8" (173 mm)
• PRODUCT WEIGHT LBS (KG) 13 lbs (5.9 kg)
• FINISH Black Textured Wood Grain Viny

• 1 x Klipsch R-30C Centre Channel Speaker
• 1 x User Manual

• Klipsch R-30C Centre Channel Speaker Specifications Sheets
• Klipsch R-30C Centre Channel Speaker User Manual
