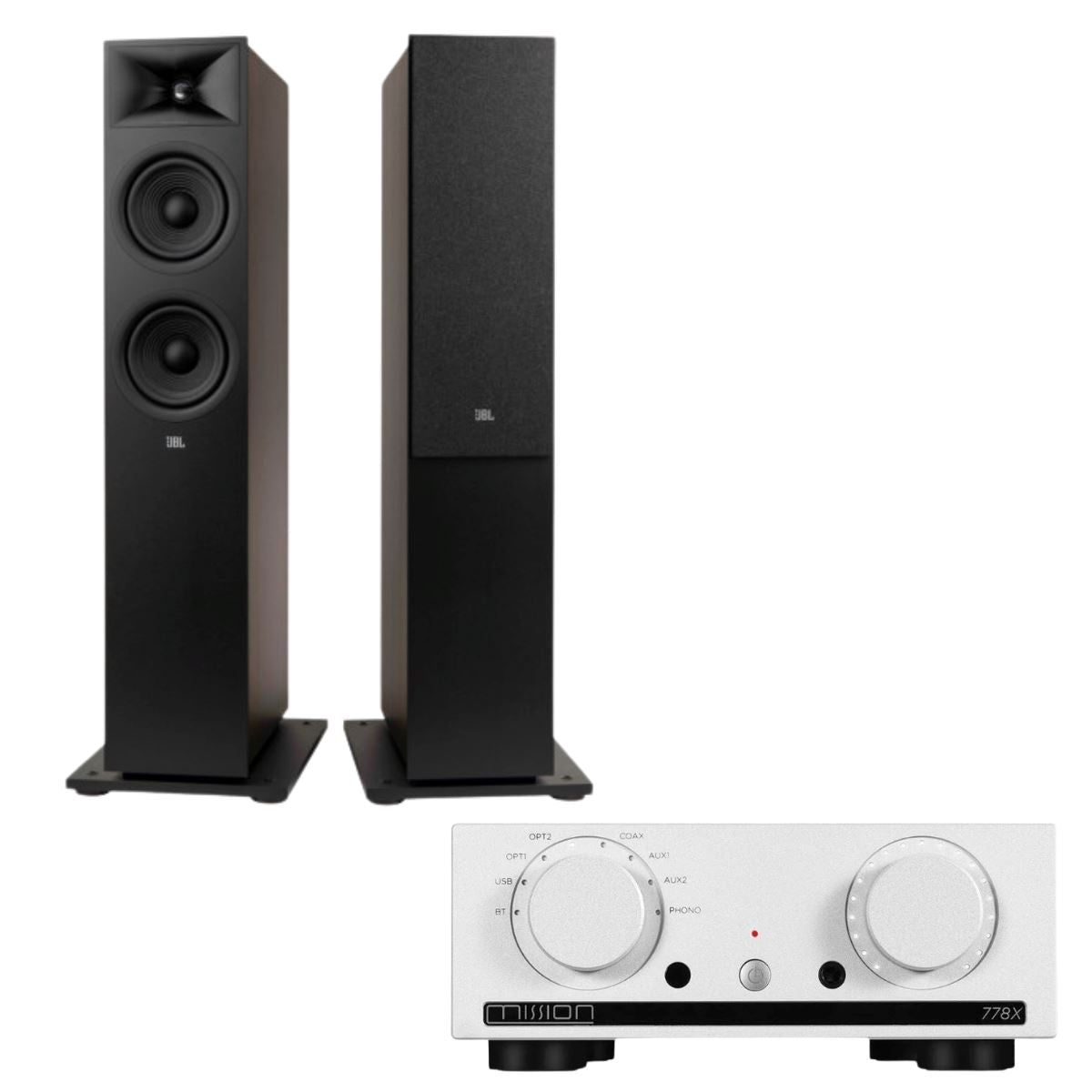

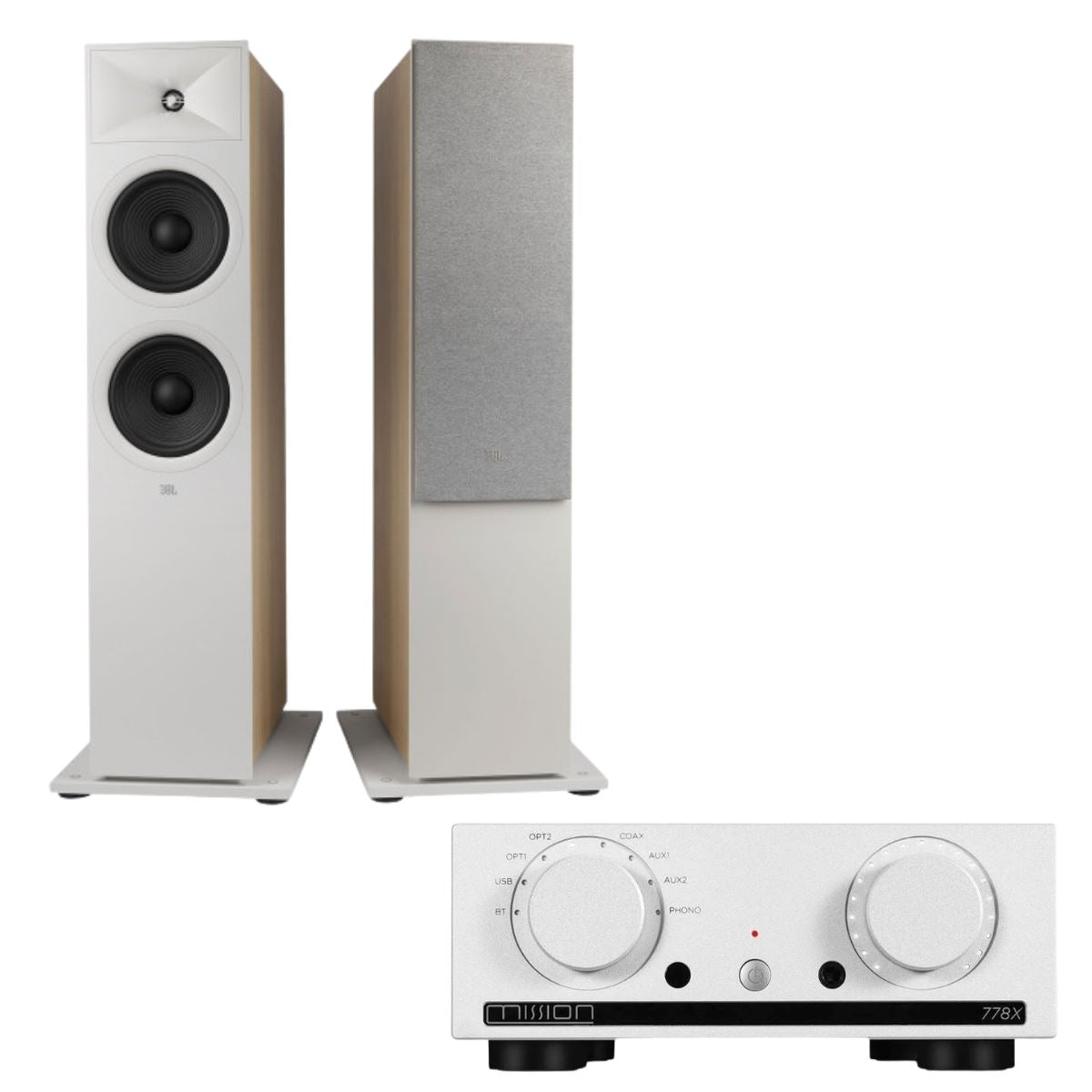

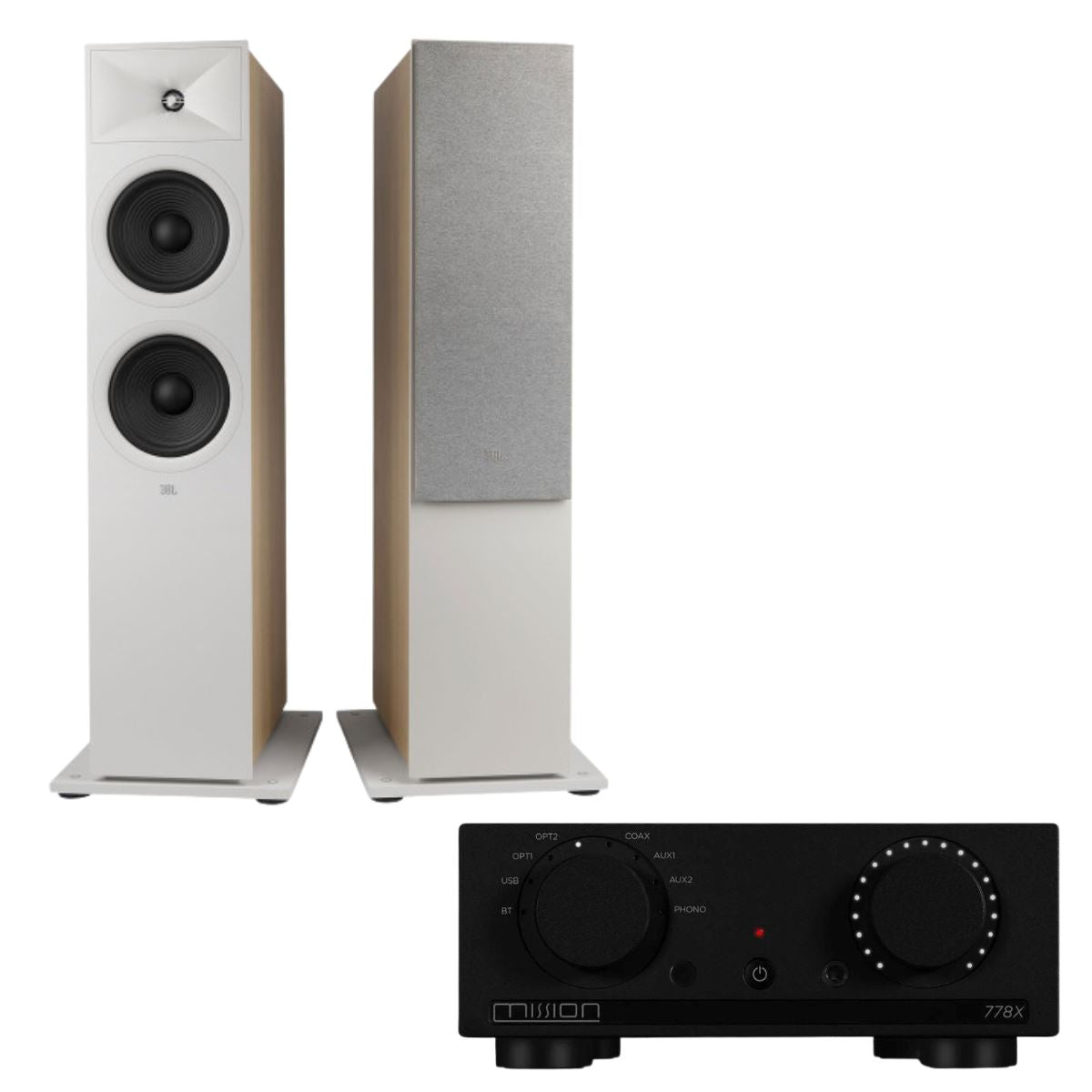

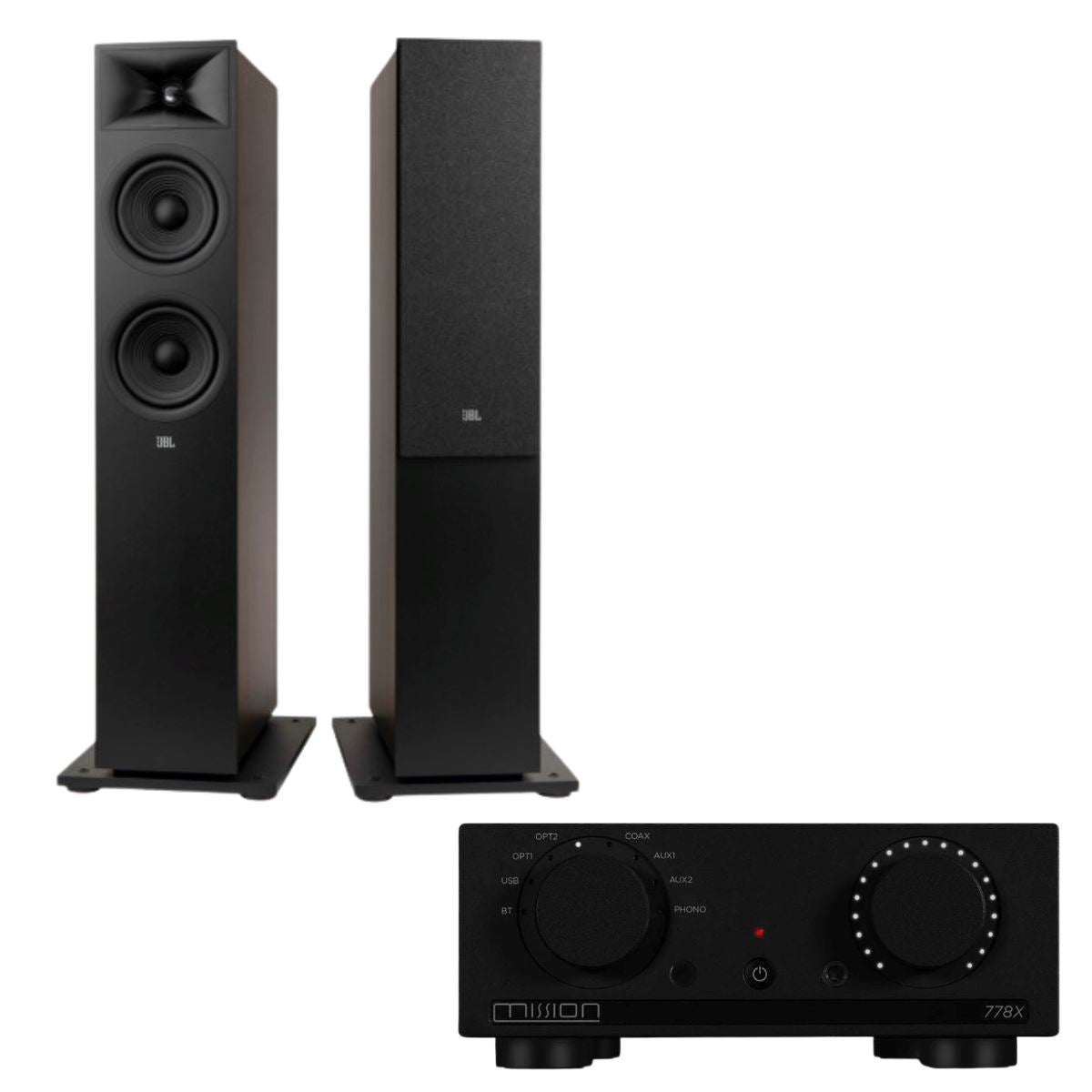

Mission 778X Integrated Amplifier + JBL Stage 260F Floorstanding Speakers

The Mission 778X is a contemporary take on the iconic Mission 778 amplifier, combining vintage charm with modern audio performance. Its compact design, reminiscent of the '80s, houses a 65W amplifier that delivers powerful and refined sound. With multiple input options, including Bluetooth, RCA line, coaxial, and digital connections, the 778X is perfect for both vinyl enthusiasts and digital streamers. The integrated phono stage is optimised for MM cartridges, offering precise sound reproduction without the need for an additional pre-amp.

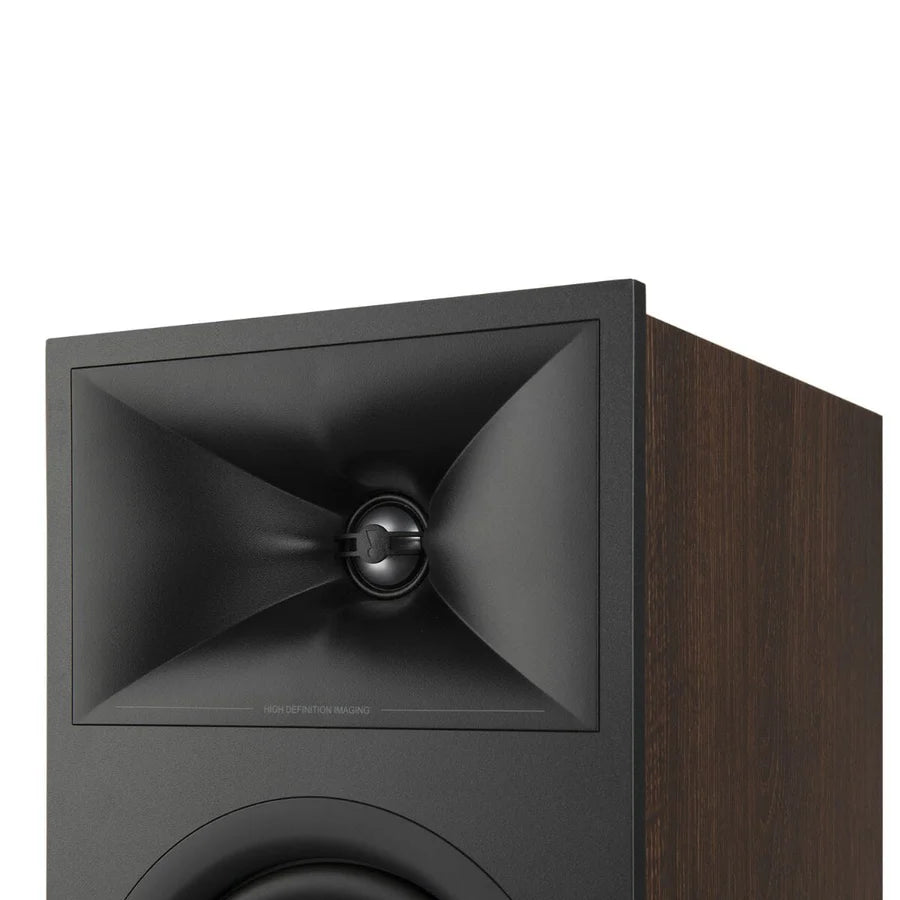

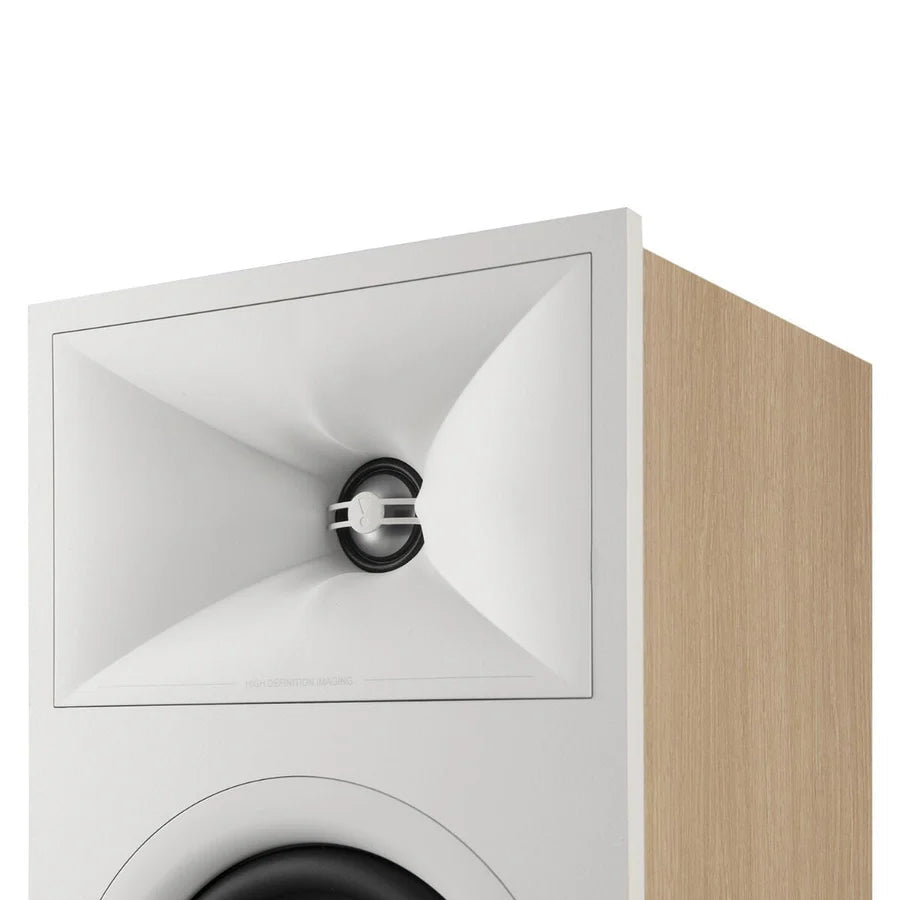

The JBL Stage 260F floorstanding speakers deliver exceptional audio performance with a focus on clarity and depth. Featuring dual 6.5-inch ribbed cone woofers for deep, impactful bass and a 1-inch anodised aluminium tweeter for crisp highs, the 260F provides a balanced and dynamic listening experience. The patented High-Definition Imaging (HDI™) waveguide ensures wide sound dispersion, making these speakers ideal for music and home theatre systems.

Mission 778X 65W Integrated Amplifier with Phono & Bluetooth

• PHONO READY: JFET-based phono stage offers precise RIAA equalisation. Optimised for MM cartridges, no extra pre-amp needed. RCA line, digital and coax connections complement Bluetooth receiver with aptX/AAC, providing CD-level audio streaming from smart devices. Convenience and sound quality like never before.
• HIGH-QUALITY COMPONENTS: That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256
• HEADPHONE STAGE: Equal in performance to standalone headphone amplifiers beyond the price-class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.
• ALL ROUND PERFORMANCE: The Mission 778X’s all round performance is engaging, detailed and refined. Designed for the modern-day music enthusiast with a nod to our heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.


View Full Product Details Here

JBL Stage 260F Dual 6.5" Floorstanding Speakers

• DUAL RIBBED CONE WOOFERS: Delivers powerful, precise bass with minimal distortion.
• PRECISION 2.5-WAY CROSSOVER: Seamlessly blends audio frequencies for a balanced and dynamic sound experience.
• CLARITY OF SOUND: Enhances high-frequency dispersion and clarity across a wide listening area.
• ANODISED ALUMINUM TWEETER: Provides crisp, clear highs with excellent detail and transparency.

• MAGNETICALLY ATTACHED GRILLES: Easily removable grilles offer a sleek look and protect the speaker drivers.
• DEDICATED ATMOS 5-WAY BINDING POSTS WITH INTEGRATED WIRE MANAGEMENT: Streamlines setup for Dolby Atmos configurations with neat and organized wiring.

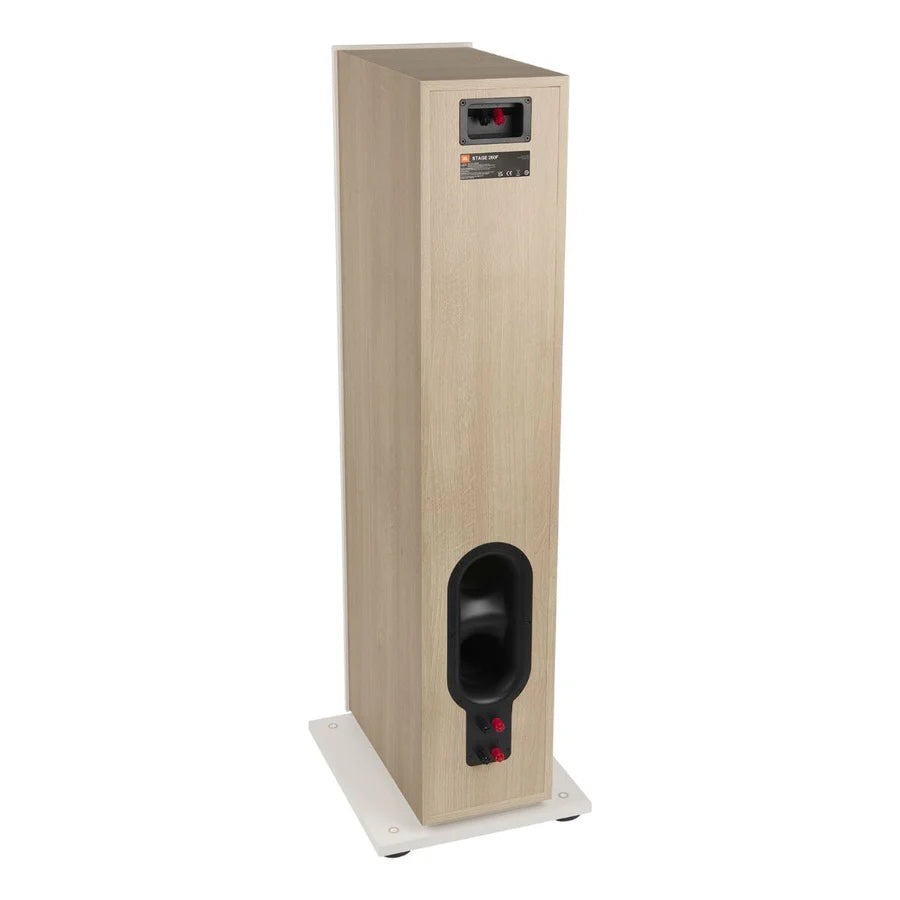

• DUAL FLARED RACETRACK REAR-FIRING TUNED PORTS: Reduces port noise and enhances low-frequency performance for deeper bass response.
• COMPATIBLE WITH 240H ATMOS HEIGHT MODULE: Allows for easy integration with height modules for an immersive surround sound experience.

View Full Product Details Here

AMPLIFIER

• Model: 778X
• General Description: Digital-to-Analogue Converter, Stereo Amplifier
• Integrated Amplifier: (45 watts @8 ohms, 65 watts @4 ohms)
• Reference Chip: ESS Sabre32 ES9018K2M Reference Chip
• Ultra-low Noise: Digital Audio File Compability (384kHz PCM, DSD256)
• Bluetooth: 5.0 (aptX / AAC) Support
• Phono Stage: Dedicated High-performance, Low-noise MM Phono Stage
• Headphone AMP: With High-speed Output Signal Transition
• Large Tractile Controls: With LED Level Indicators
• Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM)
• Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
• Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
• Preamplifier Section: Gain (max.) +0dB (Line), +47dB (Phono MM)
• Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
• Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
• PRE Output Level: 2.1Vrms (max.)
• PRE Output SNR: >110dB (A-weighted)
• DAC - D to A Converter: ESS Sabre32 ES9018K2M
• Resolution: 32-bit
• Max. Sampling Frequency: Optical/Coaxial: 192kHz; / USB: PCM 384kHz / 11.2896MHz (DSD256)
• Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
• Output level (0dBFS, 1KHz): 2.1Vrms
• Power Amplifier Section: - Gain/+31dB
• Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
• Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
• Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
• Standby Power Consumption: <0.5W
• Headphone Amplifier-Output Impedance: 4.7 ohms
• Load impedance: 20-600 ohms
• Dimensions (mm) (W x H x D): 236x98x380.6
• Net Weight: 6.3kg
• Finish: Black / Silver



SPEAKERS

• Type: Floorstanding Loudspeaker System
• Low Frequency Driver: Dual 6.5-inch (165mm) Polycellulose Ribbed Cone
• High Frequency Driver: 1-inch (25mm) Anodized Aluminum
• Waveguide: Next Generation HDI™
• Recommended Amplifier Power: 20-225W
• Frequency Response ±6dB: 40Hz-25kHz
• Sensitivity @ 1M, 2.83V: 90dB
• Nominal Impedance: 6 Ohm
• Crossover Frequencies: 1.3kHz/1.7kHz
• Enclosure Tuning: Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
• Finish: Espresso or Latte
• Dimensions (HxWxD): 40.8in x 12.2in x 14.3in (1036mm x 310mm x 362mm)
• Dimensions (HxWxD) without Base: 40.8in x 7.9in x 13.9in (1036mm x 200mm x 354mm)
• Product Weight: 43.3 lbs. (19.5kg)
• Shipping Weight: 53.1 lbs. (24.1kg)
• Shipping Units of Measure: Each

AMPLIFIER

• 1 x Mission 778X Integrated Amplifier
• 1 x Power Cable
• 1 x Remote Control
• 1 x Antenna
• 1 x User Manual

SPEAKERS

• 2 X 260F Floorstanding Speakers
• 1 x User Manual
