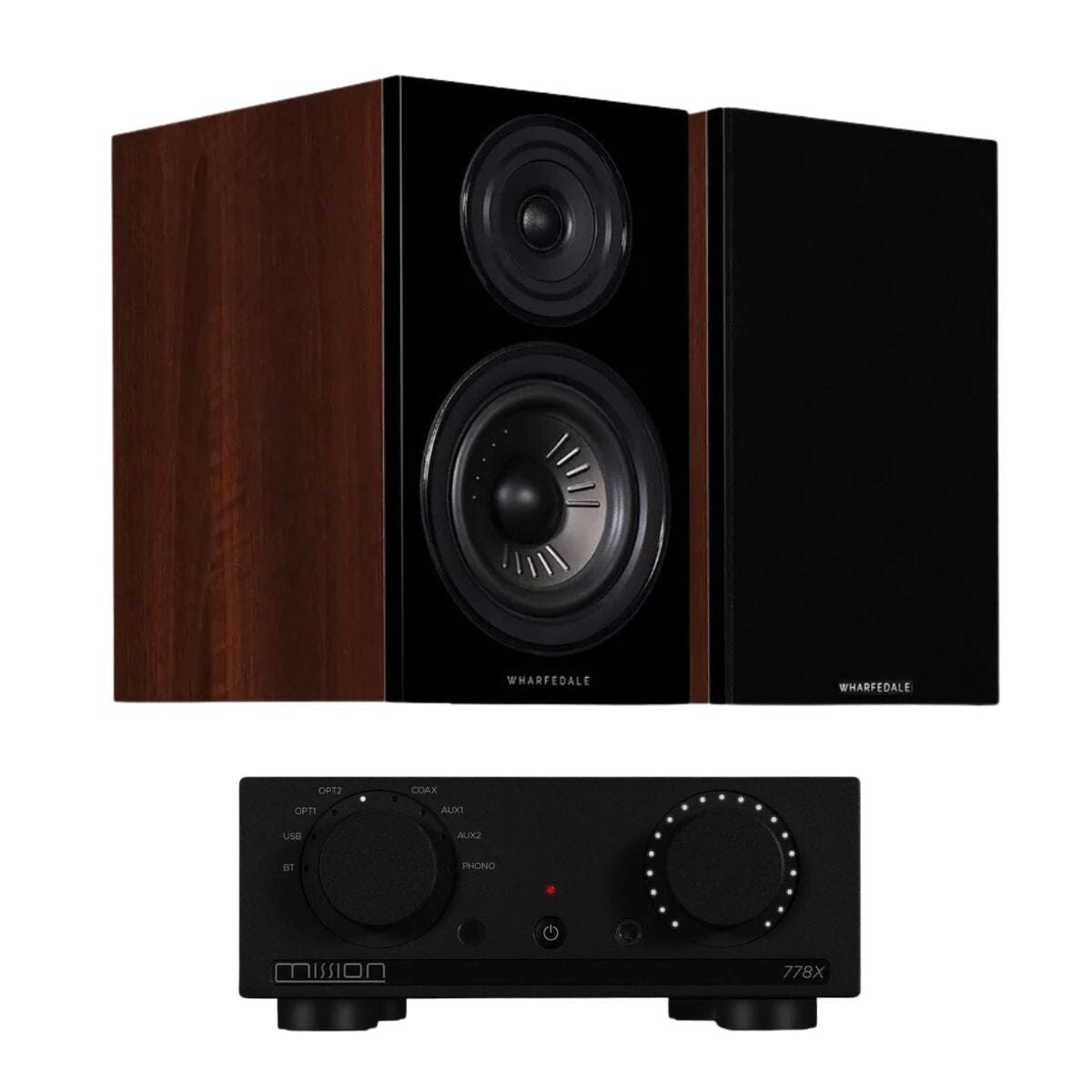

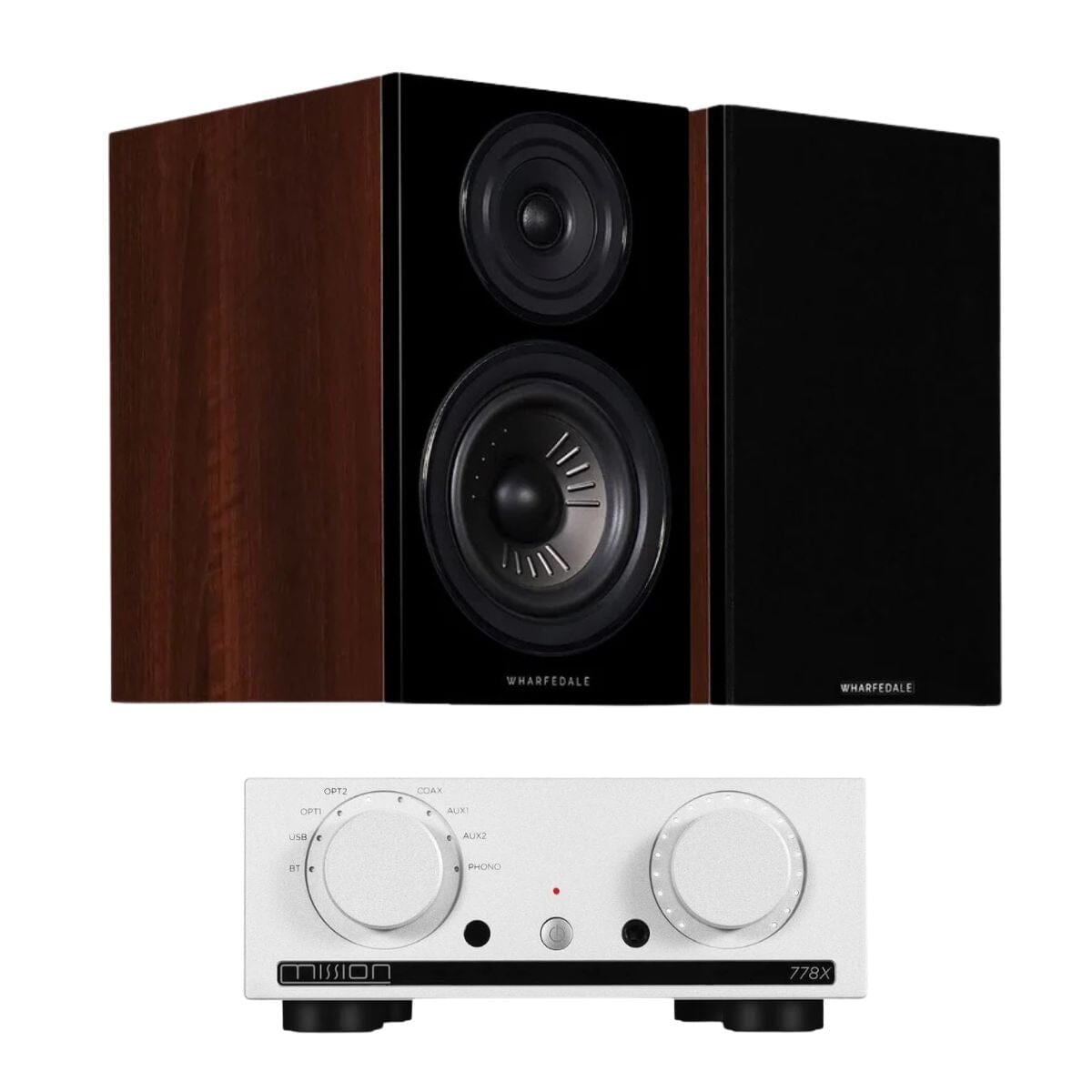

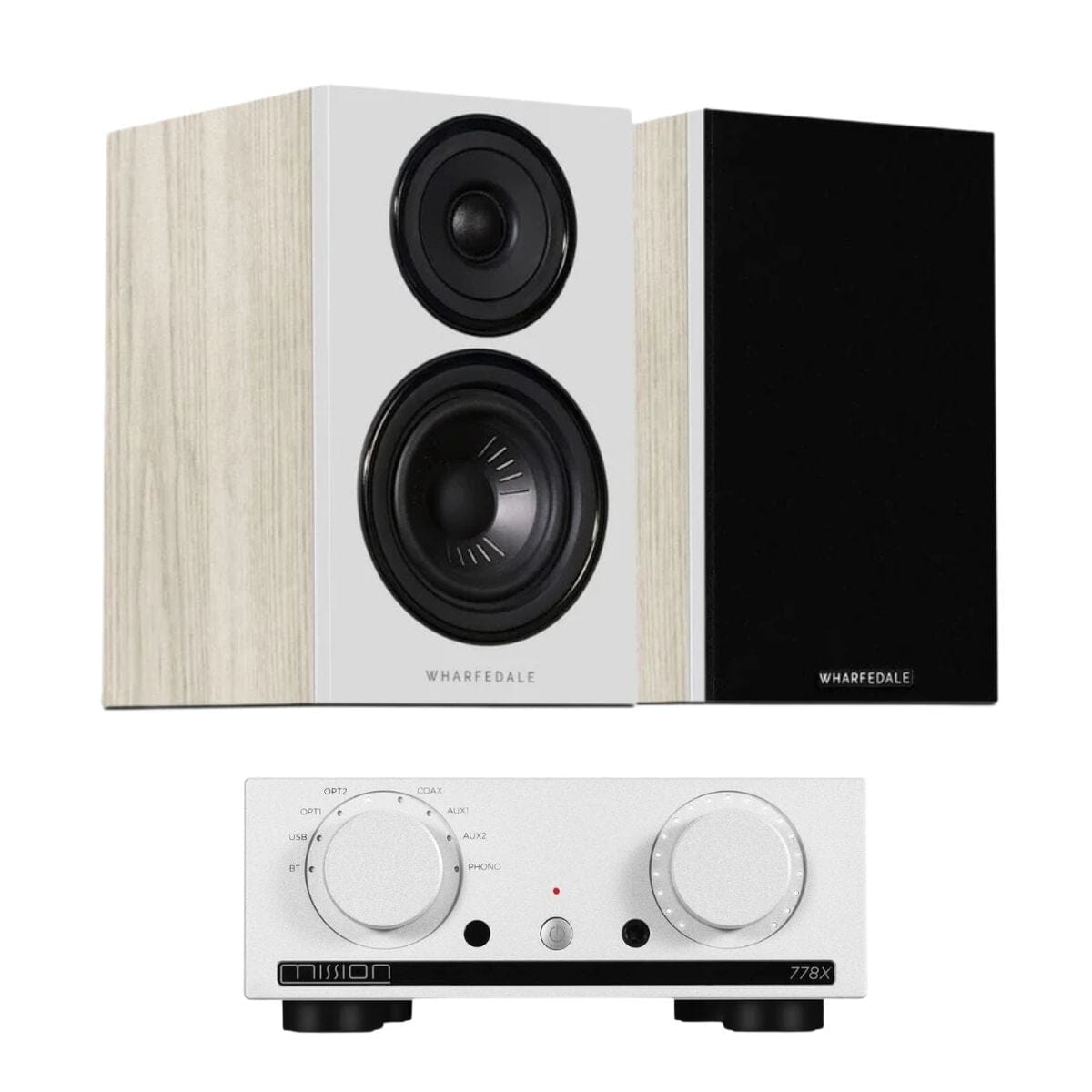

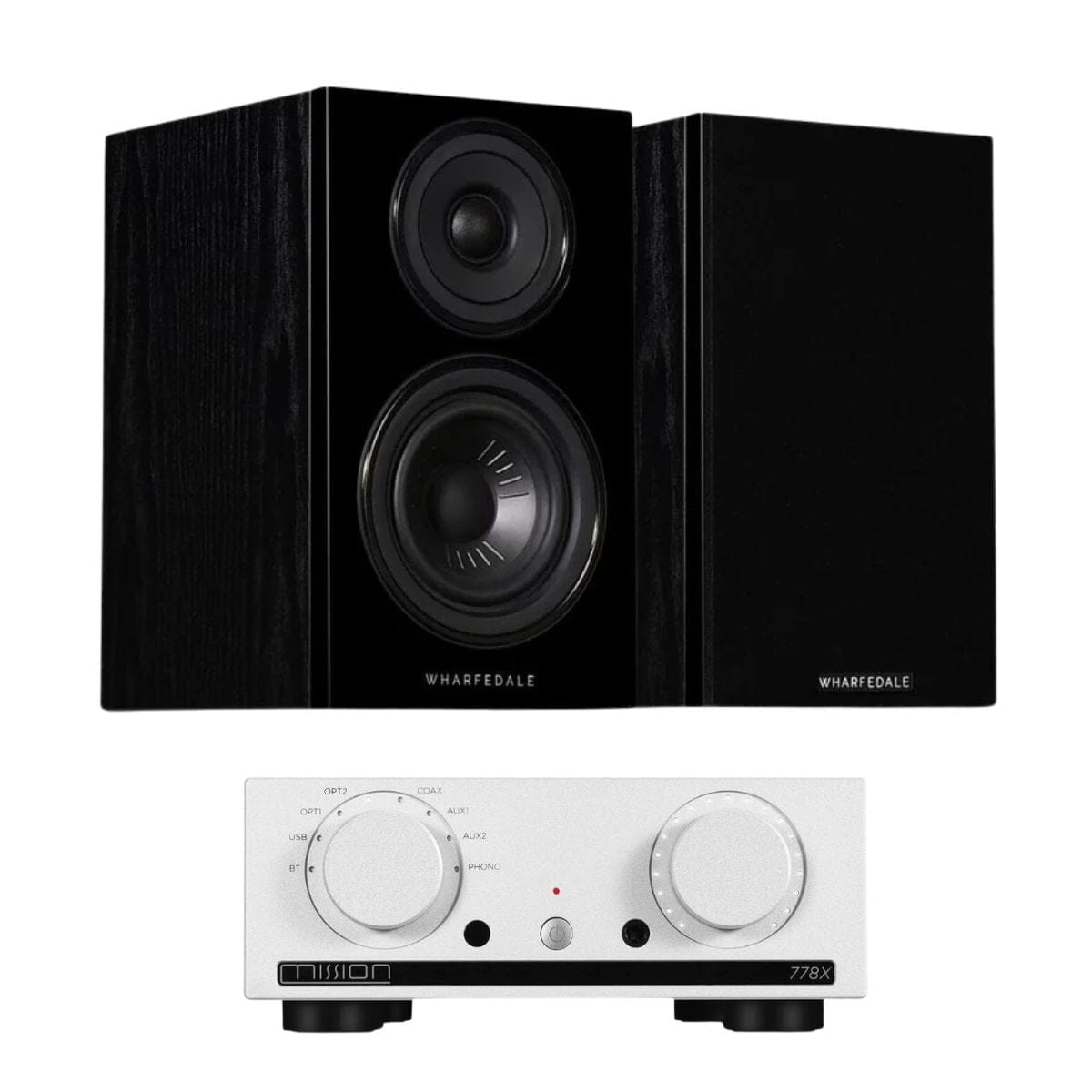

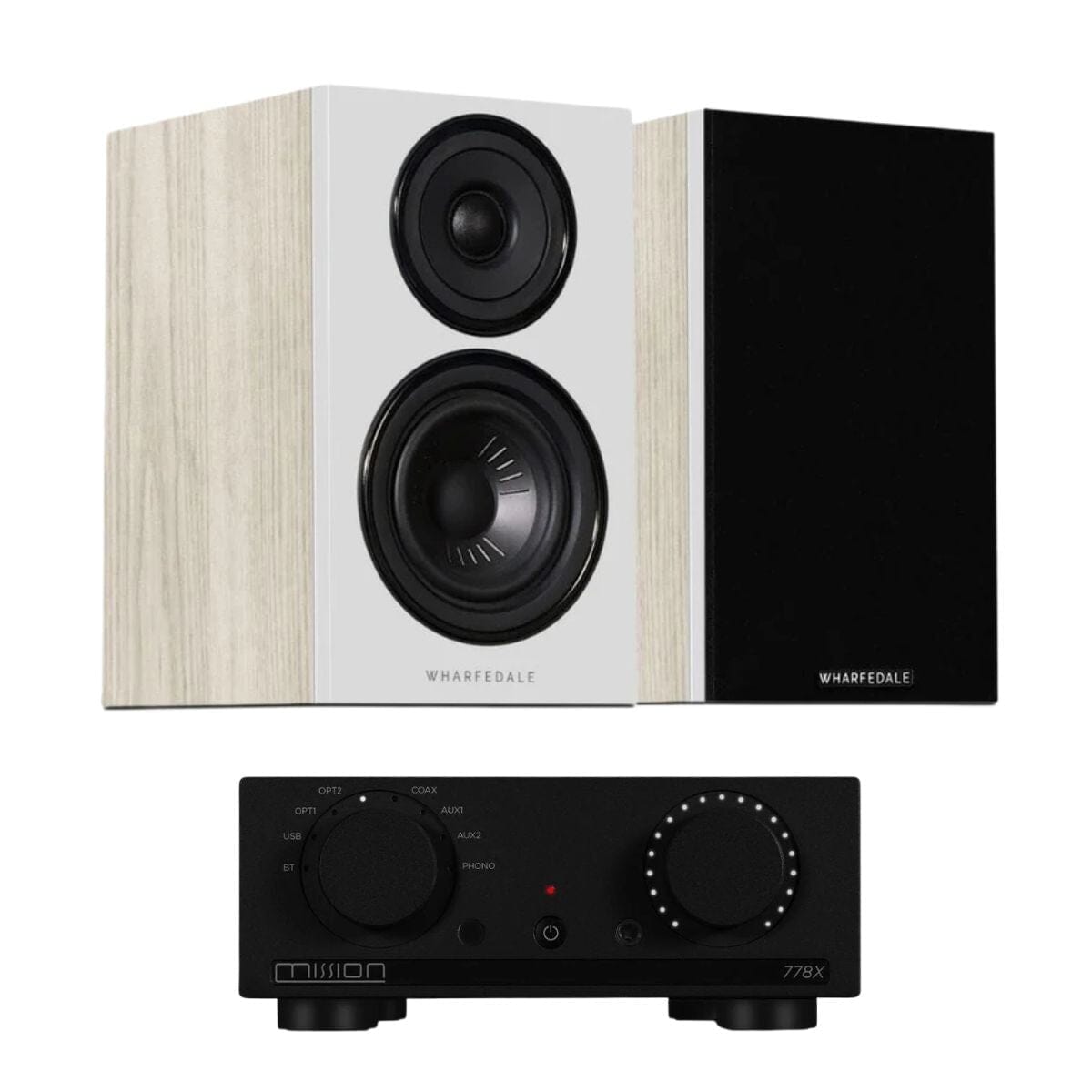

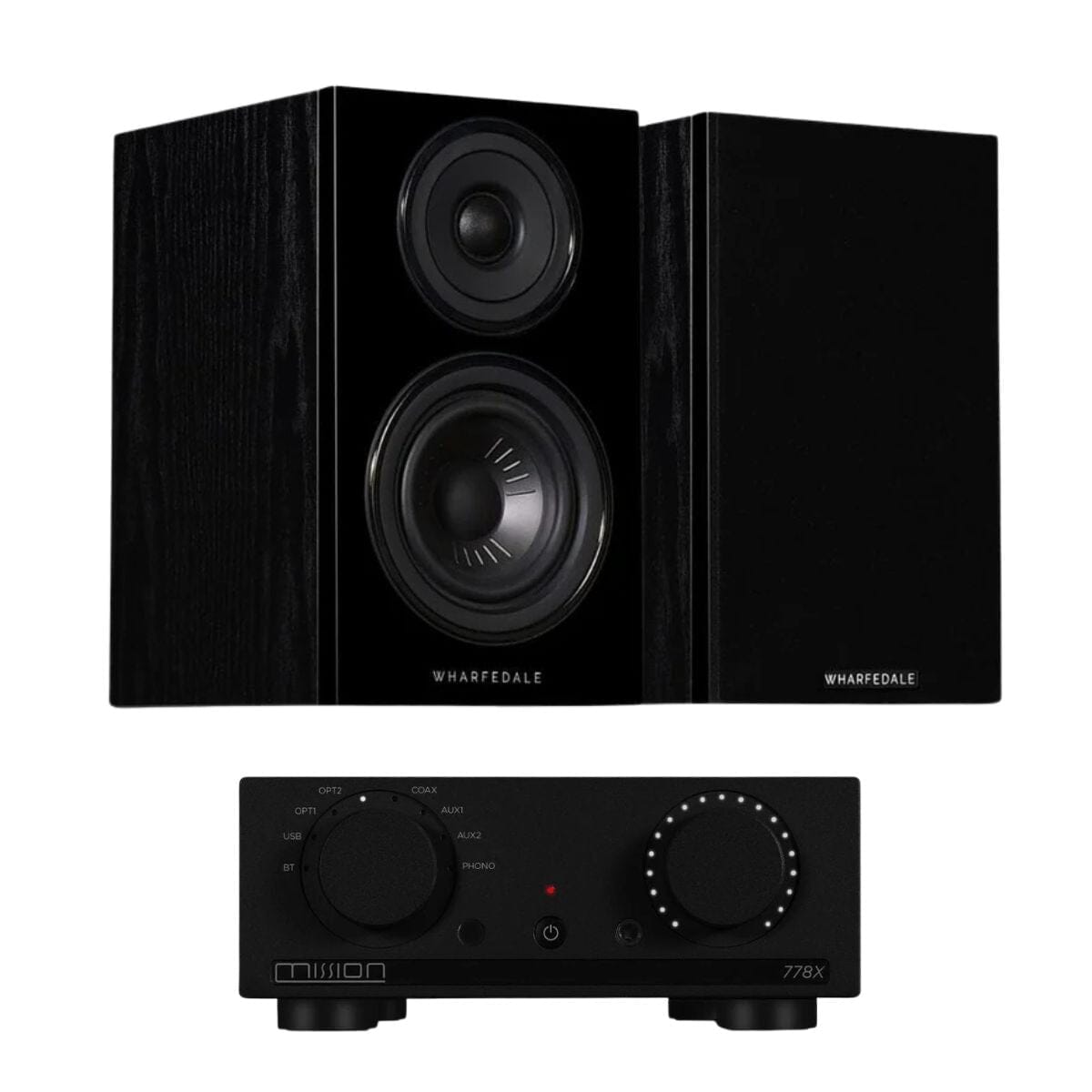

Mission 778X Integrated Amplifier + Wharfedale Diamond 12.2 Bookshelf Speakers

The Mission 778X blends vintage aesthetics with modern audio performance, delivering 65W of powerful, refined sound in a compact, retro-inspired design. Ideal for both vinyl lovers and digital streamers, it features Bluetooth, RCA line, coaxial, and digital inputs. Its integrated phono stage is optimized for MM cartridges, providing precise sound without the need for an external pre-amp.

The Wharfedale DIAMOND 12.1 is a versatile and high-performance standmount (or bookshelf) speaker, embodying the rich history and excellence of the Wharfedale DIAMOND series. As an ideal and budget-friendly option for a hi-fi setup, the DIAMOND 12.1 boasts a compact size without sacrificing power or detail.

Mission 778X 65W Integrated Amplifier with Phono & Bluetooth

The Mission 778X is phono-ready with a JFET-based phono stage that provides precise RIAA equalisation, optimized for MM cartridges, so no extra pre-amp is needed. It features RCA line, digital, and coax connections, alongside a Bluetooth receiver with aptX/AAC for CD-level audio streaming from smart devices, offering both convenience and high-quality sound.

This amplifier is equipped with a high-performance ESS ES9018K2M Reference chip, utilizing ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. This allows for ultra-low noise digital audio file compatibility, with sampling rates up to 384kHz (PCM) and DSD256.

The headphone stage matches the performance of standalone headphone amplifiers, delivering dynamic, detailed sound thanks to its high slew rate design. All around, the 778X provides engaging and refined performance, catering to modern music enthusiasts while honoring Mission’s rich heritage.

View All Product Details

Wharfedale Diamond 12.1 Bookshelf Speakers (Pair)

The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.

The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.

Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.

The DIAMOND 12.1 features a high-performance 130mm (5”) KlarityTM driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.

View All Product Details

AMPLIFIER

• Model: 778X
• General Description: Digital-to-Analogue Converter, Stereo Amplifier
• Integrated Amplifier: (45 watts @8 ohms, 65 watts @4 ohms)
• Reference Chip: ESS Sabre32 ES9018K2M Reference Chip
• Ultra-low Noise: Digital Audio File Compability (384kHz PCM, DSD256)
• Bluetooth: 5.0 (aptX / AAC) Support
• Phono Stage: Dedicated High-performance, Low-noise MM Phono Stage
• Headphone AMP: With High-speed Output Signal Transition
• Large Tractile Controls: With LED Level Indicators

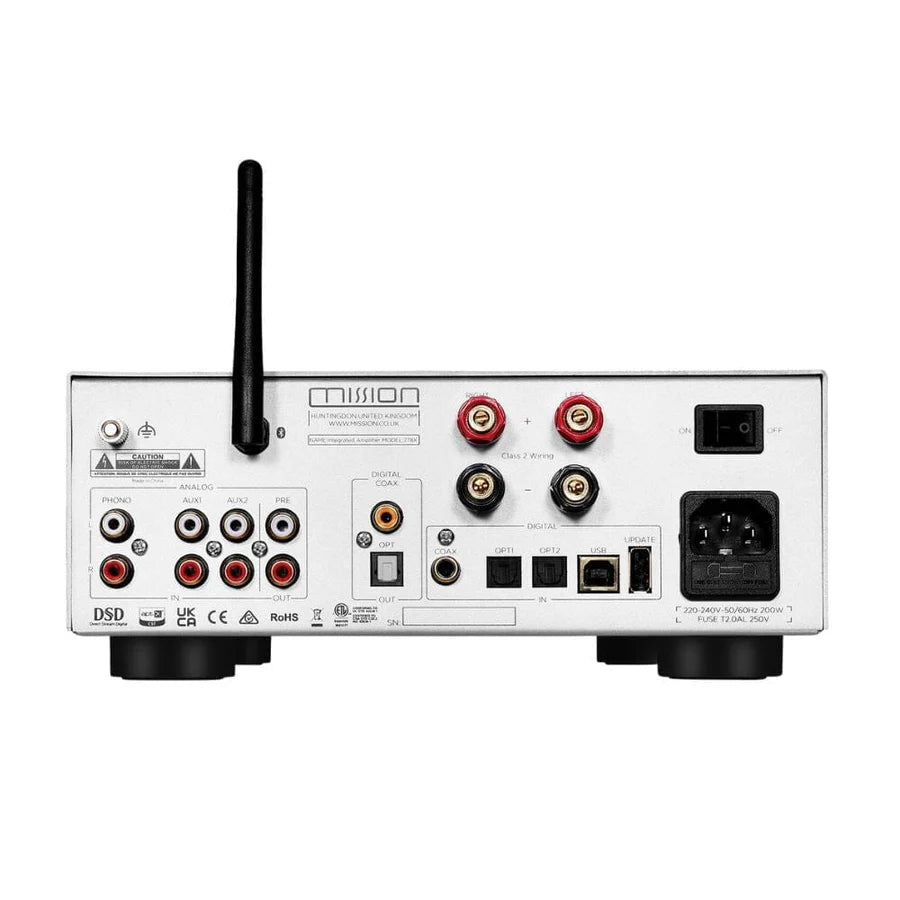

• Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM)
• Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
• Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
• Preamplifier Section: Gain (max.) +0dB (Line), +47dB (Phono MM)
• Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
• Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
• PRE Output Level: 2.1Vrms (max.)
• PRE Output SNR: >110dB (A-weighted)
• DAC - D to A Converter: ESS Sabre32 ES9018K2M
• Resolution: 32-bit
• Max. Sampling Frequency: Optical/Coaxial: 192kHz; / USB: PCM 384kHz / 11.2896MHz (DSD256)
• Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
• Output level (0dBFS, 1KHz): 2.1Vrms
• Power Amplifier Section - Gain/+31dB
• Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
• Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
• Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
• Standby Power Consumption: <0.5W
• Headphone Amplifier-Output Impedance: 4.7 ohms
• Load impedance: 20-600 ohms
• Dimensions (mm) (W x H x D): 236x98x380.6
• Net Weight: 6.3kg
• Finish: Black / Silver

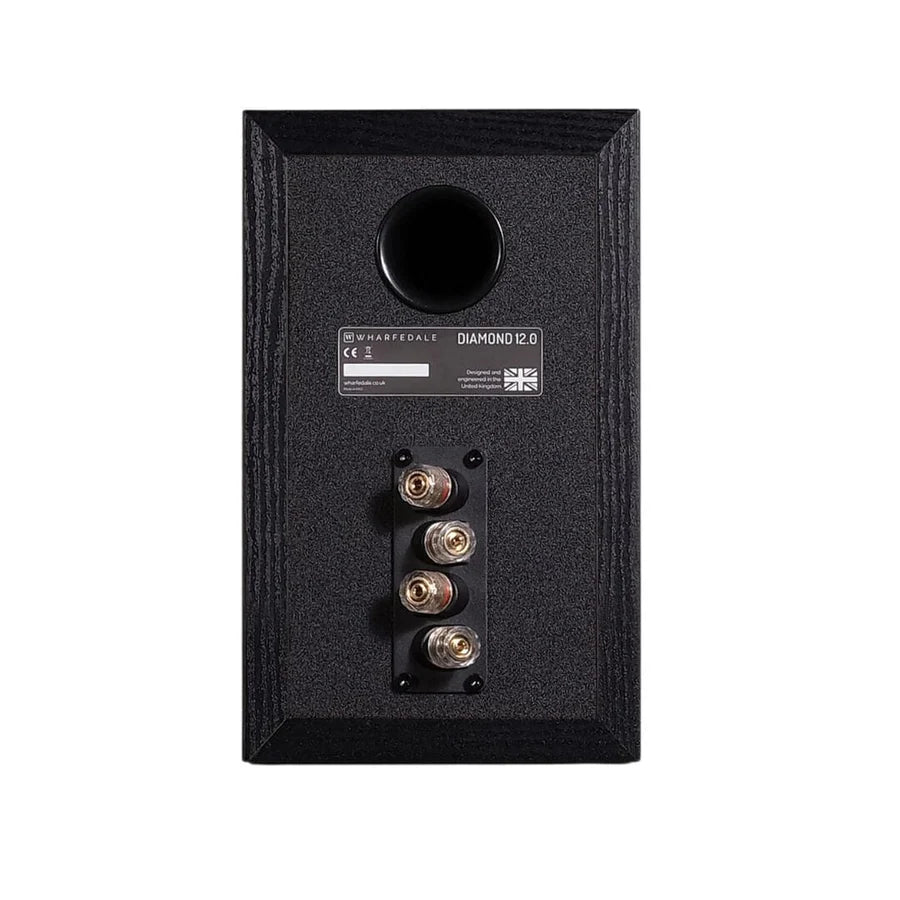

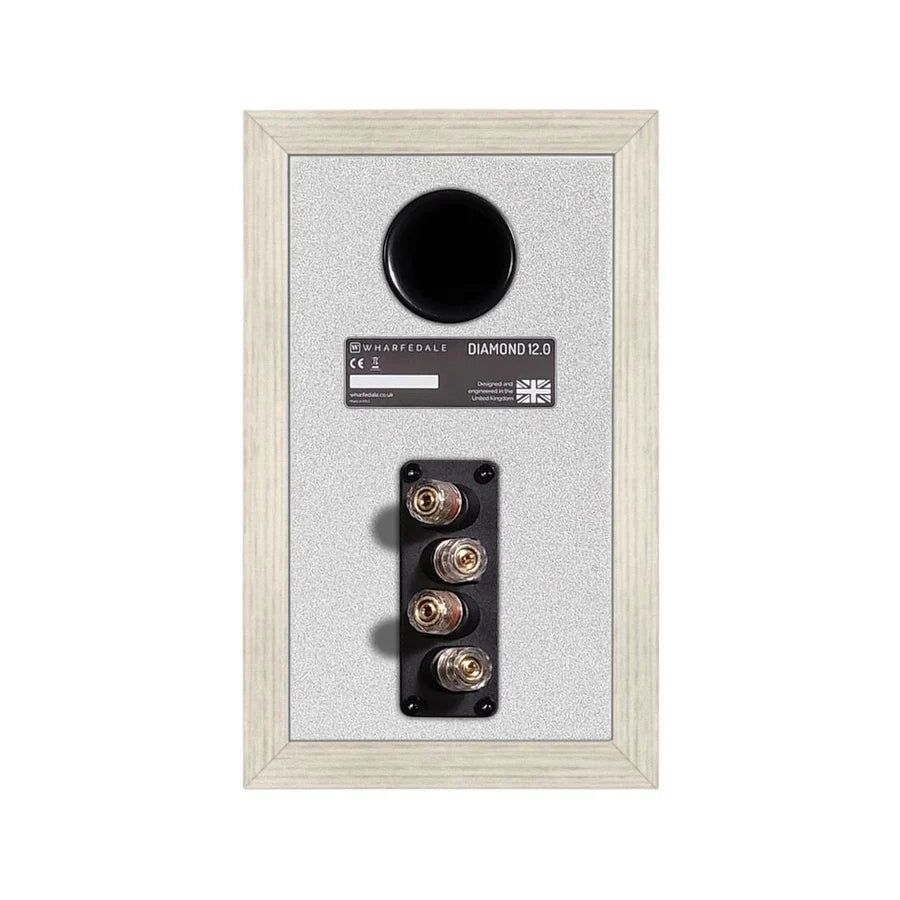

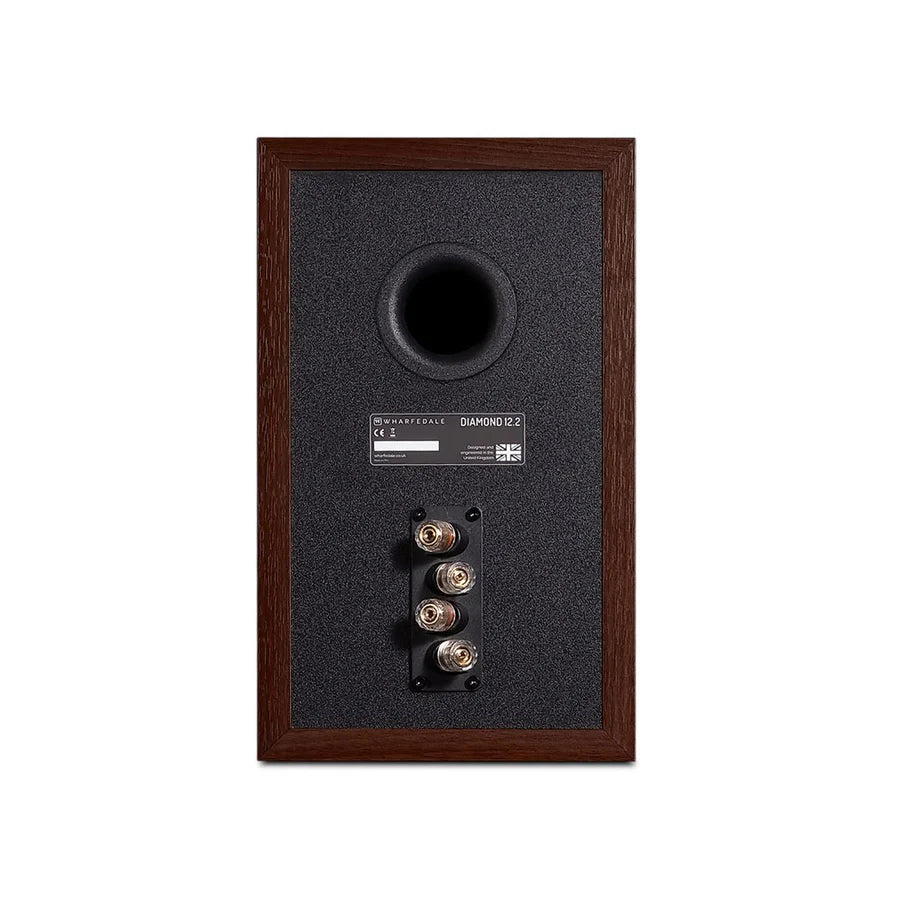

SPEAKERS

• General Description: 2-way bookshelf speaker
• Enclosure Type: bass reflex
• Transducer Complement: 2-way
• Bass Driver: 6.5"(150mm) advanced PP Cone
• Treble Driver: 1"(25mm) Textile Dome
• AV Shield: No
• Sensitivity (2.83V @ 1m): 88dB
• Recommended Amplifier Power: 20-120W
• Peak SPL: 96dB
• Nominal Impedance: 8Ω Compatible
• Minimum Impedance: 4.0Ω
• Frequency Response (+/-3dB): 50Hz ~ 20kHz
• Bass extension (-6dB): 43Hz
• Crossover Frequency: 2.0kHz
• Cabinet Volume (in litres): 11.8L
• Dimensions (H x W x D): 335 x 200 x (285+28) mm
• Net Weight: 8.2kg/pcs

AMPLIFIER

• 1 x Mission 778X Integrated Amplifier
• 1 x Power Cable
• 1 x Remote Control
• 1 x Antenna
• 1 x User Manual

SPEAKERS

• 2 x Wharfedale Diamond 12.2 Bookshelf Speaker
• 1 X User Manual
