Description
Description

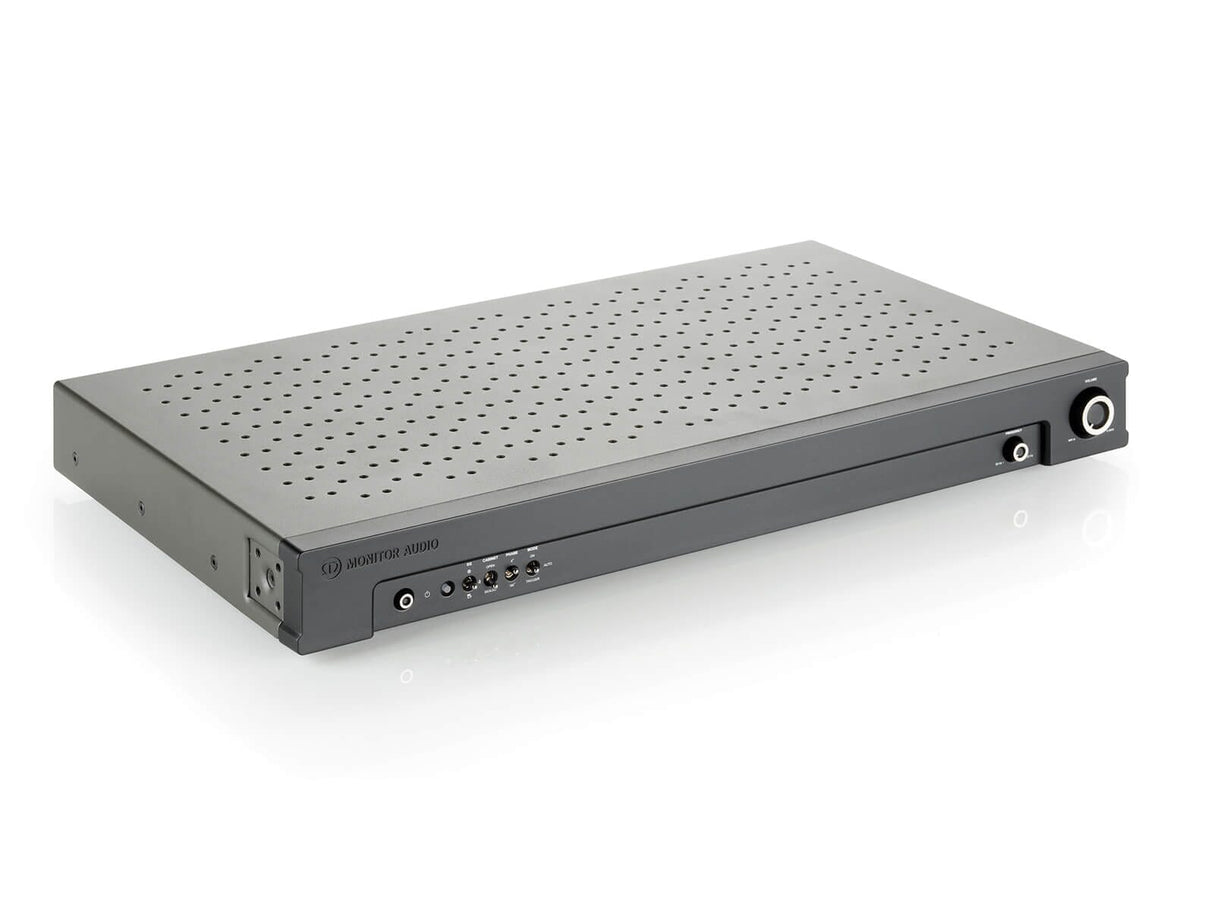

The Monitor Audio IWA-250 delivers up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.
FEATURES
- Rigid, high quality steel case
- Switch mode power supply
- Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
- High efficiency design resulting in cool running – low thermal output
- DSP controlled with advanced limiters
- <0.5watt standby power consumption (ErP certified)
- DC short circuit protection, over-current and thermal protection
Specifications
Specifications
- System Format: Active subwoofer amplifier
- Lower Frequency Limit: 25 Hz
- Upper Frequency Limit: Variable 40 – 120 Hz @ 24 dB/Octave
- Amplifier Output: 250 W @ < 1% THD+N
- Drive Unit Complement: 4 – 8 ohms
- Amplifier Classification: Class D amplifier with Switch Mode Power Supply (SMPSU)
- Cabinet Support: For use with the dedicated back box
- EQ: Music, Movie, Impact
- Phase Control: 0° & 180°
- Auto Sensing: Line level > 3.5 mV
- Input Level Requirements: Standby after approximately 15 minutes of no signal
- Input Impedance: > 20K ohms
- Mains Input Voltage: AC 110 – 120 V ~ 50/60 Hz, AC 220 – 240 V ~ 50/60 Hz (Factory Region Preset)
- Dimensions (H x W x D): 43.7 x 432 x 263 mm (1¾ x 17 x 10⅜")

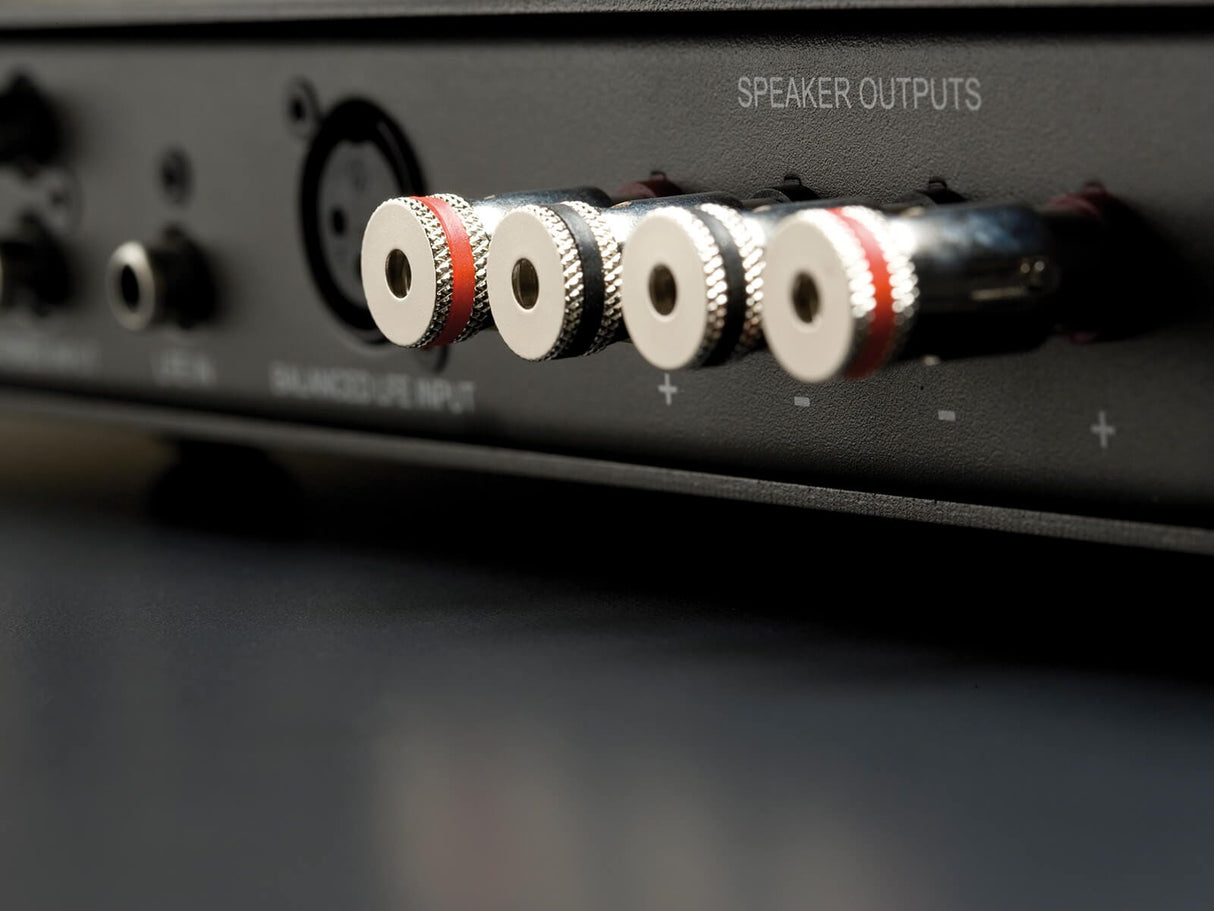

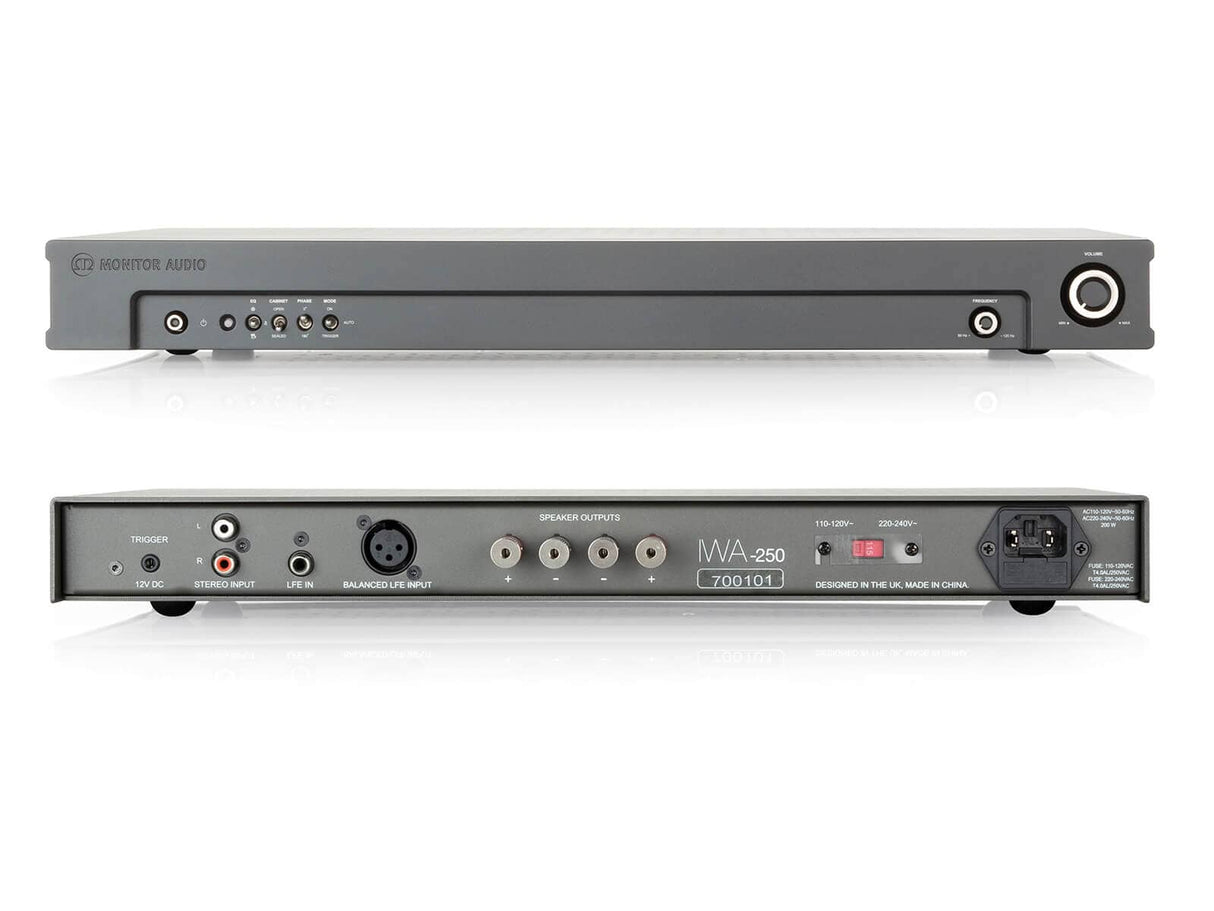

- Connection: LFE in (Stereo RCA and Balanced), 12V Trigger in (3.5 mm mono mini-jack), left and right speaker output
- Trigger Input: 5 – 12V via 3.5 mm mono mini-jack socket
- Power Consumption: Standby < 0.5 W (ErP approved), Typical Idle < 10 W, Max Rated 200 W
- Weight (Unpacked): 4 kg (8 lb 12 oz)
- Sold As: Single unit
What's In The Box
What's In The Box
- 1 x IWA-250 Amplifier
- 1 x Power Supply
Downloads
Downloads
-
https://cdn.shopify.com/s/files/1/0055/9906/8206/files/monitor-audio-iwa250-subwoofer-amplifier-user-manual.pdf?v=1737987311
