Description
Description

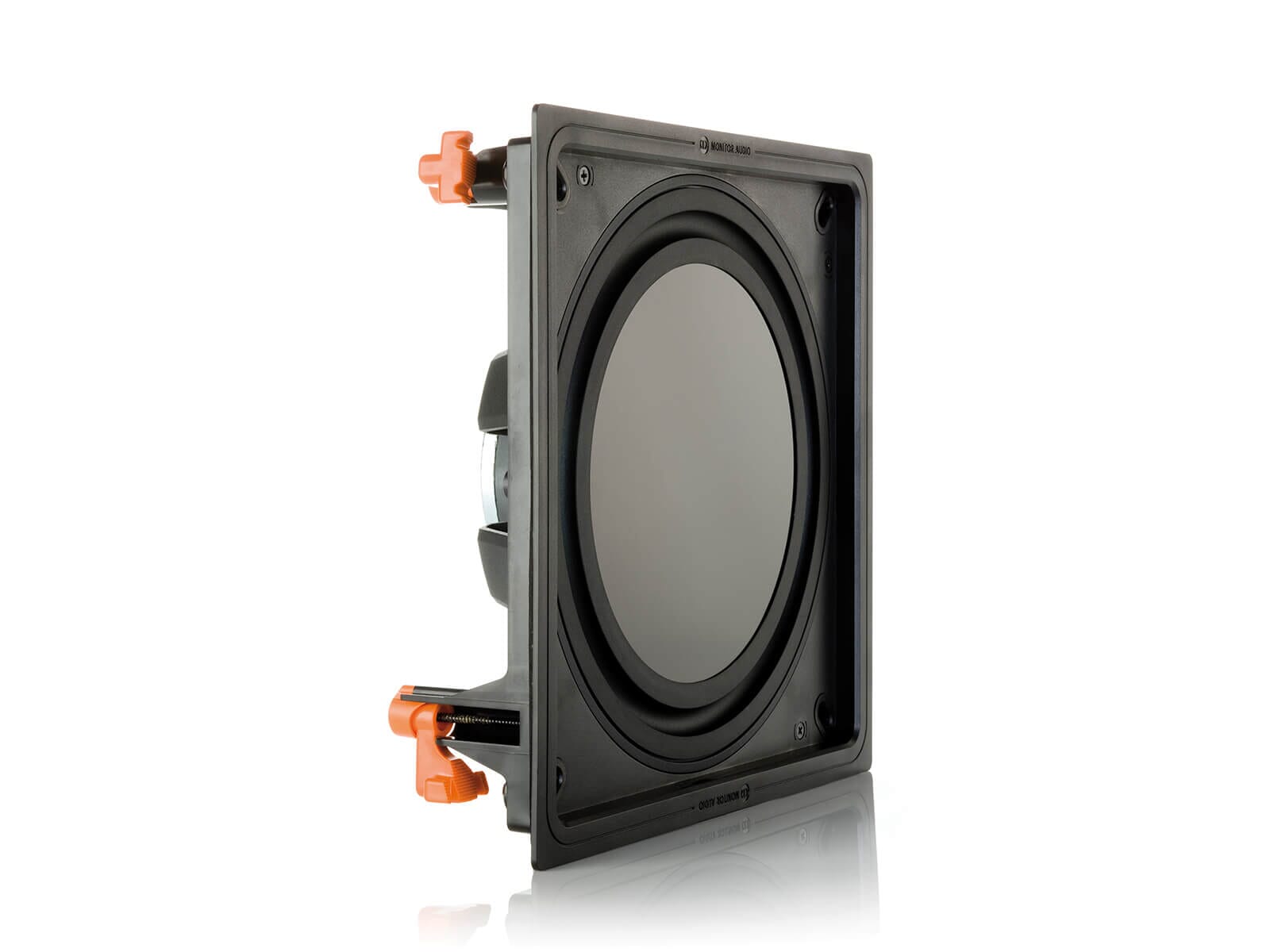

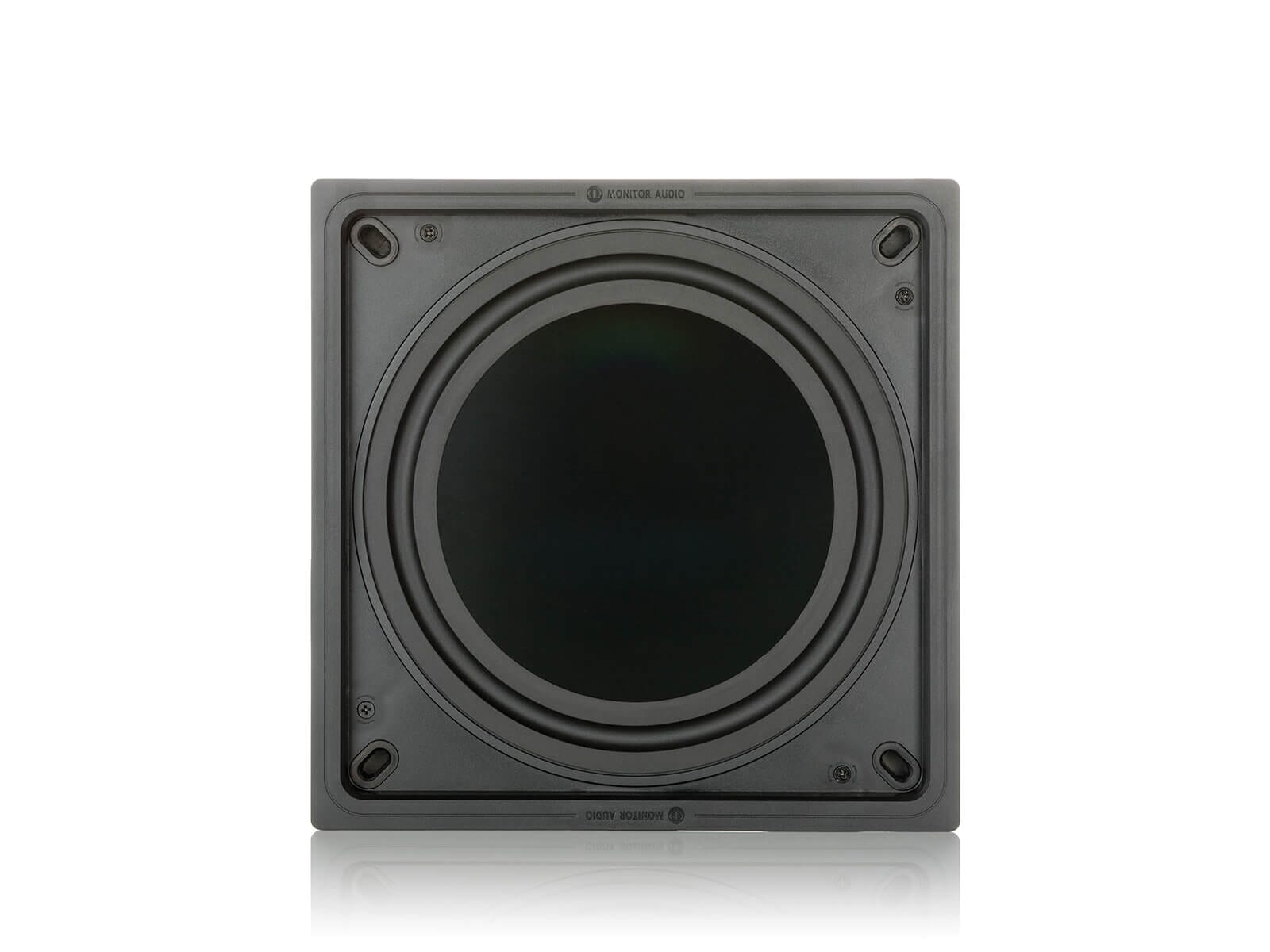

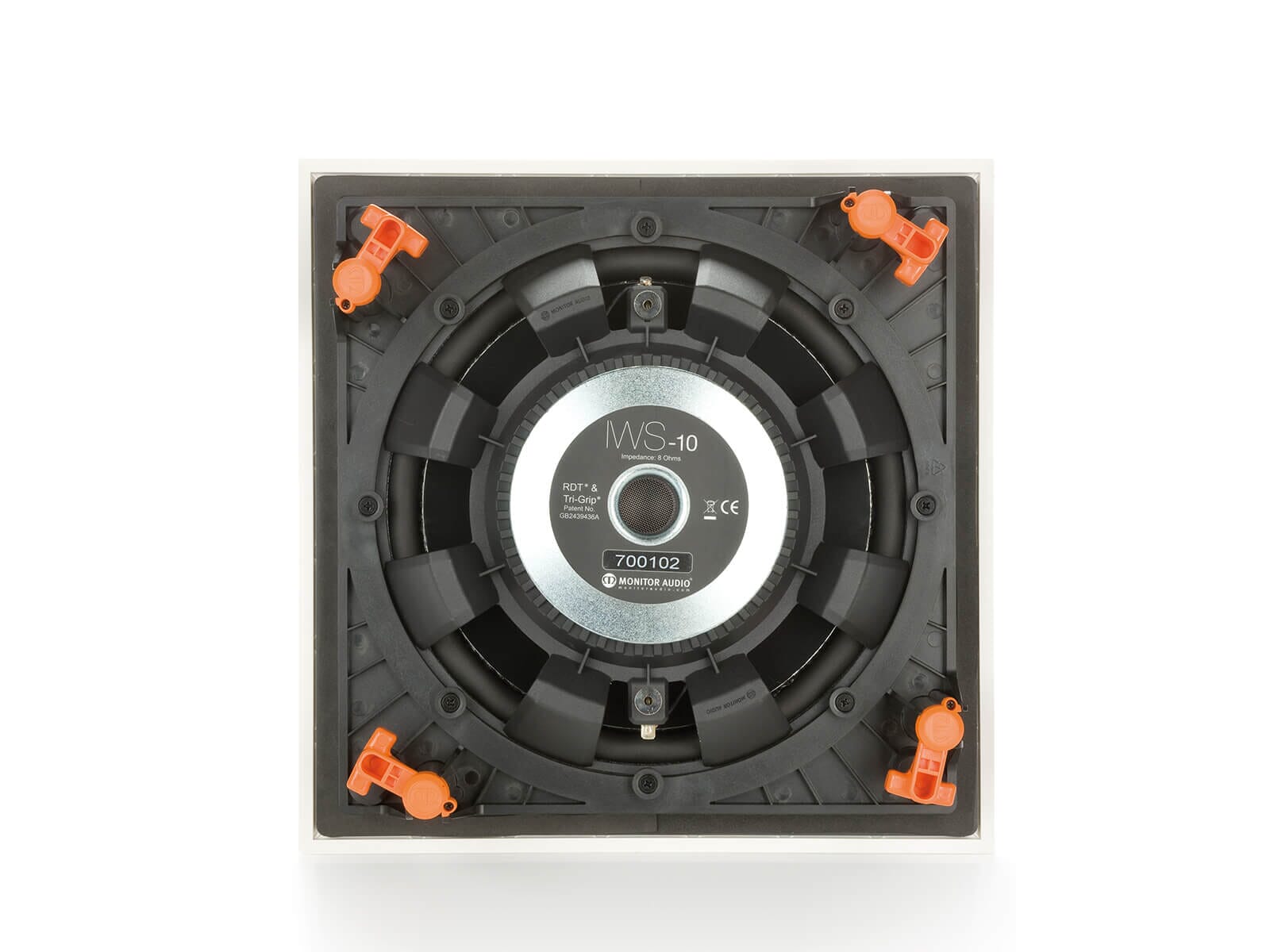

The Monitor Audio IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
Note: Requires IWA-250 (or equivalent) amplifier, sold separately.
Key Features
Key Features
-
PlacementIn Wall
-
Cut-Out Diameter
-
Mounting Depth
-
Power Handling
-
Impedance
-
Driver Size
-
Sensitivity
-
Warranty
Specifications
Specifications
- Frequency Response: 28 Hz – 120 Hz (when mounted in optimum enclosure)
- Nominal Impedance: 8 ohms
- Sensitivity (1W@1M): 86 dB
- Maximum SPL: Single unit: 109.8 dB; Pair: 115.8 dB
- Power Handling (RMS): 150 W
- Cut-Out Dimensions: 280 x 280 mm (11 x 11")
- Mounting Depth: 89.98 mm (3½")
- Fixing Type: 4-position Tri-Grip dog-leg fixings
- Connection: Gold-plated "push" type terminals
- Construction Material: Mineral-filled ABS plastic (RoHS2 compliant)
- Overall Dimensions (H x W x D): 302 x 302 x 92.28 mm (11⅞ x 11⅞ x 3⅝")
- Overall Dimensions (Including Grille, H x W x D): 314.21 x 314.21 x 100.78 mm (12⅜ x 12⅜ x 3¹⁵/₁₆")
- Weight: 3.8 kg (8 lb 6 oz)
- Sold As: Single unit
What's In The Box
What's In The Box
- 1 x IWS-10 In Wall Subwoofer
- 1 x White Grille
- 1 x Cut Out Template
- 1 x Instruction Manual
