Description
Description

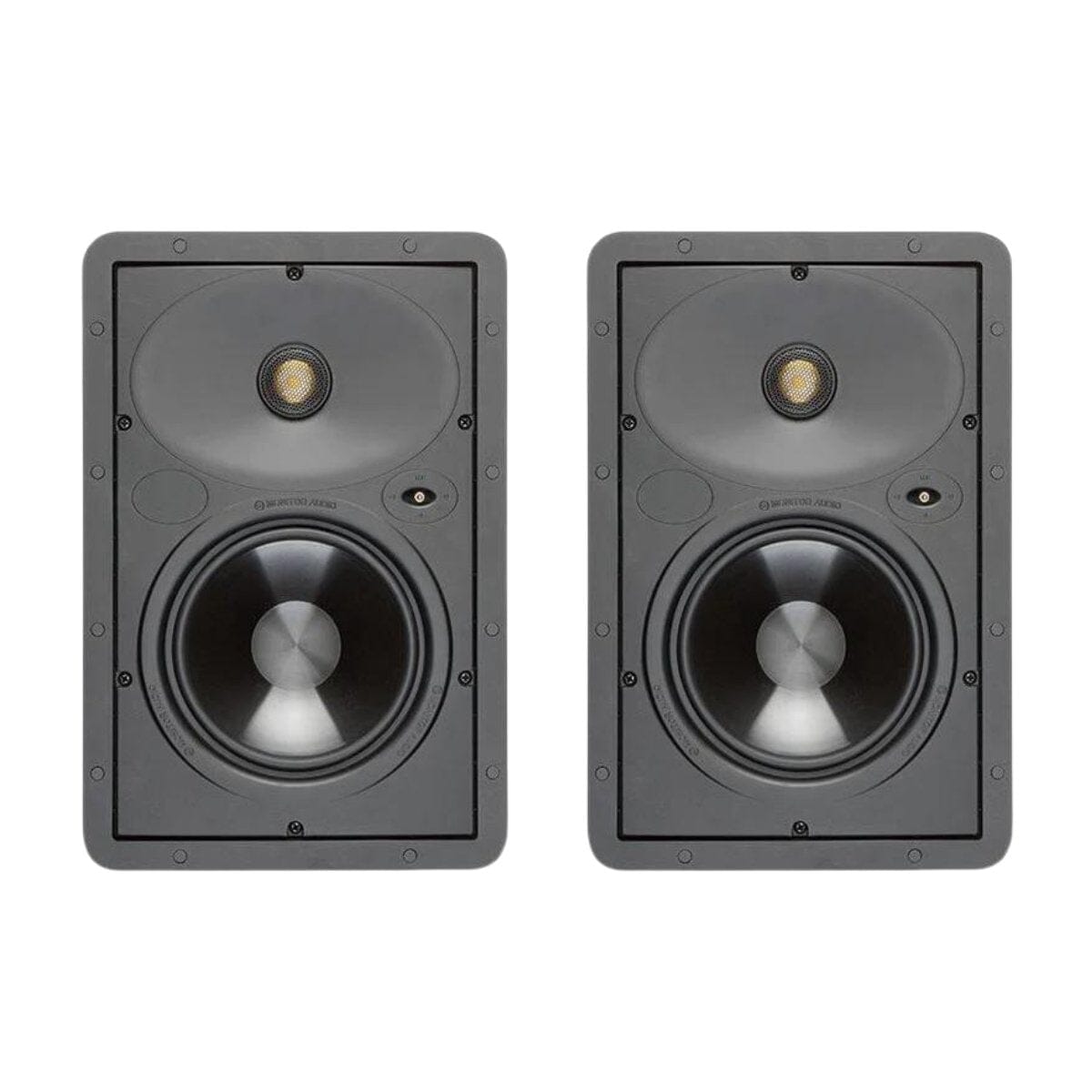

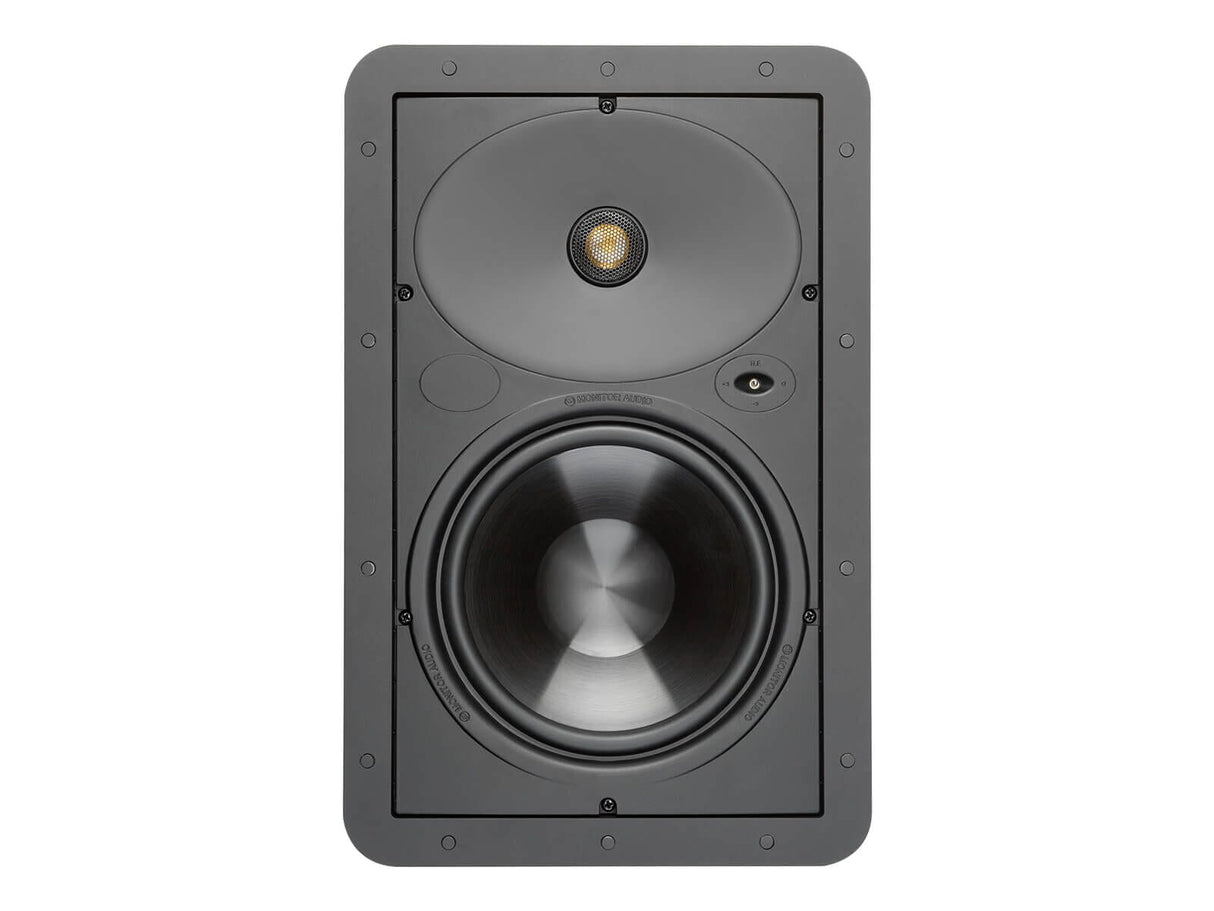

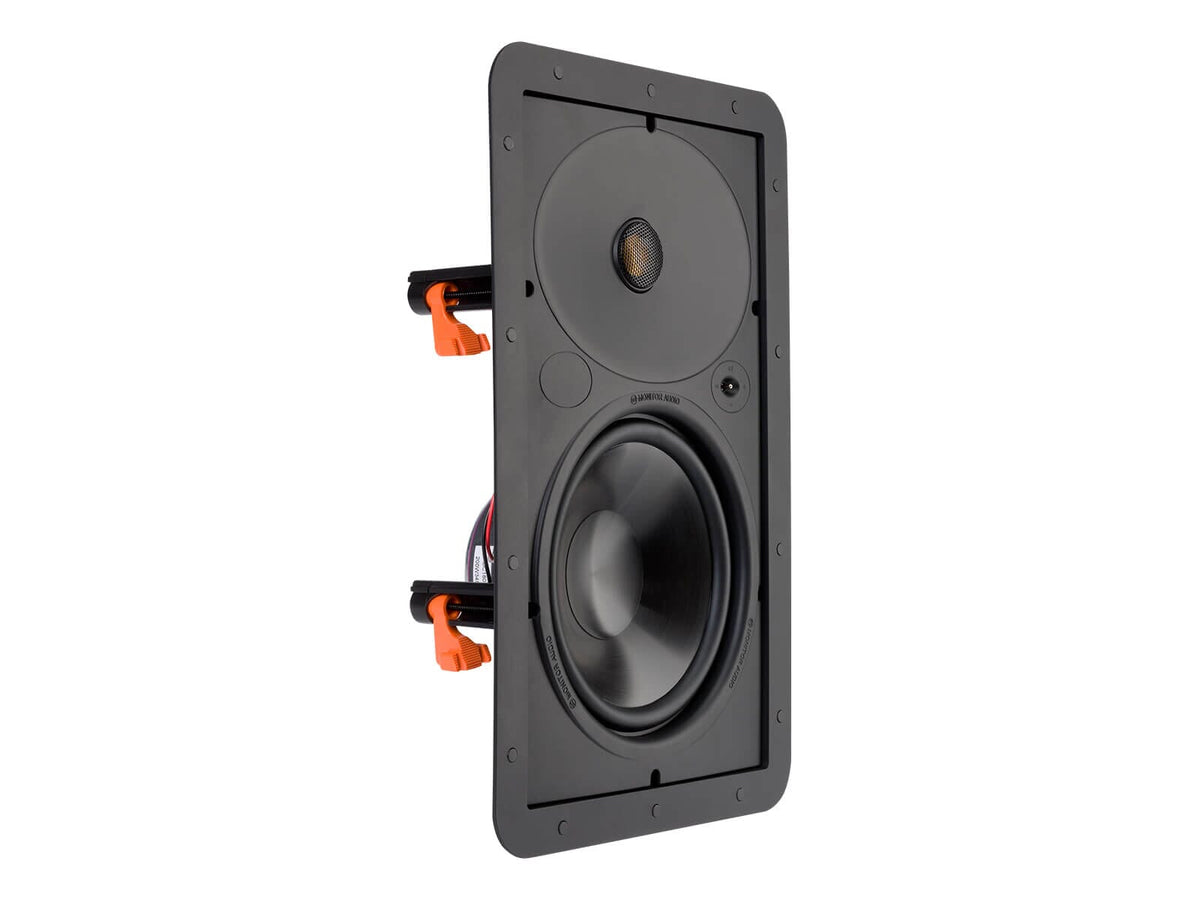

The Monitor Audio W180 features an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Key Features
Key Features
-
PlacementIn Wall
-
Cut-Out Diameter
-
Mounting Depth
-
Power Handling
-
Impedance
-
Driver Size
-
Sensitivity
-
Warranty
Specifications
Specifications
- Frequency Response: 50 Hz – 25 kHz
- Nominal Impedance: 6 ohms
- Sensitivity (1W@1M): 90 dB
- Maximum SPL: 111.6 dBA
- Power Handling: 120 W
- Recommended Amplifier Requirements: 30 – 120 W
- Drive Unit Complement: 8" MMP II cone bass driver, 1" C-CAM Gold Dome tweeter
- Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
- Overall Diameter (Including Grille): 441 x 288 mm (17⅜ x 11¹/₁₆")
- Overall Depth (Including Grille): 104 mm (4⅛")
- Mounting Depth: 100 mm (3⅞")
- Cut-Out Hole Diameter: 387 x 234 mm (15¼ x 9³/₁₆")

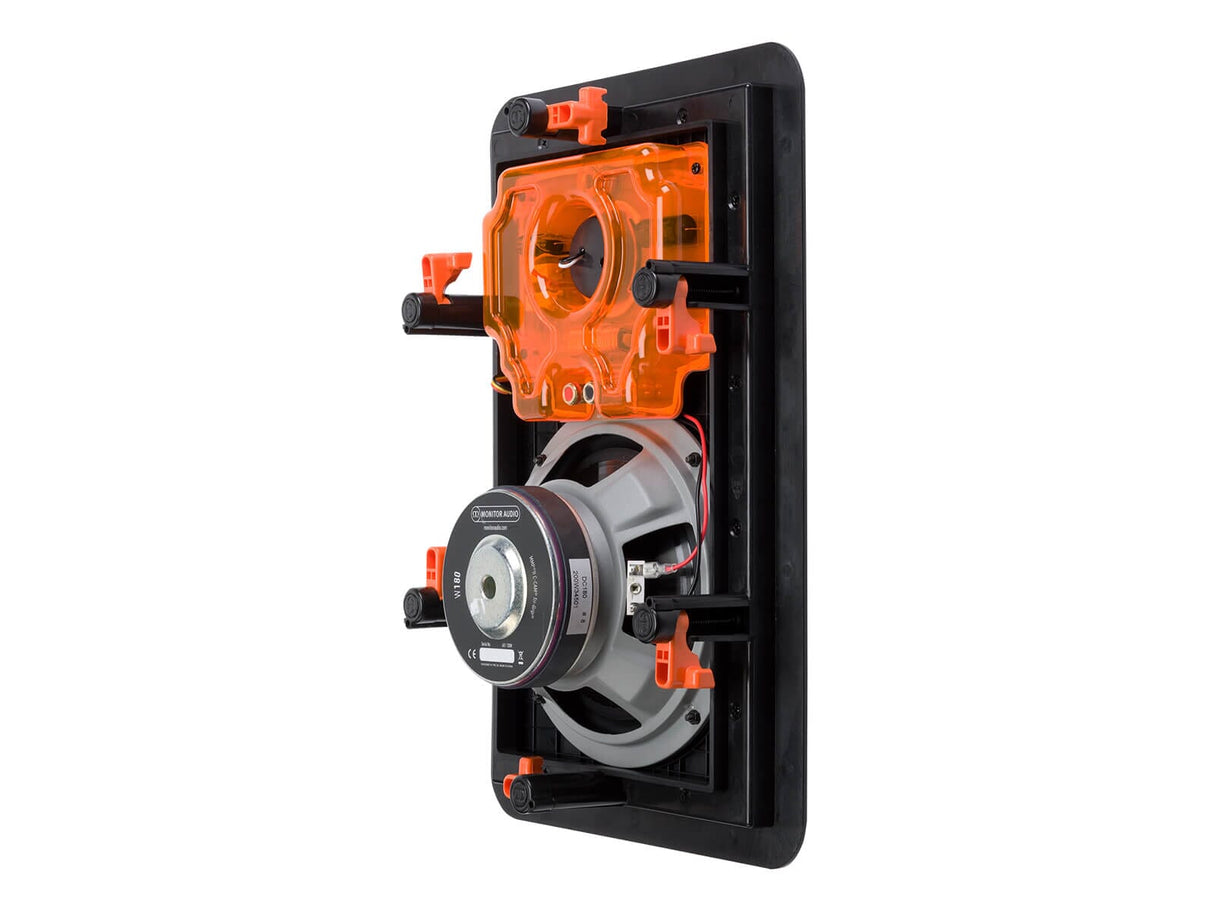

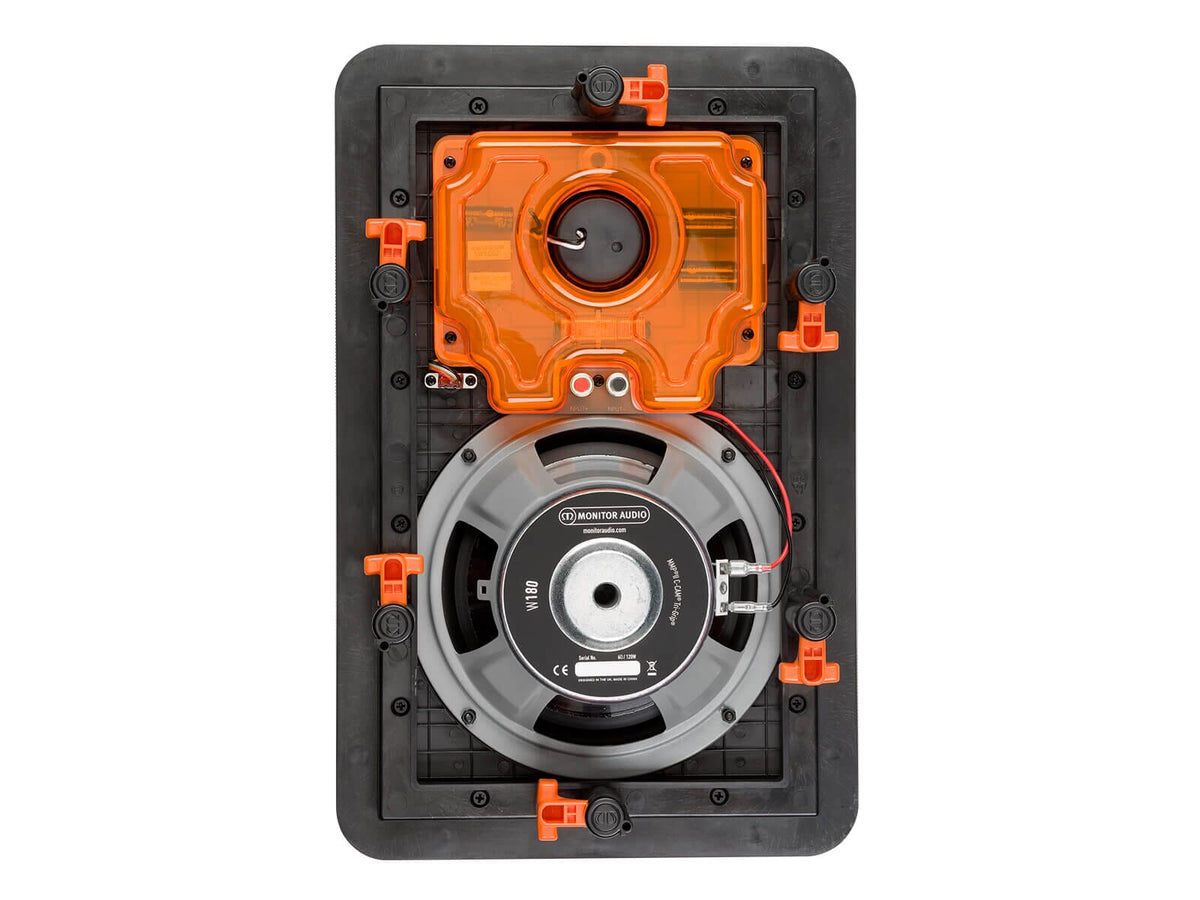

- Fixing Type: 6-position Tri-Grip dog fixings
- Construction Material: Mineral-filled ABS, RoHS compliant
- Weight: 3.08 kg (6 lb 12 oz)
- Pre-Construction Bracket: WB8 Pre-Construction Bracket (Green)
- Back Box: WCBOX-L
- Sold As: Single unit
What's In The Box
What's In The Box
- 1 x W180 In Wall Speaker

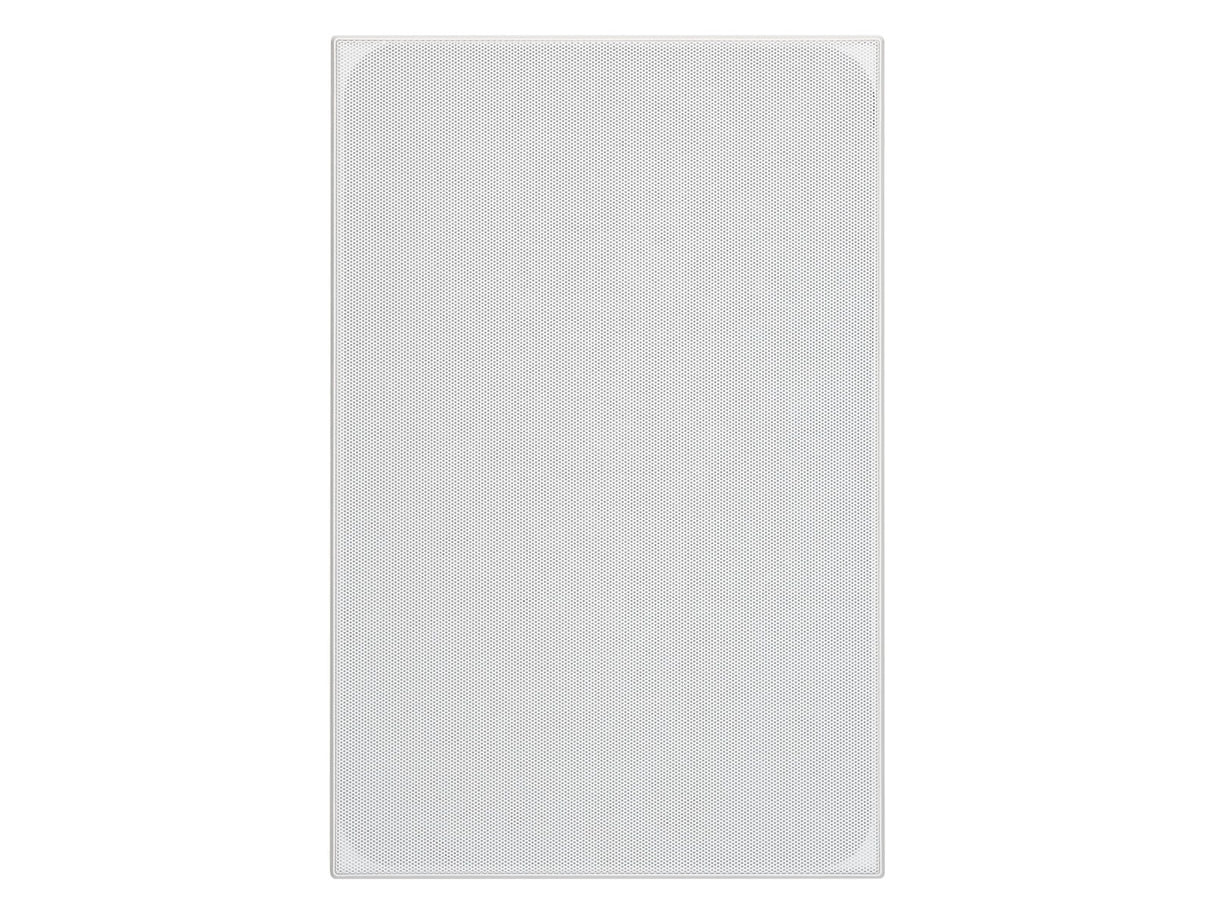

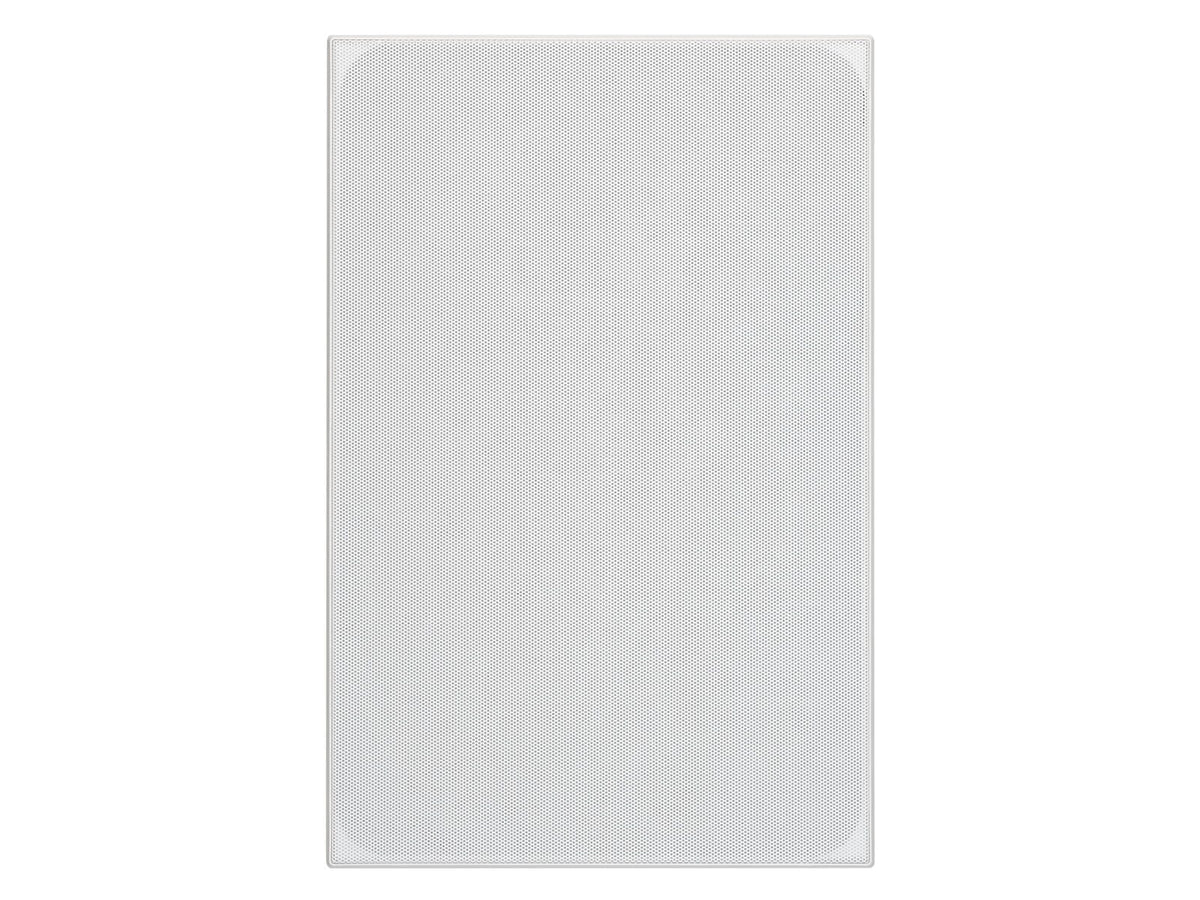

- 1 x White Grille
- 1 x Cut Out Template
- 1 x Instruction Manual
