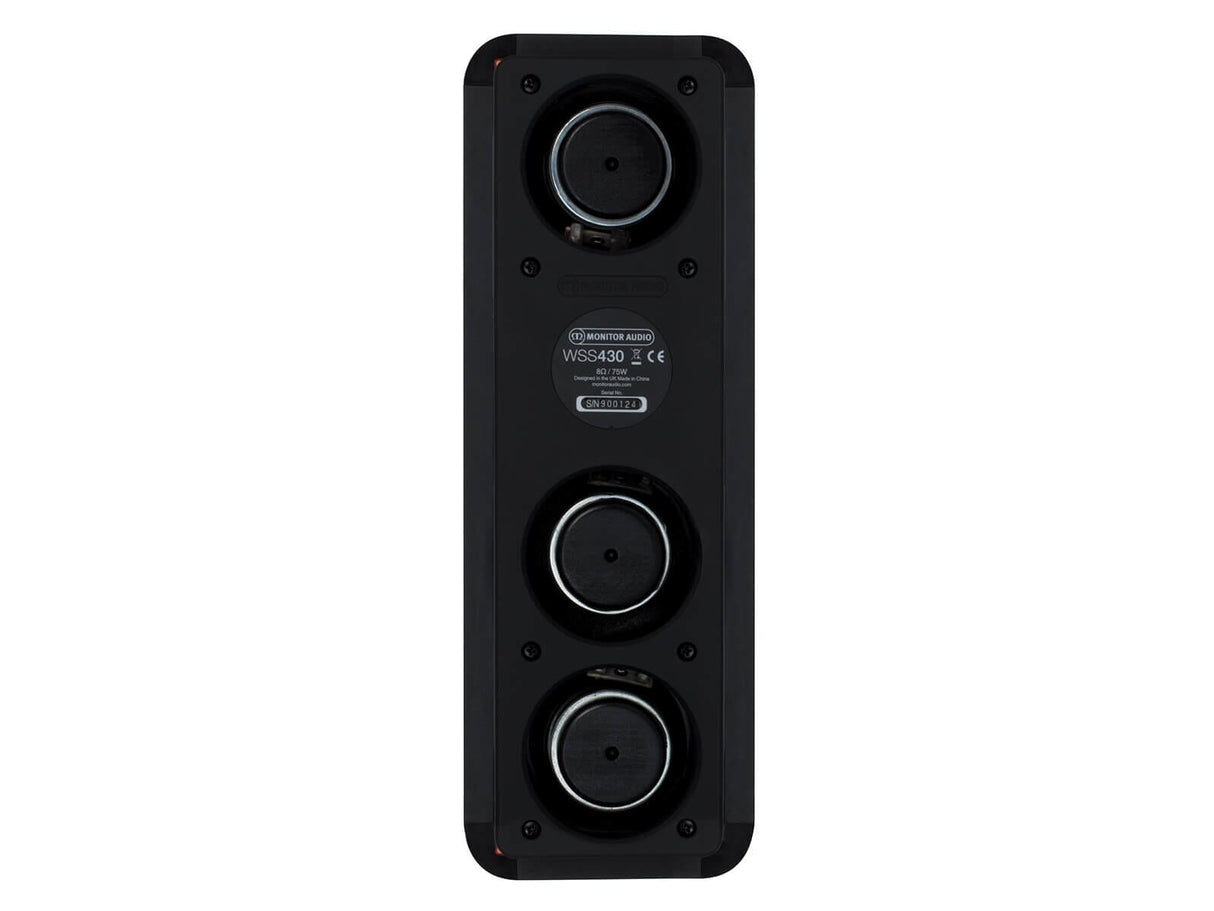

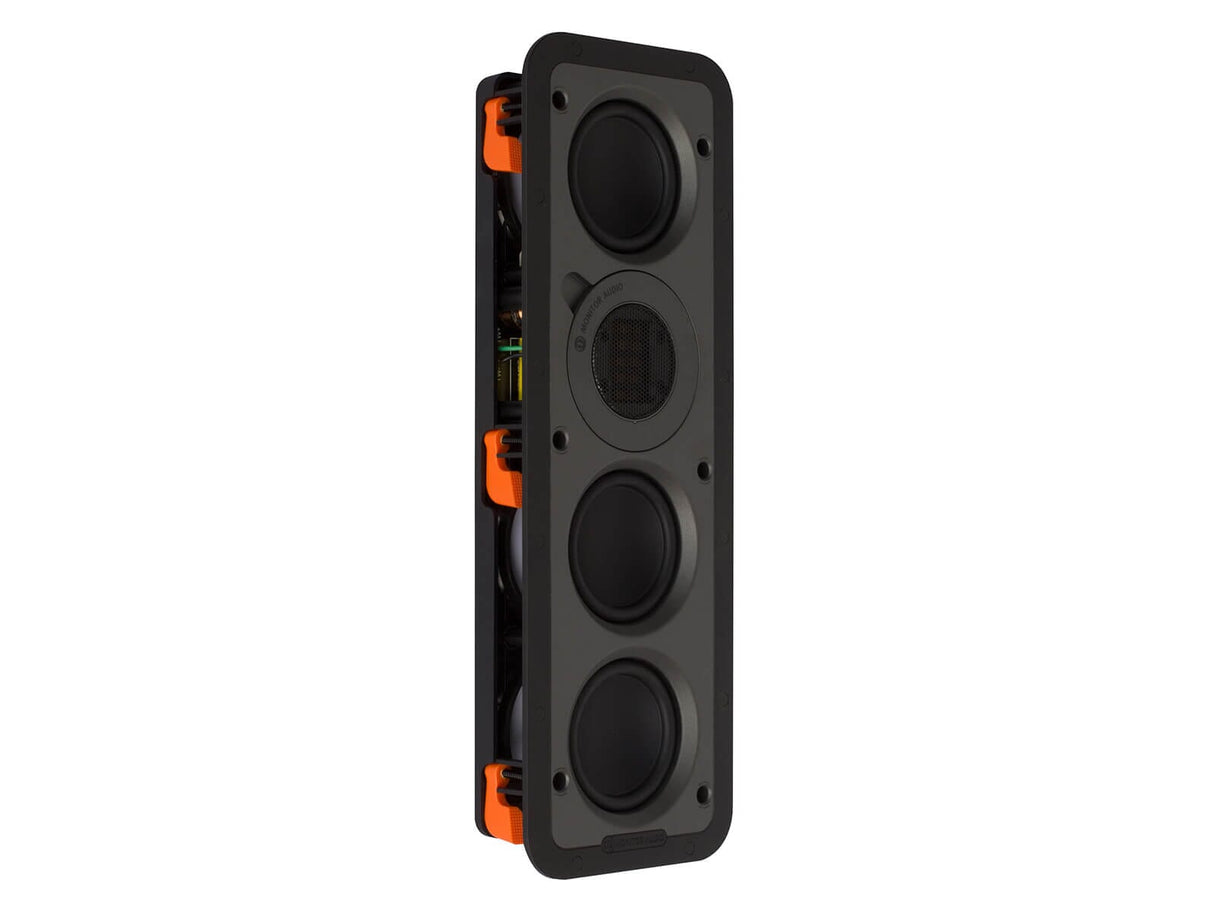

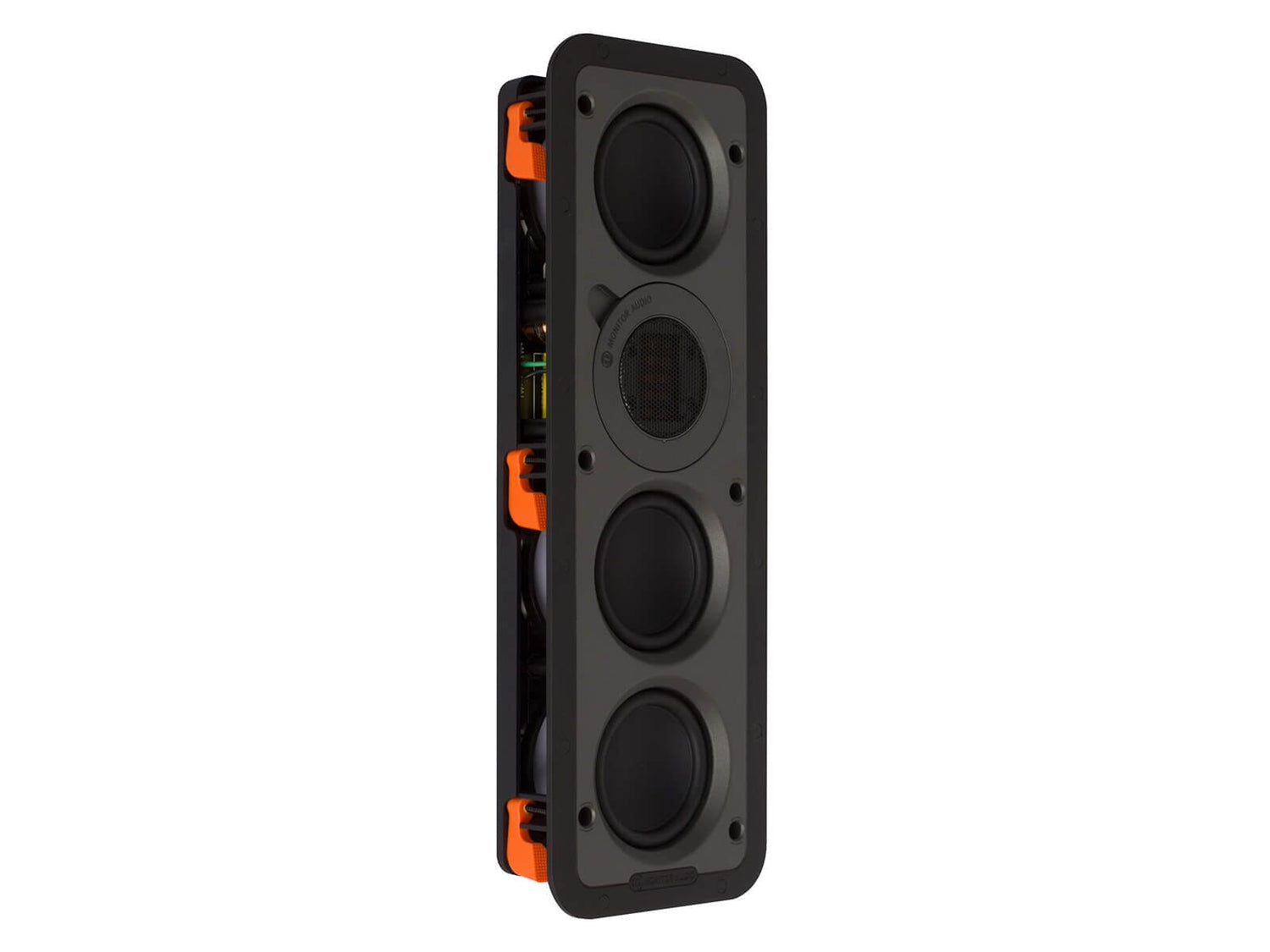

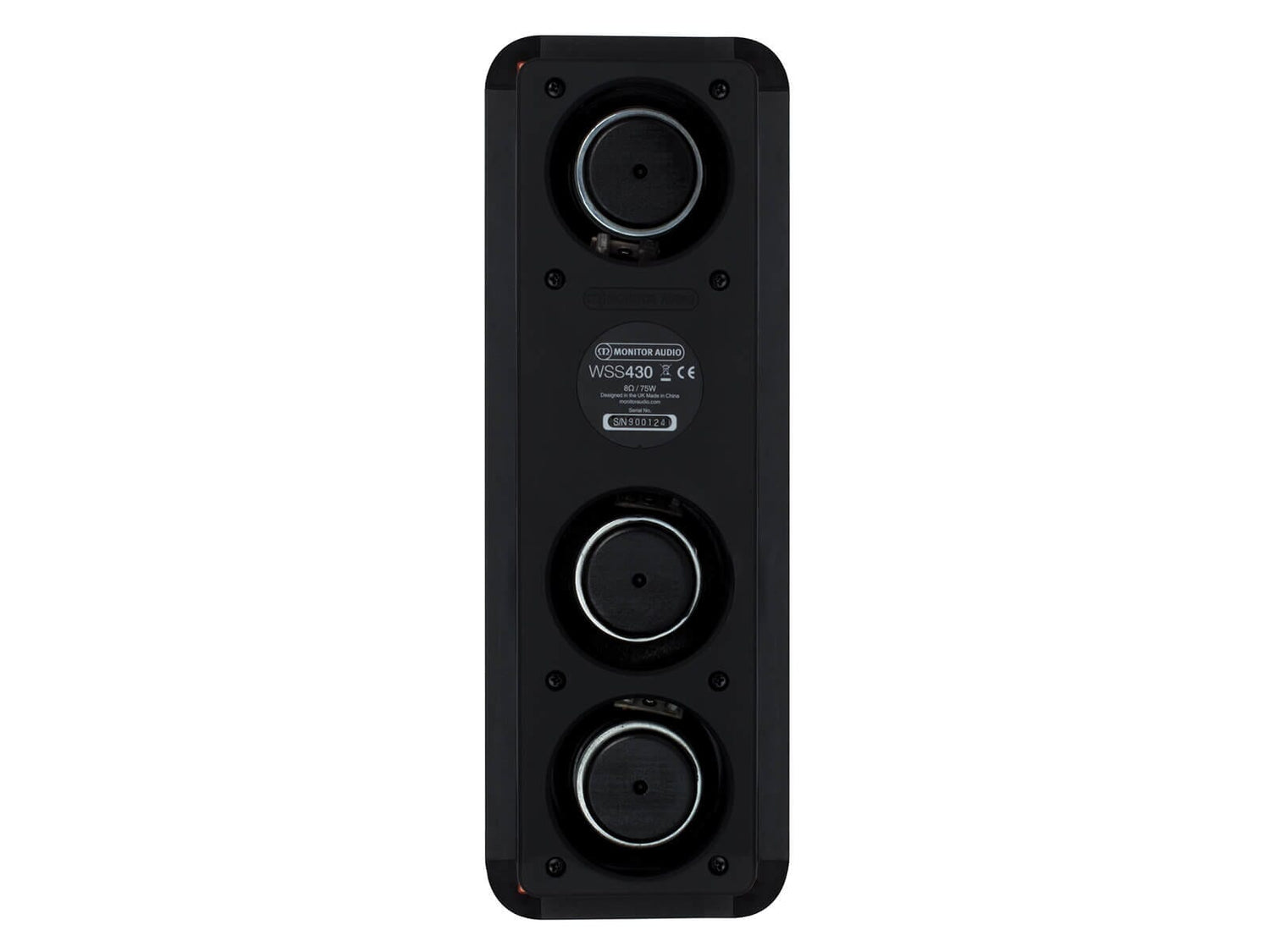

Monitor Audio WSS430 Super Slim In Wall Speaker (Each)

The Monitor Audio WSS430 is the flagship in the super slim range.

It effortlessly delivers the most critical audiophile and cinema experiences.

Using design principles and technology from our flagship Platinum II speaker models, performance from this formidable in-wall challenges that from the best high-end, box speaker designs.

FEATURES

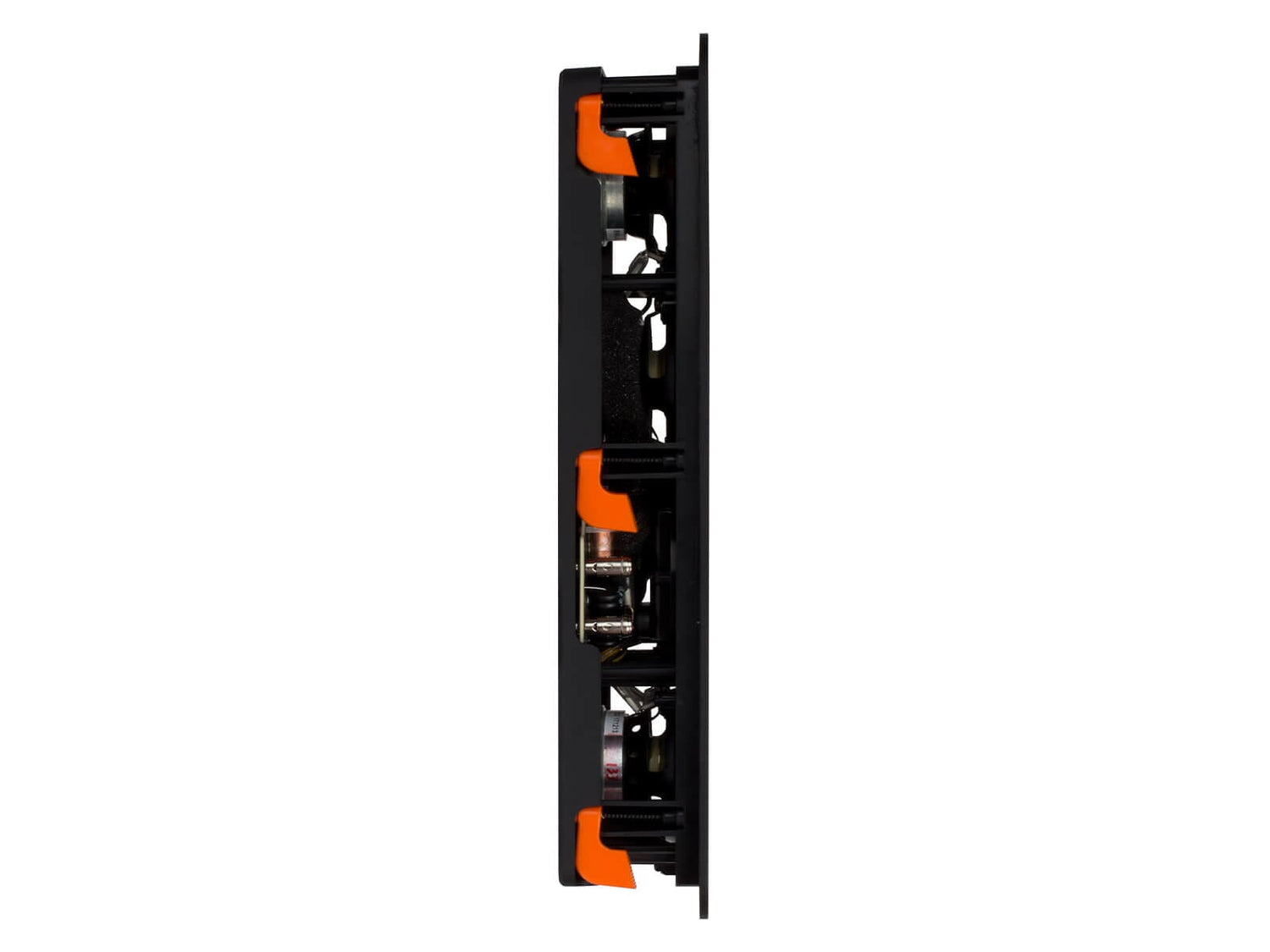

• Super-slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
• Designed for portrait or landscape installation – fits between standard 14" stud bays
• Elegant, slim profile only 385 x 140 mm wide

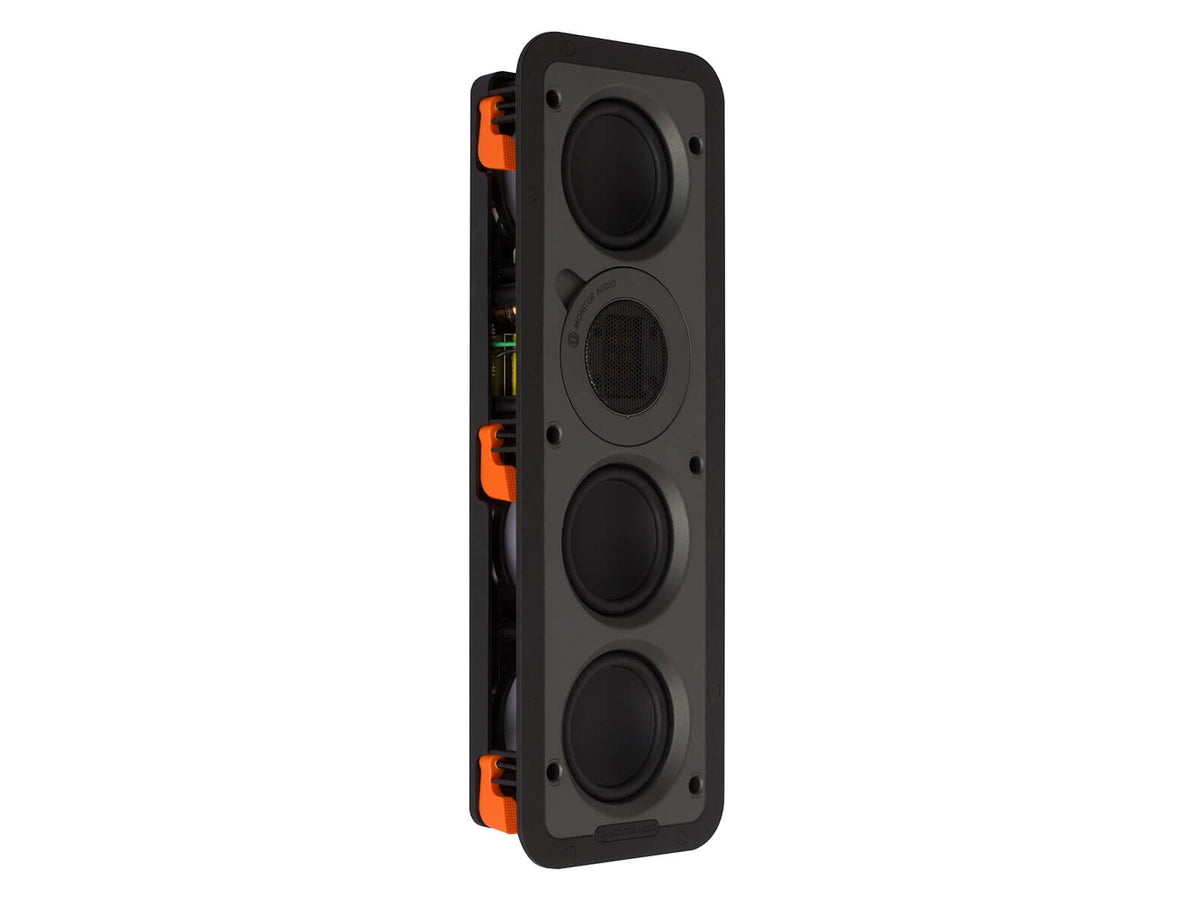

• Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
• 25 mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models. WSS430 utilises MPD high frequency transducer from Platinum IC model and flagship Platinum II speaker range
• High quality crossover components – Selected and voiced for amazing sonic performance

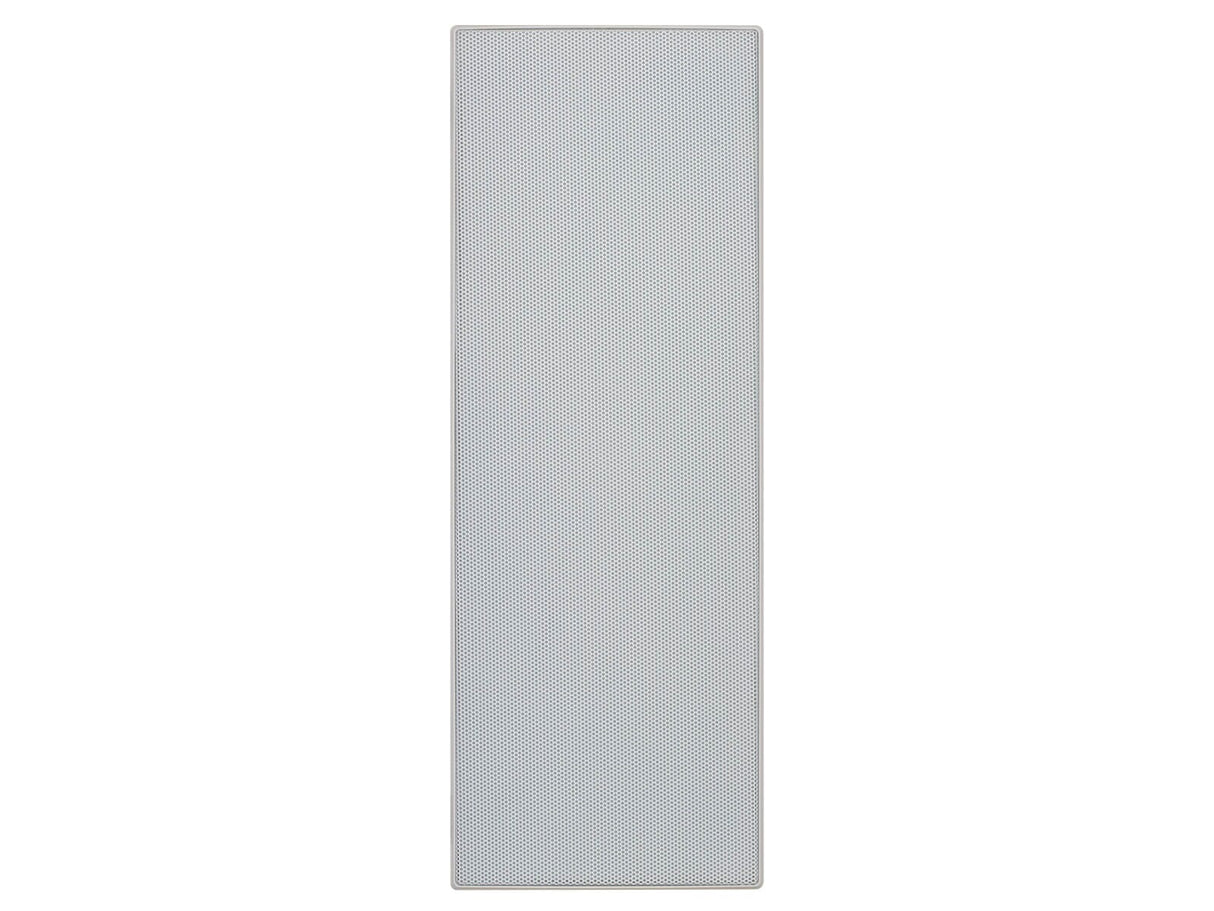

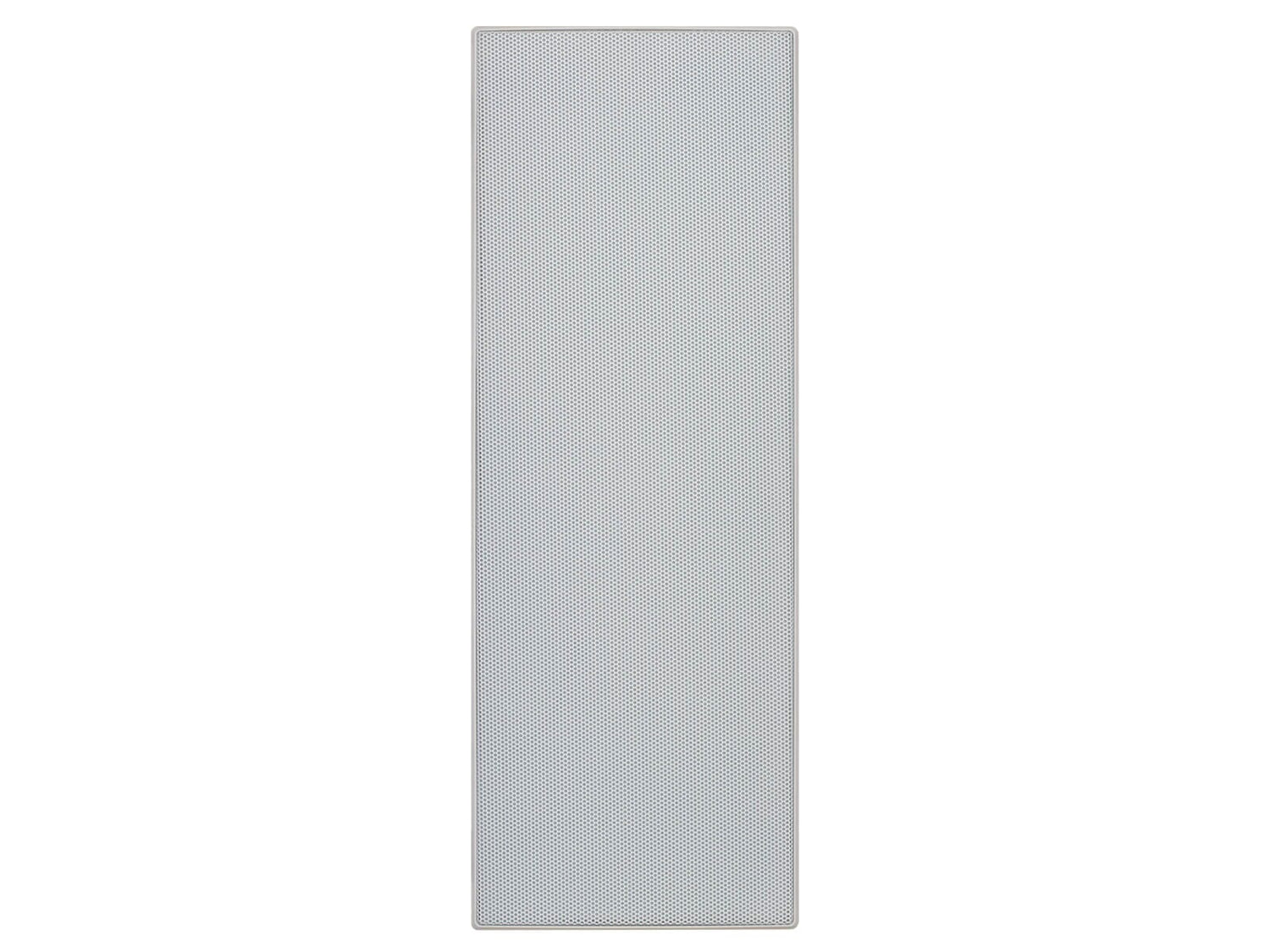

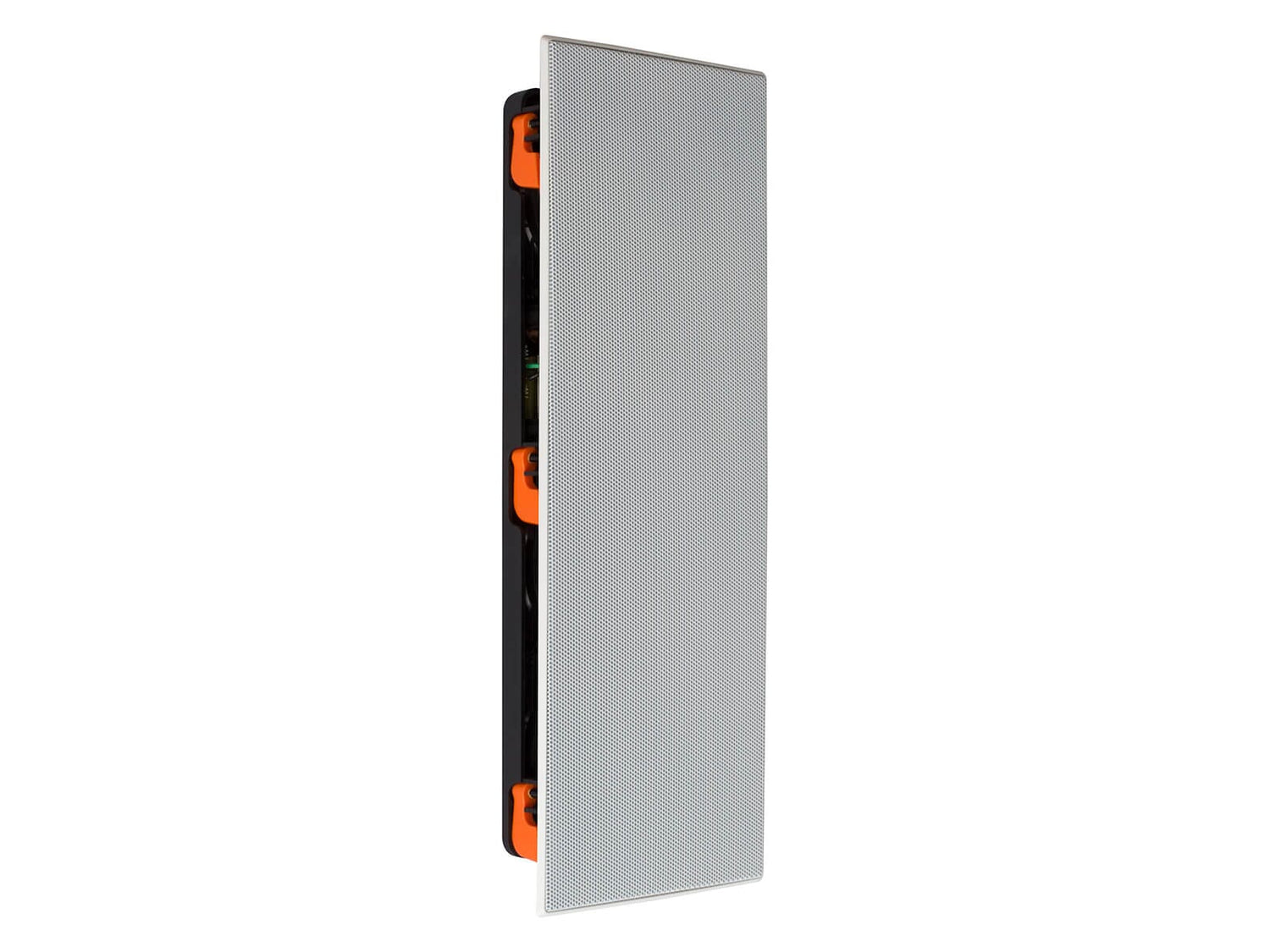

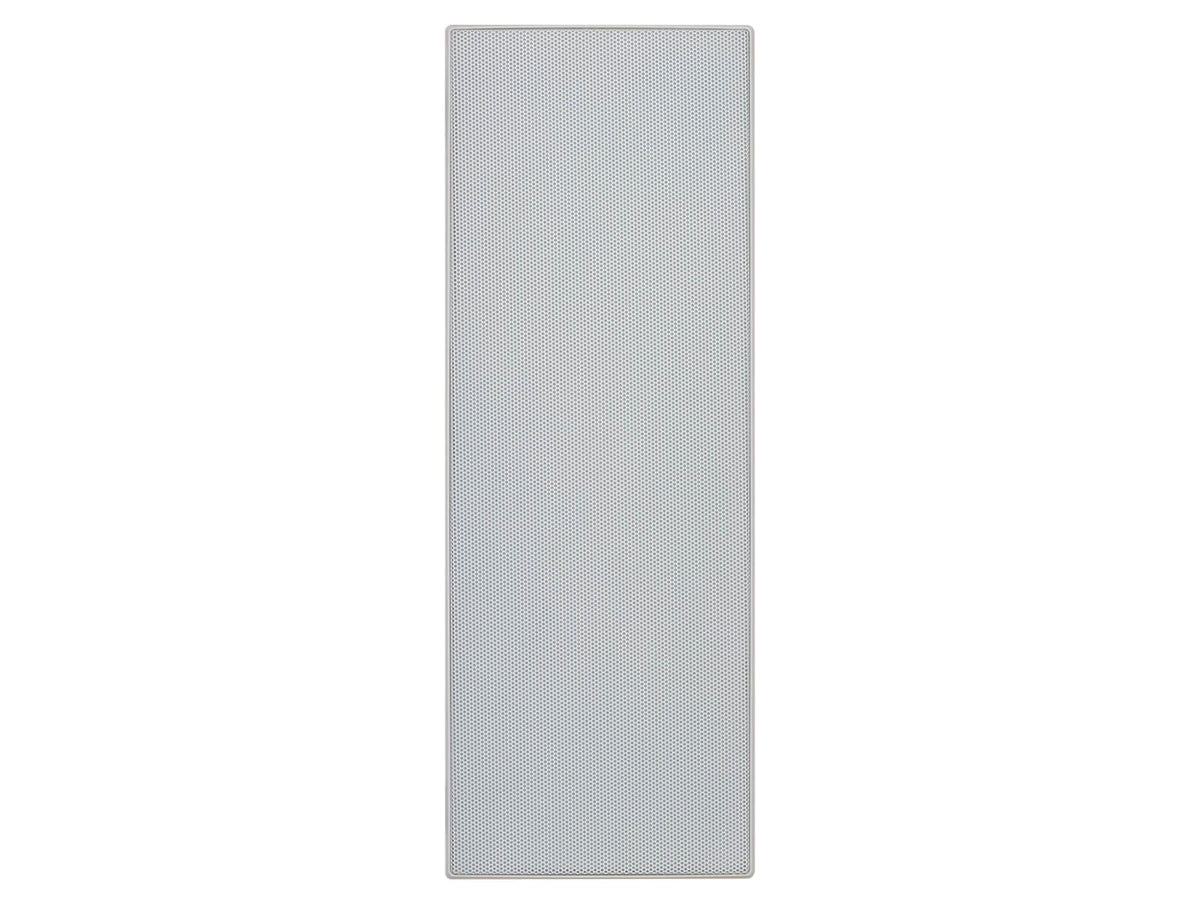

• Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing
• Tri-Grip Dog leg fixings – reliable, robust, and quick to install
• Gold plated sprung push terminals – easy to connect and reliable
• Paintable grille – to complement and blend with décor
• WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration

• Frequency Response (-6 dB): 70 Hz – 50 kHz
• Sensitivity (1W@1M): 87 dB
• Nominal Impedance: 8 ohms
• Maximum SPL: 106.5 dBA
• Power Handling: 75 W Full Range, 120 W with crossover set to 100 Hz @ 12 dB/Octave
• Recommended Amplifier Requirements: 10 – 120 W

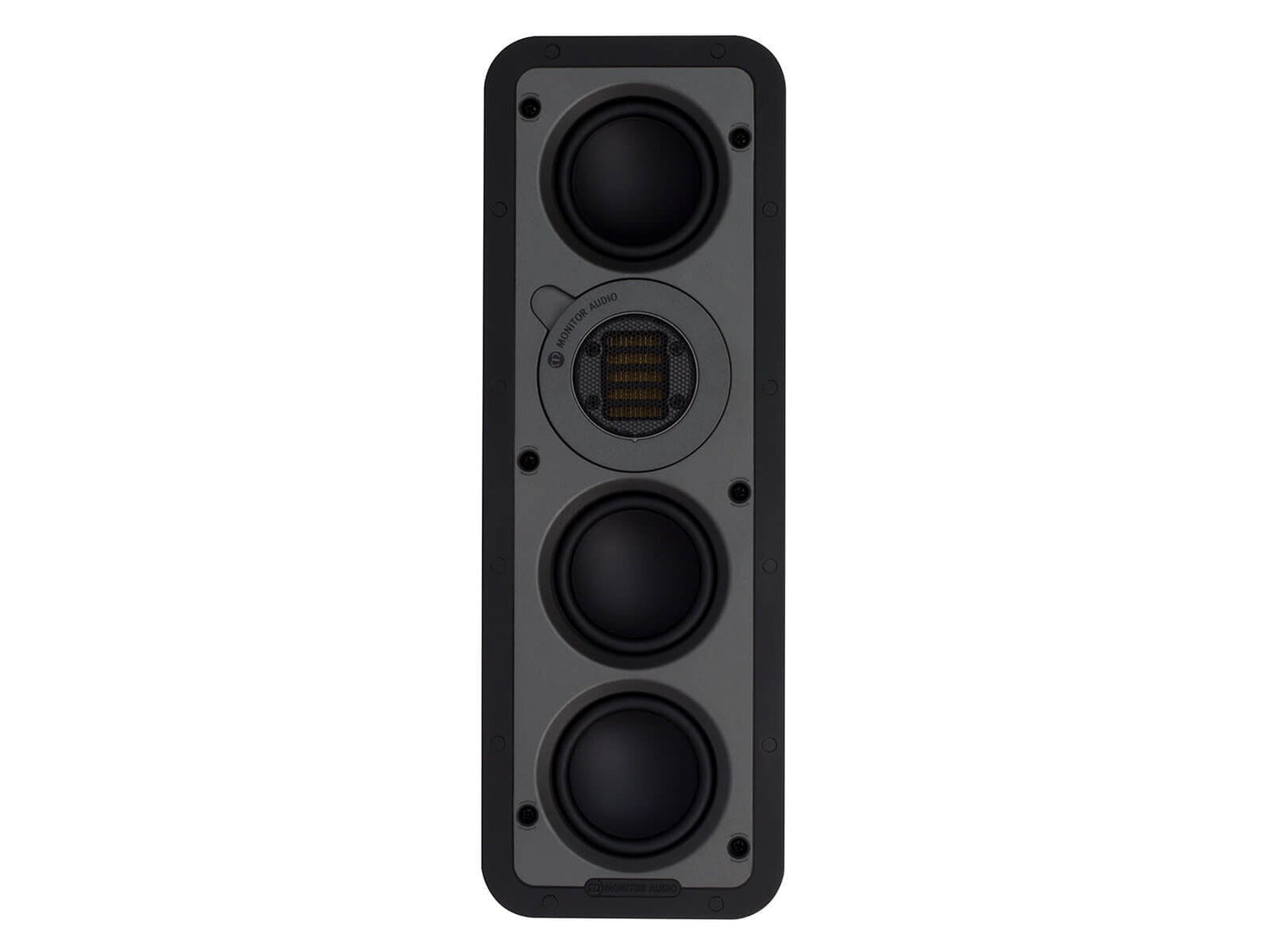

• Drive Unit Complement: 3 x 3" dished C-CAM cone bass-mid drivers, 1 x MPD high-frequency transducer (rotatable for portrait or landscape application)
• Crossover Recommendation (using AVR/Processor): 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
• Overall Dimensions: 385 x 140.5 mm (15 x 5½")
• Overall Depth (Including Grille): 54.25 mm (2⅛")
• Cut-Out Dimensions: 346 x 101 mm (13½ x 4")
• Mounting Depth: 50 mm (2")
• Connection: Gold-plated sprung push terminals for bare wire connection up to 3 mm²
• Fixing Type: 6-position Tri-Grip dog-leg fixings
• Weight: 1.1 kg (2 lb 6 oz)
• Construction Material: Mineral-filled ABS plastic, RoHS2 compliant; painted steel grille
• Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
• Sold As: Single unit

• 1 x WSS430 In Wall Speaker
• 1 x White Grille
• 1 x Cut Out Template
• 1 x Instruction Manual
