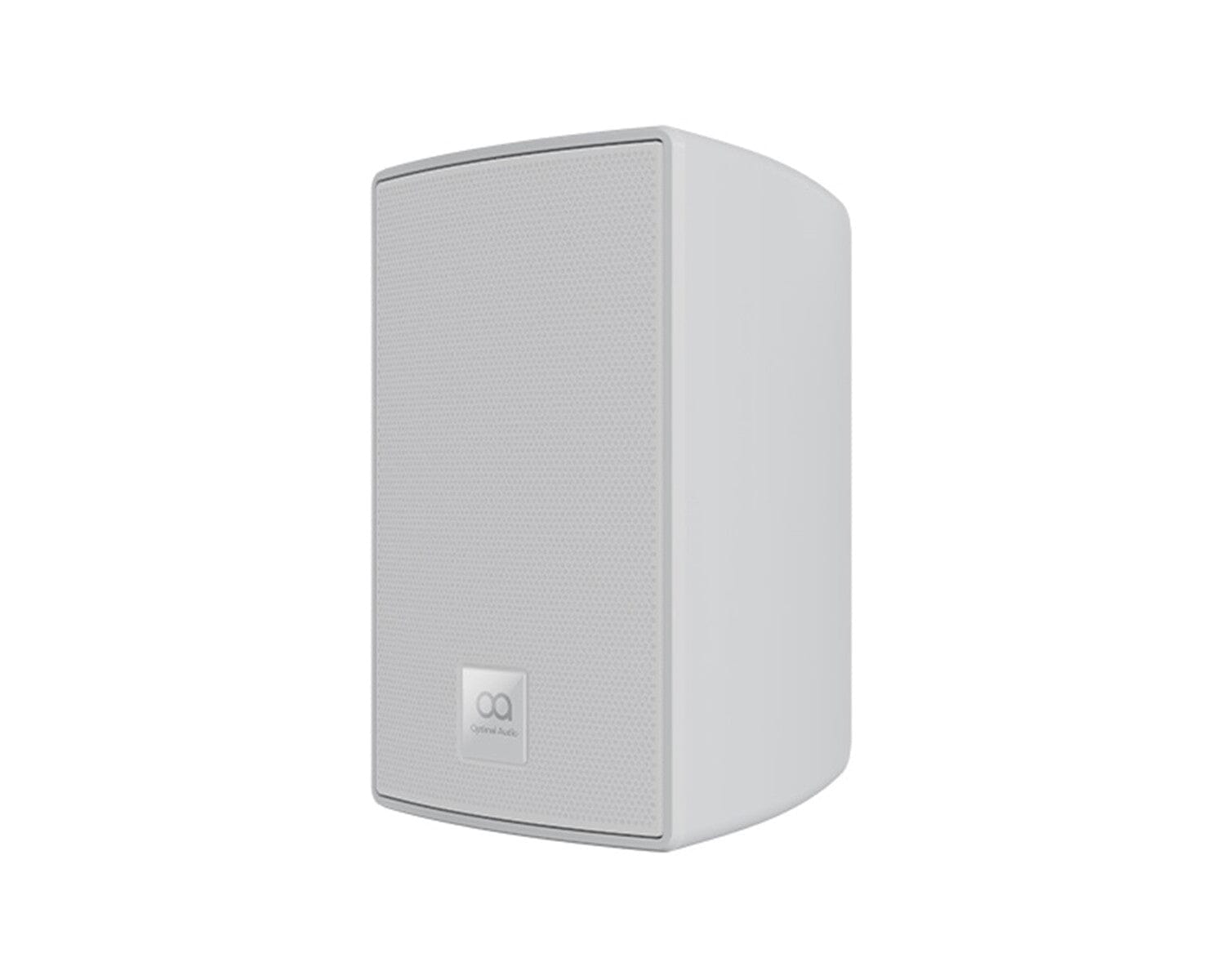

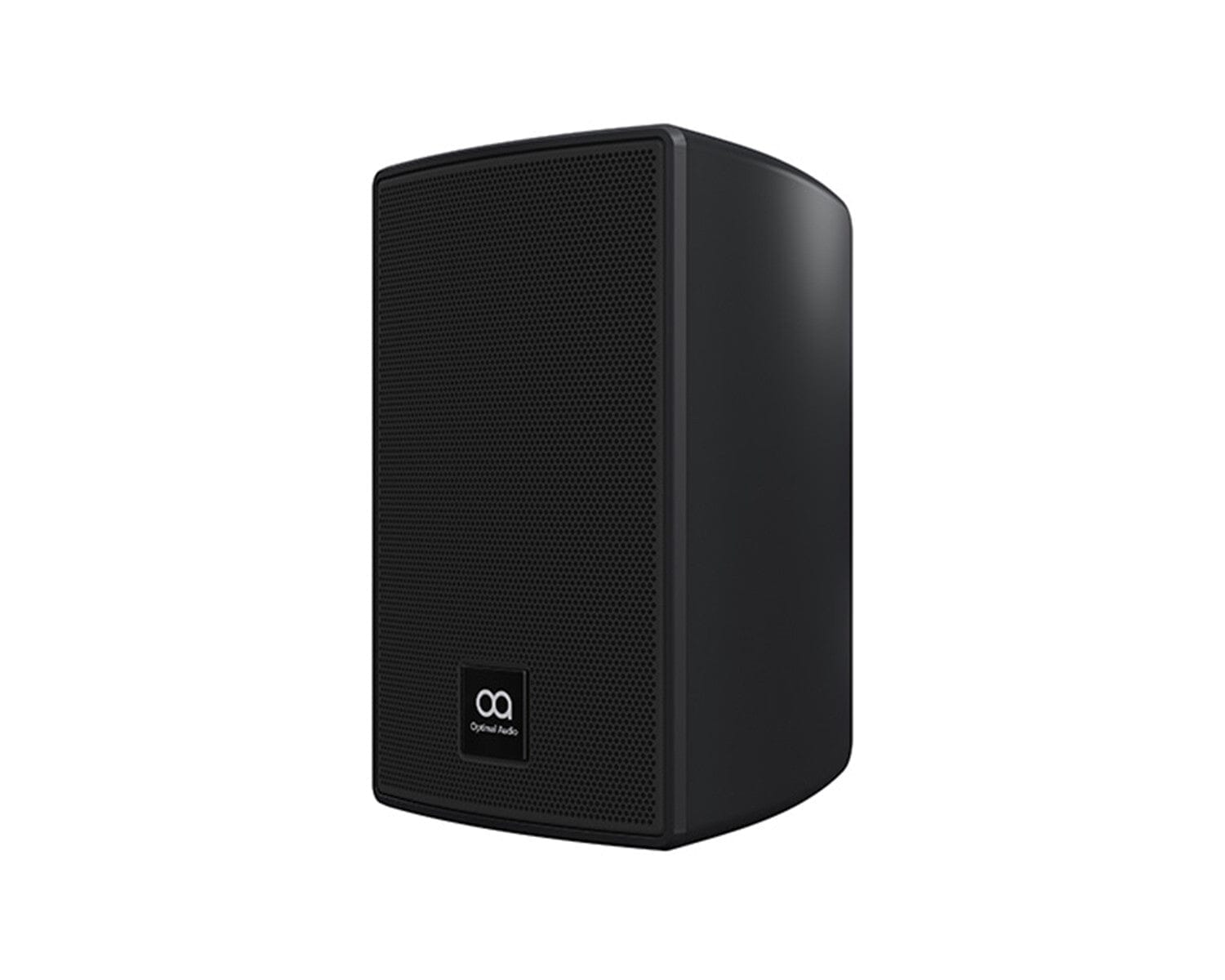

Optimal Audio Cuboid 3" Wall Mounted Speaker

Cuboid 3 is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 3 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 3 features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

For enhanced bass performance, Cuboid 3 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via engineered presets. When coupled with a Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.

When teamed with Zone and WebApp, system set up and end user control is easy, and can be further supplemented by ZonePad wall controllers.

FEATURES

• Discreet size, high performance
• Portrait or landscape mounting options
• Wall bracket included
• Max SPL 98dB (continuous) 104dB (peak)
• 130° horizontal x 120° vertical coverage
• IP54 for outdoor use with accessory terminal cover

• Type: Two-way, full-range, passive 3” loudspeaker
• Frequency Response (with preset): 125Hz – 20kHz ±3dB, -10dB @ 80Hz
• Drivers: LF: 3.5” (90mm) coated paper, ferrite motor system; HF: 0.5” (12.5mm) PEI Diaphragm, neodymium motor system
• IP Rating: IP54 when used with accessory terminal cover
• Rated Power: 30W (AES), 120W (peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 84dB
• Maximum SPL: 98dB (continuous), 104dB (peak)
• Crossover: 3kHz
• Dispersion (-6dB): 130°H x 120°V
• Enclosure: ABS
• Finish: Paint
• Protective Grille: Painted aluminium
• Connectors: 4-pin Euroblock
• Pin Connections (Input): Positive and negative in with link-out terminals
• Fittings: M4 mounting points for wall bracket
• Dimensions (W x H x D): 120 x 190 x 118 mm (4.7” x 7.5” x 4.7”)
• Weight: 1.26 kg (2.8 lb)
