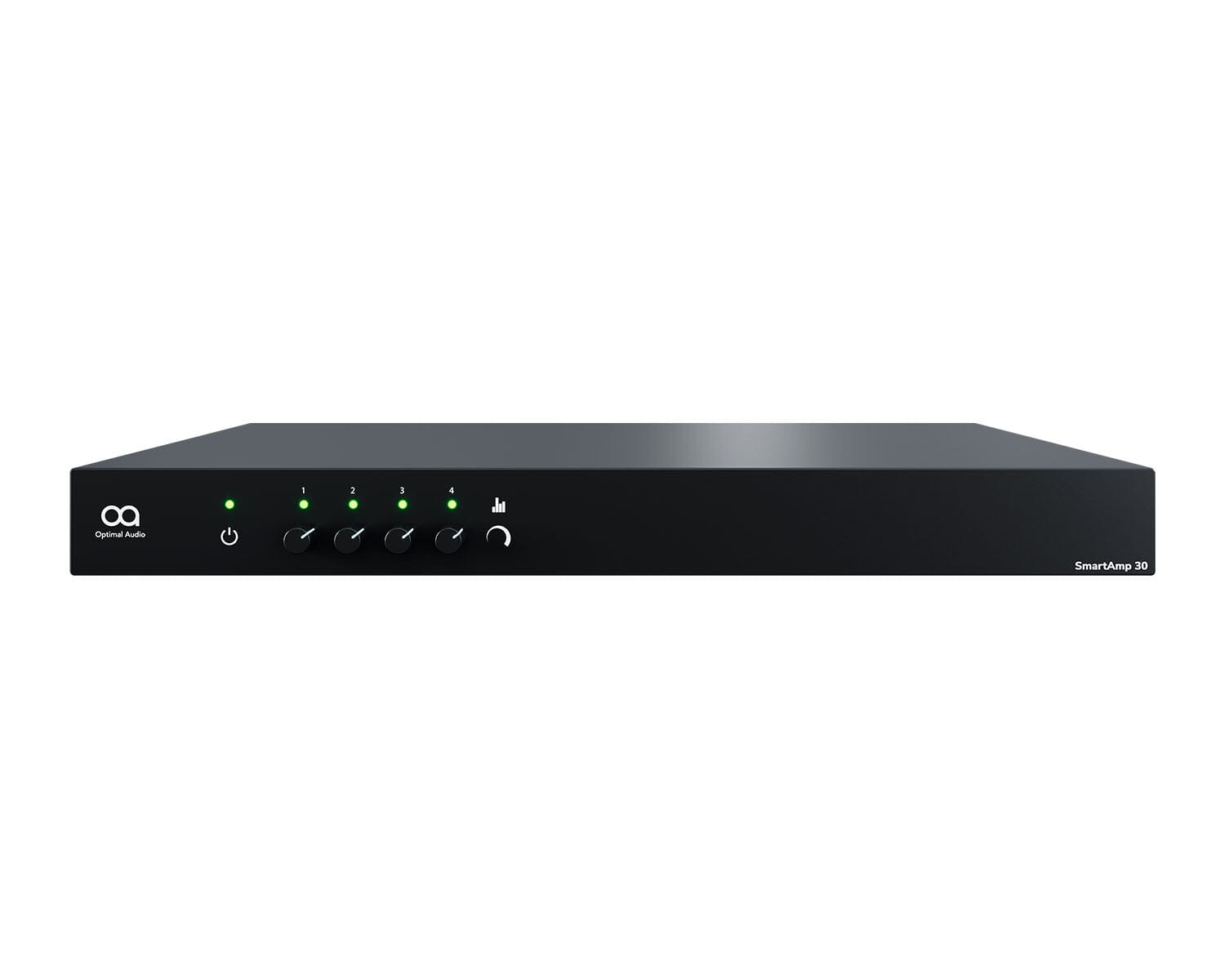

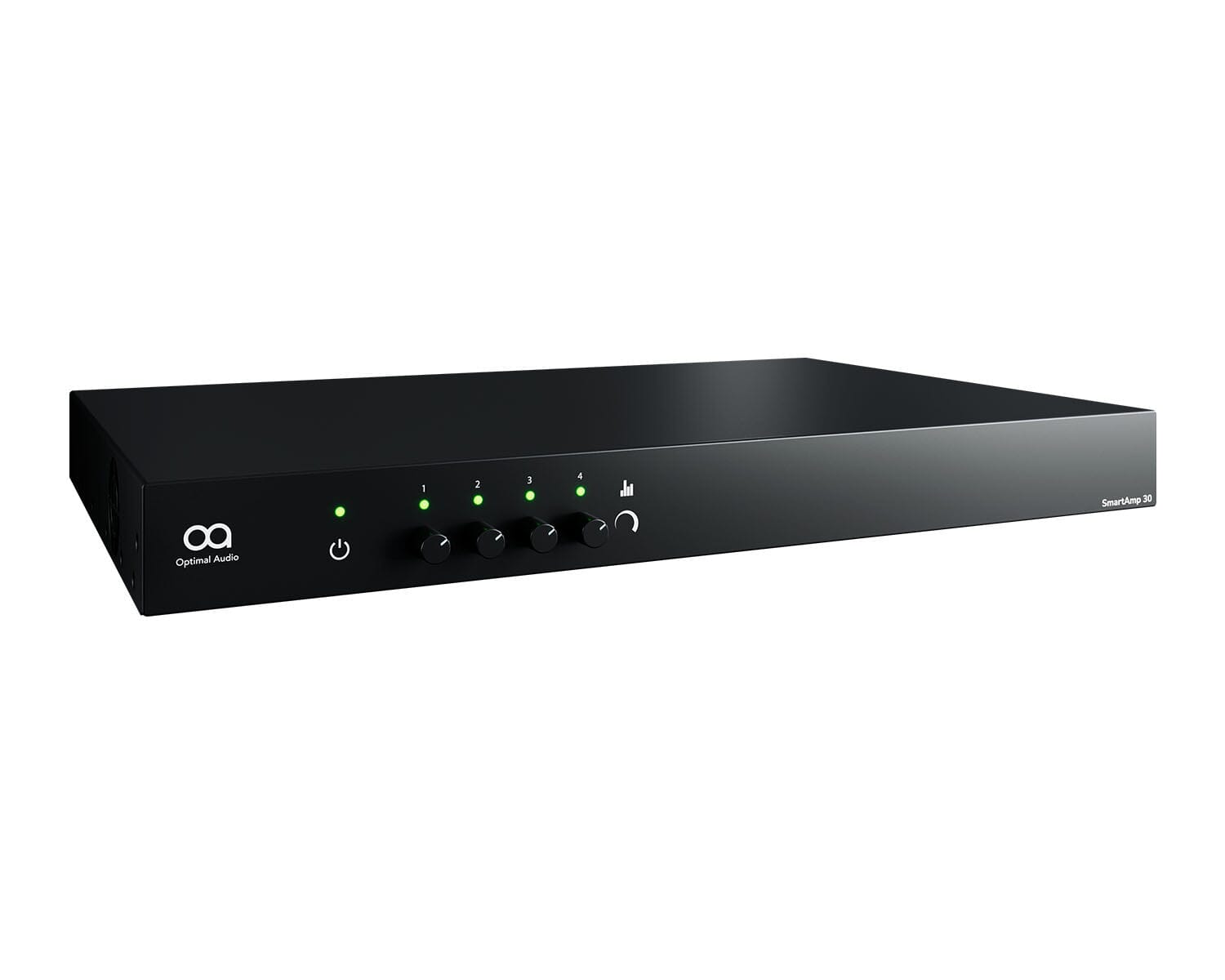

Optimal Audio SmartAmp 30 4 x 250W Amplifier with Integral DSP
Optimal Audio SmartAmp 30 4 x 250W Amplifier with Integral DSP
Description
Description
SmartAmp 30 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range.
This four-channel 1U, 19”, power amplifier can drive both conventional low impedance and 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings.
The SmartAmp 30 can be configured to drive either low or high impedance loads at a maximum of 250W per channel, giving the options of a localised or evenly distributed speaker system.
The SmartAmp 30 is ideally suited to power multiple speakers and models from Optimal Audio.
Power factor Correction power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation and potential reliability issues. The power supply delivers consistent, regulated power worldwide with ultra low standby power consumption for EuP2103 and energy star compliance.
Key Features
Key Features
-
Warranty
Specifications
Specifications
- Type: Class D power amplifier with DSP
- Power Output (4Ω -16Ω): 4 x 250W
- 70V-100V Output: 4 x 250W
- Digital Signal Processing: EQ & limiter presets for Optimal Audio loudspeakers
- Cooling: Forced air cooling with fan
- Analogue In/Link: 4 balanced line inputs on Euroblock connectors
- Analogue Input Impedance: 10kΩ unbalanced, 20kΩ balanced
- Maximum Analogue Input Level: +24dBu
- Amplifier Outputs: Euroblock
- Signal to Noise Ratio: >100 dB (A-weighted, 20 Hz – 20 kHz, 8Ω load)
- Frequency Response: 20 Hz – 20 kHz, +0/-0.25 dB (8Ω load, 3 dB below rated power)
- Total Harmonic Distortion: <0.05% (20 Hz – 20 kHz, 8Ω load, 3 dB below rated power)
- Slew Rate: 8.796V/µS at 70 V peak (low impedance), 17.77V/µS at 100 V peak (high impedance)
- Damping Factor: 370 with 8Ω load
- Control and Monitoring: GPIO
- DSP Sample Rate: 48kHz
- Mains Power Input: Universal Mains, 100-240V, 50-60Hz
- Mains Connector: IEC
- Power Consumption: 300W
- Heat Generated: 1080 kJ per hour
- Dimensions (W x H x D): 440 x 44 x 308 mm (17.32” x 1.73” x 12.13”)
- Weight: 3.6 kg (7.9 lbs)
