Optimal Audio Sub 15 High Power Subwoofer

Sub 15 is a compact, high-performance, passive, 15” subwoofer designed for applications that call for increased impact and low frequency performance across the Optimal Audio loudspeaker range.

The 15” (380mm) driver is loaded into a plywood bass-reflex cabinet that maximises performance, with a peak SPL of 135dB, while taking up minimal space. Sub 15 can be used on the ground or flown using integral M8 inserts.

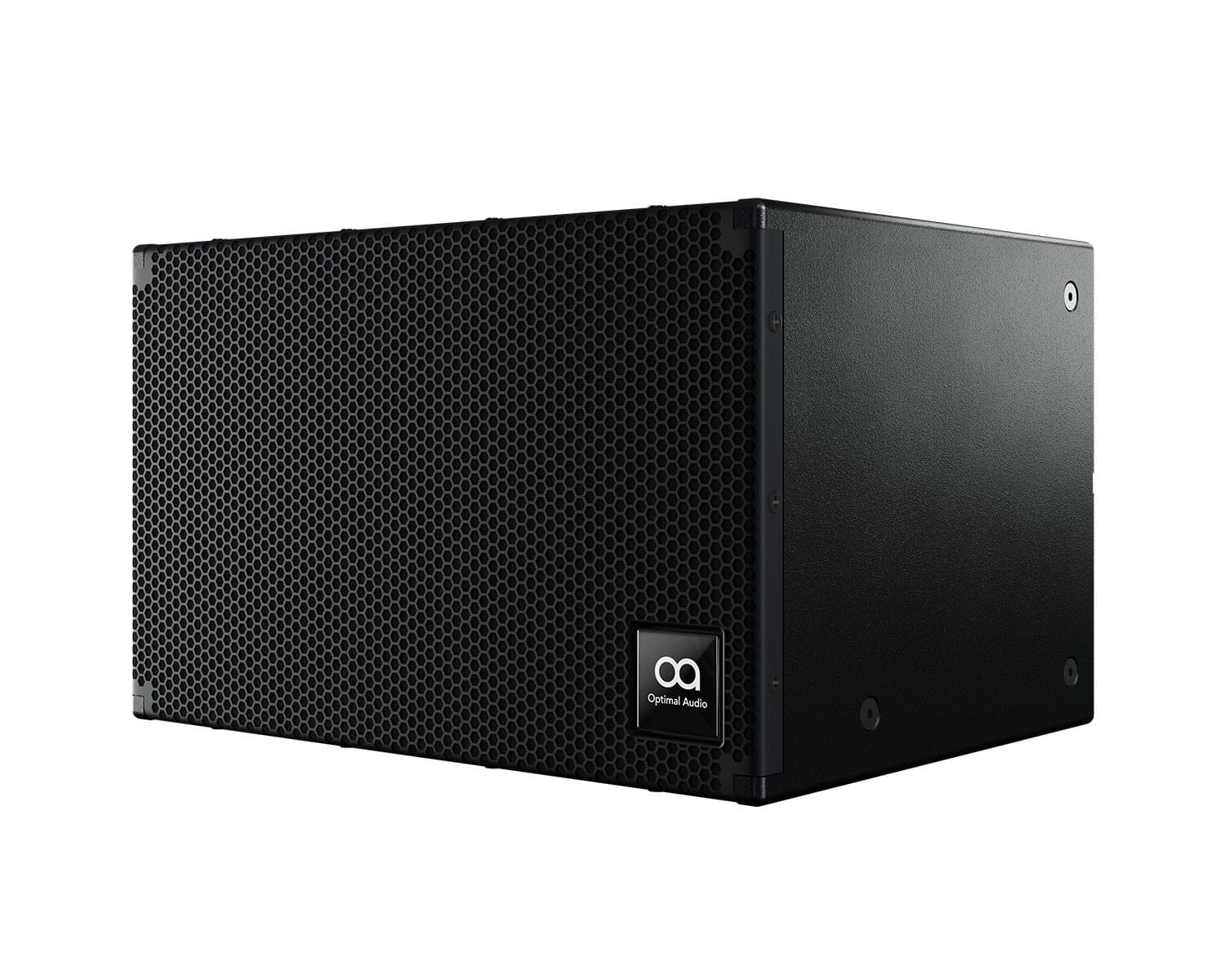

An impact-resistant perforated steel grille protects the driver, and rubber feet on the base resist movement. The Sub 15 enclosure is constructed from plywood and finished in black textured paint.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.

FEATURES

• Compact size
• Powerful sub-bass support down to 40Hz (-10dB)
• High power handling

• Type: Sub-bass loudspeaker
• Frequency Response (with preset): 45Hz – 150Hz ±3dB, -10dB @ 40Hz
• Drivers: LF: 15” (380mm)
• Rated Power: 500W (AES), 2000W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 102dB (Half Space)
• Maximum SPL: 129dB (continuous), 135dB (peak) (Half Space)
• Enclosure: Plywood
• Finish: Black textured paint
• Protective Grille: Perforated steel
• Connectors: Euroblock type
• Fittings: 12 x M8, inset bolts
• Dimensions (W x H x D): 716 x 443 x 480 mm (28.19” x 17.4” x 18.9”)
• Weight: 34.3 kg (75.6 lbs)
