Optimal Audio Sub 6 Ultra Compact Subwoofer

Sub 6 is an ultra-compact, passive 6” subwoofer designed for applications that call for increased impact and low frequency performance from the smaller Cuboid and Up ceiling loudspeakers.

It features a custom designed, 6” driver with a 2.5” voice coil, combined with a generously sized low frequency port to improve musicality. Delivering 250W (AES) of power with a peak SPL of 118dB, achieving 37Hz at –10dB, this is a truly punchy miniature subwoofer.

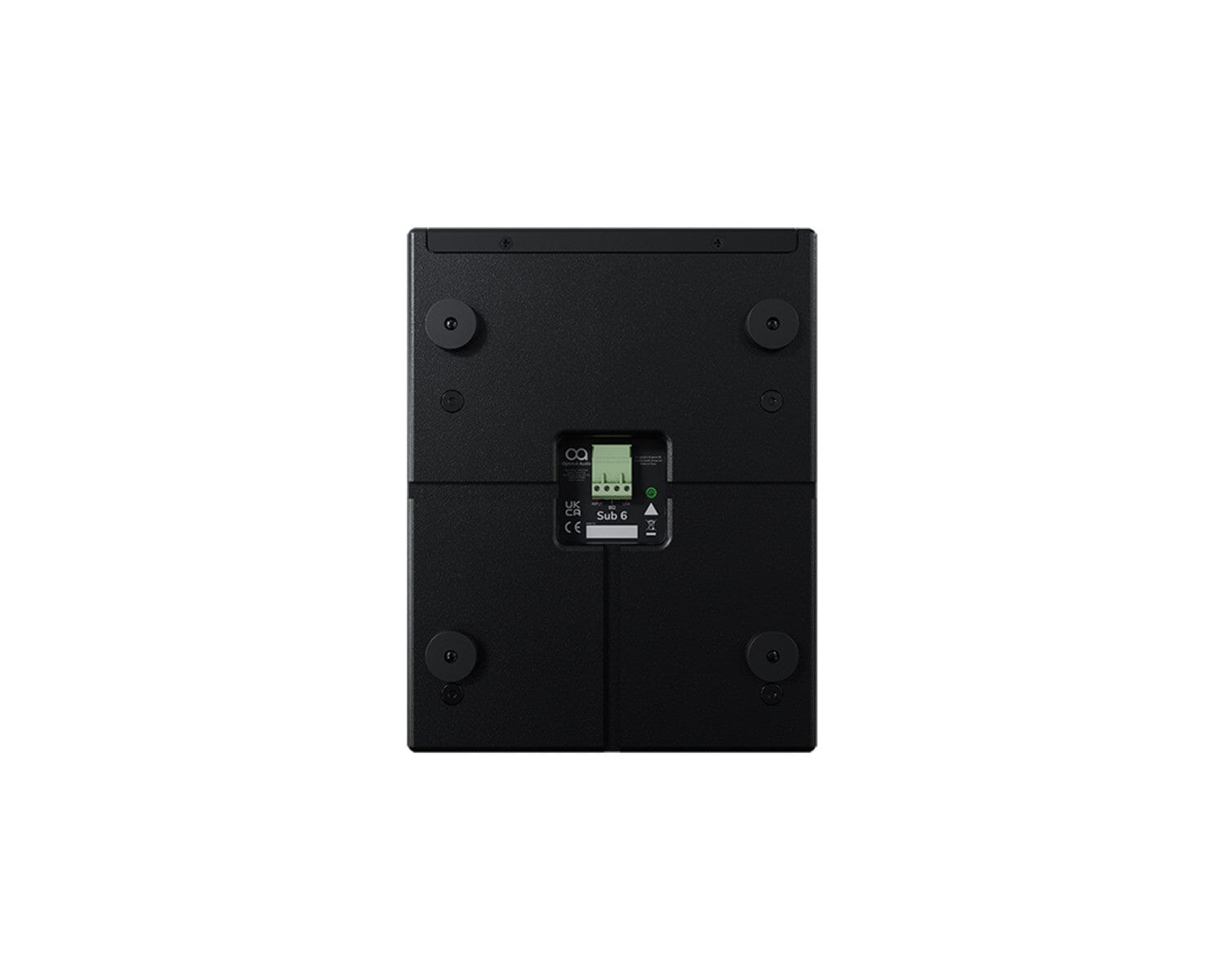

The integral M8 inserts, recessed cable channels, and alternate rubber feet positions ensure that Sub 6 fits easily, securely and elegantly into any application. Sub 6 is small enough to fit through a standard ceiling tile and be secured with the available Sub Bracket for wall or ceiling mounting.

An impact-resistant perforated steel grille protects the driver, and the Sub 6 enclosure is constructed from MDF and finished in black or white textured paint.

SmartAmp will provide amplification, EQ settings as well as limiters to protect the driver when playing at louder sound levels.

Sub 6 can be driven by a pair of bridged channels on any powered Zone, whilst the onboard WebApp, ensures system set up and end user control is straight forward.

FEATURES

• Ultra-compact size
• Punchy sub-bass extension
• Flexible wall & ceiling mounting options
• Recessed channels for discreet cable management

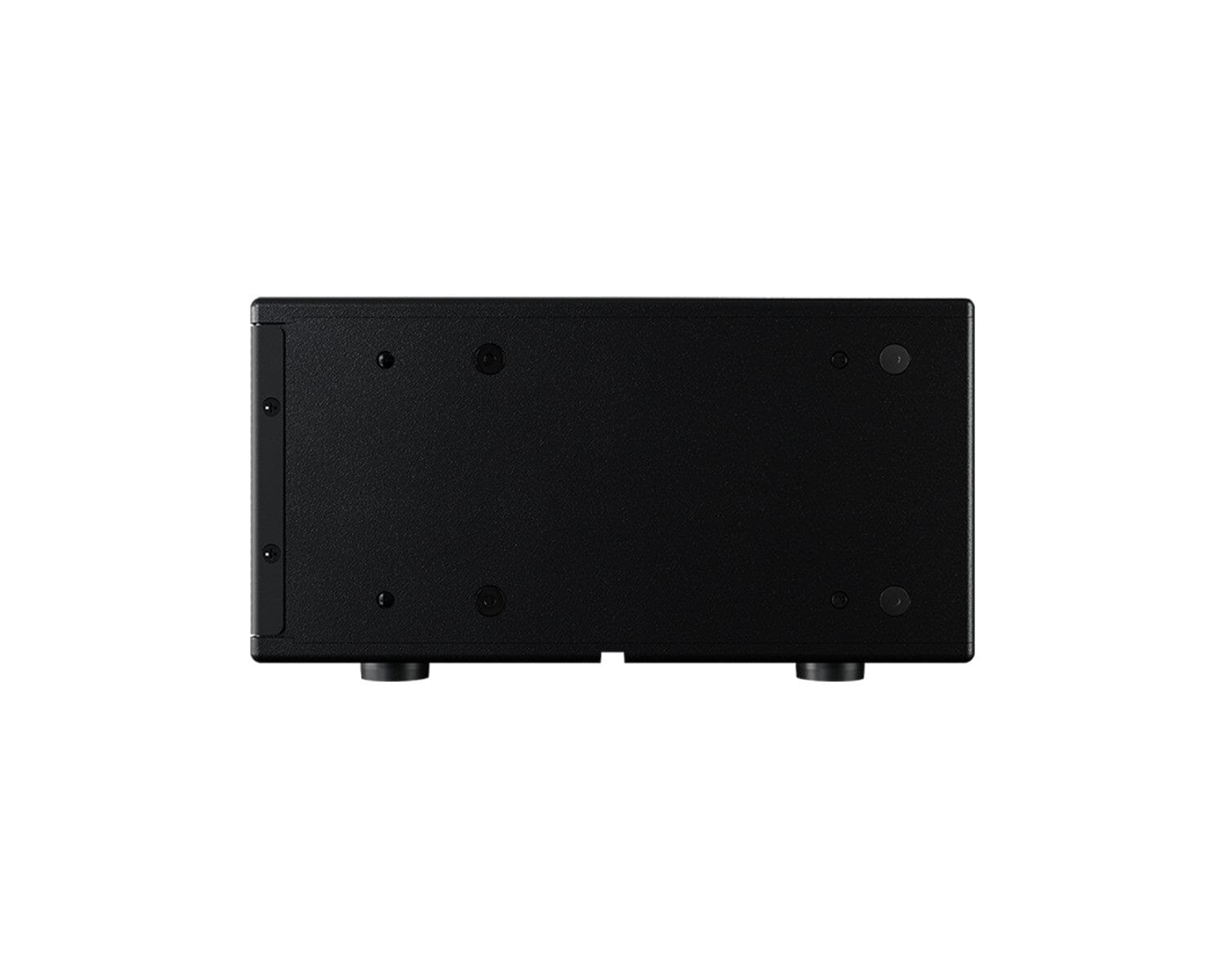

• Alternate rubber feet positions for install flexibility

• Type: Sub-bass loudspeaker
• Frequency Response (with preset): 41Hz – 200Hz ±3dB, -10dB @ 37Hz
• Drivers: LF: 6” (152mm)
• Rated Power: 250W (AES), 1000W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 88dB (Half Space)
• Maximum SPL: 112dB (continuous), 118dB (peak) (Half Space)
• Enclosure: MDF

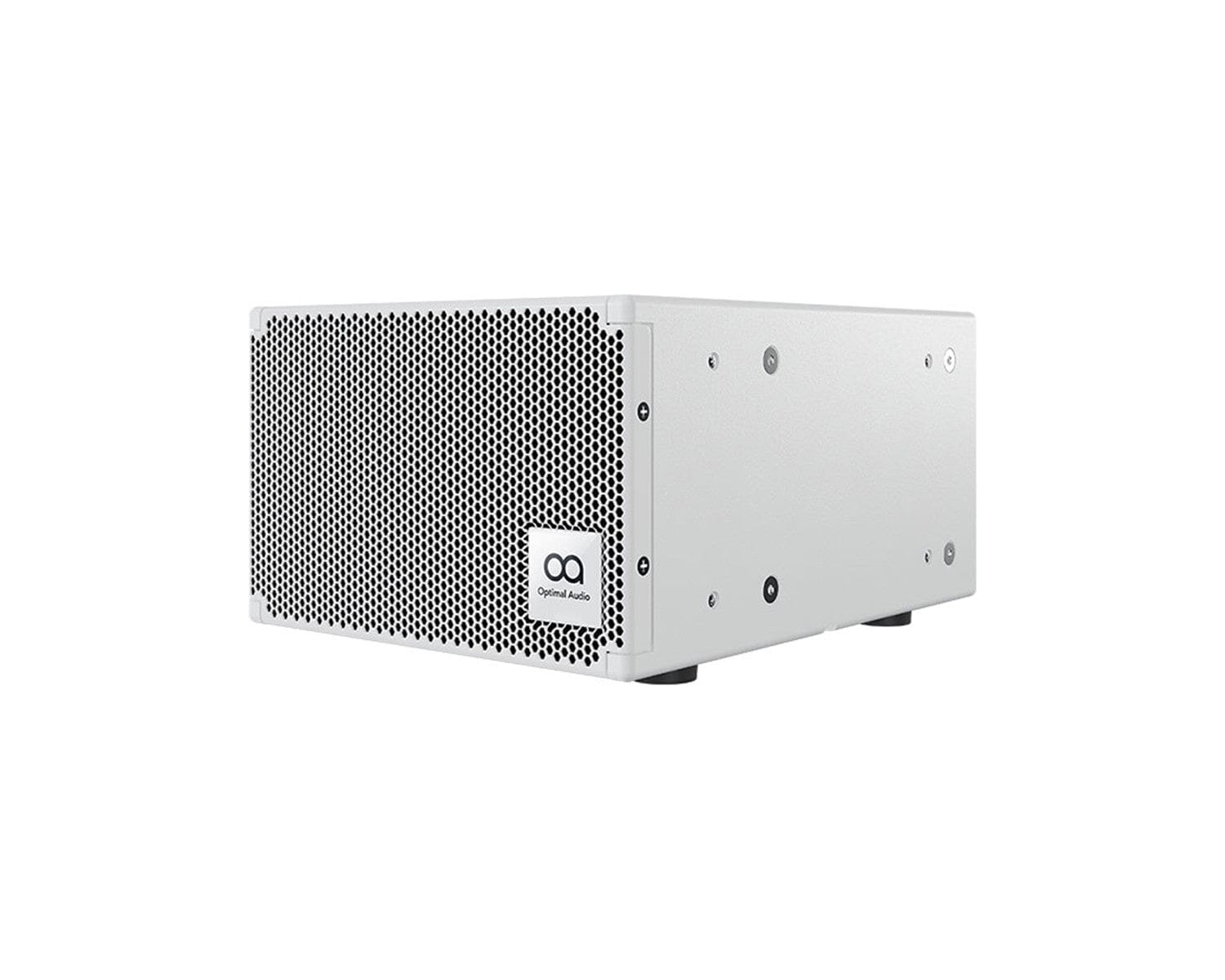

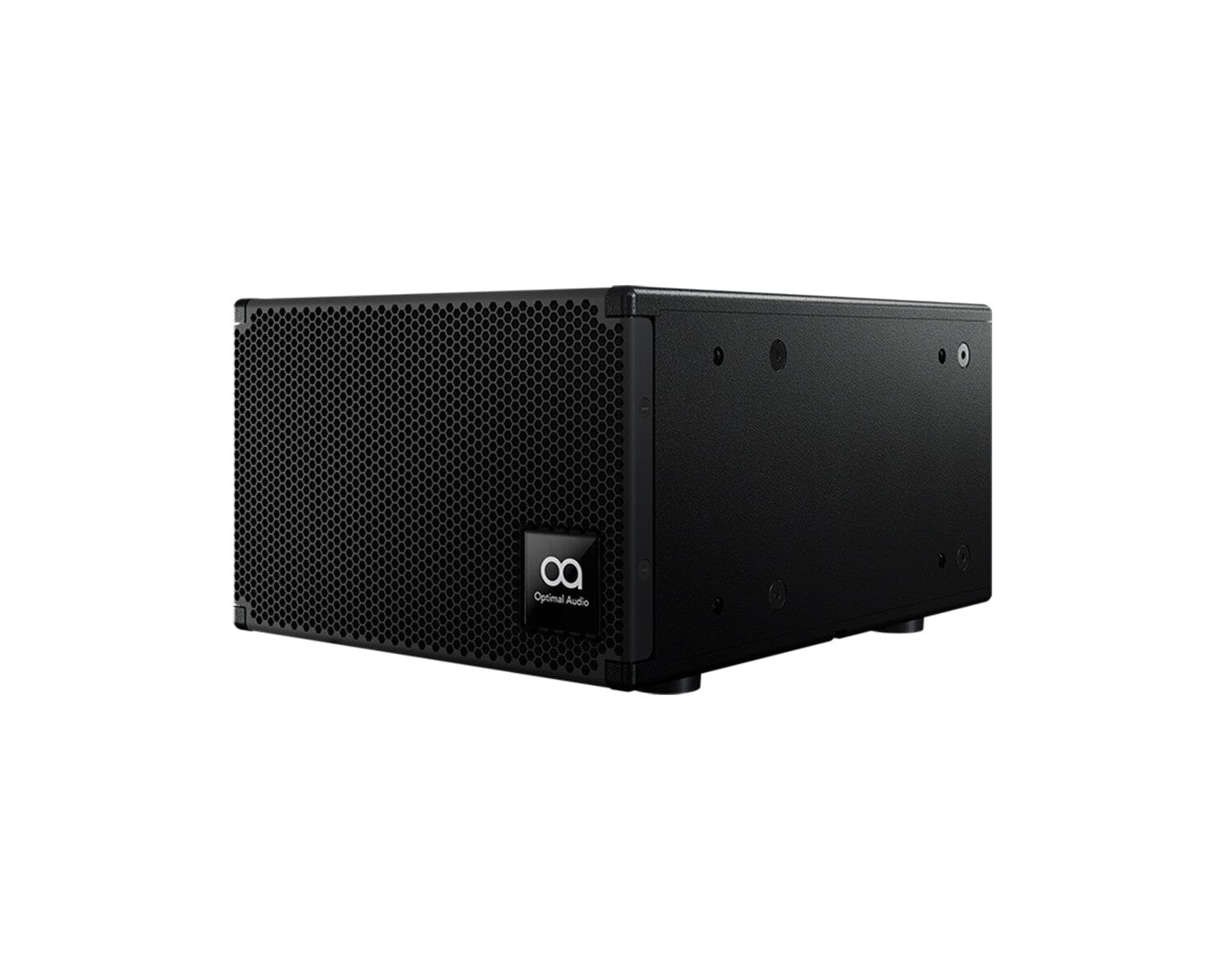

• Finish: Black or White textured paint
• Protective Grille: Perforated steel
• Connectors: Euroblock
• Fittings: 16 x M8, insert bolts
• Dimensions (W x H x D): 200 x 310 x 400 mm (7.9” x 12.2” x 15.7”) (excluding feet: 12mm / 0.4”)
• Weight: 11.5 kg (25.3 lbs)
