Optimal Audio Up 4 4" Ceiling Speaker (Each)

Up 4 is a discreet, two-way 4” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

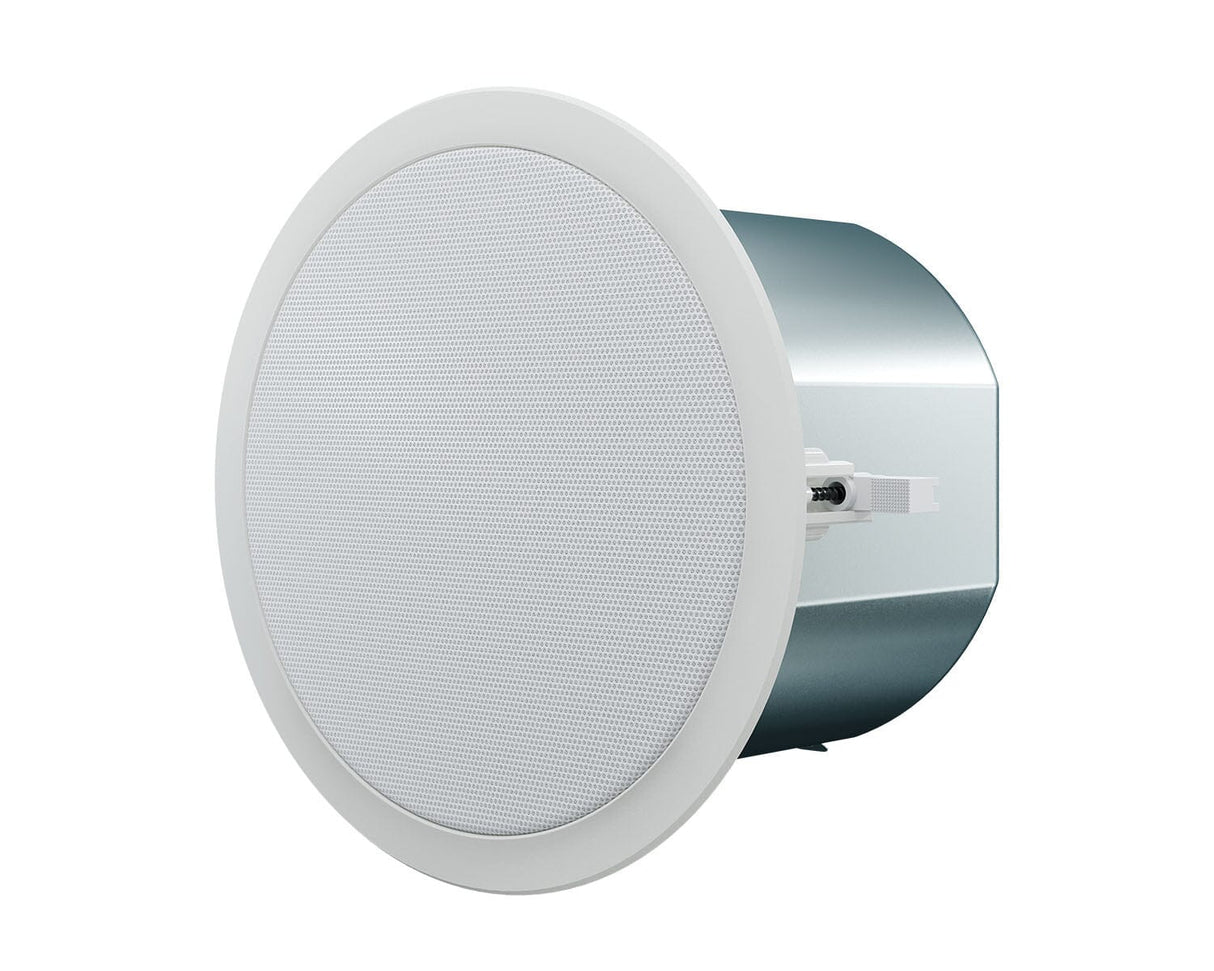

An integral fixing system is included to achieve a simple and clean installation.  Up 4 has a steel backcan and perforated steel grille and is finished in neutral white.

The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4 speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.

Up 4 features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 120° coverage pattern delivers consistent sound where it needs to go.

Each Up 4 can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.

A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is easy, and can be further supplemented by ZonePad wall controllers.

FEATURES

• 4” coaxial driver
• Discreet size
• Unobtrusive design
• 8 ohm or 70/100V line operation
• Range of power taps
• Wide conical coverage pattern
• Integrated mounting hardware
• Pendant and bezel-less grille accessory available

• Type: Two-way, full-range, passive ceiling speaker
• Frequency Response (with preset): 100Hz – 18kHz ±3dB, -10dB @ 74Hz
• Drivers: LF: 4” (105mm) coated paper; HF: 0.7″ (20mm) Silk Dome
• Rated Power: 30W (AES), 60W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 87dB
• Maximum SPL: 102dB (continuous), 105dB (peak)
• Crossover: 3.5kHz passive
• Recommended High-Pass Filter: 24dB/octave @ 90Hz
• Transformer Taps @ 70V: 25W, 12.5W, 6.3W, 3.2W
• Transformer Taps @ 100V: 25W, 12.5W, 6.3W
• Dispersion (-6dB): 120° conical
• Back Can: Zinc-plated steel
• Baffle: ABS
• Protective Grille: Perforated steel with cloth backing
• Fire Rating: UL94-V0, UL94-5VB
• Connectors: 4-pin Euroblock with link out
• Fittings: C-ring support backing plate
• Dimensions (Ø x D): 202 x 227.5 mm (7.95” x 8.96”)
• Cut-Out Diameter: 178 mm (7.01”)
• Weight: 2.2 kg (4.9 lbs)
