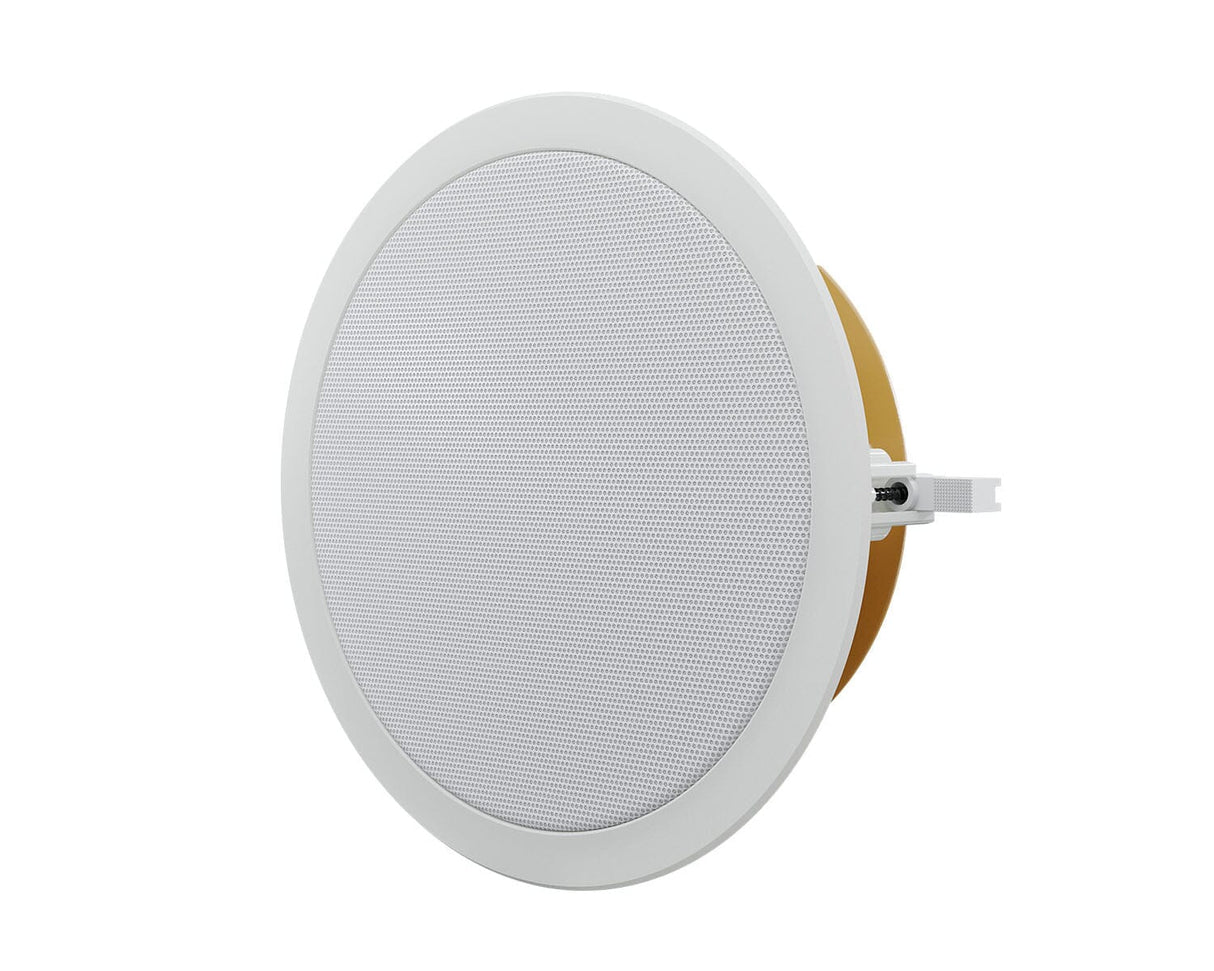

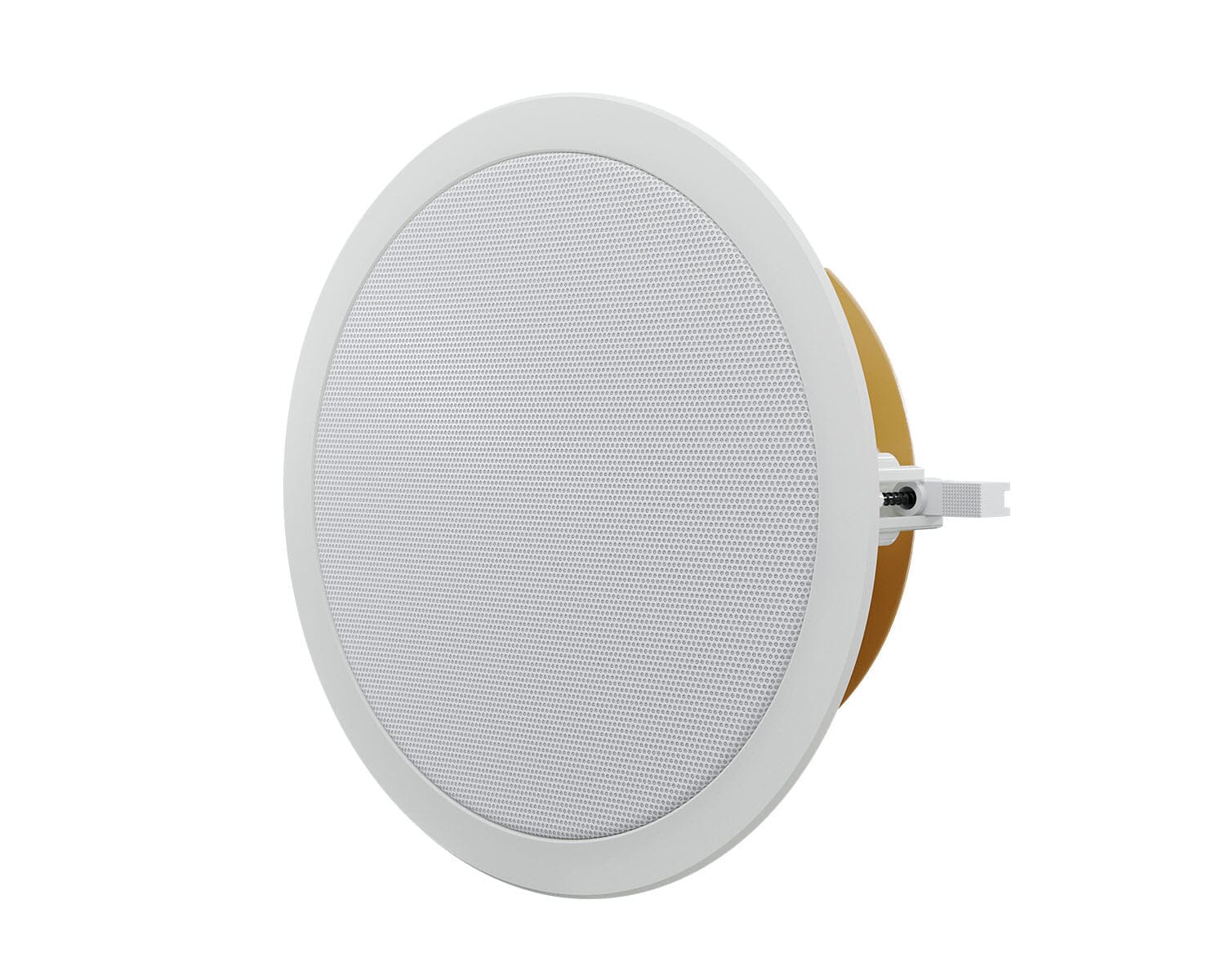

Optimal Audio Up 6O 6" Open Back Ceiling Speaker (Each)

Up 6O is a discreet 6” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

Up 6O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille is finished in neutral white.

With the addition of the Grille 2 accessory, Up 6O can be easily enhanced with a bezel-less grille appearance and is available in both black and white, helping to blend into any architectural environment.

Up 6O features a 6” (162mm) low frequency driver paired with a 0.7” (20mm) metal dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 110° coverage pattern delivers consistent, high performance sound where it needs to go.

Each Up 6O can be run on a series of 70 or 100 Volt taps or at low impedance. The 16 ohm setting allows up to four units to be connected to each amplifier channel at low impedance. Tap selection is via a rotary switch behind the removable grille.

A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via onboard presets. When teamed with Zone and WebApp, system set up and end user control is effortless, and can be further supplemented by ZonePad wall controllers.

FEATURES

• 6” Coaxial Driver
• Discreet size without back can
• Unobtrusive Design
• 16 ohm or 70/100V line operation
• Wide Conical Coverage Pattern
• Integrated Mounting Hardware
• Bezel-less grille accessory available

• Type: Two-way, full-range, passive ceiling speaker
• Frequency Response (with preset): 65Hz – 18kHz ±3dB, -10dB @ 50Hz
• Drivers: LF: 6.5” (162mm) coated paper; HF: 1” (25mm) exit / 0.7” (20mm) metal dome
• Rated Power: 60W (AES), 120W (Peak)
• Nominal Impedance: 16Ω
• Sensitivity (1W/1m): 90dB
• Maximum SPL: 108dB (continuous), 111dB (peak)
• Crossover: 2.7kHz passive
• Recommended High-Pass Filter: 24dB/octave @ 60Hz
• Transformer Taps @ 70V: 60W, 30W, 15W, 7.5W
• Transformer Taps @ 100V: 60W, 30W, 15W
• Dispersion (-6dB): 110° conical
• Back Can: N/A
• Baffle: ABS
• Protective Grille: Perforated steel
• Fire Rating: UL94-V0
• Connectors: 4-pin Euroblock with link out
• Fittings: C-ring support backing plate
• Dimensions (Including Grille) (Ø x D): 251 x 103.5 mm (9.88” x 4.1”)
• Cut-Out Diameter: 222 mm (8.74”)
• Weight: 2.24 kg (4.94 lb)
