Optimal Audio ZonePad 1 Single Zone Wall Controller
Optimal Audio ZonePad 1 Single Zone Wall Controller
Description
Description

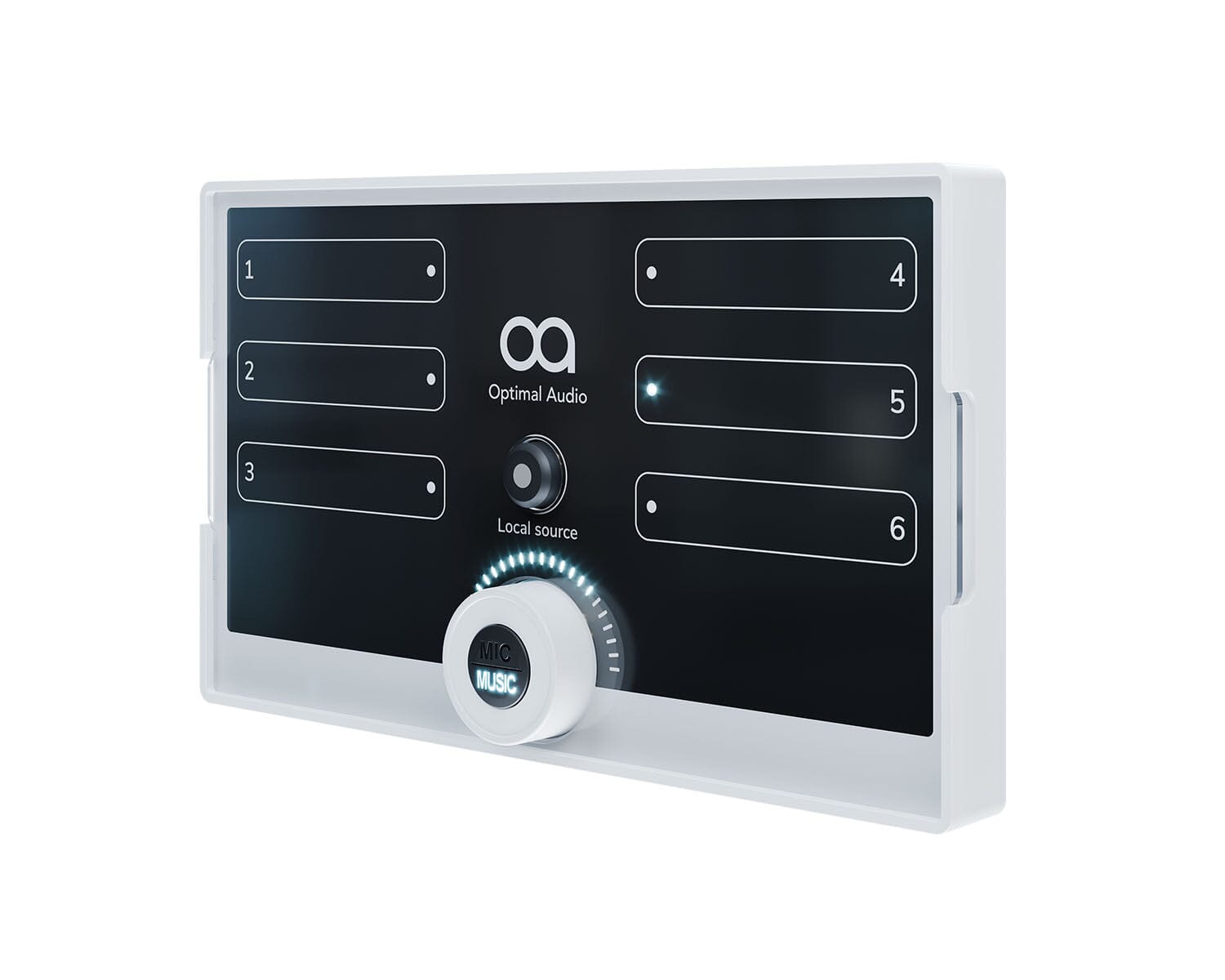

ZonePad 1 is an elegant wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.
It gives all users the confidence and access they need to operate the system and features a clean, slick intuitive touch interface.
ZonePad 1 enables selection and volume control of playback sources and features a local microphone and mono line input.
FEATURES
- Remote control wall panel for control of an individual zone
- Contemporary design fits in with any décor
- Intuitive layout with touch sensitive controls
- Easily configured to suit your venue
- Includes one local mic and one mono music input
- Easy access to everyday functions
- Very competitive pricing
Key Features
Key Features
-
Warranty
Specifications
Specifications
- Type: Single-zone wall controller with local mic and line inputs
- Local Mic Input: 1 with 48V phantom power, +12dB to +55dB gain, fixed high-pass filter @ 160Hz
- Local Music Input: 1 x mono
- Maximum Distance (CAT5): 300m
- Connection: RJ45
- Data Protocol: Optimal Audio proprietary over CAT5
- Case Material: Zinc-plated steel, ABS
- Lens Material: Clear acrylic
- Back Box: 2-gang 25mm deep back box
- Dimensions (W x H x D): 146 x 86.2 x 39.3 mm (5.75” x 3.39” x 1.55”)
- Weight: 0.35 kg (0.8 lbs)
