Description
Description

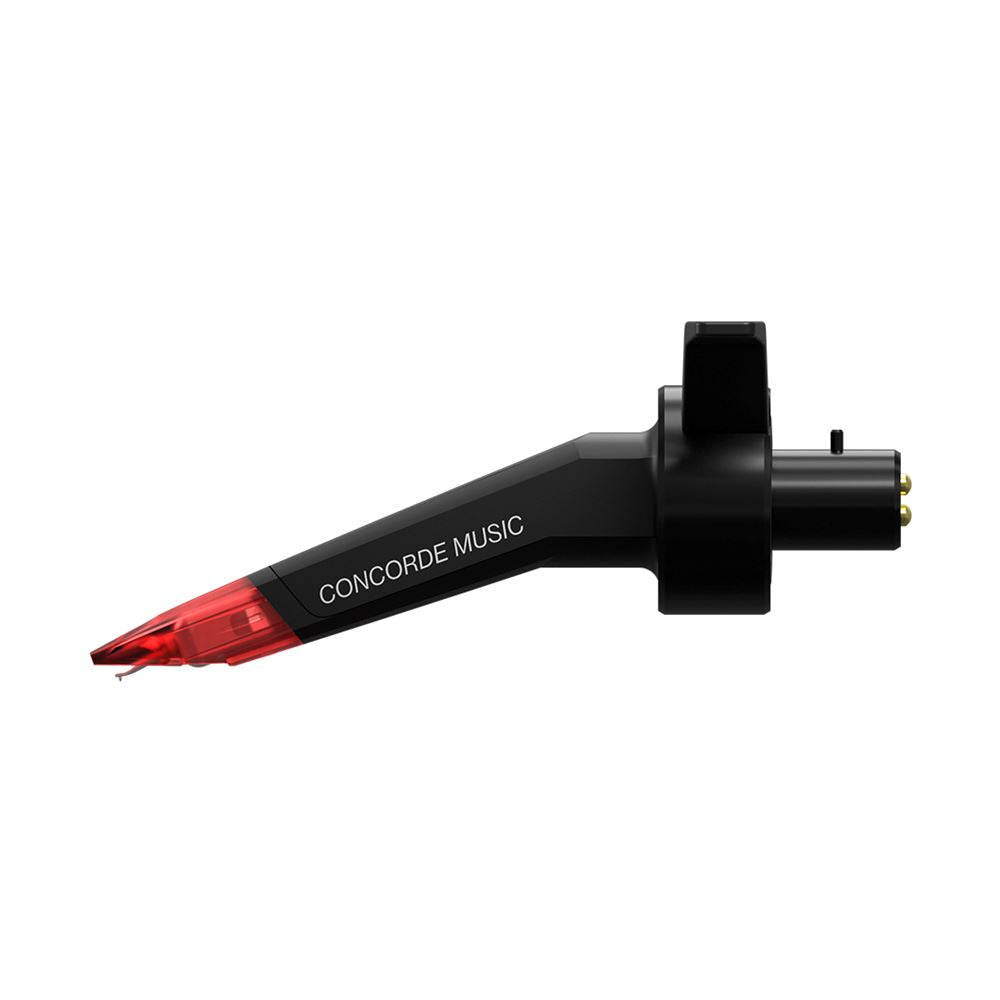

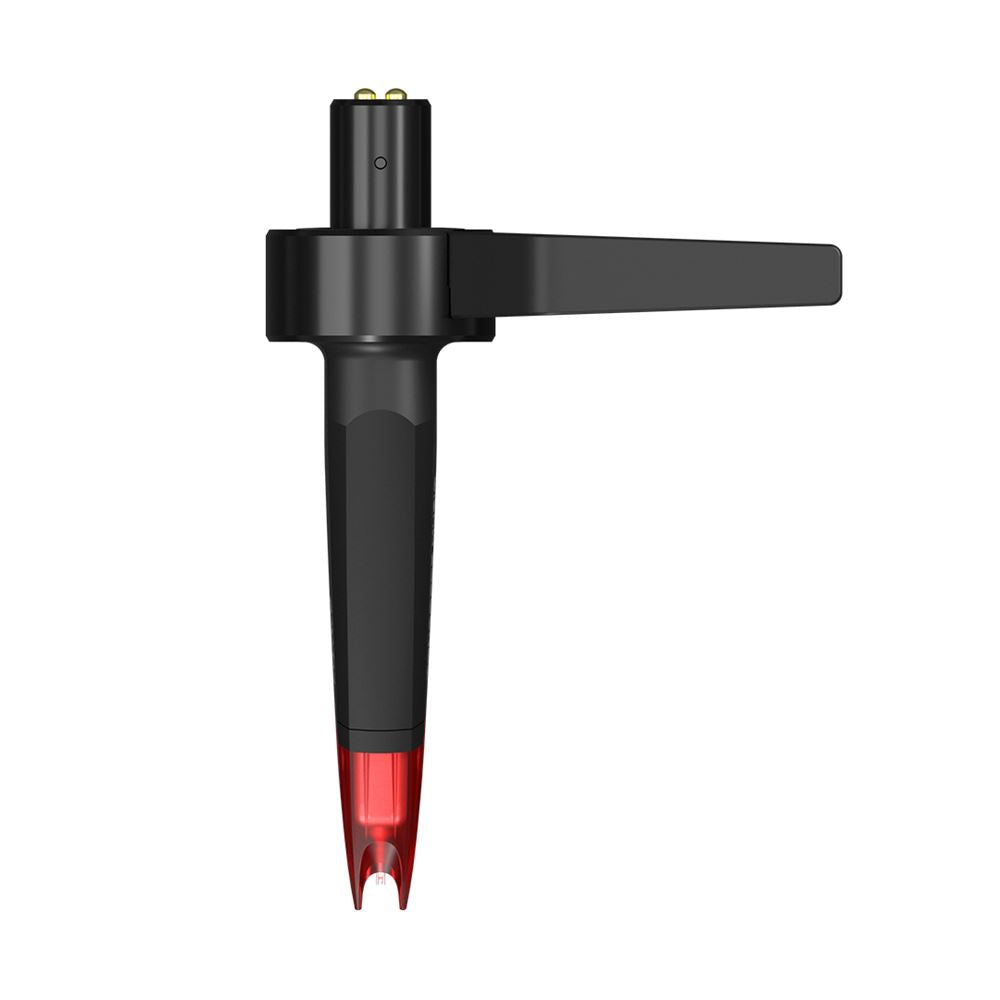

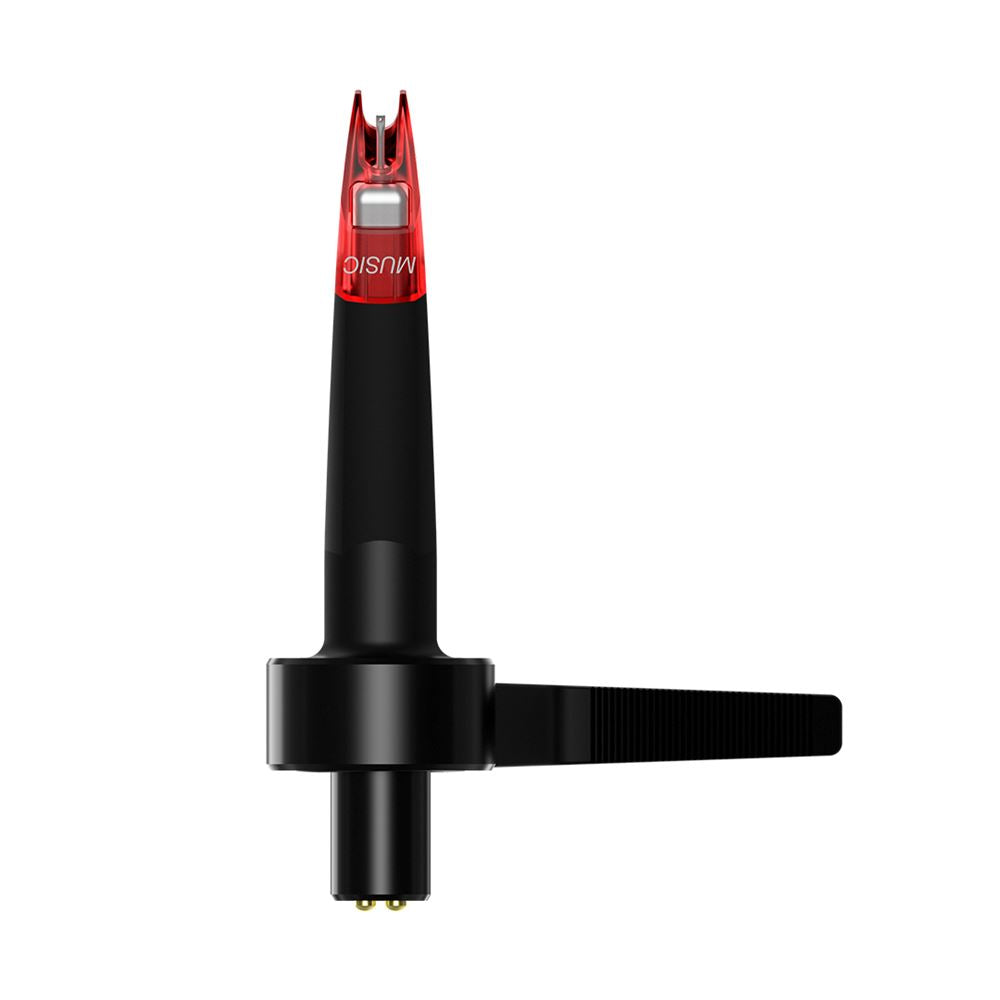

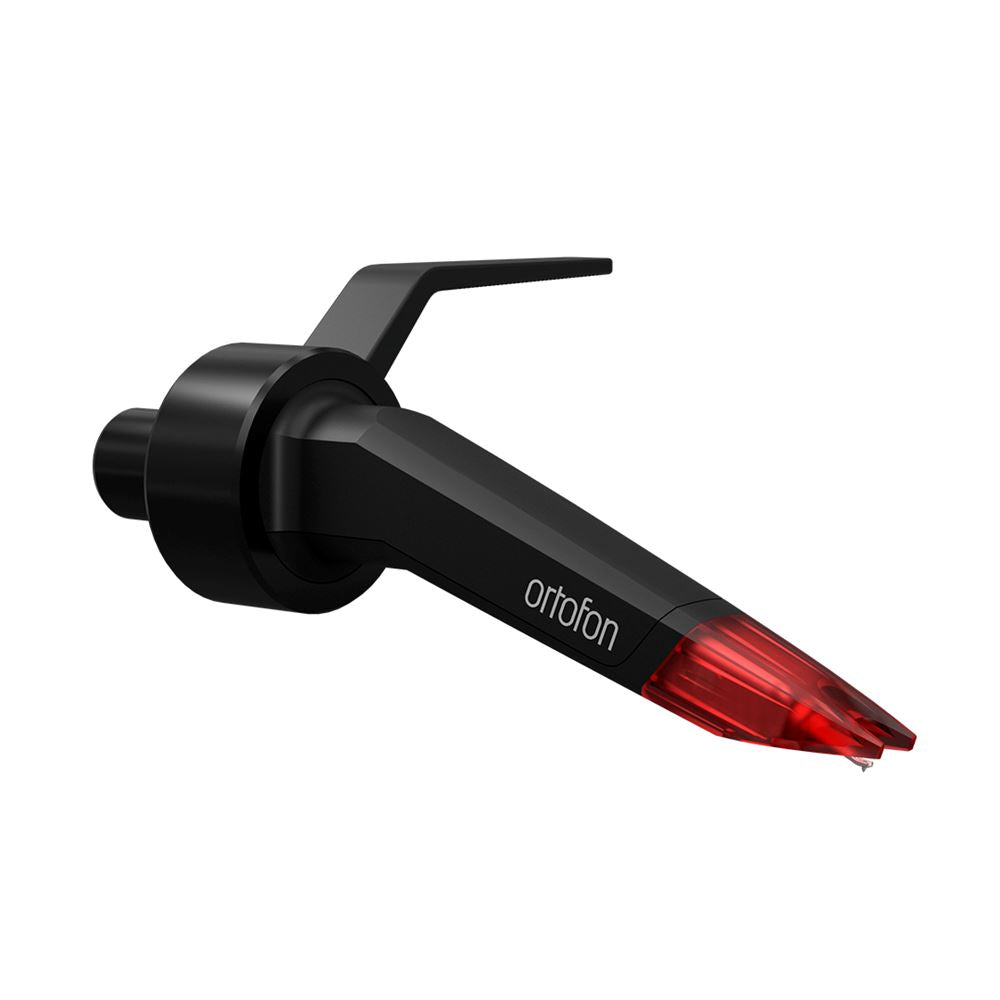

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.
Specifications
Specifications
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel seperation at 1 kHz: 22 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 20 kHz: +3 / -1 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Elliptical diamond on Aluminium cantilever
- Stylus tip radius: r/R 8/18 µm
- Tracking force, recommended: 1.8 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.27 kΩ
- Cartridge colour: Black/Red
- Cartridge weight: 18 g
- Recommended load resistance: 47 kΩ
- Internal inductance: 815 mH
- Recommended load capacitance: 150-300 pF
What's In The Box
What's In The Box
- 1 x Concorde Music Red Cartridge inc. Stylus
