Description
Description

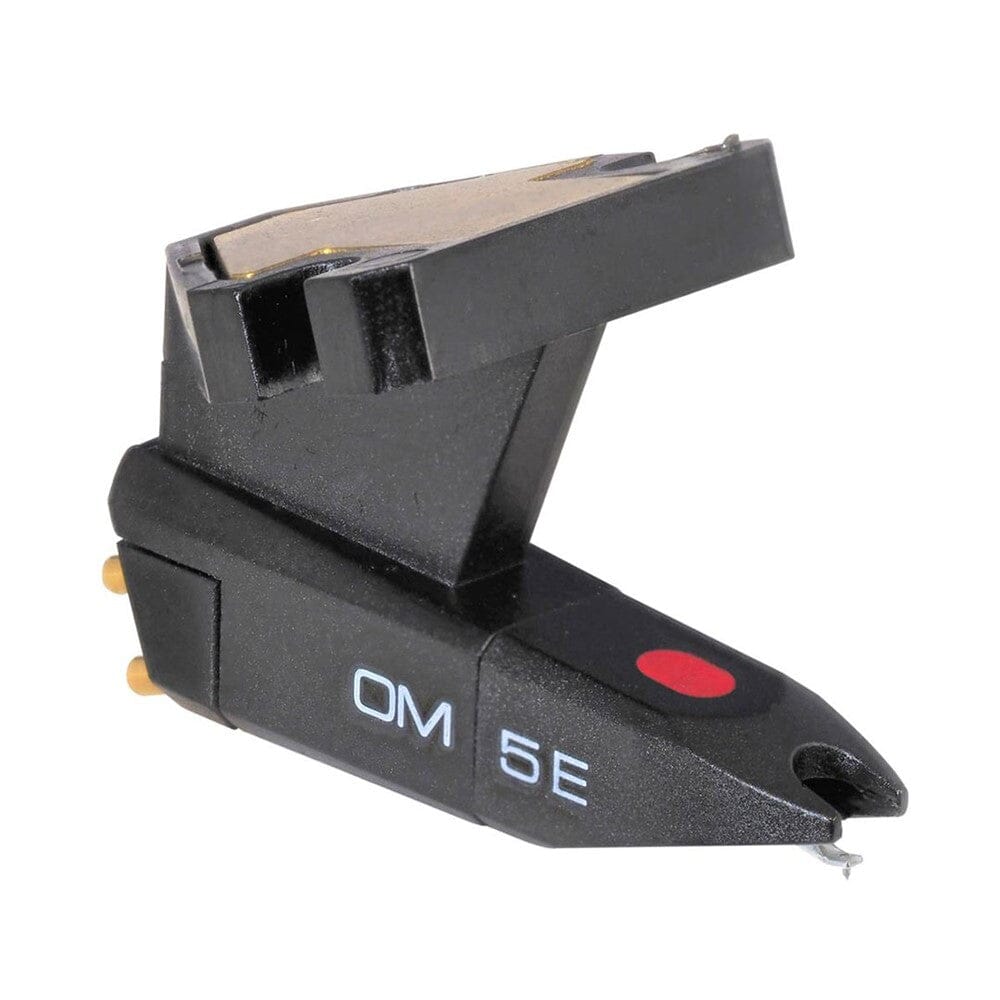

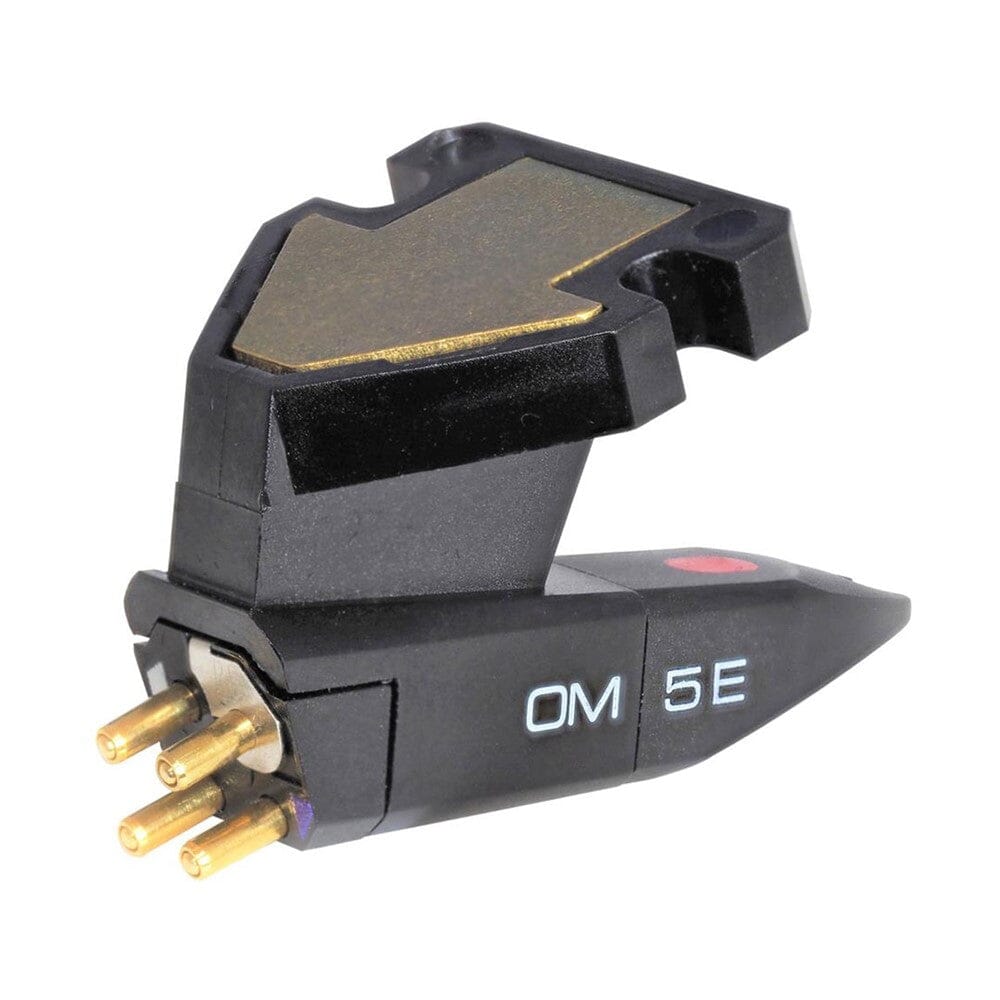

The OM 5E is a true icon of the affordable vinyl playback world, offering great sound at a low price.
FEATURES
- Tipped Elliptical diamond stylus profile
- Moving magnet cartridge with removable stylus
- Interchangeable with other styli from the OM range
- Lightweight Noryl body with anti-resonant properties
The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon. All cartridges in the series offer a minimal design profile for easy mounting and alignment, and they also all offer a clear, loud output for easy pairing with a phono stage. They truly warrant their name as "Optimum Match" (OM) cartridges.
As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a removable weight, housed above the mounting bracket. For standard tonearms you can leave the weight in place. However, for low-mass tonearms you have the ability to remove it, reducing the overall cartridge weight to just 2.5g.
The OM 5E features an Elliptical (E) stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Specifications
Specifications
- Channel balance at 1 kHz: 2 dB
- Output voltage at 1 kHz, 5cm/sec: 4 mV
- Channel seperation at 1 kHz: 22 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 20 kHz: 20-20.000 Hz + 3 / -3
- Tracking ability at 315Hz at recommended tracking force: 60 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.5-2.0 g (15-20 mN)
- Tracking force, recommended: 1.75 g (17.5 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Cartridge colour: Black/Black
- Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-500 pF
What's In The Box
What's In The Box
- Ortofon OM 5E Cartridge inc. Stylus
