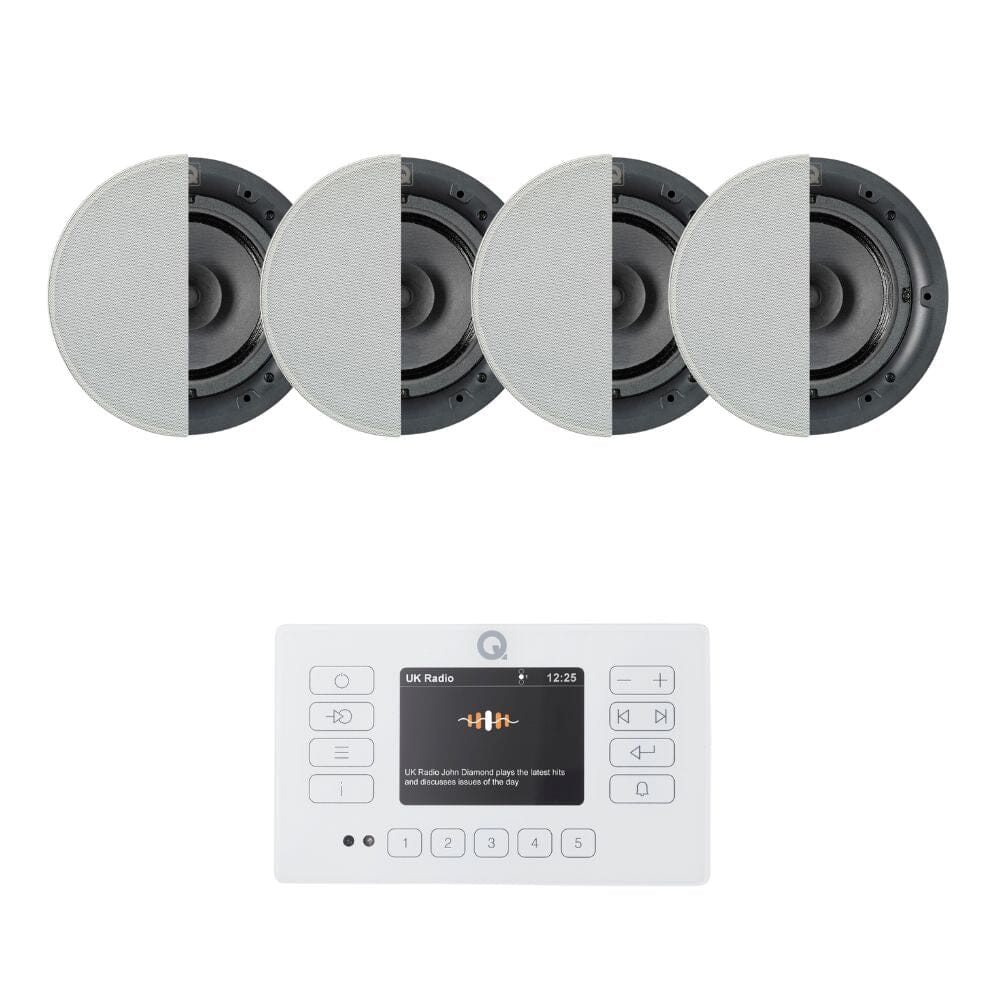

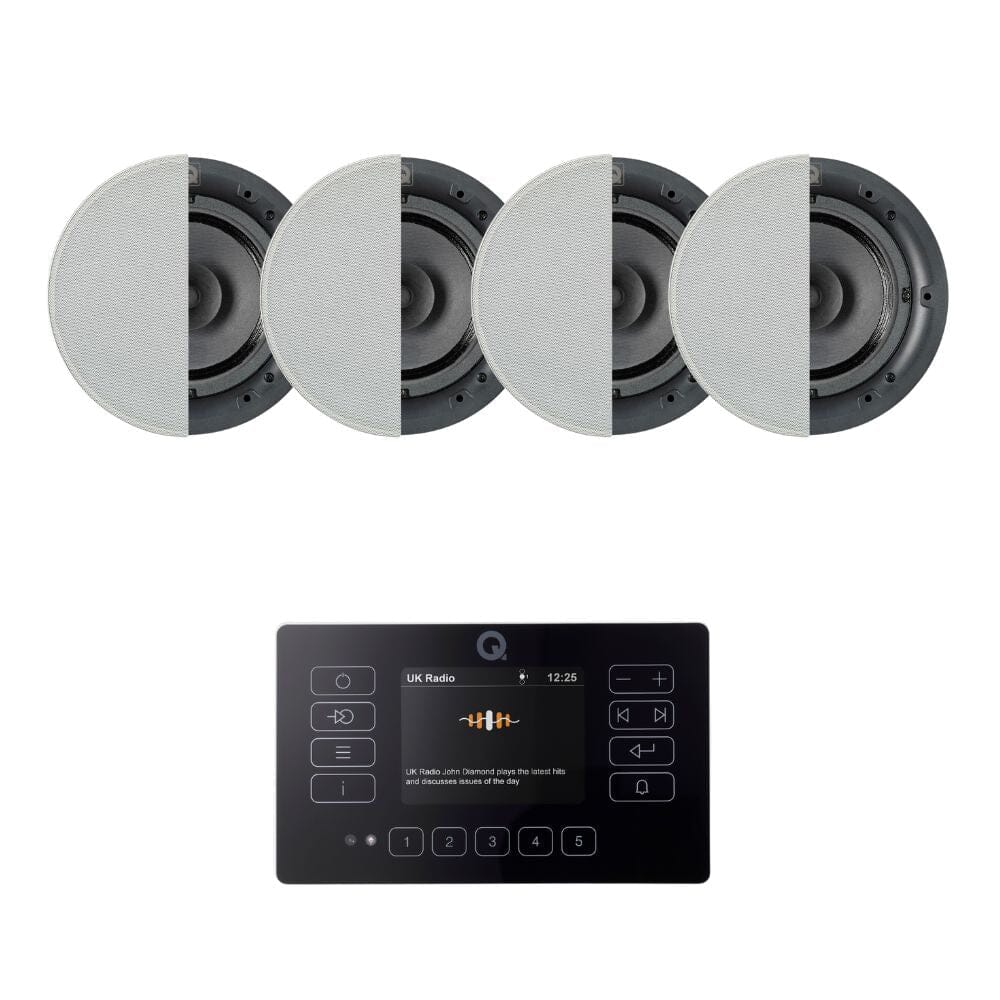

Q Acoustics E120 FM/DAB/Bluetooth Speaker System inc. 4 x 6.5" Ceiling Speakers

This system gives you speaker coverage for larger open plan rooms, or combine two adjacent rooms such as a kitchen and dining room.

The optional in wall speaker selector switch allows you to have both sets of speakers on, or only one set of speakers at a time.

With a more powerful amplifier, a sleeker and more stylish wall panel with colour screen, optical audio input and subwoofer output this is set to be the most popular in wall HiFi systems on the market.

The E120 combines style with hifi performance. The amplifier is more powerful than ever and can comfortably drive higher quality speakers for maximum sound quality.

Want the ultimate system? Add an active subwoofer via the wired subwoofer output!

FEATURES

• DAB+ / FM RADIO: Enjoy your favourite DAB+ and/or FM radio stations in high quality.


• BLUETOOTH: Connect your smart phone, tablet or computer via Bluetooth to enjoy your music. You can also connect an Amazon Alexa or Google Home via Bluetooth for hands free playback.


• AUX / OPTICAL INPUT: The E120 is the first in wall system on the market to support a direct digital input via a 3.5mm optical input. Now you can easily connect your television or digital audio system to the E120 without the need for a costly DAC. Simply plug it in with an optical cable.


• SUBWOOFER OUTPUT: Another first for the E120 is the built in subwoofer output. Simply connect an active subwoofer to the amplifier using a 3.5mm to RCA subwoofer cable and add significant depth and warmth to your music.


• COLOUR SCREEN: A high quality colour screen displays radio artwork and the touch sensitive buttons make it easy to control your music and volume.


• REMOTE CONTROL: You'll get two remote controls as standard, the standard hand held remote and also a fully waterproof remote control which you can use from the bath!



SPEAKER CHOICE

The Q Acoustics E120 is available with standard or high definition in ceiling speakers.

Both speakers are great quality and offer a great sound, but the high definition speakers are a significant upgrade to the standard and if you heard them side by side there is a night and day difference.

STANDARD

The standard speakers included with the Q Acoustics E120 are the Q Acoustics Install QI65CB.

At 6.5" these are capable background music ceiling speakers designed to offer good sound quality at a low cost.

These are ideal for general background music.

HIGH DEFINITION

If you're looking for better sound quality then we'd suggest upgrading to the high definition IC6 speakers.

These are a night and day difference to the QI65CB, these are a much higher end ceiling speaker with a significantly improved frequency response, power handling and crossover.

In English that means you get a lot more bass and a much clearer, crisper sound quality.

The high def speakers are perfect where sound quality is important as they really do sound significantly better without costing a fortune.

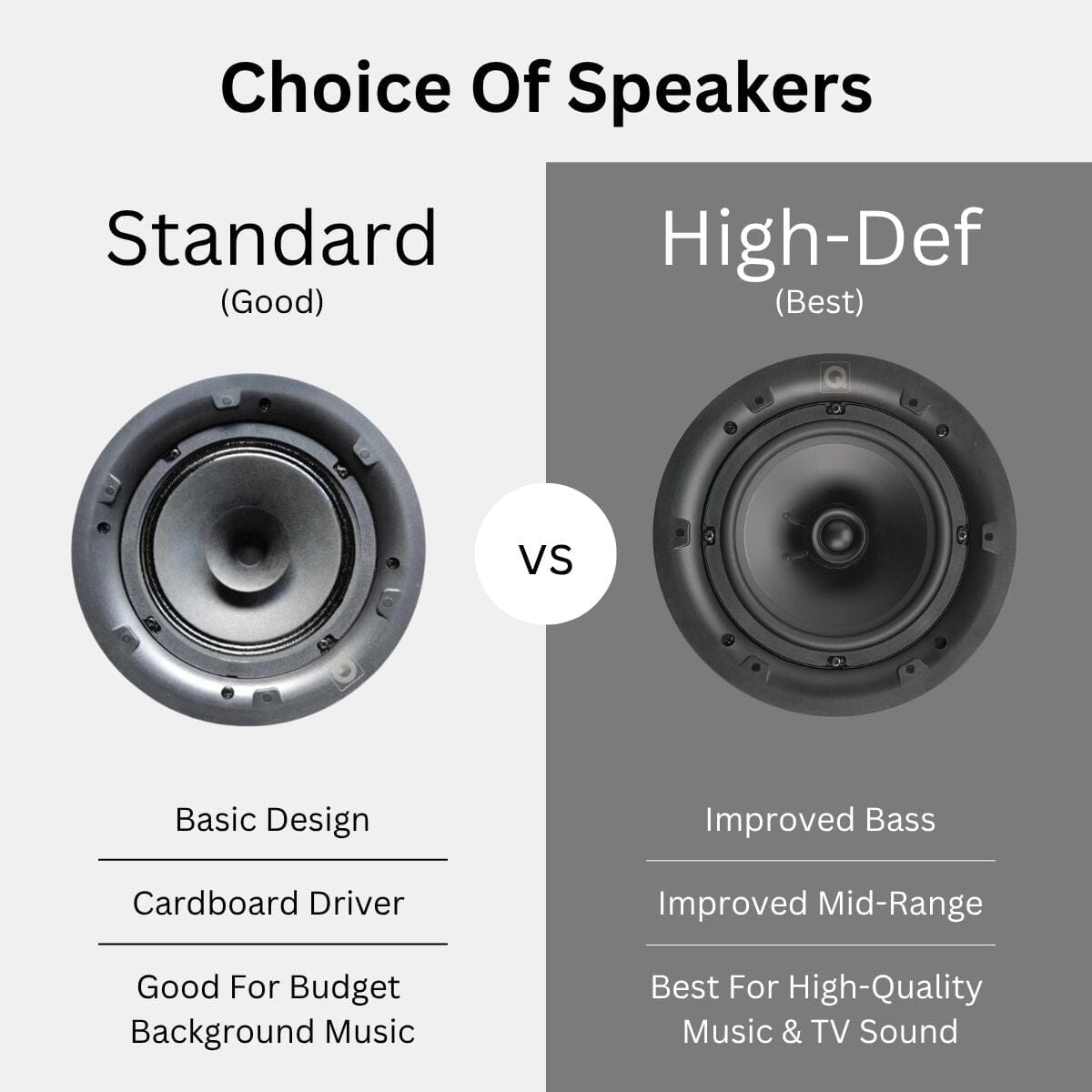

You can clearly "hear" the difference just by looking at the comparison picture.

• BLACK OR WHITE: The new E120 is available in high gloss black or high gloss white to match any interior. The nicely curved corners and low profile make it discreet and will blend nicely with any interior.


• IP RATED: Now with an IP54 rating you can safely install the E120 inside zone 3 of your bathroom.

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

SPEAKERS (STANDARD)

Brand = Q Acoustics

Model = QI65CB

• Woofer diameter: 6.5"
• Cutout size: 203mm
• Power handling (program): 50W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 93
• Response(Low freq.) -3dB Hz: 77 - 20,000
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

SPEAKERS (HIGH DEFINITION)

Brand = Elipson

Model = IC6

• Speaker: In-ceiling
• Number of channels: 2
• Tweeter (treble): 25 mm silk dome, orientation 35 to 40° in all directions
• Bass: 165 mm paper cone, rubber edge
• Recommended amplifier: 100 W
• Frequency Response (±3dB): 70Hz - 20kHz
• Cutoff frequency: 2950 Hz
• Sensitivity: 87dB / 1W / 1m
• Impedance: 8 Ohms
• Dimensions: Ø230 x D102 mm
• Cutting dimension Ø: 200 mm
• Weight: 1.45kg

• 1 x E120 Wall Panel (Black or White)
• 4 x 6.5" Ceiling Speakers (Standard or High Definition)
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable
• 1 x FM/DAB Antenna
• 1 x 5M Antenna Extension Cable
• 1 x Remote Control
• 1 x Instruction Manual
• OPTIONAL: QED WM17 In Wall Speaker Selector Switch
