Q Acoustics E120 + OSD Audio ACE640 6.5" Ceiling Speakers

Transform your home audio experience with the Q Acoustics E120 in-wall amplifier paired with the OSD Audio ACE640 6.5" ceiling speakers.

This complete ready-to-install kit combines seamless wireless connectivity, powerful amplification, and high-quality sound delivery. Perfect for creating a discreet yet immersive audio setup, it caters to music enthusiasts and homeowners seeking a stylish, integrated solution.

The E120 amplifier offers cutting-edge features like Bluetooth streaming, DAB/FM radio, and versatile audio inputs.

Coupled with the ACE640 ceiling speakers, which boast superior sound reproduction, this system is ideal for kitchens, living spaces, or any room where elegance and functionality meet.

FEATURES

• In-Wall Amplifier: The sleek E120 amplifier mounts flush to the wall, providing a seamless and modern look.
• Powerful 50W Digital Amplifier: Delivers robust, crystal-clear sound for an unparalleled listening experience.
• Wireless Bluetooth Streaming: Easily connect your devices to stream music wirelessly without compromising quality.
• FM/DAB Radio Tuner: Access your favourite radio stations with the built-in DAB/FM tuner for a wider range of audio content.
• Subwoofer Output: Enhance your sound setup with an option to connect a subwoofer for deep, impactful bass (sold separately).
• 3.5mm AUX & Digital Optical Audio Input: Flexible input options to connect analog or digital audio sources.
• Alarm Clock Functionality: Incorporates a clock and alarm feature for added practicality in bedrooms or living spaces.

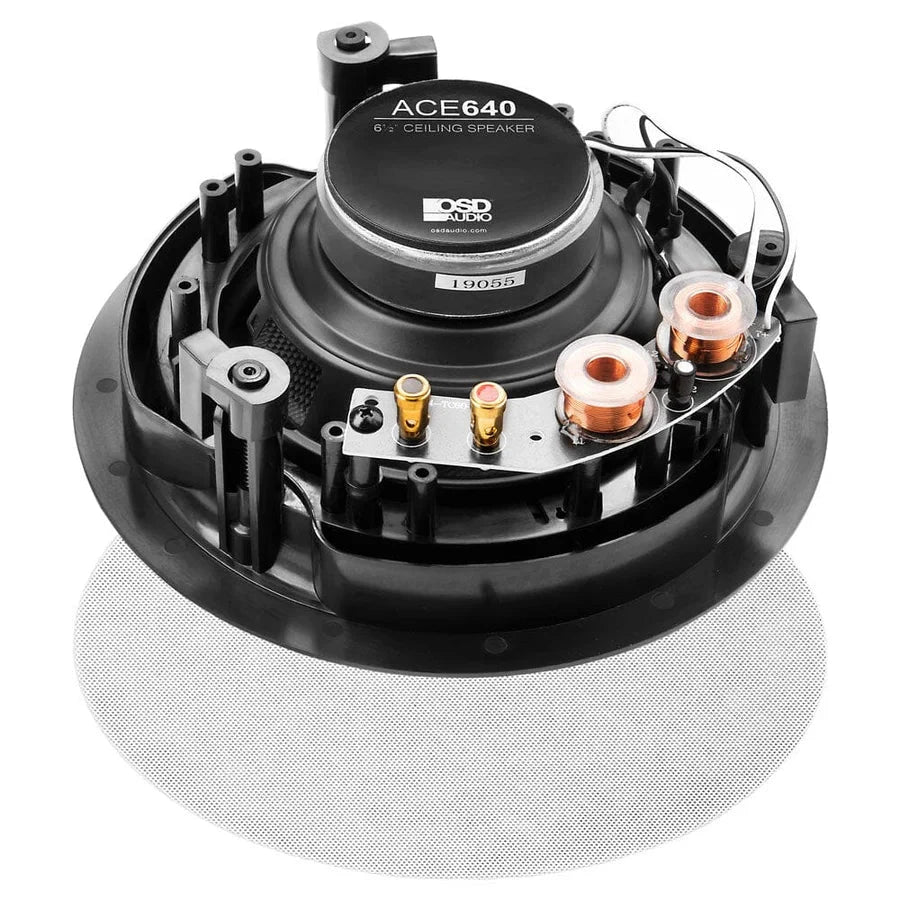

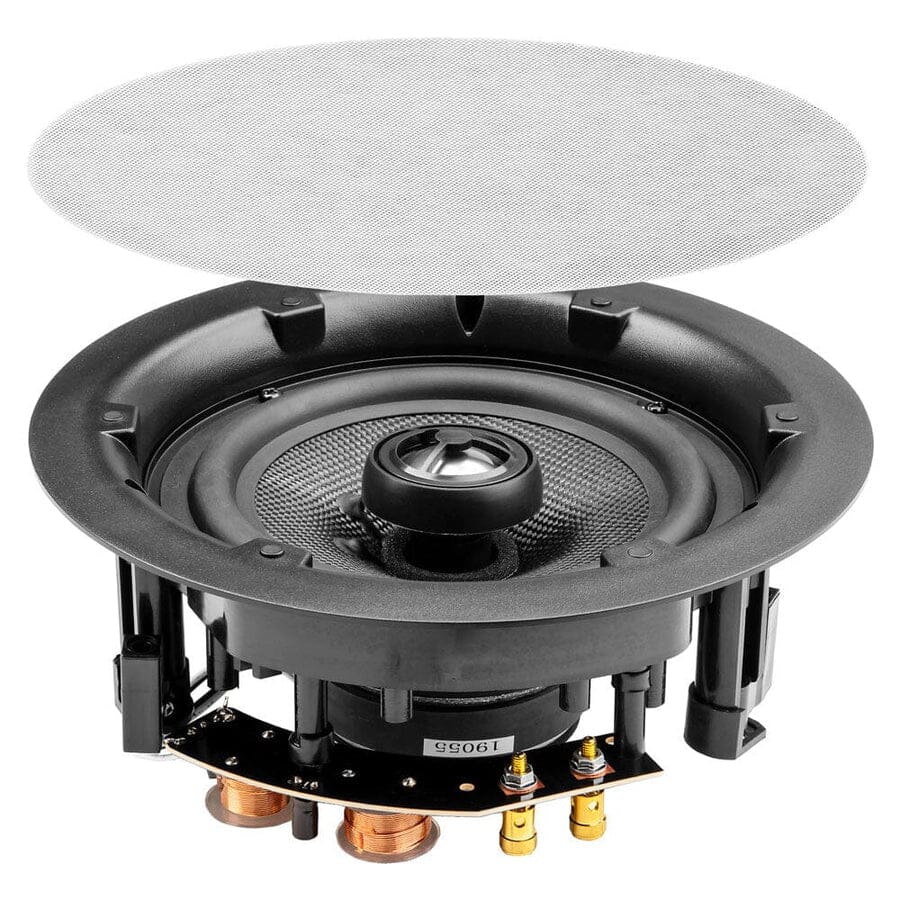

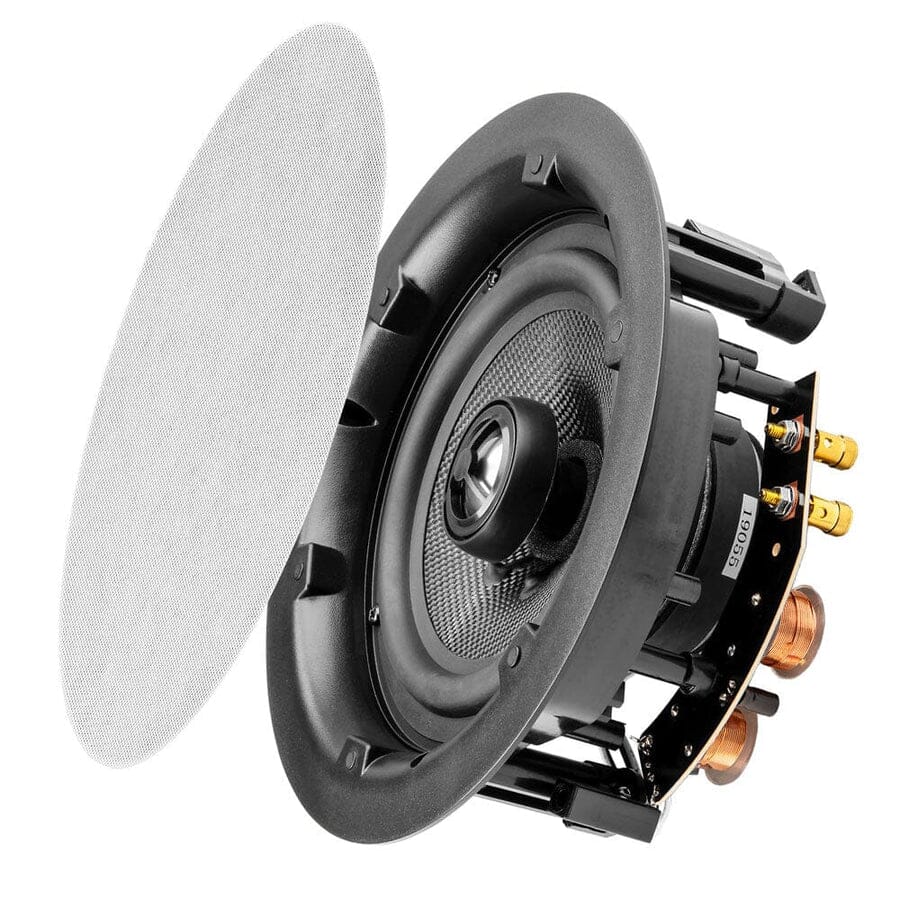

• High-Quality 6.5" Ceiling Speakers: The OSD ACE640 speakers deliver crisp, dynamic sound while blending discreetly into any décor.
• Complete Ready-To-Install Kit: Everything you need to set up a fully functional and integrated audio system in your home.

SPEAKERS

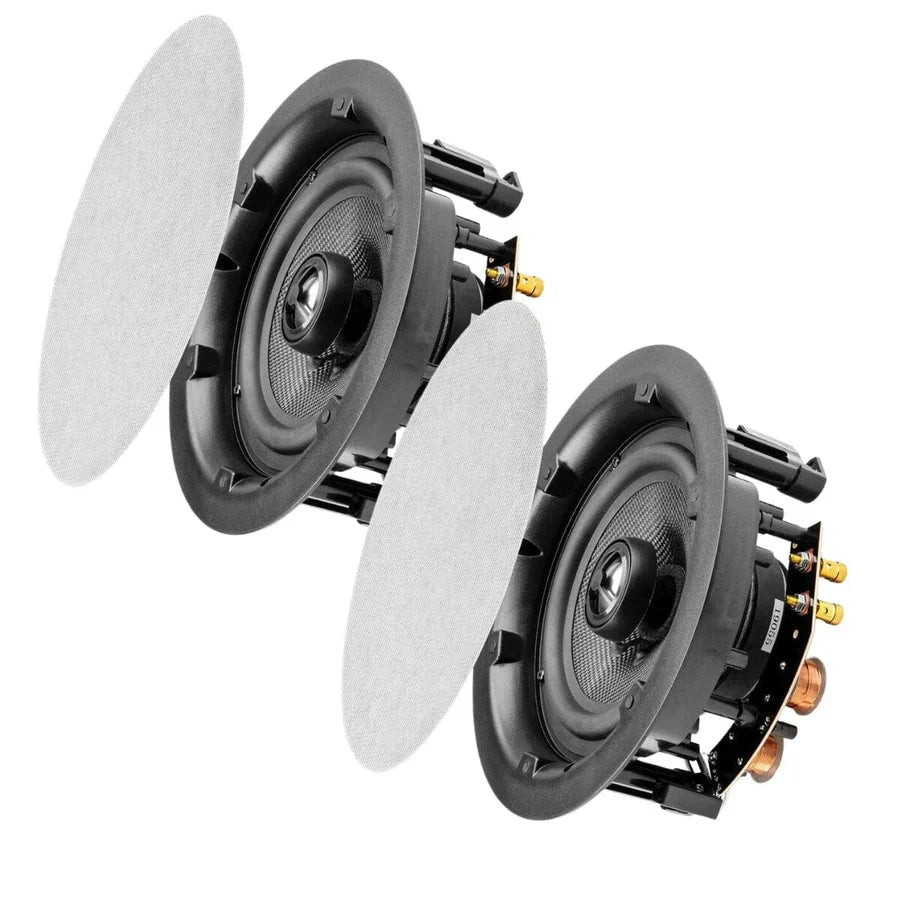

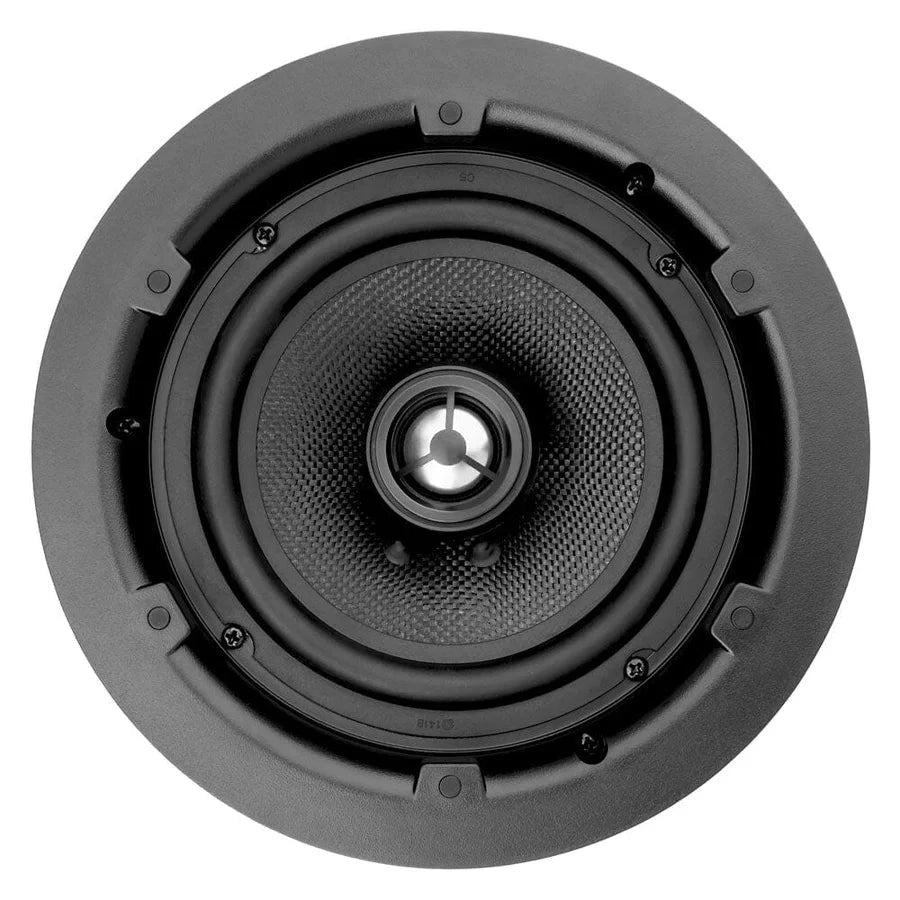

• Speaker Type: 6.5" High Definition Trimless Ceiling Speakers
• Woofer: 6.5" Fiber Glass Cone
• Tweeter: 1" Pivoting Titanium Dome
• Frequency Response: 40Hz - 20kHz
• Power Handling: 150W
• Sensitivity: 89 dB
• Impedance: 8 Ohms
• Spray Paintable Grille Included

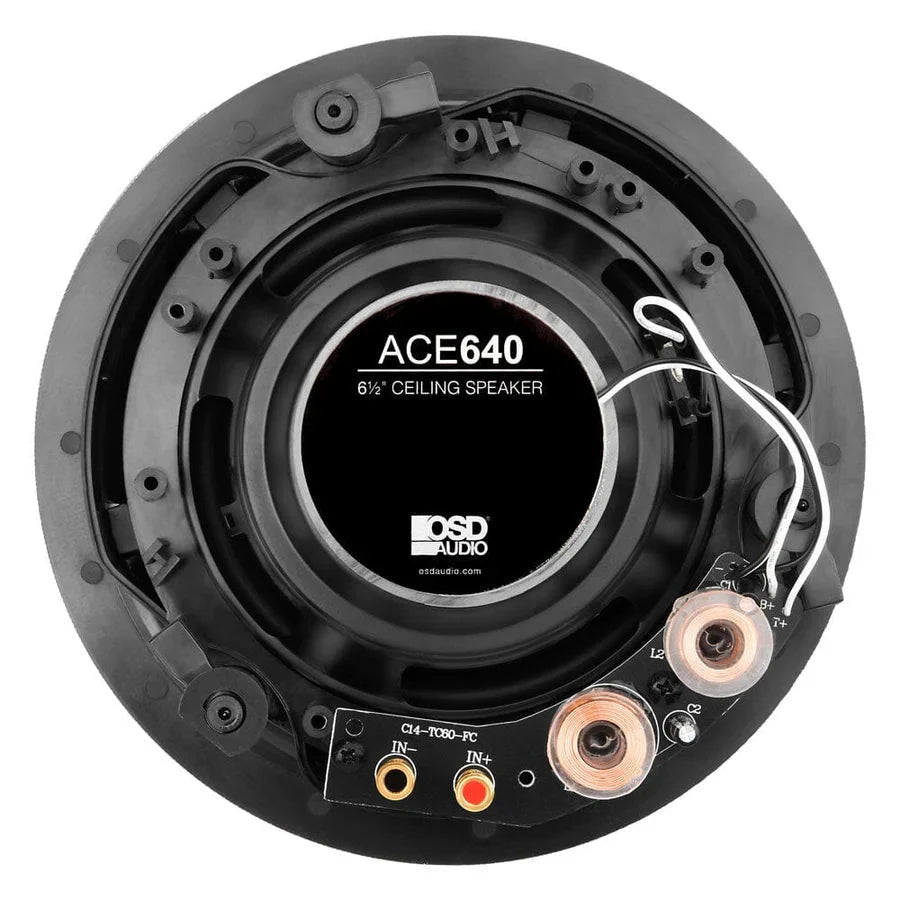

• Inputs: Gold-plated 5-way Binding Posts
• Install-friendly Dog Ear Installation Brackets
• Diameter & Depth: 8.86" x 3.54"
• Cutout Diameter: 7.80"
• Sold As: Pair
• Warranty: 10 Years

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

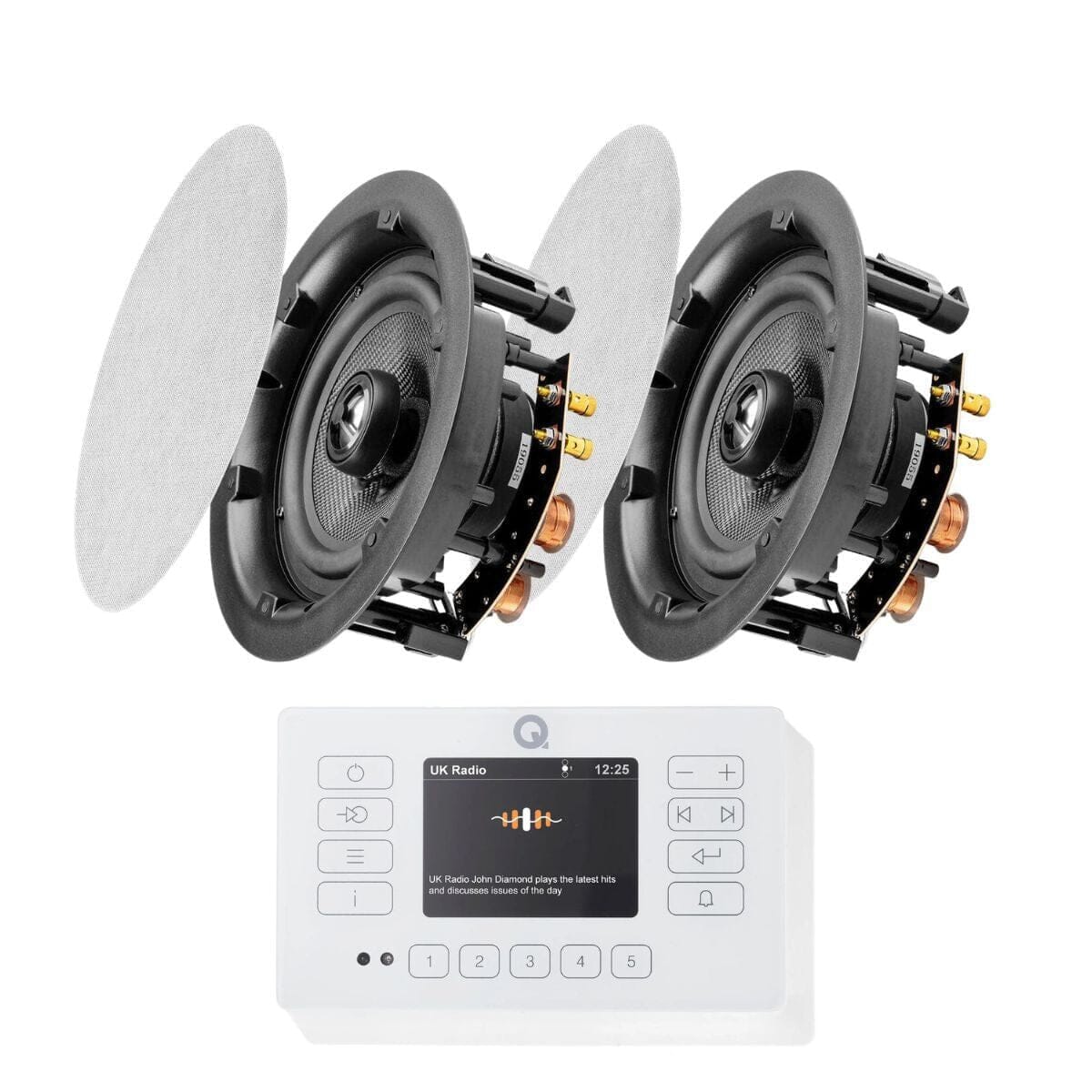

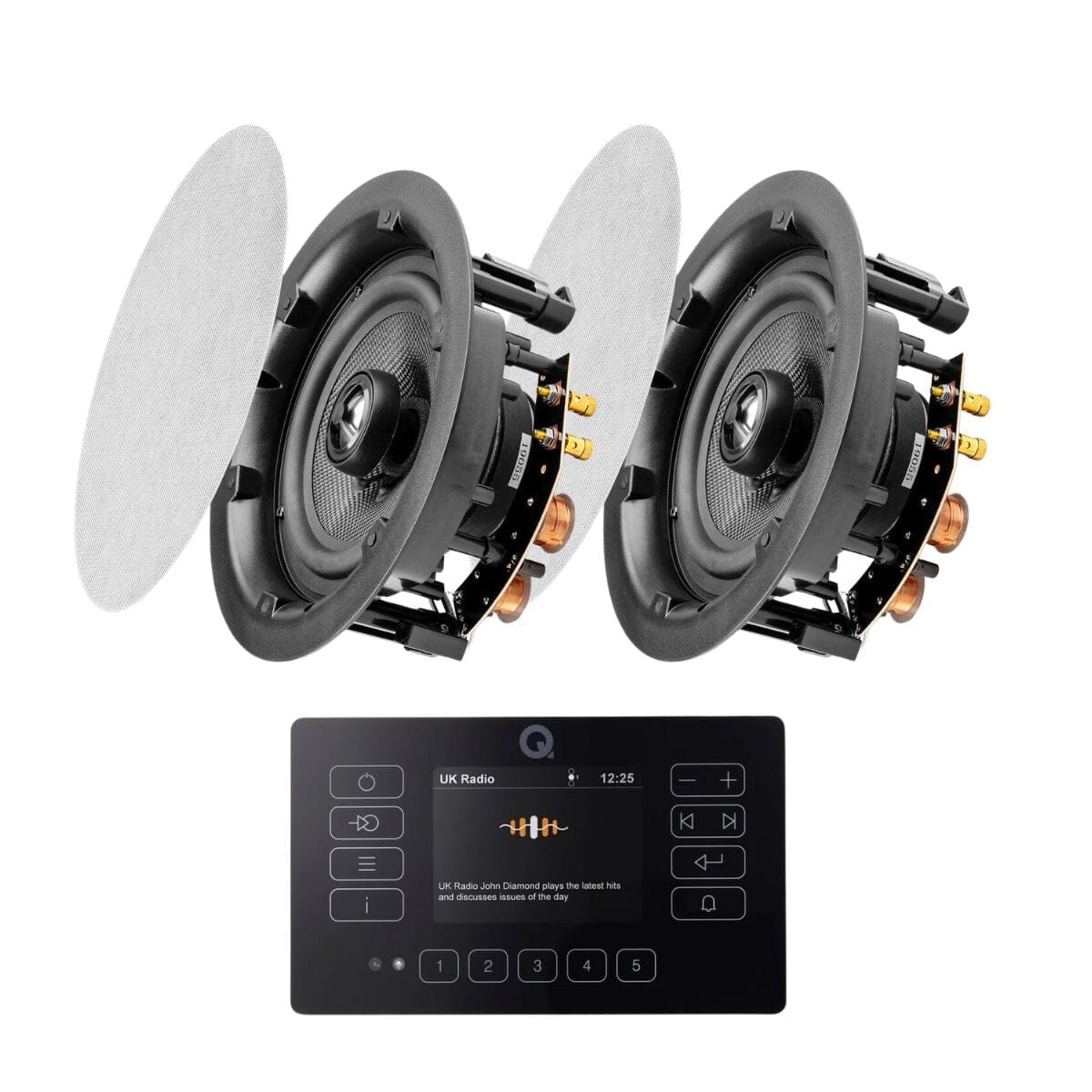

ONE PAIR

• 1 x Q Acoustics E120 In Wall HiFi Amplifier
• 1 x OSD Audio ACE640 6.5" Ceiling Speakers (Pair)
• 1 x 20m - Flex Audio 2 Core 42 Strand Speaker Cable

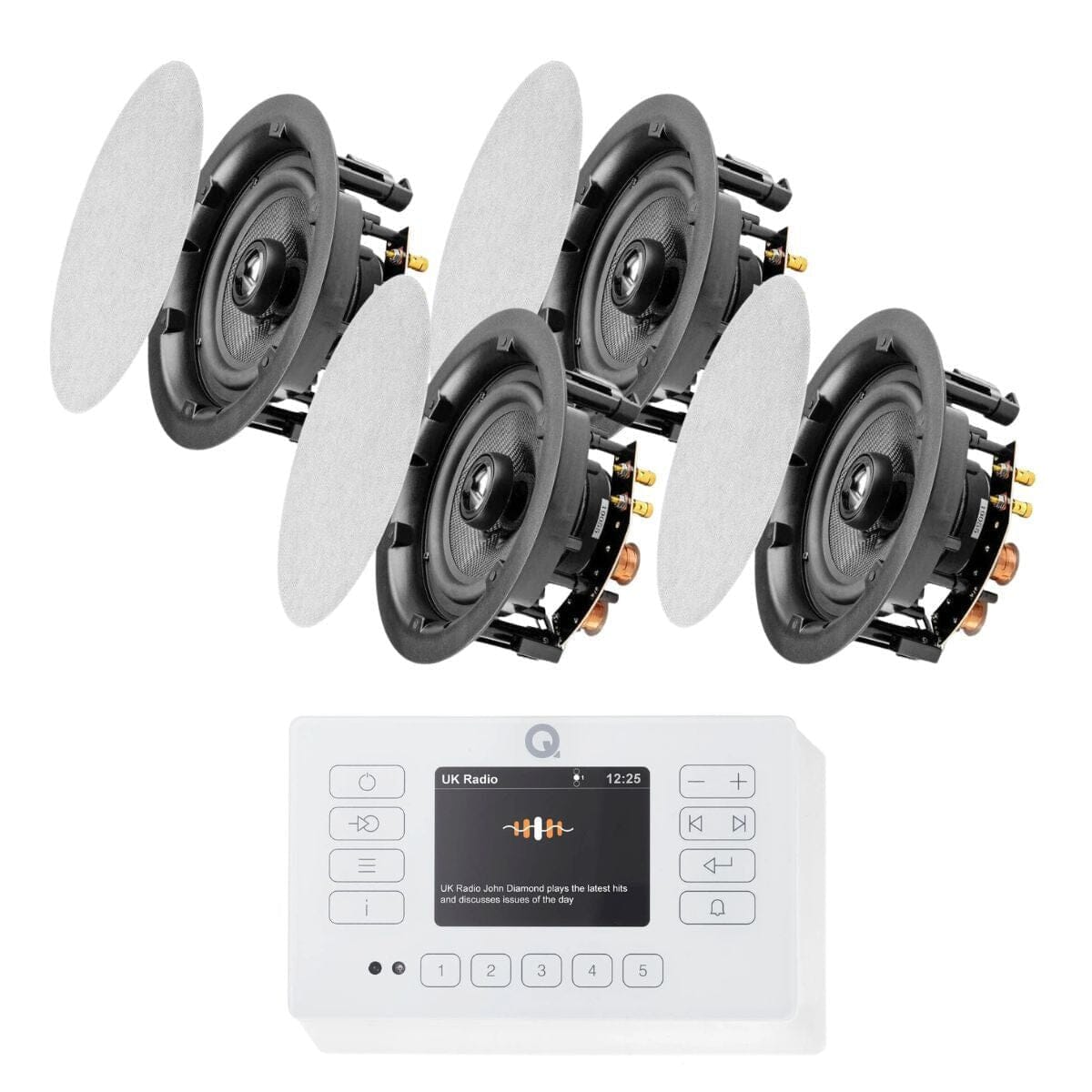

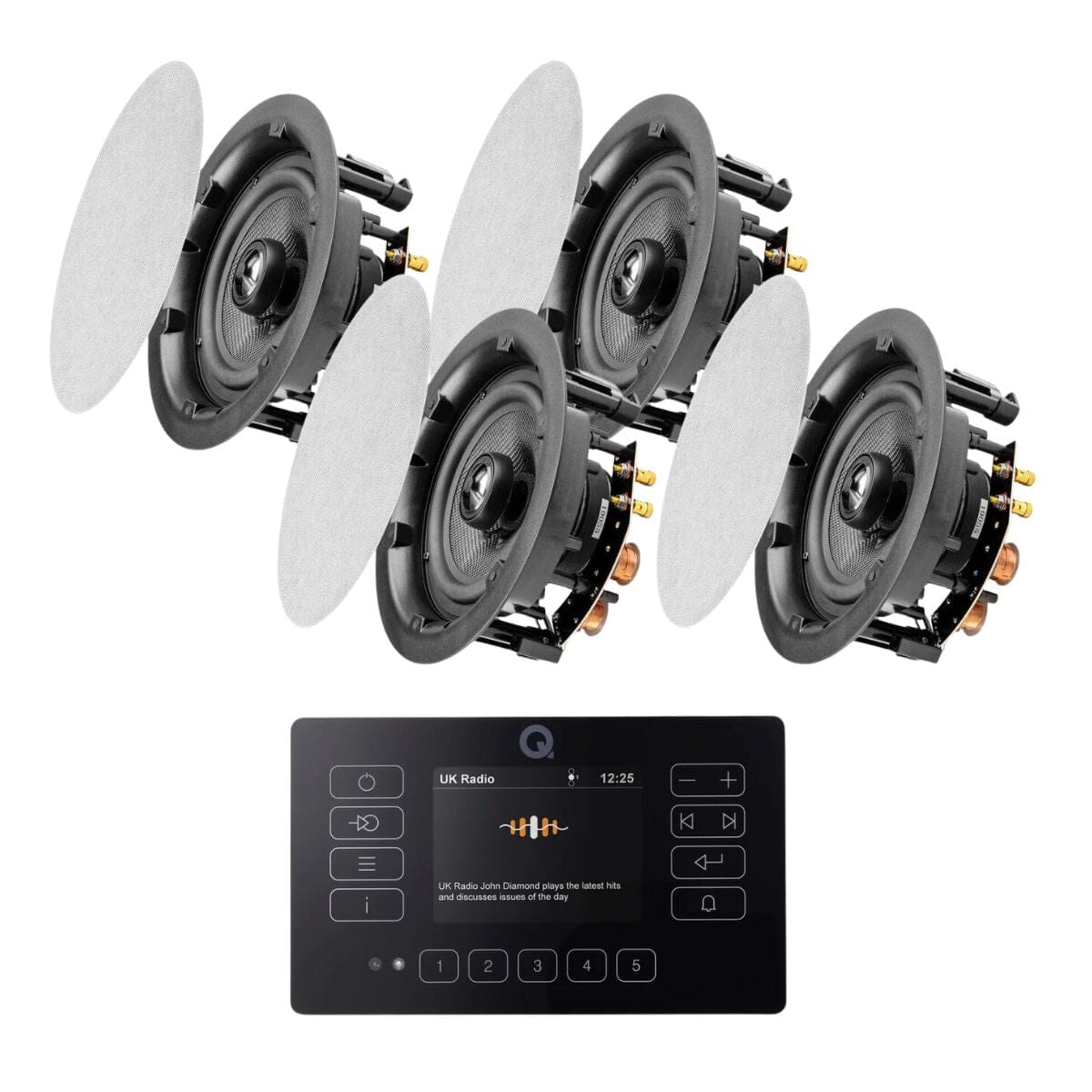

TWO PAIRS

• 1 x Q Acoustics E120 In Wall HiFi Amplifier
• 2 x OSD Audio ACE640 6.5" Ceiling Speakers (Pair)
• 1 x 30m - Flex Audio 2 Core 42 Strand Speaker Cable
