Q Acoustics E120 + OSD Audio ACE840 8" Ceiling Speakers

The Q Acoustics E120 paired with the OSD Audio ACE840 8" Ceiling Speakers offers an exceptional combination of sleek design, robust functionality, and high-performance sound quality.

Ideal for music enthusiasts, this bundle provides a comprehensive audio solution that integrates seamlessly into any modern living space.

Whether you're streaming via Bluetooth, enjoying DAB/FM radio, or connecting to other devices, this package is designed to deliver immersive, room-filling sound.

With the E120’s in-wall design and intuitive touchscreen interface, controlling your audio experience is effortless.

Paired with the powerful ACE840 ceiling speakers, featuring an 8-inch woofer for deep bass and crisp highs, this bundle elevates home entertainment to the next level.

FEATURES

• In-Wall Amplifier: A compact and stylish amplifier with Bluetooth connectivity, DAB/FM radio, and a touchscreen control interface, ensuring easy access to your favourite music.
• High-Quality Ceiling Speakers: These high-performance speakers feature an 8-inch polypropylene woofer and pivoting tweeter, providing clear and balanced audio across a wide soundstage.
• Bluetooth Connectivity: Effortlessly stream music wirelessly from your smartphone, tablet, or other Bluetooth-enabled devices.
• DAB/FM Radio: Enjoy crystal-clear digital radio alongside traditional FM stations for a wide range of listening options.
• Audio Input: Connect an analog or digital audio device via the rear mounted 3.5mm AUX / Digital Optical audio input.
• Subwoofer Output: Connect an external subwoofer to the rear mounted subwoofer output.

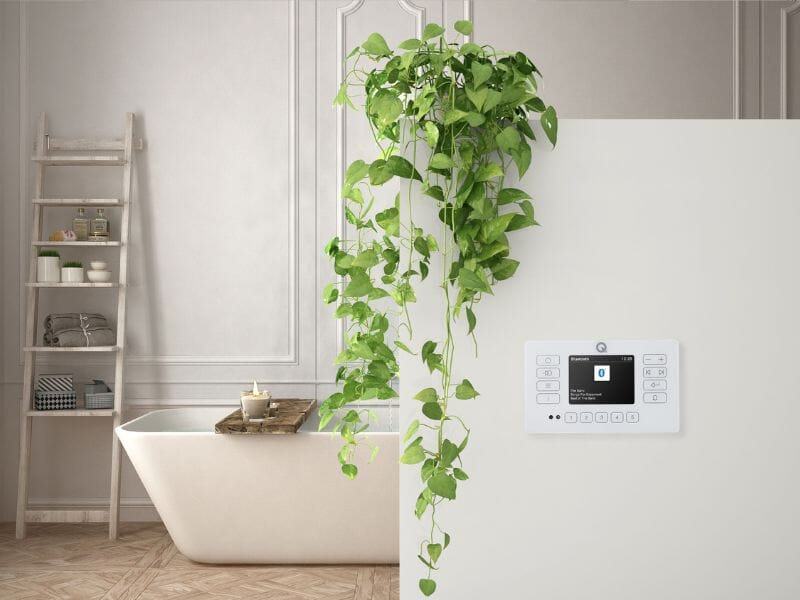

• Touchscreen Control Panel: The E120’s sleek in-wall design and intuitive interface make adjusting settings and accessing audio sources simple and convenient.
• Powerful Sound Performance: The OSD ACE840 speakers deliver dynamic sound with excellent bass response, ideal for larger rooms or open-plan spaces.
• Paintable Grilles: The ACE840 speakers include paintable grilles, allowing them to blend seamlessly into your ceiling for a clean, unobtrusive finish.
• Ready To Install Kit: The package includes everything needed for easy installation, making it suitable for both professionals and DIY enthusiasts.

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

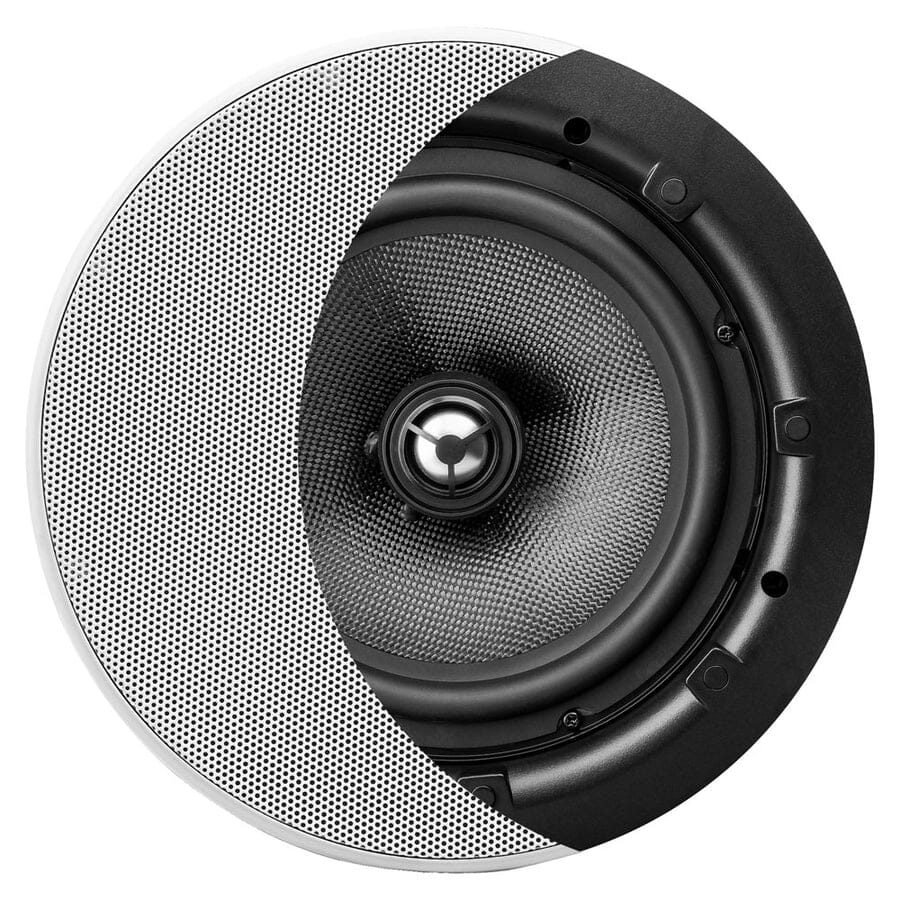

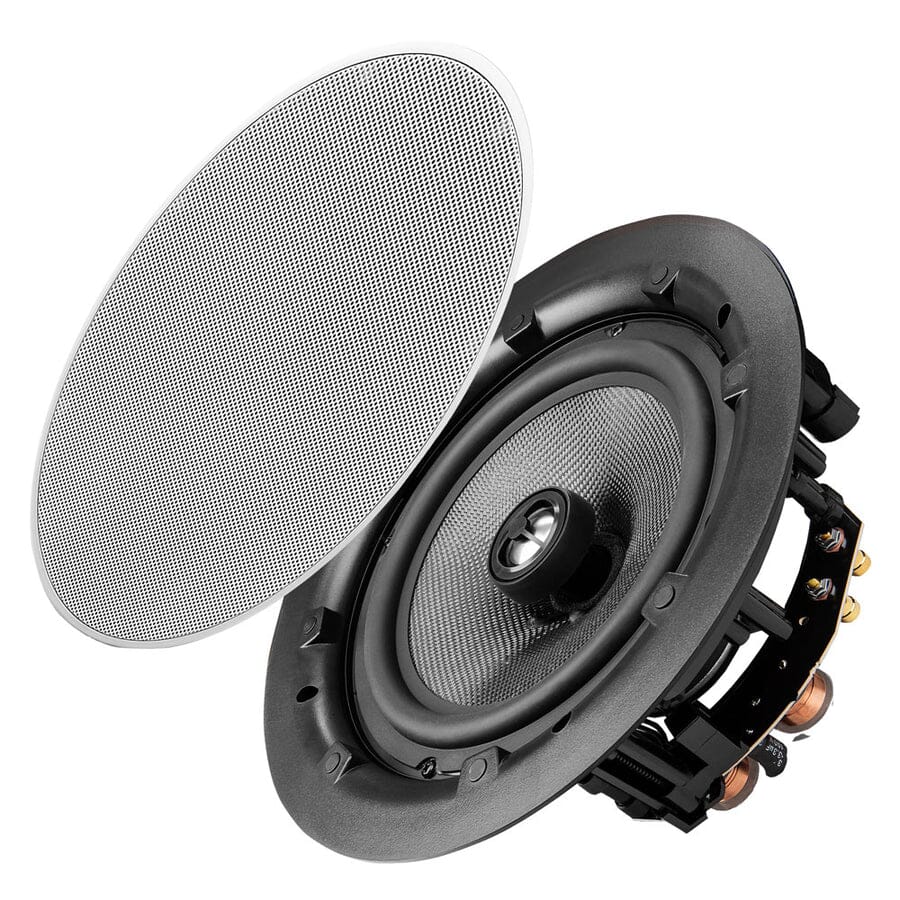

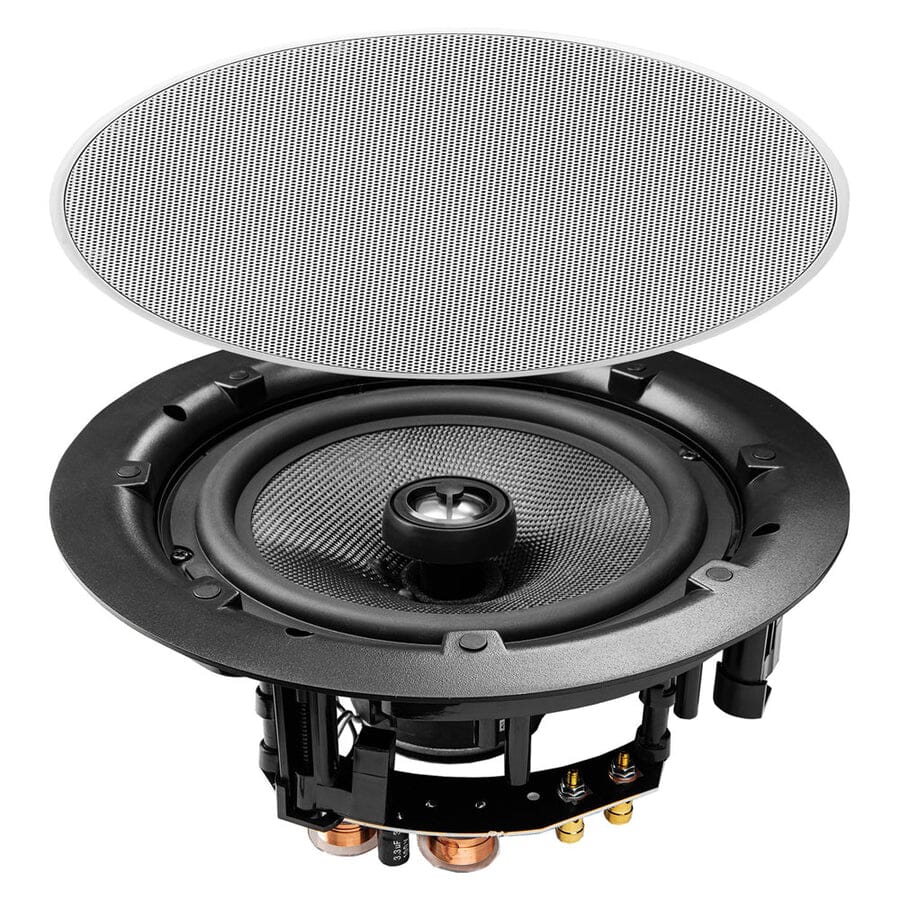

SPEAKERS

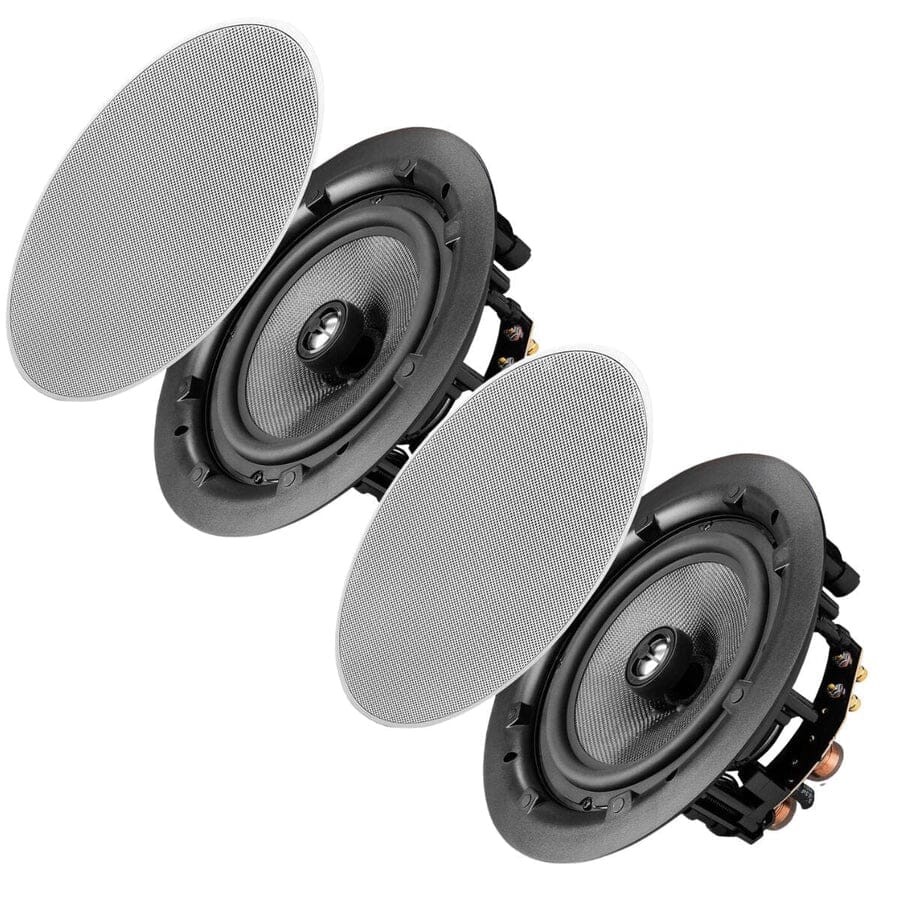

• Speaker Type: 8" High Definition Trimless Ceiling Speakers
• Woofer: 8" Fiber Glass with Rubber Butyl Surround
• Tweeter: 1" Pivoting Titanium Dome
• Frequency Response: 35Hz - 20kHz
• Power Handling: 150W
• Sensitivity: 88 dB
• Impedance: 8 Ohms
• Spray Paintable Magnetic Grille Included

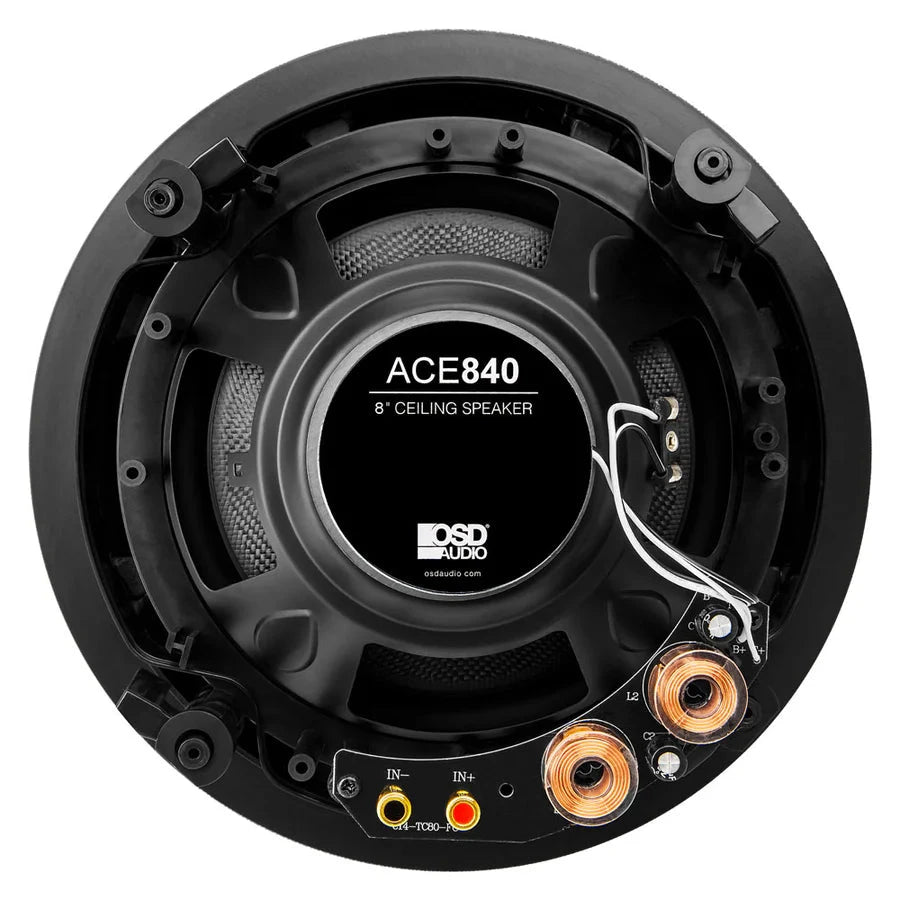

• Inputs: Gold-plated 5-way Binding Posts

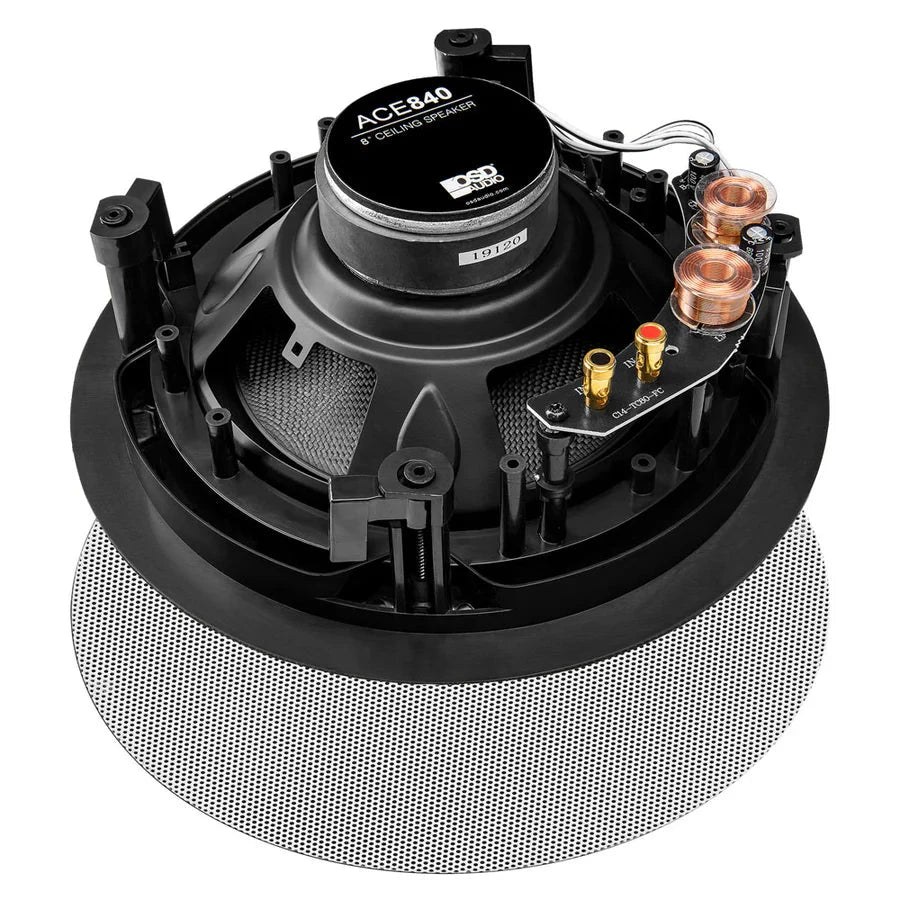

• Install-friendly Dog Ear Installation Brackets
• See New Construction Brackets For Compatibility
• Diameter & Depth: 10.79" x 4.41"
• Cutout Diameter: 9.37"
• Sold As: Pair
• Warranty: 10 Years

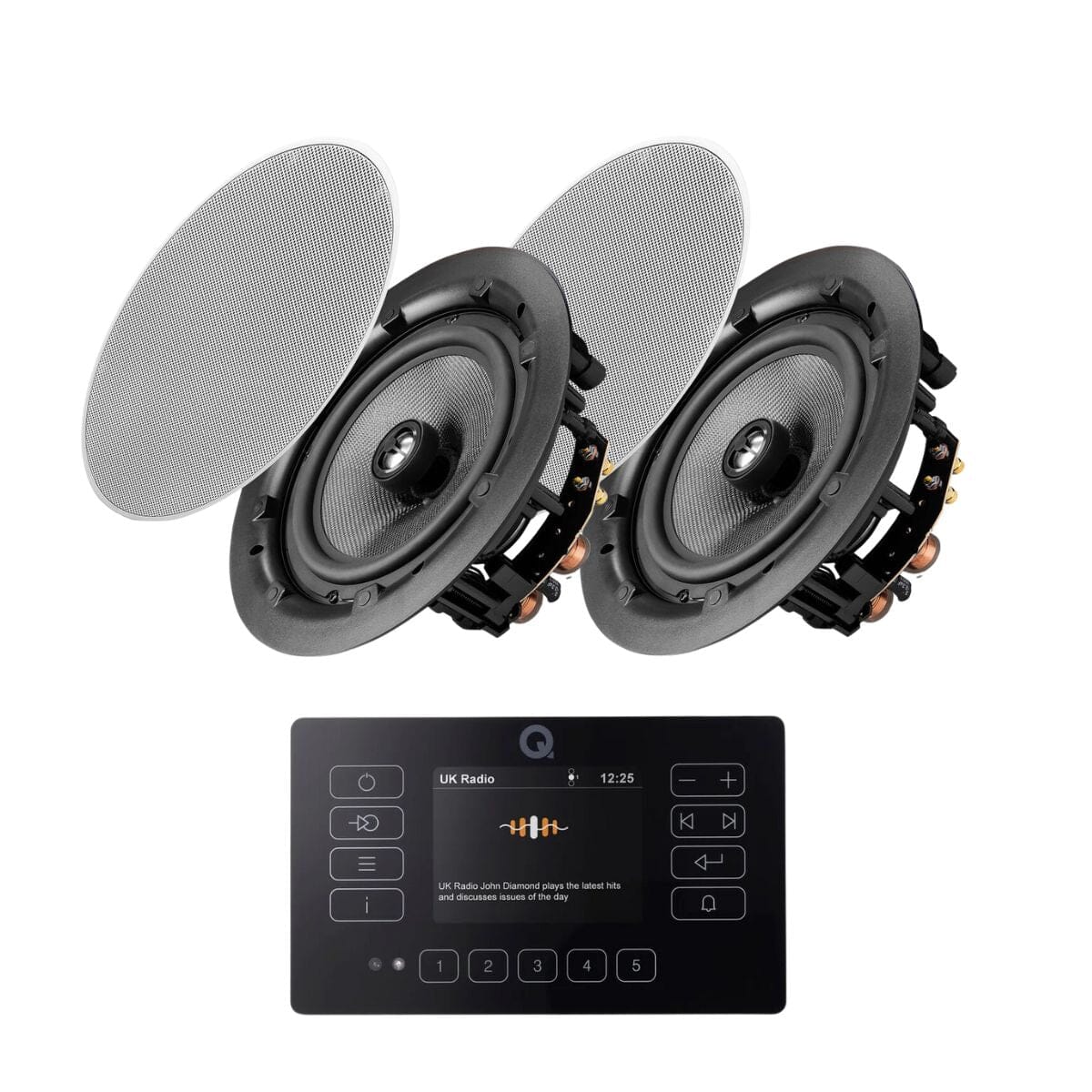

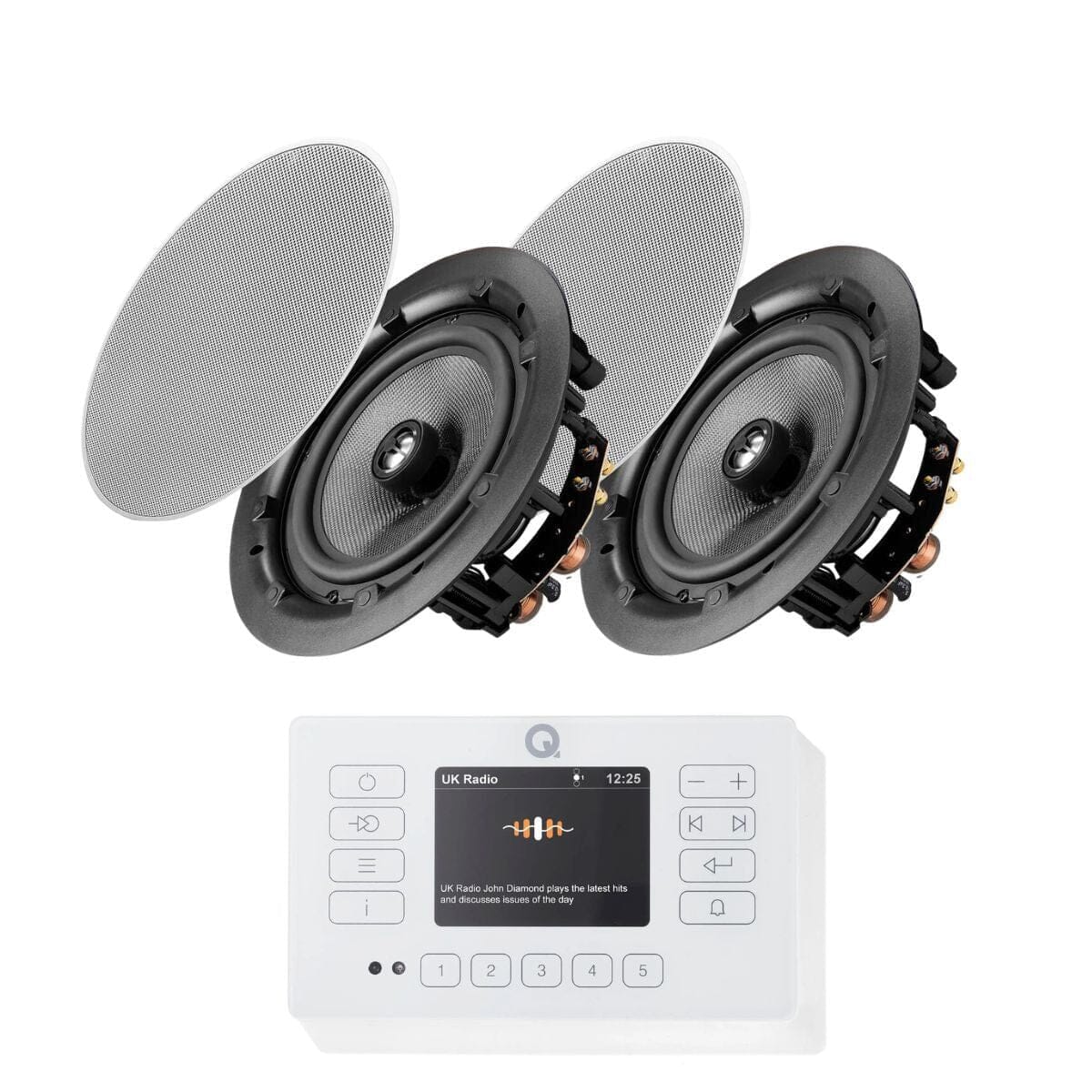

ONE PAIR

• 1 x Q Acoustics E120 In Wall HiFi Amplifier
• 1 x OSD Audio ACE840 8" Ceiling Speakers (Pair)
• 1 x 20m - Flex Audio 2 Core 42 Strand Speaker Cable

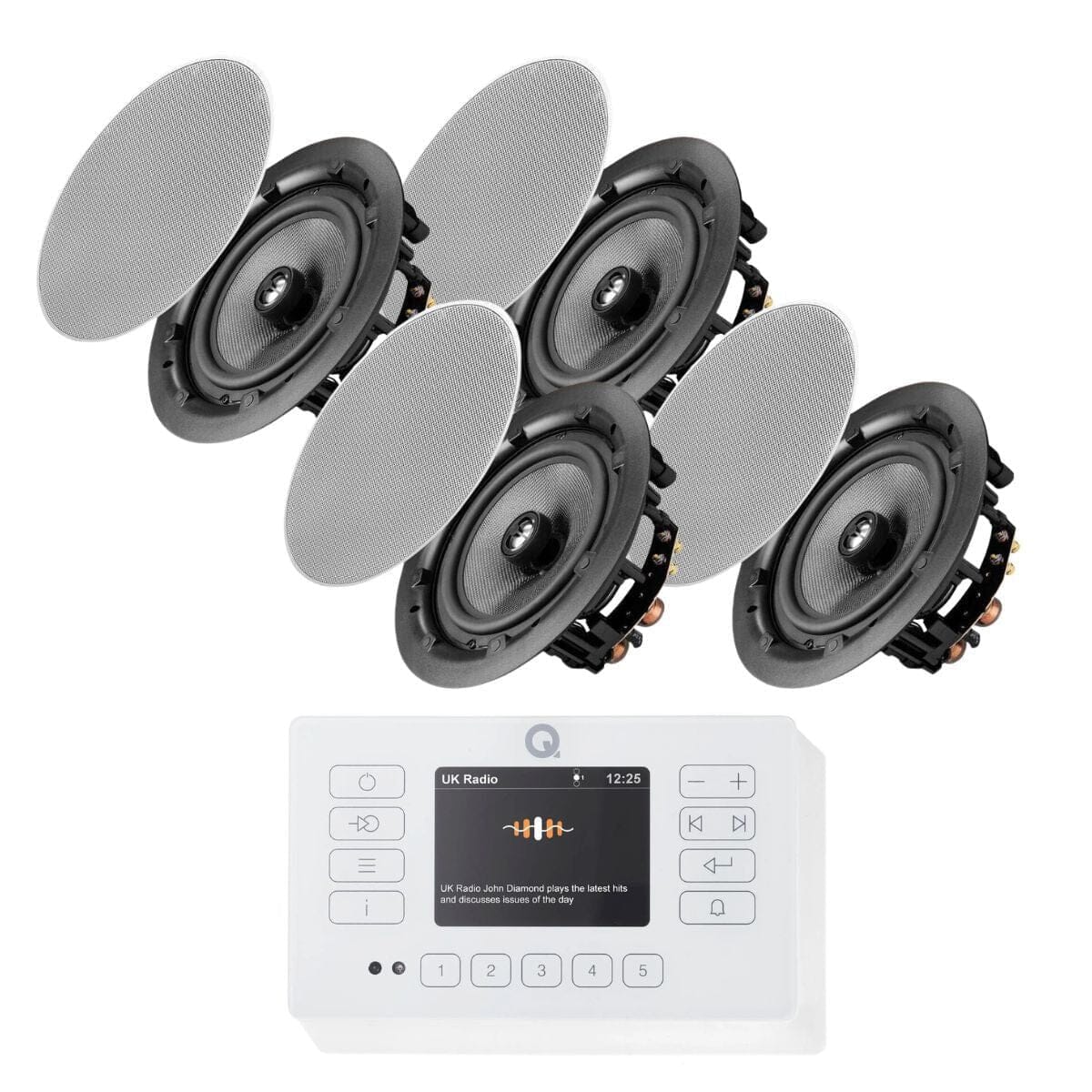

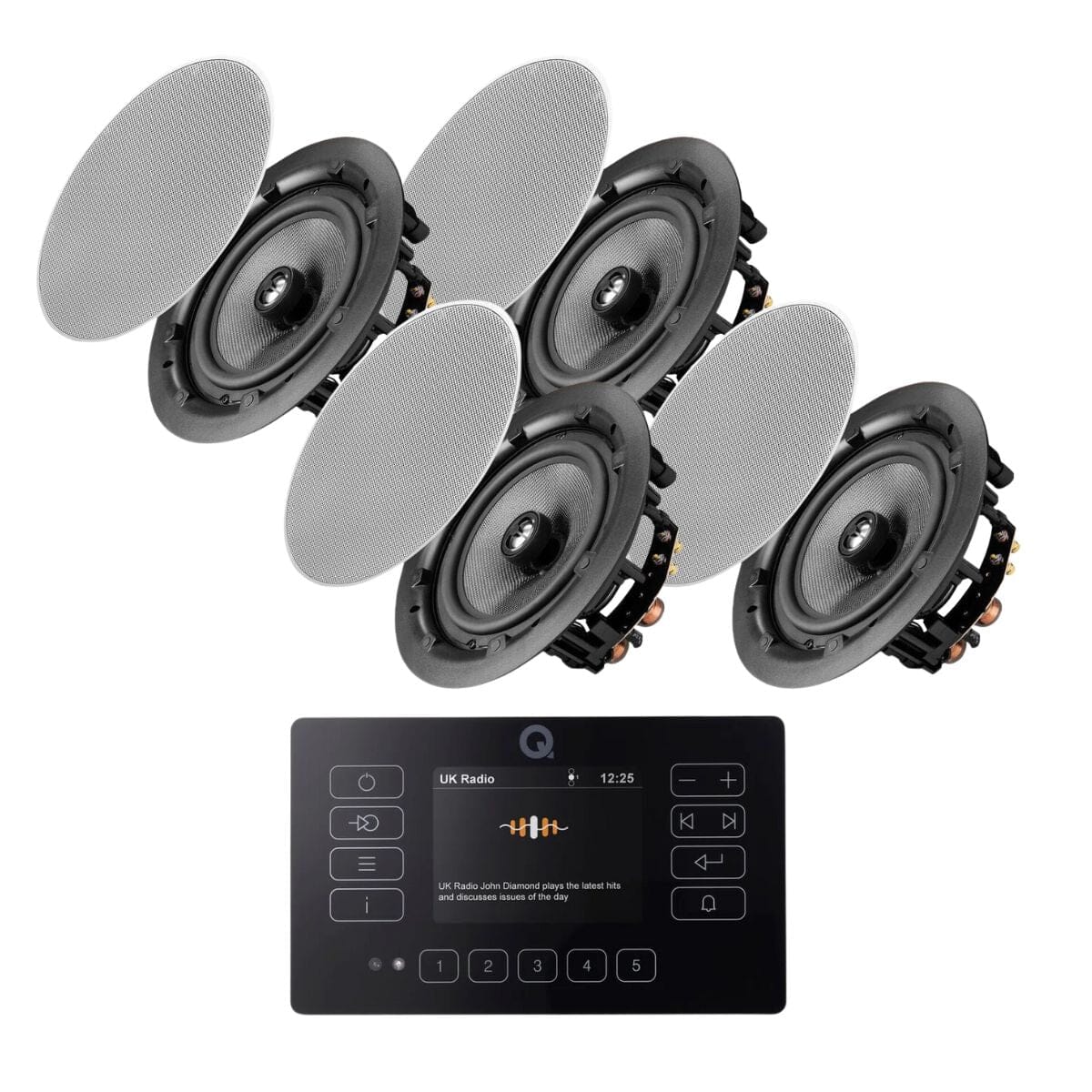

TWO PAIRS

• 1 x Q Acoustics E120 In Wall HiFi Amplifier
• 2 x OSD Audio ACE840 8" Ceiling Speakers (Pair)
• 1 x 30m - Flex Audio 2 Core 42 Strand Speaker Cable
