Q Acoustics E300A In Ceiling Amplifier With Built In Alexa, WiFi & Bluetooth

The Q Acoustics E300A is suitable for installation in any room in the home and is just as capable of powering a single-room set-up or expansive multi-room system as it is driving an entire smart home habitat.

Integrated Amazon Alexa voice-control is activated by three far-field microphones, ensuring 360-degree coverage across even the largest open-plan living space. Use E300A’s power of Amazon Alexa with other compatible smart home products such as light fittings, thermostats, and door entry.

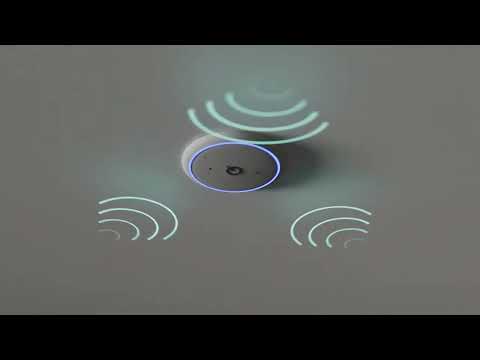

Just like many other Alexa-enabled products, E300A features an LED light ring to confirm voice interaction - and its surface-mounted light sensor ensures the LED ring is set to the correct intensity depending on the ambient light of your room.

It can be connected to in ceiling, in wall, or outdoor speakers to provide discreet but powerful sound. (sold separately)

FEATURES

• High-Performance Sound: The E300A features a powerful 2 x 50W stereo amplifier capable of driving up to four in ceiling, in wall or outdoor speakers.
• Easy Music Streaming: E300A is compatible with popular music services Amazon Music, Apple AirPlay 2®, TIDAL Connect and Spotify® Connect Hi-Fi, simply select E300A as a speaker to play though on the App. Connection to the internet is available using the Ethernet socket or via Wi-Fi. Bluetooth 5.2 is also on board for alternative wireless streaming from compatible devices such as a smartphone, tablet, or laptop.
• Enhance TV Sound: E300A includes a combined mini Toslink socket for optical digital audio and 3.5mm stereo analogue jack, this input is manually selected using the remote control or App. Simply fit a suitable length optical digital cable from the TV to enjoy hi-fi-quality TV sound.
• Versatile Connectivity: Equipped with multiple inputs, including Bluetooth and optical, the E300A speakers easily connect to a variety of devices, such as smartphones, tablets, TVs, and turntables.

• Sleek & Compact Design: The compact size and elegant design of the E300A make them a stylish addition to any room, fitting seamlessly into both modern and traditional interiors.
• User-Friendly Controls: Intuitive controls and a simple interface make it easy to adjust volume, switch inputs, and manage playback either with voice control or from your apps, ensuring a hassle-free listening experience.

Audio Sources

• Network audio streaming: RJ45 Ethernet or Wi-Fi
• Bluetooth: Version 5.2, A2DP

Analogue Input

• 3.5mm stereo
• Sensitivity: 350mV
• Max level: 750mV
• Impedance: ~30k ohm

Optical Input

• mini TOSLINK
• Resolution: 24bit 96kHz

Local Input Module

• RJ45

Speaker Outputs

• Left & right, stereo

Music Services / Streaming Methods

• Spotify Connect
• Apple Airplay 2.0
• Amazon Music MRA
• TIDAL Connect
• Over Ethernet / Wi-Fi

Amplifier

• Type: Class D
• Continuous power: 2 x 25W @ 6ohm
• Peak power: 2x 50W
• THD: 0.2% @ rated power
• SNR: >70dB @ Rated power
• Frequency response: 20Hz - 20kHz +/- 1dB
• Latency: 40-80ms Optical and analogue

Ratings

• E300 Ceiling system: 60-minute fire, BS EN 1365-2, BS EN 1363-1

Control

• Voice: Alexa voice services
• IR remote control: x 13
• BT AVRCP: v1.6 (play, pause, skip, track, artist, album name)
• Buttons: x 2 (mute / unmute, reset)
• Menu languages: English, French, German, Spanish

Power Supply

• Input: 100 - 240V AC 50/60 Hz
• Output: 22V DC 1.5amps

Dimensions

• Main unit: 30mm x 50mm x 115mm

Power Consumption

• Typical: 10W
• Standby: 1.5W

Ceiling Panel

• Net weight: 1.2kg
• Dimensions: 125mm x 125mm x 145mm

Speaker Cable Supplied

• Gauge: 18 AWG
• Lengths: 2 x 4m

• 1 x E300A in-ceiling unit
• 1 x Remote handset (including 2x AAA batteries)
• 2 x Speaker cable (4 metres each)
• 1 x UK power cord (1.3 metres)
• 1 x EU power cord (1.3 metres)
• 1 x Power supply
• 1 x Cutout template
• 1 x Optical Mini TOSLINK adapter
• 2 x Speaker plugs
• 1 x User guide
