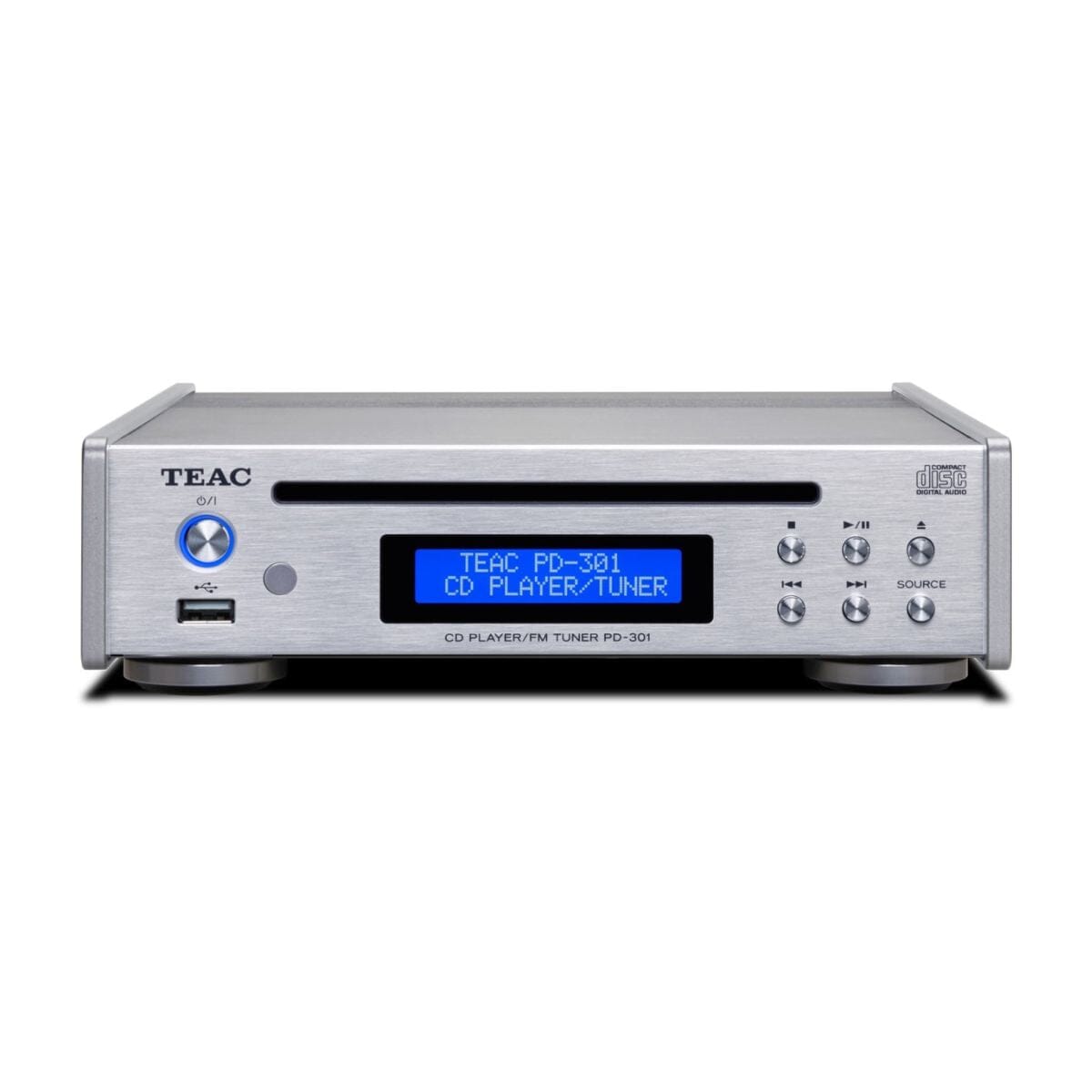

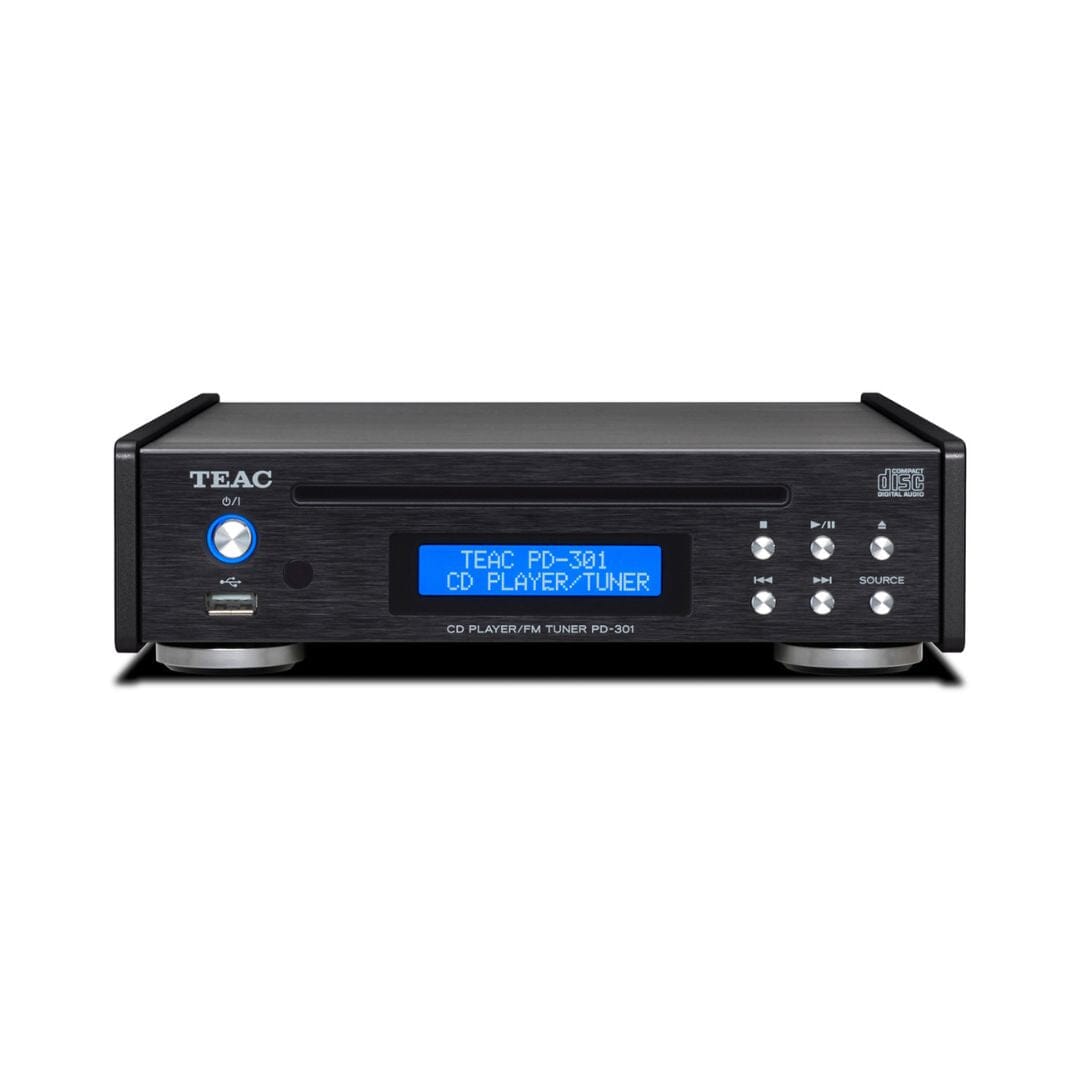

TEAC PD-301DAB-X CD Player with DAB/FM Radio Tuner

The Teac PD-301DAB-X features a compact, high-precision, slot-load CD drive mechanism that’s exclusively designed for professional audio applications.

Thanks to its quick loading times and automatic playback function, users can get on with enjoying their music mere moments after inserting a CD into the slot.

FEATURES

• Slot-load CD player supporting CD-DA, CD-ROM, CD-R and CD-RW discs
• High performance BurrBrown PCM5142 32-bit D/A converter
• Sleek, small footprint design
• Built-in DAB+/FM Tuner with 20 x station presets
• Automatic CD Playback (On/Off selectable)
• MP3, WMA playback from CD-ROM, CD-R and CD-RW
• MP3, WMA, AAC, WAV playback from USB flash drive
• Program playback (CD-DA only)
• Shuffle and Repeat playback
• Song title and artist name display (ID3 tag required)
• Selectable Folder/File browse modes
• USB Port for USB flash drive (USB A-type)
• Coaxial and optical digital audio outputs
• Analogue LINE audio output via RCA Pin
• Card-type Remote Control
• Full-metal body
• Auto power-saving (On/Off selectable)

Supports MP3, WMA, AAC and WAV formats

Conventional digital audio formats such as MP3 and WMA can be played back from CD-ROM/CD-R/CD-RW discs. In addition, music files in AAC and WAV formats are also supported when played from a USB flash drive inserted into the front USB port. Usefully, the player can show ID3 tag, song title and artist name info contained on MP3, WMA and AAC files on its LC-display.

High-performance 32-bit DAC

The PD-301DAB-X employs a high-performance DAC (digital to analogue converter), the PCM5142 from BurrBrown, for silky smooth audio reproduction.

Robust full-metal body with a small footprint

Employing aluminum panels for the player’s front, sides and top means that the PD-301DAB-X provides unusual rigidity, minimizing the adverse effect of unwanted vibrations on sound quality. And all from a package with a tiny footprint that occupies an area of just 215mm x 232mm (8.5” x 9.1”), allowing users to comfortably locate the unit on the smallest of desktops.

Built-in DAB+/FM Tuner

Unlike most other CD Players, the PD-301DAB-X also features a DAB+/FM Tuner module within its compact cabinet.

Digital audio outputs for all sources, including DAB+/FM

In addition to conventional analogue audio outputs, audio signals from the PD-301DAB-X’s built-in DAB+/FM tuner are also delivered from the digital audio outputs, via both the coaxial and optical connectors (of course, these connections also deliver digital audio from CD).
Please note that the digital audio output format is PCM 44.1kHz/16-bit, regardless of the resolution of the original source.

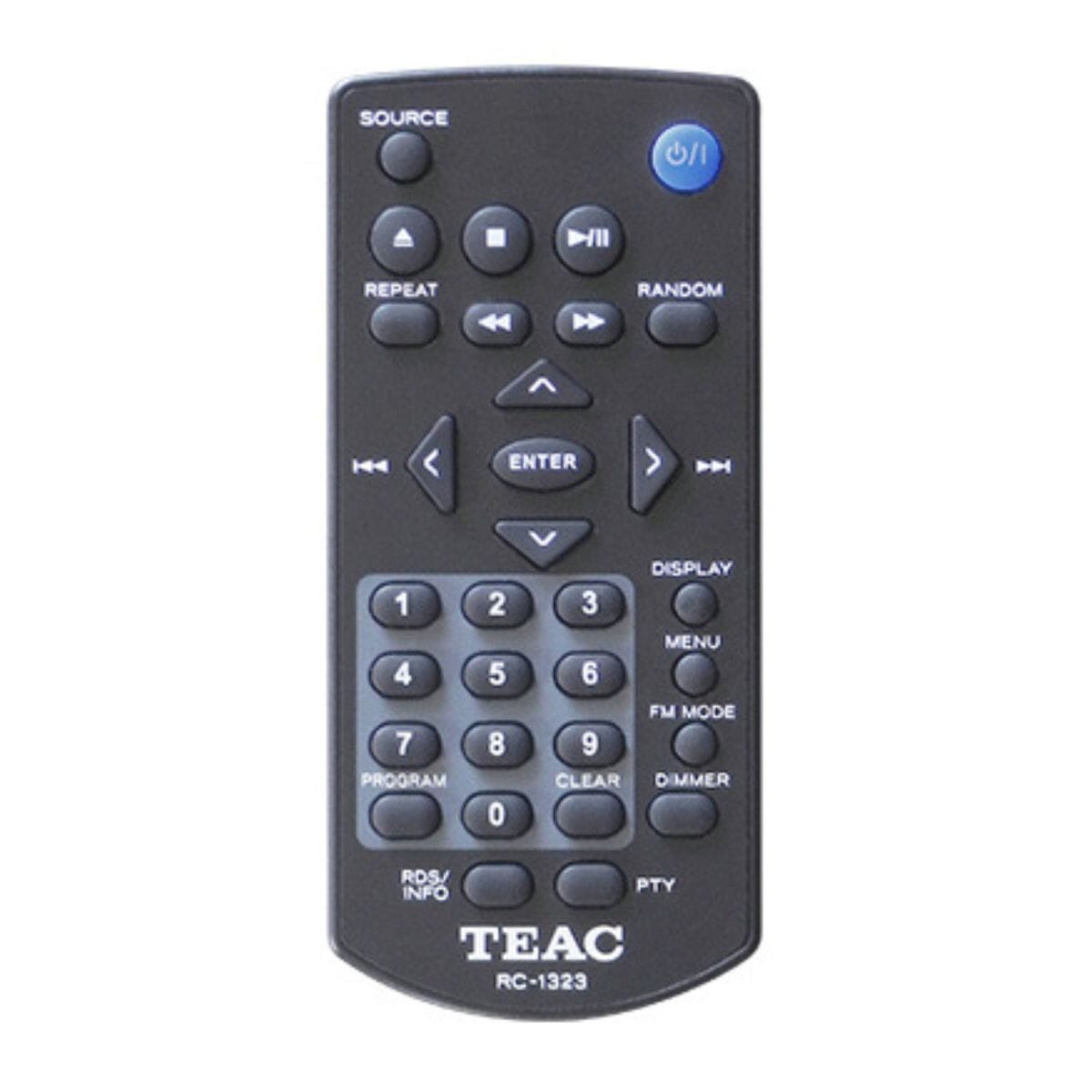

10-key Remote Control

A compact card-type remote control is supplied as standard with the PD-301DAB-X.

CD PLAYER SECTION

• Supported Media: CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported)
• Max Number Of Files: 300 (including Folders)
• Max Number Of Folders: 50
• Max Number Of Layers: 16 (Max path name: 260 characters including file name) * Supports CD-DA format on CD-RW

USB SECTION

• Supported USB Devices: USB Mass Storage device class
• Interface: USB2.0 (Full speed), USB1.0 (High speed), USB3.0 compatible
• File System: FAT16, FAT32
• Max Number Of Files: 300 (including folders)
• Max Number Of Folders: 50 USB bass power DC 5V, max 500mA



SUPPORTED FILE FORMATS

WAV (USB only)

• Extension: .wav, .WAV
• Bit Depth: 16-bit
• Sampling Frequency: 44.1k, 48kHz

MP3

• Extension .mp3, .MP3
• Bit-rate 32k to 320kbps and VBR
• Sampling frequency 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
• Format MPEG1/2 Audio Layer-3

WMA

• Extension .wma, .WMA
• Bit-rate 32k to 320kbps and VBR
• Sampling frequency 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz
• Format WMA ver.9 standard (DRM not supported)

AAC (USB only)

• Extension .m4a, .M4A
• Bit-rate 8k to 320kbps and VBR
• Sampling frequency 8k, 11.025k, 12k, 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
• Format MPEG4 AAC-LC (Audio stream)

TUNER SECTION

• Band: DAB Band-III, FM
• Frequency Range: DAB 174 to 240MHz FM 76.0 to 108.9MHz
• Number Of Presets: DAB 10 FM 20

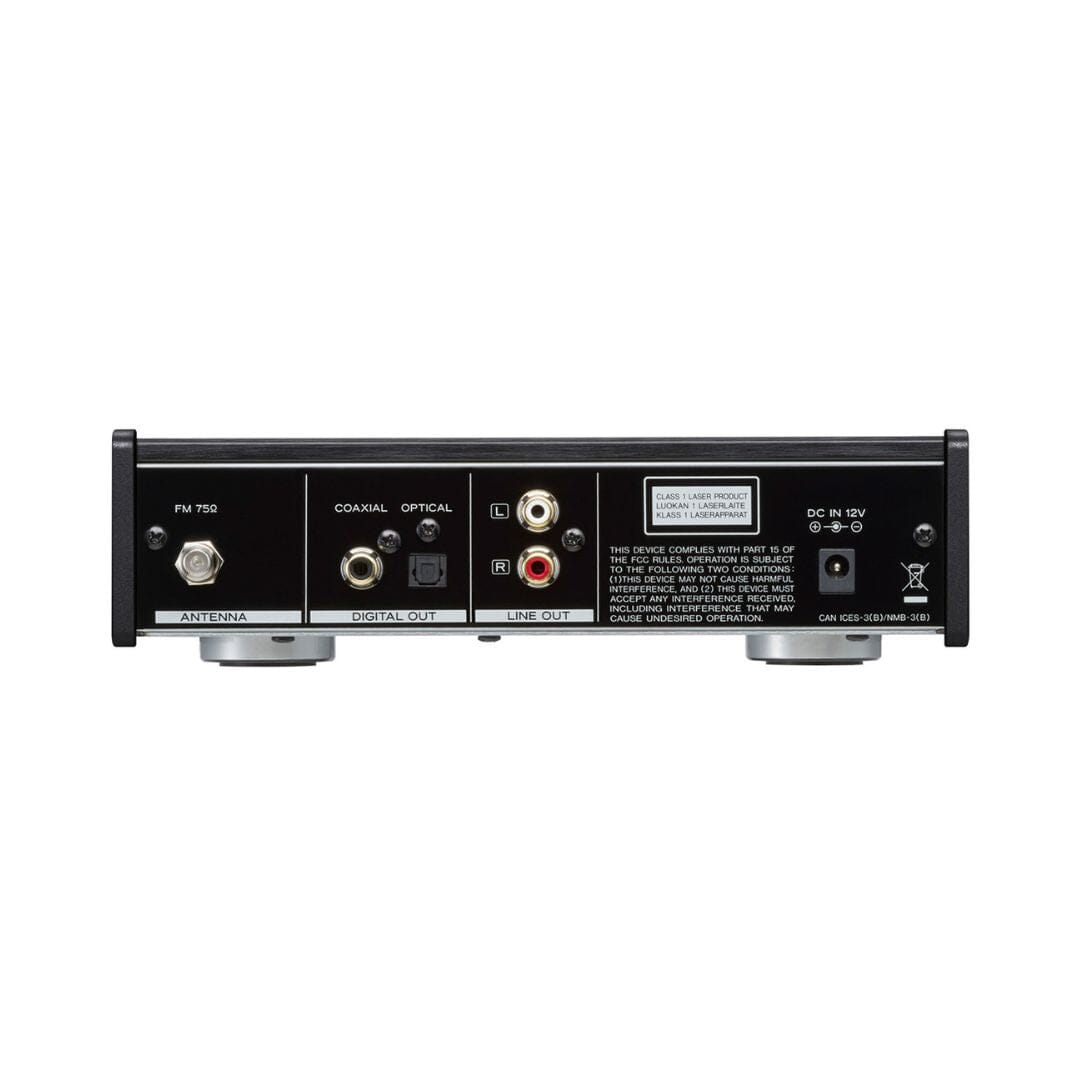

AUDIO OUTPUTS

Analog Audio

• Connector RCA Pin x 1 pair
• Impedance 470 ohms or less
• Max output level 2.0Vrms (1kHz, Full scale, 10k ohms loaded)
• Frequency response 20Hz to 10kHz (-3dB)
• Signal-to-Noise ratio 113dB Total harmonic distortion 0.005% (1kHz)

Coaxial Digital Audio

• Connector RCA Pin x 1
• Impedance 75 ohms
• Output level 0.5Vp-p

Optical Digital Audio

• Connector TOS-link x 1
• Sampling frequency 44.1kHz
• Bit depth 16-bit

GENERAL

• Operating power: AC 100-240V, 50/60Hz
• Power consumption: 8W
• Overall dimensions: (W x H x D) 8.5” x 2.4” x 9.4” / 215 x 61 x 238mm
• Net weight: 4.6 lbs. / 2.1kg

• 1 x PD-301DAB-X CD Player
• 1 x AC Adapter
• 1 x AC cord for AC adapter
• 1 x Remote control
• 2 x AAA batteries
• 1 x RCA Audio cable
• 1 x DAB+/FM cable antenna
• 1 x Owner's Manual
