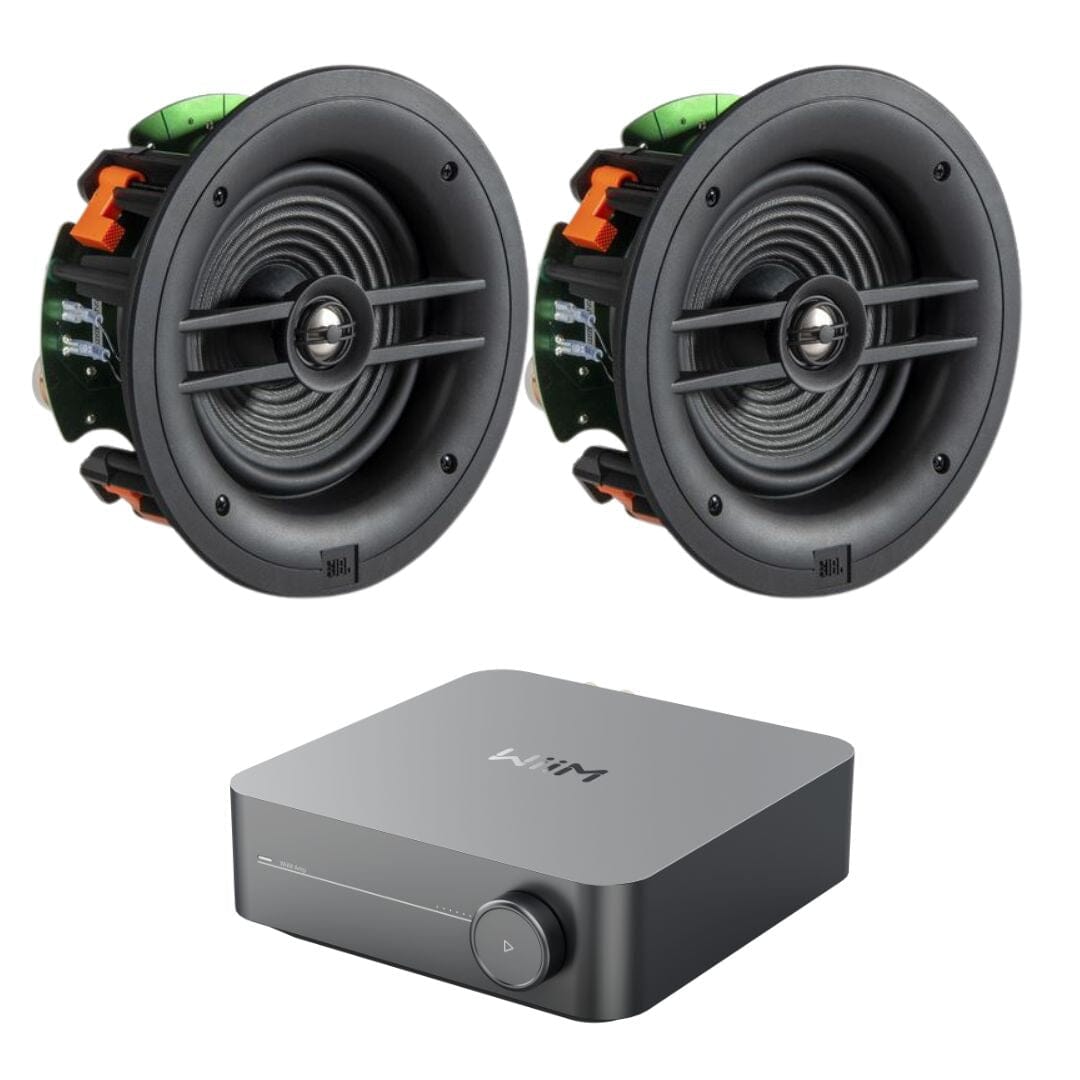

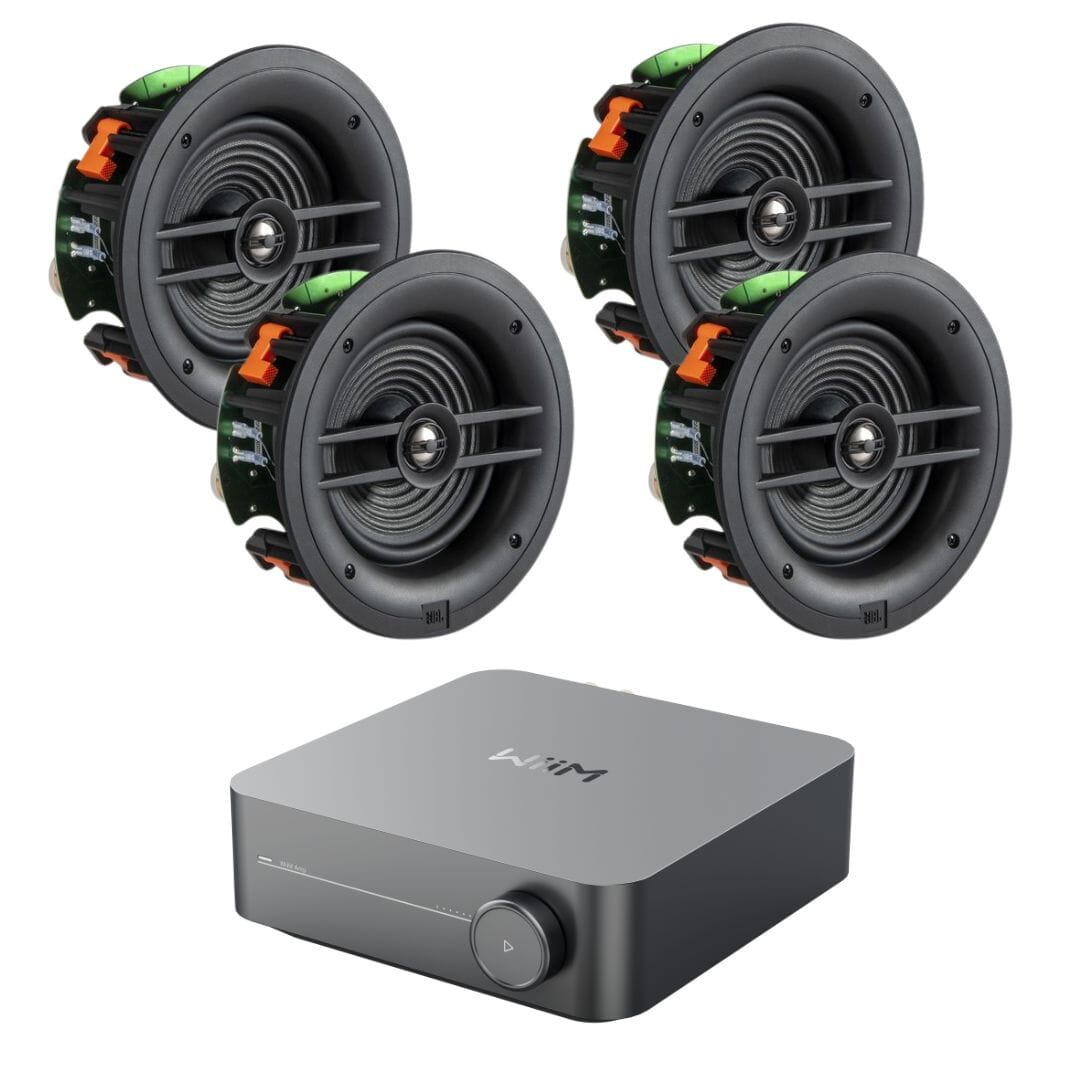

WiiM AMP Wi-Fi & Bluetooth Amplifier + JBL Stage 280C 8" Ceiling Speakers
60 Day Happy Sound Money Back Guarantee
60 Day Happy Sound Money Back Guarantee
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Need Advice? Call 02393 190955
Need Advice? Call 02393 190955
We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.
Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More
Description
Description
This ready to install bundle pairs the popular WiiM AMP with the industry leading Stage 280C 8" ceiling speakers from JBL.
You'll benefit from a whole host of music streaming options including Spotify Connect, internet radio, Bluetooth, Amazon Alexa and much more.
The WiiM AMP features a powerful 100W per channel digital amplifier and packs it into a sleek aluminium case with a stylish grey finish.
The Stage 280C in ceiling speakers offer amazing sound quality, as you'd expect from the class leading brand - JBL. With a 8" driver, 1" directional tweeter and a zero-bezel magnetic grille they'll blend into your decor.
FEATURES
- WiFi Music Streaming
- Spotify Connect
- Amazon Alexa
- Bluetooth
- HDMI ARC for TV Connection
- Multiroom Grouping With Other WiiM AMP's / WiiM Streamers
- Subwoofer Output
- RCA & Optical Audio Inputs
- 8" Woofers
- 1" Directional Tweeters
- Zero-Bezel Magnetic Grille
Key Features
Key Features
-
ZonesMulti Zone
-
PlacementIn Ceiling
-
Music SourcesBluetooth, WiFi, Airplay 2, Spotify Connect, Internet Radio, Alarm Clock, Chromecast, Tidal Connect, Roon, USB Stick
-
InputsRCA, Optical, USB, HDMI, Ethernet
-
OutputsSubwoofer Out, Bluetooth Out
-
TV ConnectionYes - HDMI (TV Controls Volume)
-
Smart FeaturesWorks With Alexa (WiFi), Works With Google (WiFi)
-
Power Handling
-
Driver Size
-
Warranty
Specifications
Specifications
- Dimensions: 190 x 60 x 190 mm
- Amplification Type: Class D TPA3255
- Inputs: WiFi / Bluetooth / Stereo RCA / Optical / HDMI ARC / USB-A / HDMI ARC / Ethernet RJ45
- Outputs: Speaker terminals / Subwoofer output
- Output Power: 60W @ 8Ω / 100W @ 4Ω
- Supported Network Protocols: AirPlay 2 / DLNA / Chromecast
- Control App: WiiM Home
- Compatible Voice Assistants: Amazon Alexa / Google Assistant / Siri
- High Frequency Transducer: 1" (25mm) aluminium dome with Acoustic Lens
- Low Frequency Transducer: 8" (200mm) Polycellulose cone woofer
- Recommended Amplifier Power: 20-120W RMS
- Frequency Response: 42Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m): 90dB
- Nominal Impedance: 8 ohm
- Crossover Frequency: 3400Hz
- Inputs: Nickel-plated spring-loaded connectors
- Grille Dimensions: Dia 11in (280mm)
- Cutout Dimensions: Dia 9.6in (244mm)
- Mounting Depth: 4.4in (113mm)
AMPLIFIER
SPEAKERS
What's In The Box
What's In The Box
- 1 x WiiM Amp
- 1 x RCA Audio Cable
- 1 x Optical Audio Cable
- 1 x Remote Control
- 1 x Power Cable
- 1 x Quick Start Guide
- 2 x JBL Stage 280C 8" Ceiling Speakers
- 2 x White Grilles
- 1 x Cut Out Template
- 4 x JBL Stage 280C 8" Ceiling Speakers
- 4 x White Grilles
- 1 x Cut Out Template
- 20m x 2 Core Speaker Cable
- 30m x 2 Core Speaker Cable
AMPLIFIER
SPEAKERS (ONE PAIR)
SPEAKERS (TWO PAIRS)
CABLE (ONE PAIR)
CABLE (TWO PAIRS)
