Lithe Audio 4 x Bluetooth Ceiling Speakers (2 Master & 2 Passive)

The Lithe Audio 4 x Bluetooth ceiling speakers system is perfect for larger kitchens and open plan areas.

Easily stream music from your smart phone, tablet, voice assistant or computer with room-filling sound.

This is a complete kit that includes everything you need to install and enjoy your music.

FEATURES

• WIRELESS STREAMING: Stream wirelessly from your smartphone, tablet or computer.

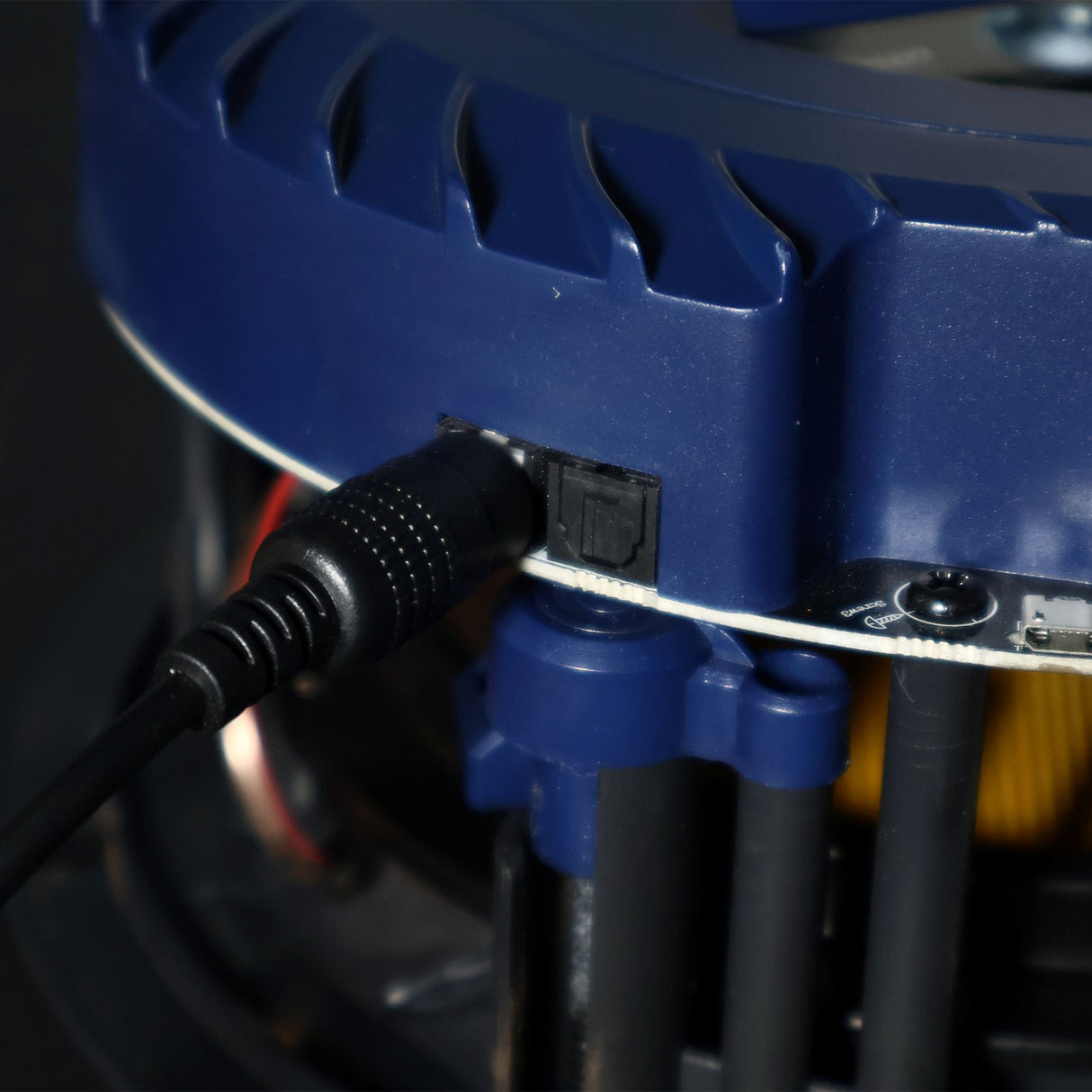

• LITHE LINK: Digital optical audio Lithe Link between the two pairs of speakers allows all four speakers to play the same music seamlessly with no interference or lag.


• IDEAL FOR LARGER ROOMS: Four speakers for larger rooms up to approx 10m x 5m in size.


• ROOM FILLING SOUND: Powerful 50W RMS (x2) built-in amplifiers.


• CONNECT TO TV: aptX Low Latency Bluetooth chip allows you to connect your TV wirelessly.


• ANALOG AUDIO INPUT: RCA Audio input for WiFi streamers & analog audio inputs.

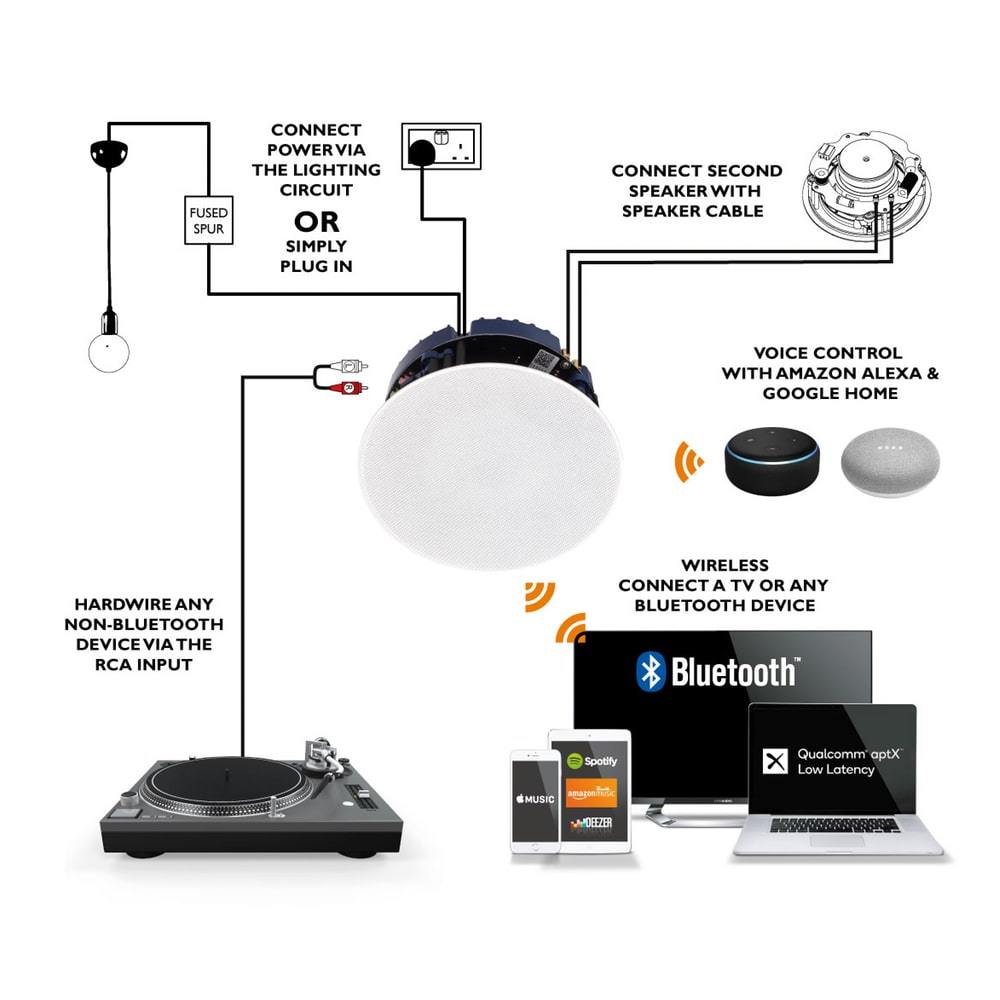

• EASY TO INSTALL: Power via lighting or power circuits.

LITHE LINK

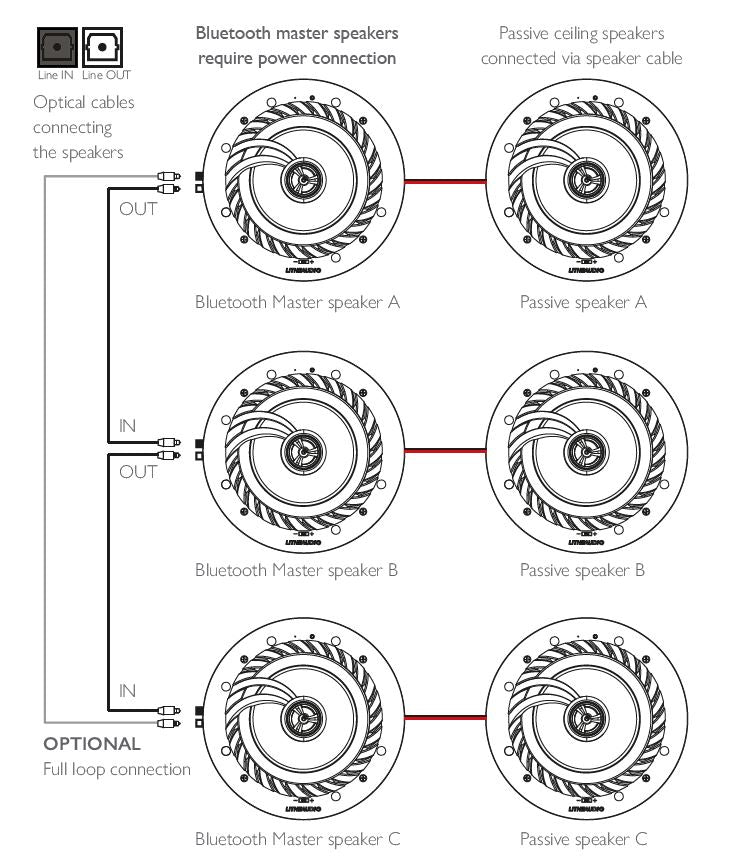

The Lithe Link system allows you to interlink up to three Lithe Audio master speakers.

It can be wired in two ways for different applications:

1. Half Loop: Speaker 1 wires into speaker 2. If you connect your Bluetooth to speaker 2 then only speaker 2 will play, if you connect to speaker 1 then all four will play. This is ideal if you want to do a kitchen + dining room and have some control over which speakers play.


2. Full Loop: Speaker 1 wires into speaker 2, then speaker 2 wires back into speaker 1. When you connect your Bluetooth to either speaker, all speakers will play the same music at the same time.

The kit comes with enough cables to do a full loop and we always recommend wiring all cables regardless of whether you plug them all in or not.

CONNECTIVITY

• Works with any Bluetooth v5.0 device (backwards compatible)
• aptX low latency chipset
• Wireless Range: Up to 30 metres
• Auto-detects RCA connection for TV, Amplifier, etc
• Output for additional Passive slave speaker
• Lithe LINK connect up-to 3 master BT speaker to play on all

SPEAKER SPEC

• 210mm cut-out diameter
• Weight: 3.7kg
• Power Supply: DC24V / 2.5A
• Dimensions: (W x D) 230 x 97 mm
• Operating Temperature: 0º to 40º C
• Storage Temperature: -20º to 70º C
• Limited Warranty: 2 Year

AUDIO SPEC

• Woofer: 6.5" Kevlar Woven Cone
• Tweeter: 0.75" Titanium Cone
• Mono/Stereo Switch
• RMS Power: 50W RMS
• Impedance: 8 Ohms
• Sound Quality THD+N 0.009%, 55Hz-20kHZ
• Sensitivity (1W/1m): 90dB
• Audio Sample Rate: 8Khz
• Digital Class D Amplifier

• 2 x Lithe Audio BT Master Speaker
• 2 x Lithe Audio Slave Speaker
• 2 x 5M Speaker Connection Cable
• 2 x 10M Optical Audio Lithe Link Cables
• 2 x Power Supply (Wire-In)
• 2 x Cutout Template
• 2 x User & Installation Manual

• Installation Guide
• Quick Start Guide
• Specification Sheet
• Guide - How To Pair Bluetooth
• Guide - How To Customise Bluetooth Name & PIN Code
• Guide - How To Pair Amazon Alexa
• Guide - How to Wire a Pair (Master and Slave)
• Guide - How to do a Factory Reset
