Lithe Audio Bedroom + En-Suite Bluetooth Ceiling Speaker System

The Lithe Audio bedroom & en-suite bathroom speaker system bundle has been created due to popular demand.

Now you can install a pair of speakers in the bedroom and one in the en-suite and interlink them to enjoy the same music seamlessly.

You can either connect both of the included Lithe Link cables to make the speakers play the same music at the same time, alternatively you can connect just one of the Lithe Link cables, when you connect to the first pair of speakers both sets of speakers will play but when you connect to the second pair of speakers then only speaker two will play.

This means you can either have music on in the bedroom and the en-suite, or just the en-suite alone. (note that the bedroom speakers cannot be used separately in this scenario)

FEATURES

• WIRELESS STREAMING: Stream wirelessly from your smartphone, tablet or computer.

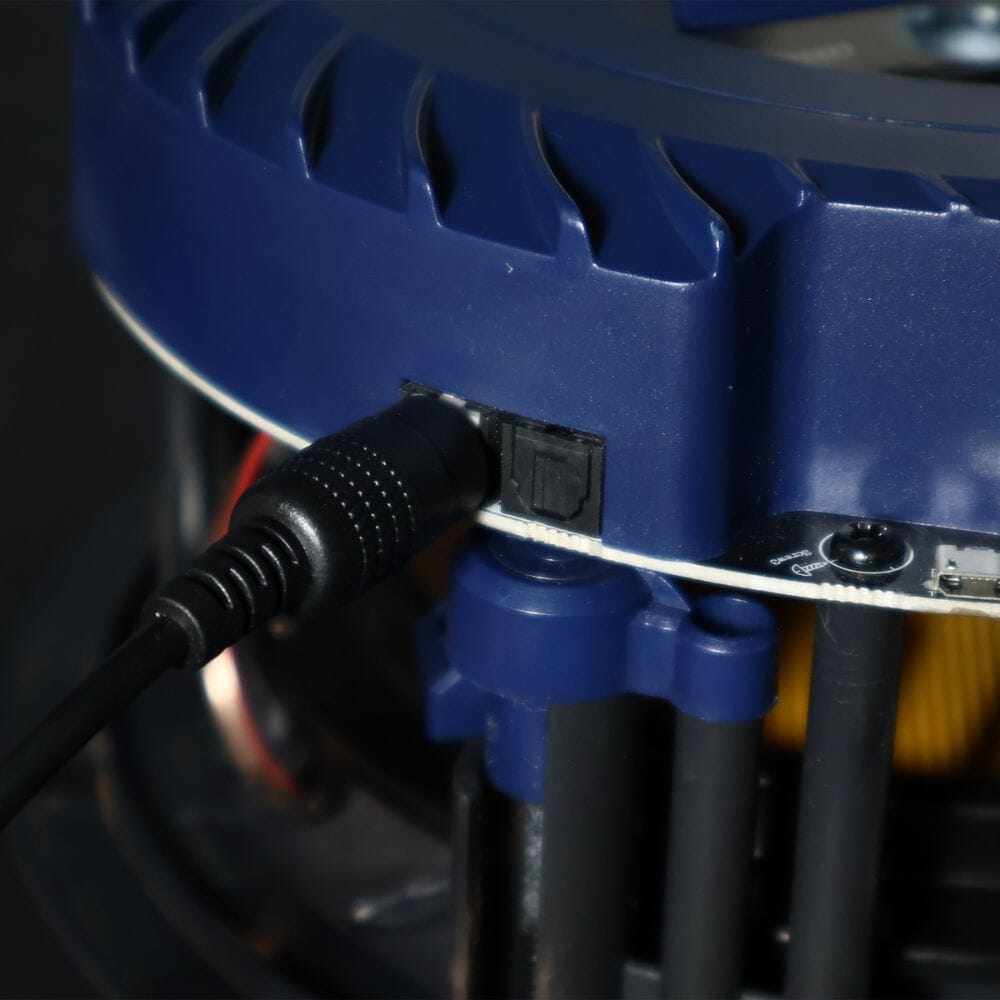

• LITHE LINK: Digital optical audio Lithe Link between the two pairs of speakers allows all four speakers to play the same music seamlessly with no interference or lag.

• ROOM FILLING SOUND: Powerful 50W RMS (x2) built-in amplifiers.

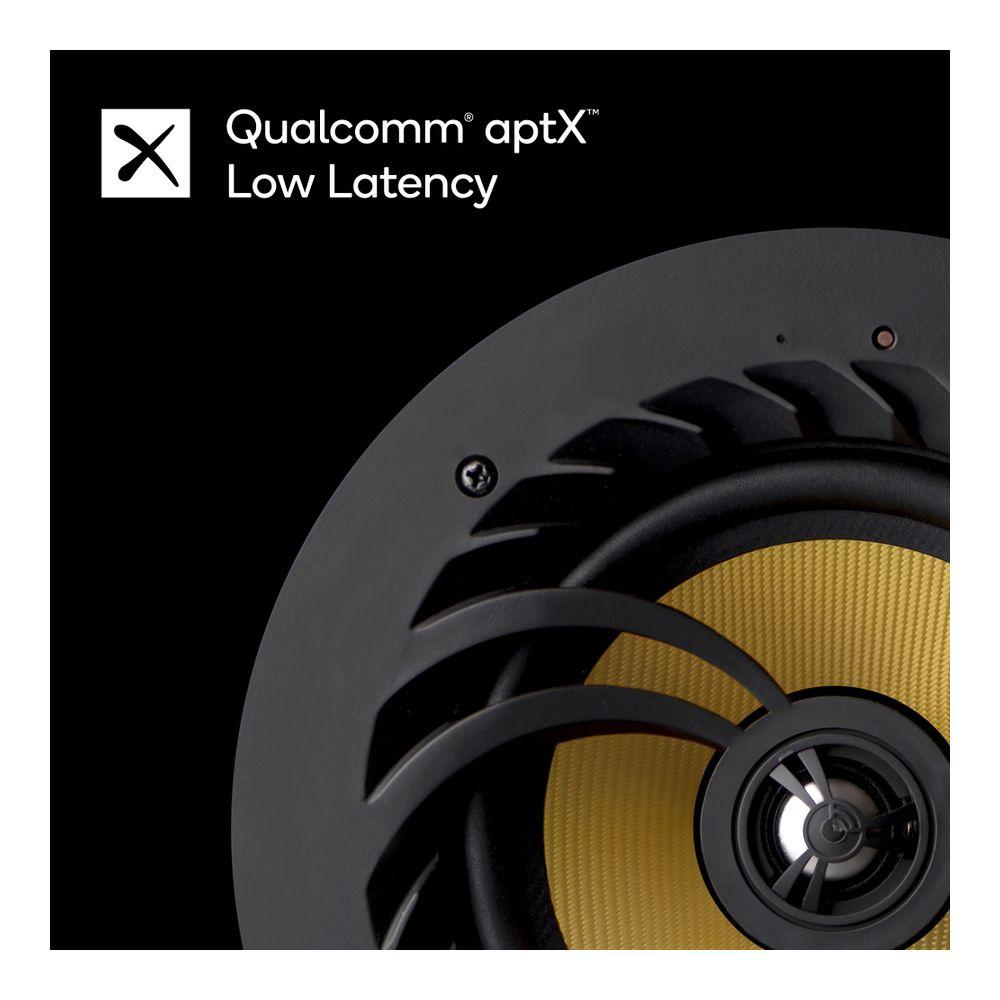

• CONNECT TO TV: aptX Low Latency Bluetooth chip allows you to connect your TV wirelessly.

• ANALOG AUDIO INPUT: RCA Audio input for WiFi streamers & analog audio inputs.

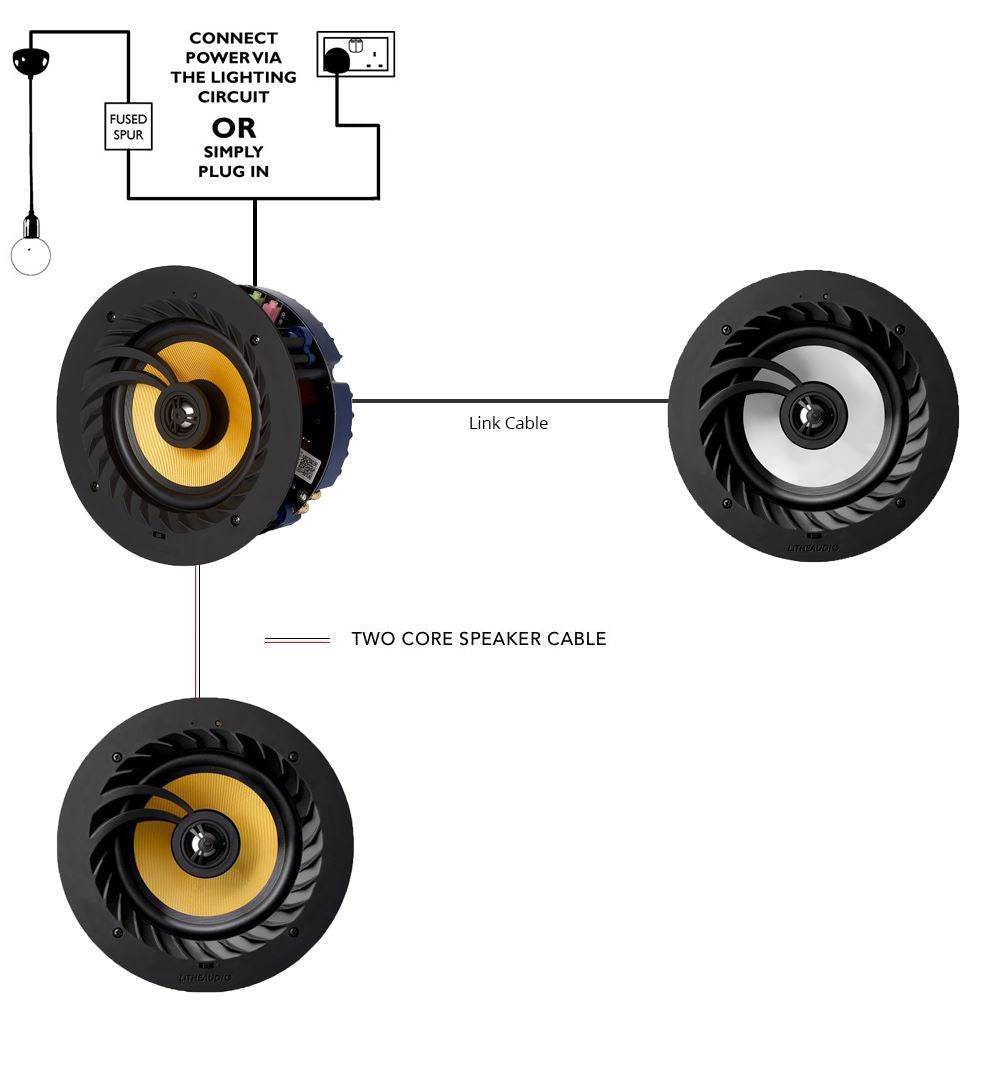

• EASY TO INSTALL: Power via lighting or power circuits.

LITHE LINK

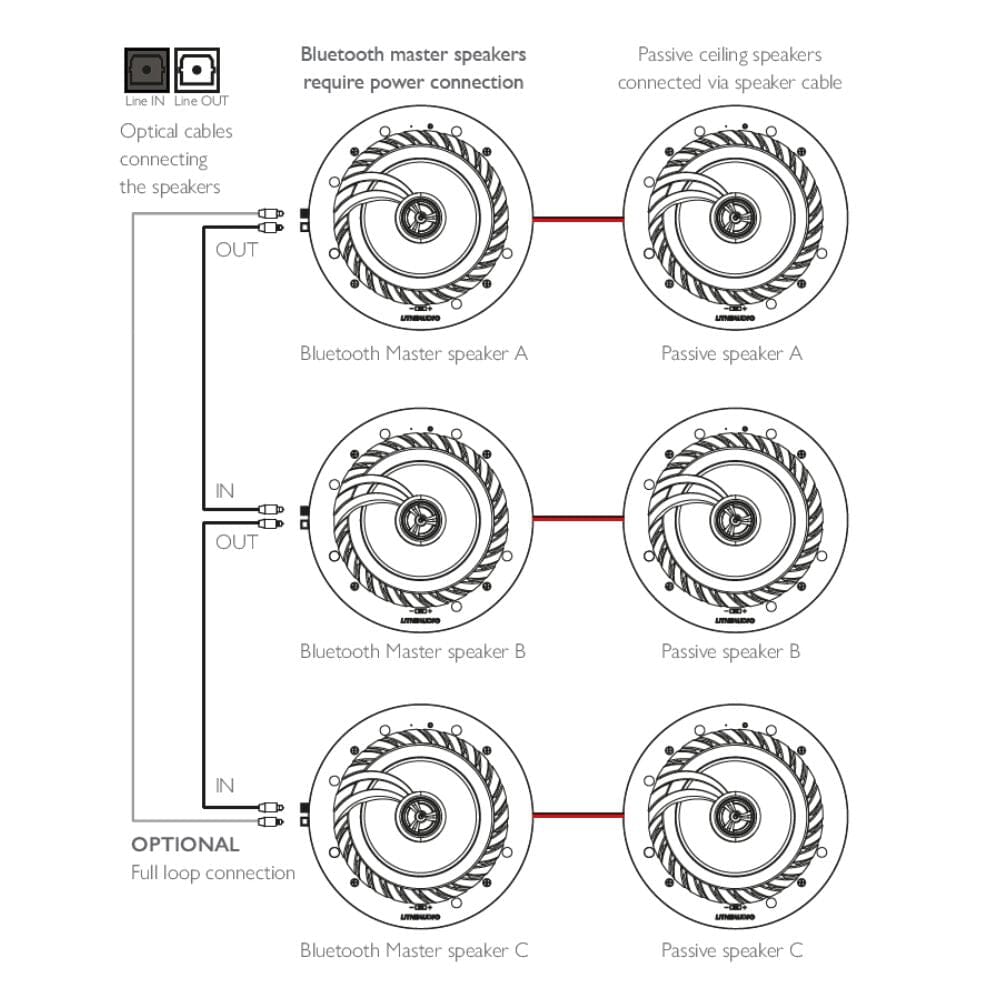

The Lithe Link system allows you to interlink up to three Lithe Audio master speakers.

It can be wired in two ways:

1. Half Loop: The en-suite bathroom speaker wires into the bedroom speakers. If you connect to the en-suite only the en-suite will play. However if you connect to the bedroom speakers all three speakers will play.


2. Full Loop: The en-suite bathroom speaker wires into the bedroom speakers then loops back to the en-suite. No matter which speaker you connect to they all play the same music seamlessly.

The kit comes with enough cables to do a full loop and we always recommend wiring all cables regardless of whether you plug them all in or not.

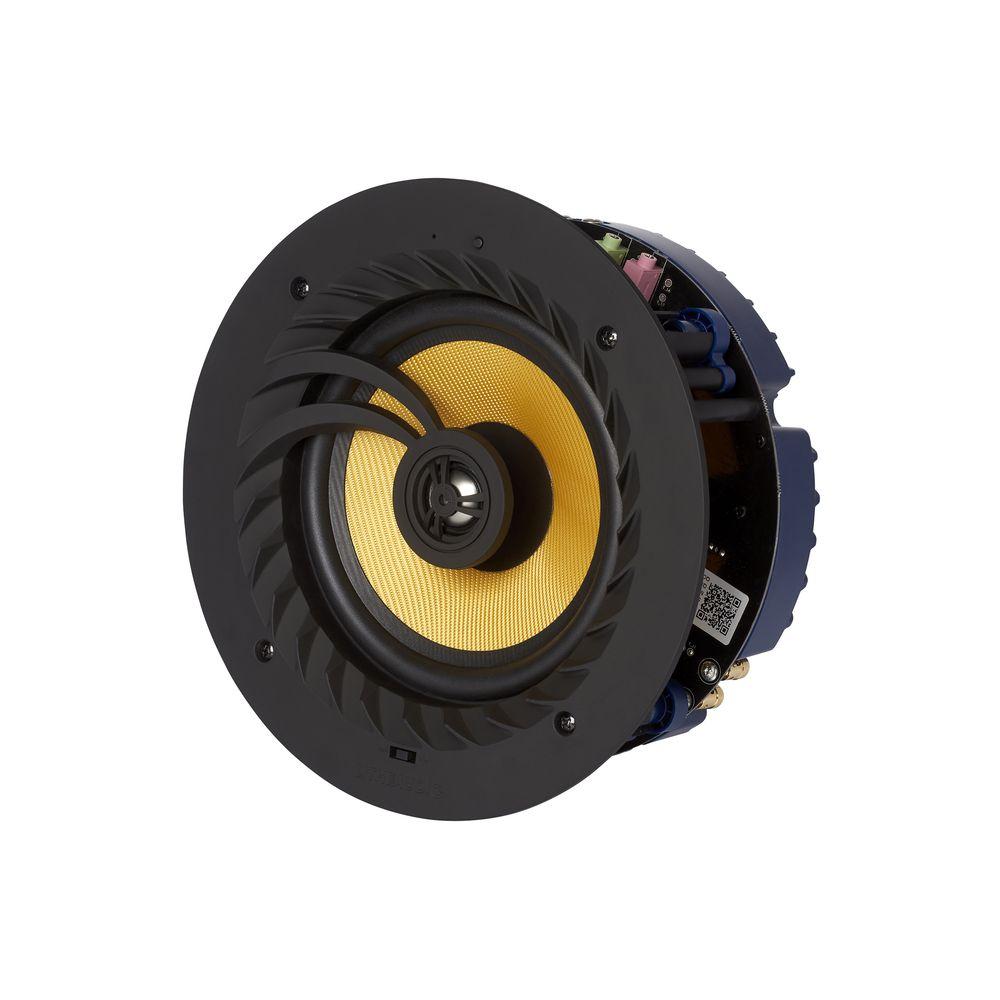

Normal Bluetooth Speaker

• 210mm cut-out diameter
• Weight: 3.7kg
• Power Supply: DC24V / 2.5A
• Dimensions: (W x D) 230 x 97 mm
• Operating Temperature: 0º to 40º C
• Storage Temperature: -20º to 70º C
• Limited Warranty: 2 Year
• Woofer: 6.5" Kevlar Woven Cone
• Tweeter: 0.75" Titanium Cone
• Mono/Stereo Switch
• RMS Power: 50W RMS
• Impedance: 8 Ohms
• Sound Quality THD+N 0.009%, 55Hz-20kHZ
• Sensitivity (1W/1m): 90dB
• Audio Sample Rate: 8Khz
• Digital Class D Amplifier

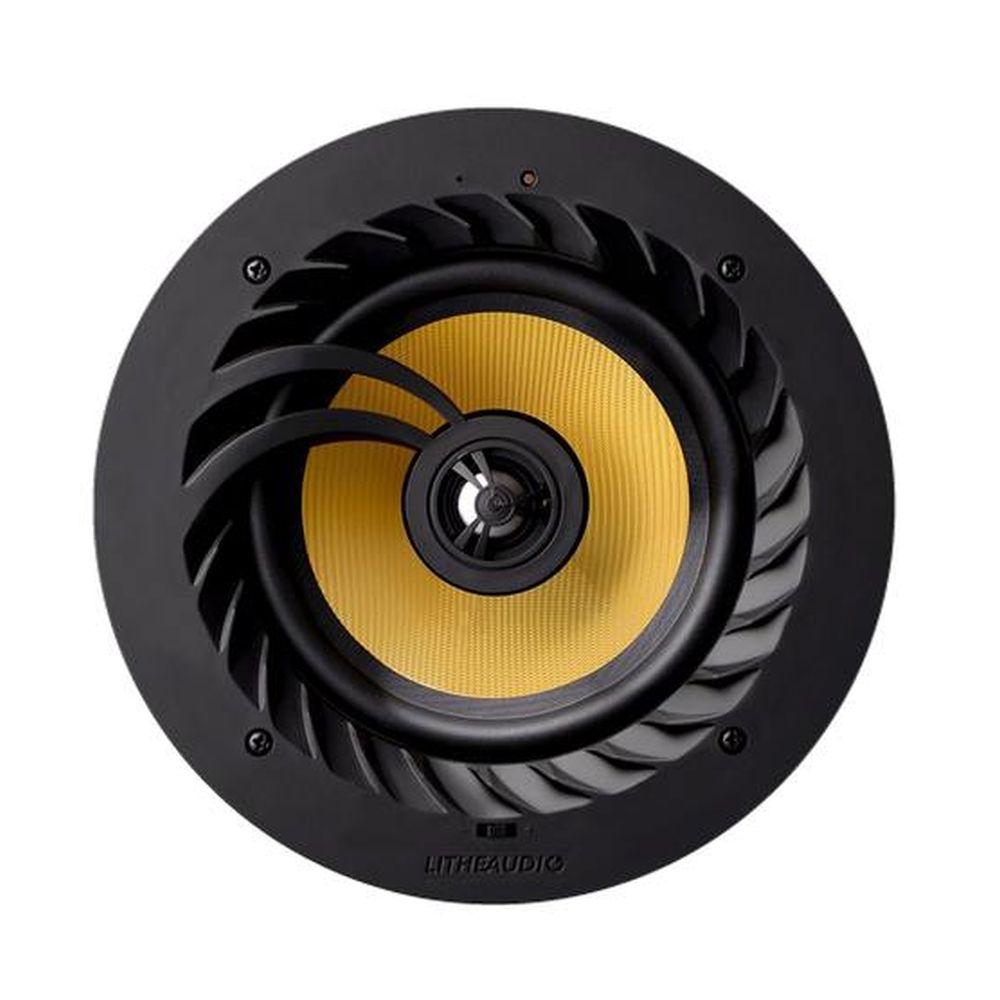

Normal Passive Speaker

• Passive Ceiling Speaker
• Woofer: 6.5” Kevlar Woven Cone
• Tweeter: 1.2” Titanium Cone
• 210mm cut-out diameter
• RMS Power: 60W RMS
• Impedance: 8 Ohms

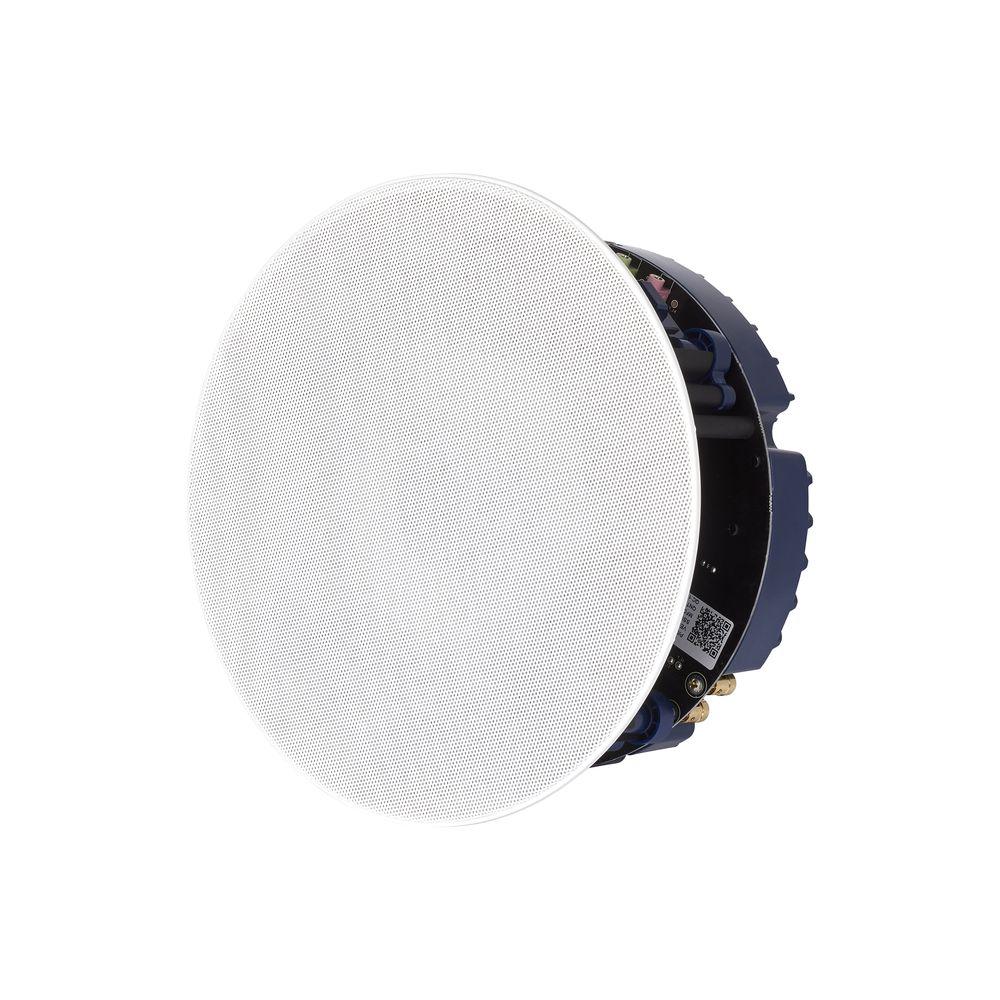

• Frameless protective metal grille, magnetically attaches to the speaker
• Dimensions: (W x D) 227 x 87 mm

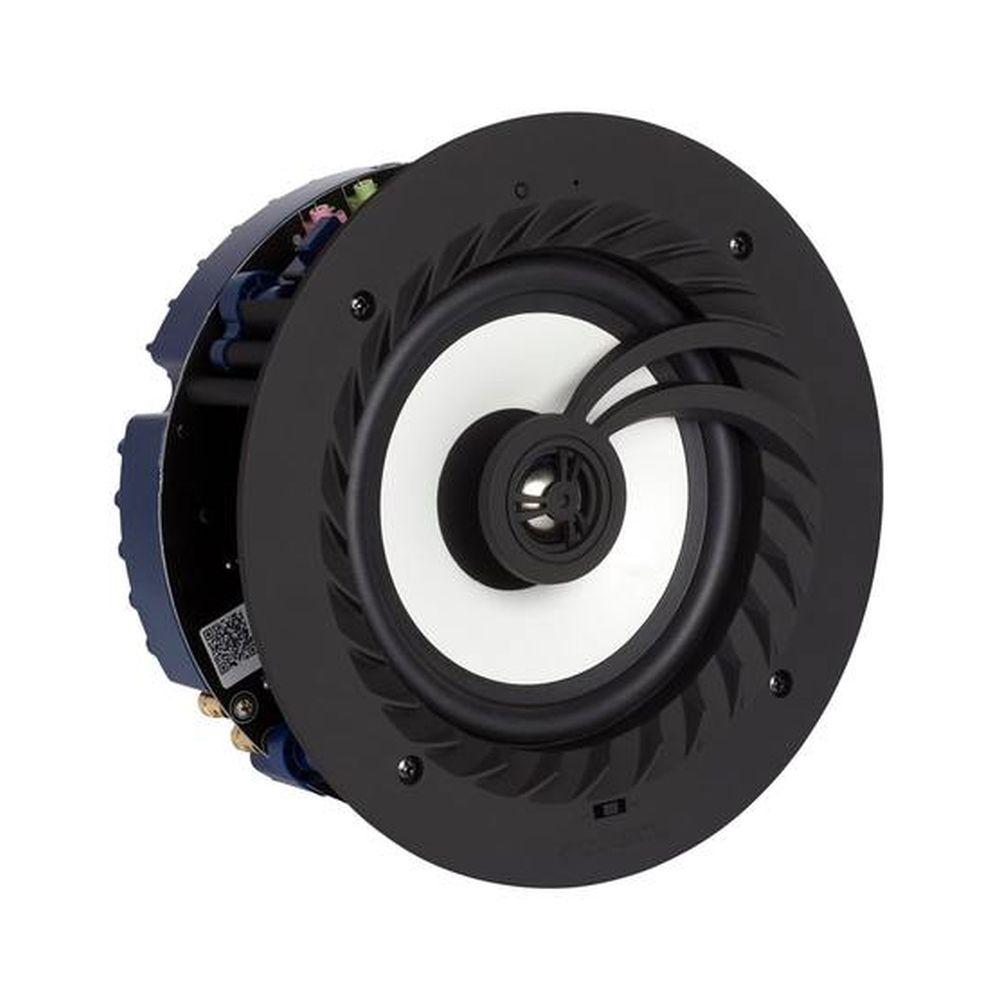

IP44 Bluetooth Speaker

• 210mm cut-out diameter
• IP44 rated for bathroom use
• Weight: 3.7kg
• Power Supply: DC24V / 2.5A
• Dimensions: (W x D) 230 x 97 mm
• Operating Temperature: 0º to 40º C
• Storage Temperature: -20º to 70º C
• Limited Warranty: 2 Year
• Woofer: 6.5" PP White Cone
• Tweeter: 0.75" Titanium Cone
• Mono/Stereo Switch
• RMS Power: 50W RMS
• Impedance: 8 Ohms
• Sound Quality THD+N 0.009%, 55Hz-20kHZ
• Sensitivity (1W/1m): 90dB
• Audio Sample Rate: 8Khz
• Digital Class D Amplifier

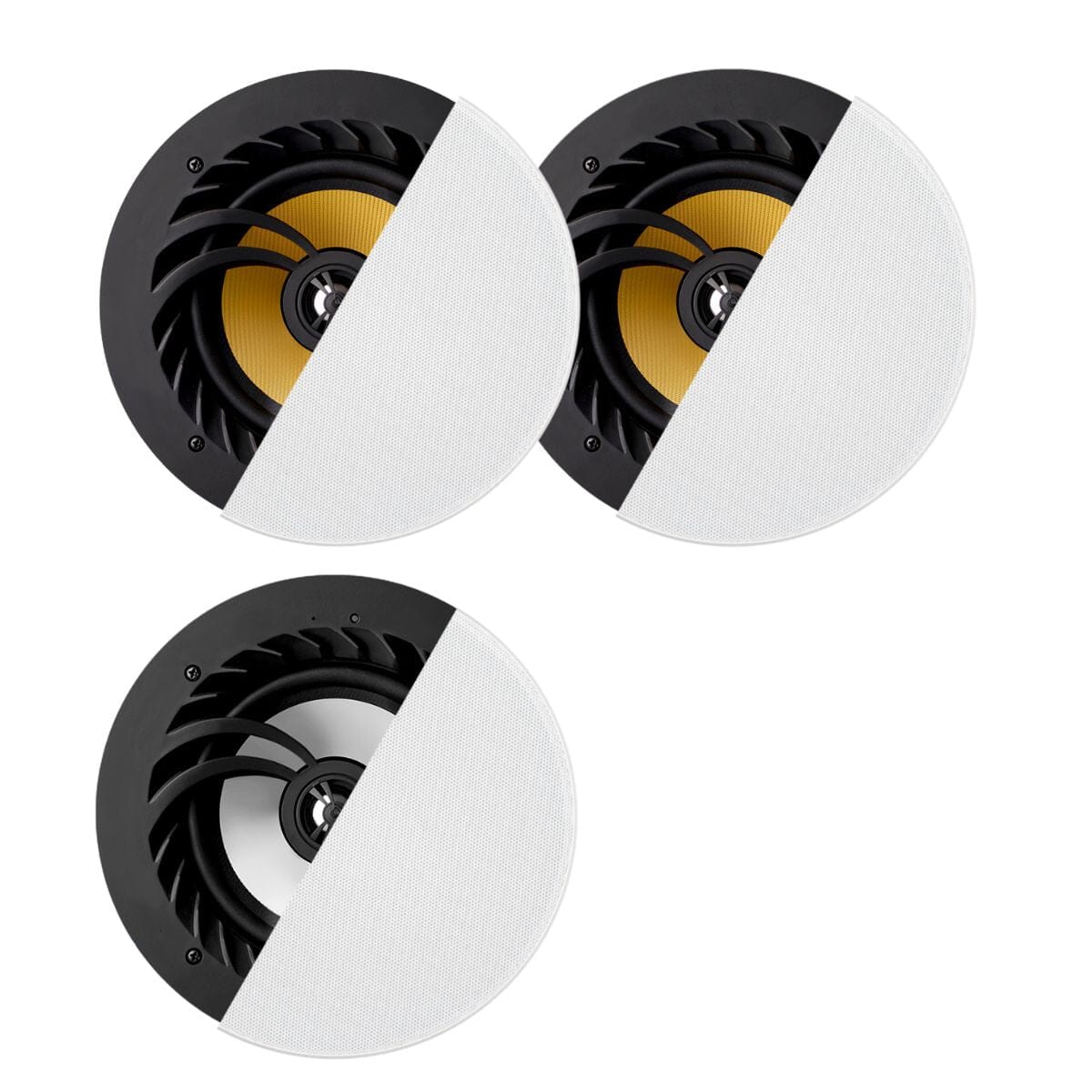

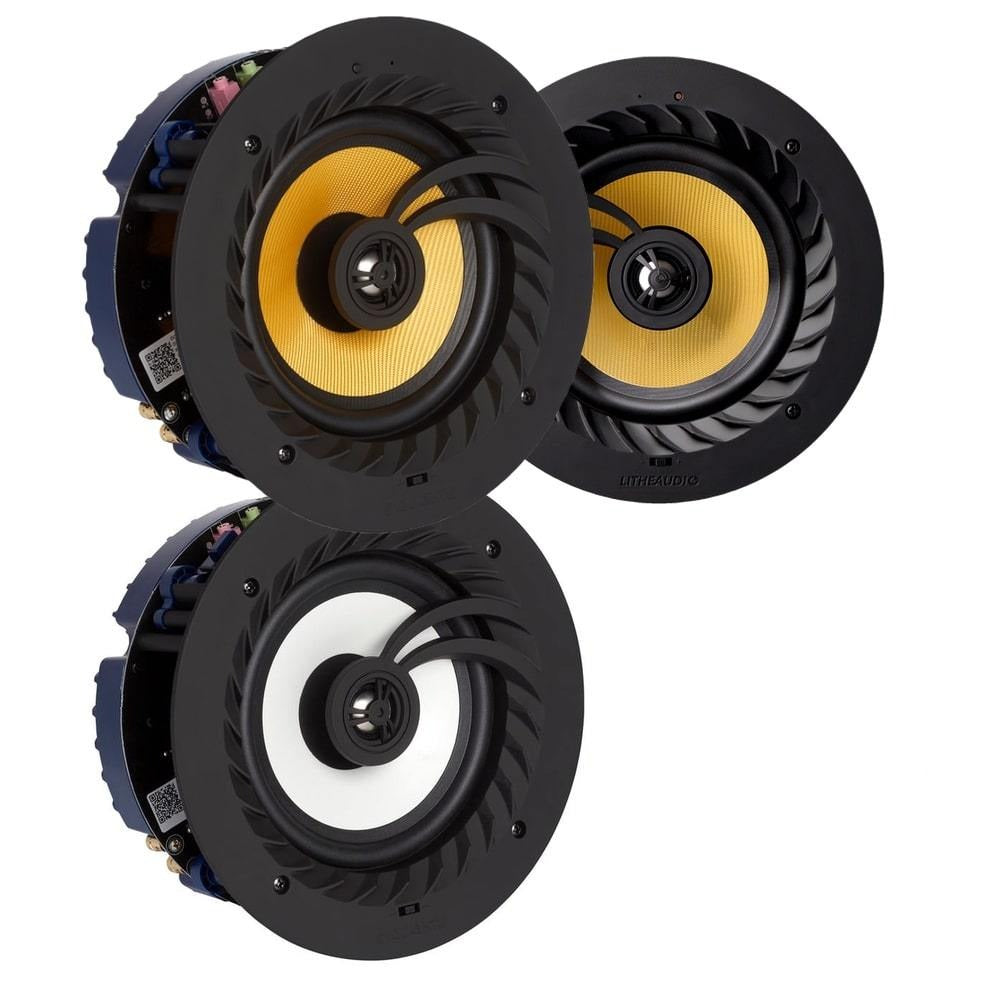

• 1 x Lithe Audio Bluetooth 6.5" Ceiling Speaker (Bedroom)
• 1 x Lithe Audio Passive 6.5" Ceiling Speaker
• 1 x Lithe Audio IP44 Bluetooth Speaker (Bathroom)
• 1 x 3.5mm Lithe Link Cable
• 1 x 3.5mm Ground Loop isolator
• 1 x 5m Speaker Cable

• User Manual
• Quick Start Guide
• Specification Sheet
• Guide - How To Pair Bluetooth
• Guide - How To Customise Bluetooth Name & PIN Code
• Guide - How To Pair Amazon Alexa
• Guide - How to Wire a Pair (Master and Slave)
• Guide - How to do a Factory Reset
