Q Acoustics E120 Kitchen + Patio Bluetooth / Radio Speaker System

This is the ultimate setup for your kitchen and patio area.

You can enjoy FM/DAB radio & Bluetooth music in your kitchen, on your patio or in both areas at the same time.

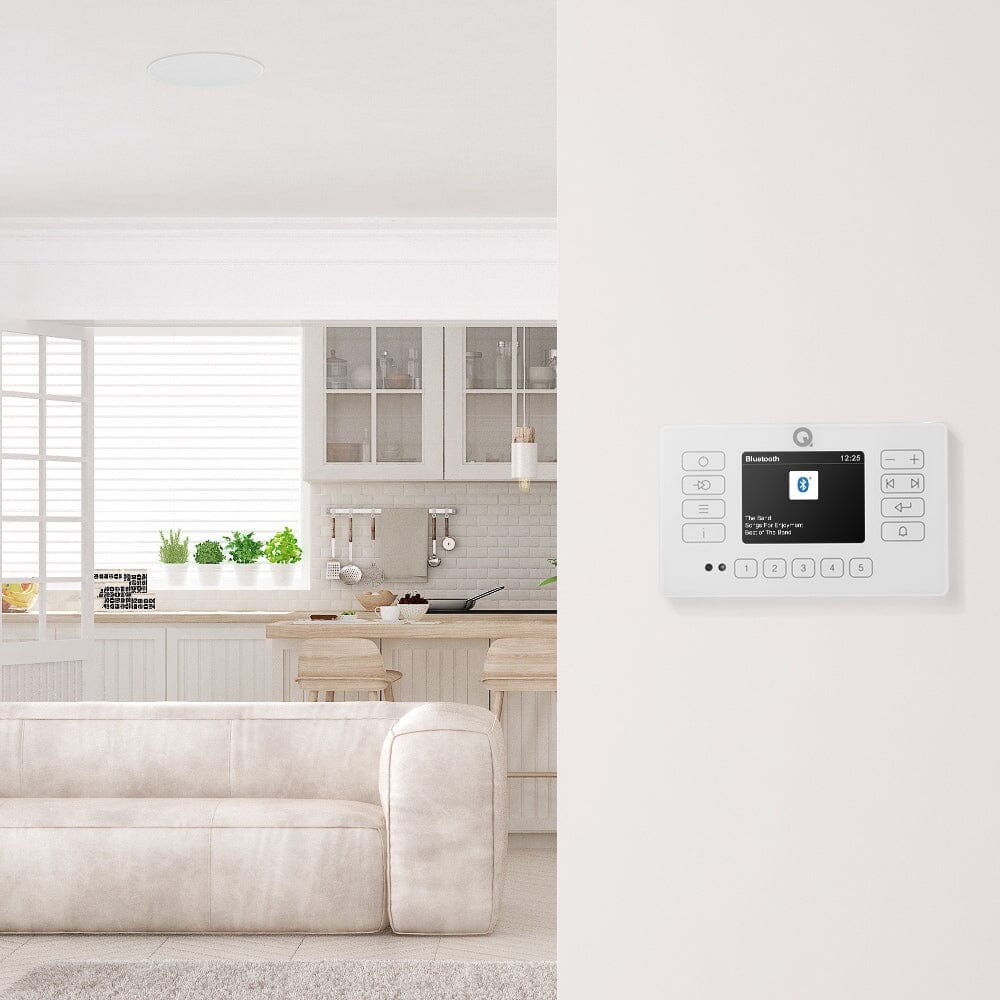

The system is controlled from the stylish in wall panel and the additional speaker selector switch lets you choose between the speakers. (Don't worry the patio won't be on all the time!)

FEATURES

• DAB+ / FM RADIO: Enjoy your favourite DAB+ and/or FM radio stations in high quality.


• BLUETOOTH: Connect your smart phone, tablet or computer via Bluetooth to enjoy your music. You can also connect an Amazon Alexa or Google Home via Bluetooth for hands free playback.


• AUX / OPTICAL INPUT: The E120 is the first in wall system on the market to support a direct digital input via a 3.5mm optical input. Now you can easily connect your television or digital audio system to the E120 without the need for a costly DAC. Simply plug it in with an optical cable.


• SUBWOOFER OUTPUT: Another first for the E120 is the built in subwoofer output. Simply connect an active subwoofer to the amplifier using a 3.5mm to RCA subwoofer cable and add significant depth and warmth to your music.

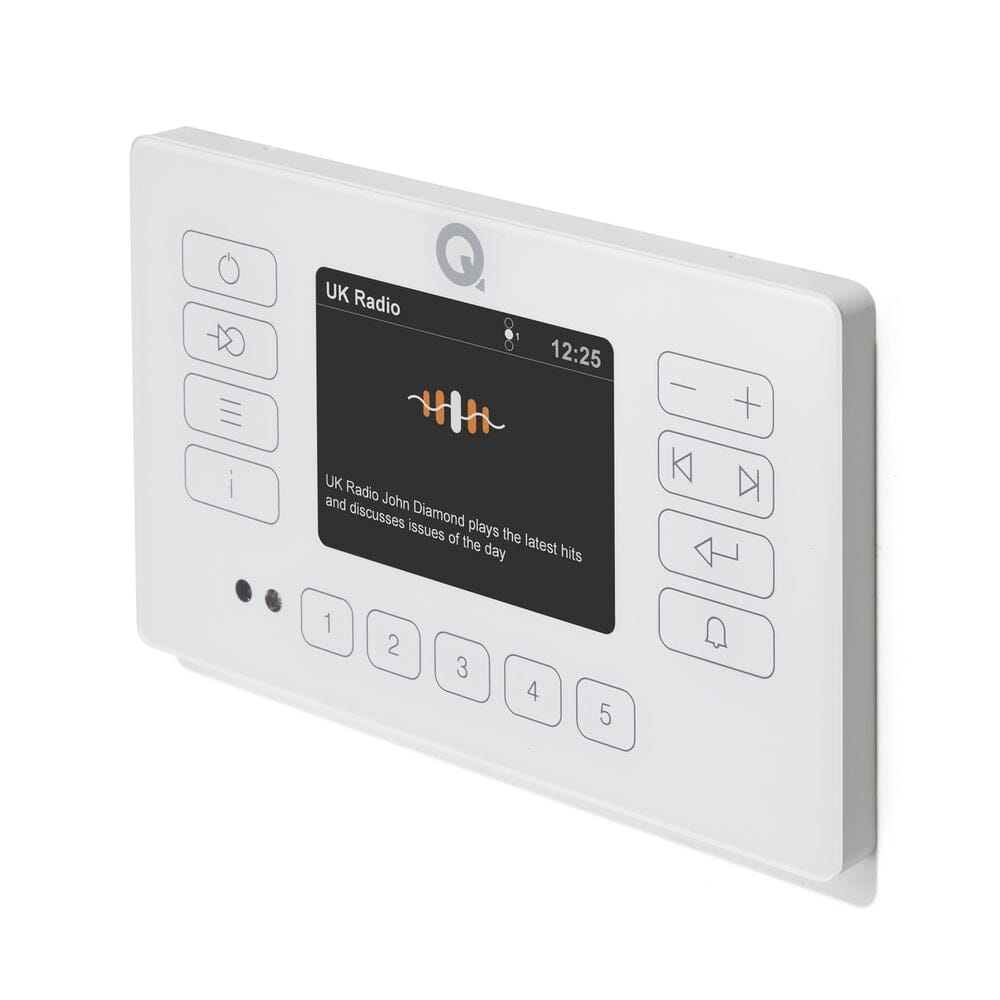

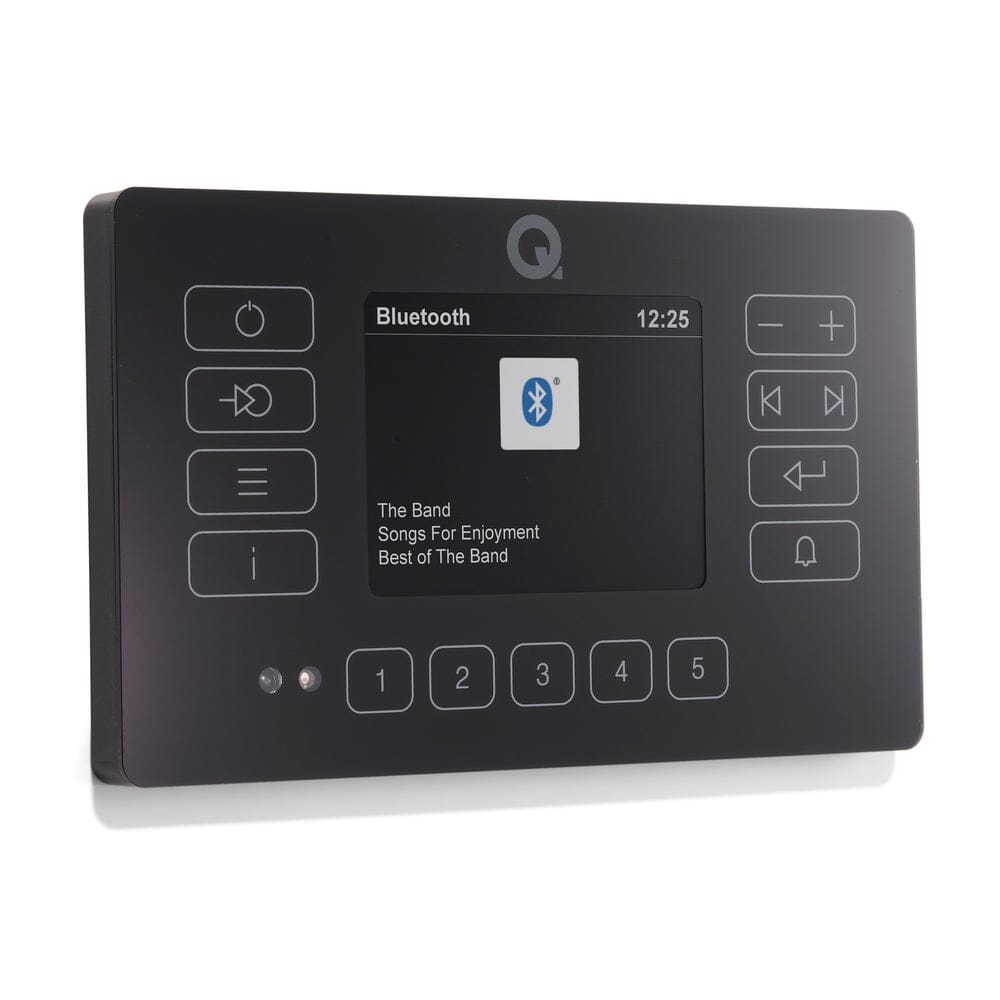

• COLOUR SCREEN: A high quality colour screen displays radio artwork and the touch sensitive buttons make it easy to control your music and volume.

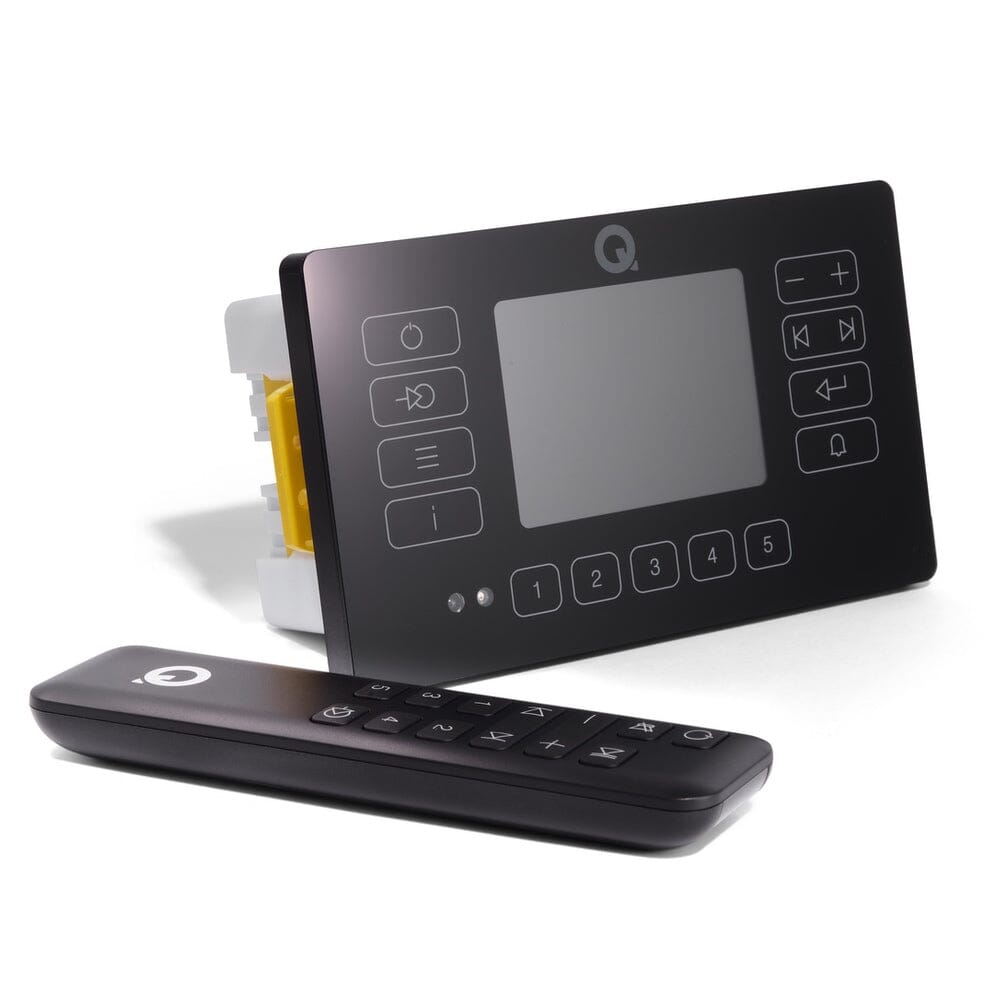

• REMOTE CONTROL: You'll get two remote controls as standard, the standard hand held remote and also a fully waterproof remote control which you can use from the bath!


AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

IN CEILING SPEAKERS

• Tweeter: Swivel
• Tweeter diameter: 0.75" (19mm)
• Woofer diameter: 6.5"
• Cutout Size: 203mm
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

OUTDOOR SPEAKERS

• Tweeter: 0.5" PEI dome
• Sensitivity: 86 dB/1W
• Impedance (nominal) ohms: 8ohm
• Dimensions (w x h x d): 135mm x 245mm x 170mm (inc. bracket)
• Bracket hole spacing: 70mm
• Woofer: 4.5" Polypropylene
• Power handling: 10 W to 50 W
• Frequency response: 85 Hz to 20 kHz
• Warranty: 5 Years

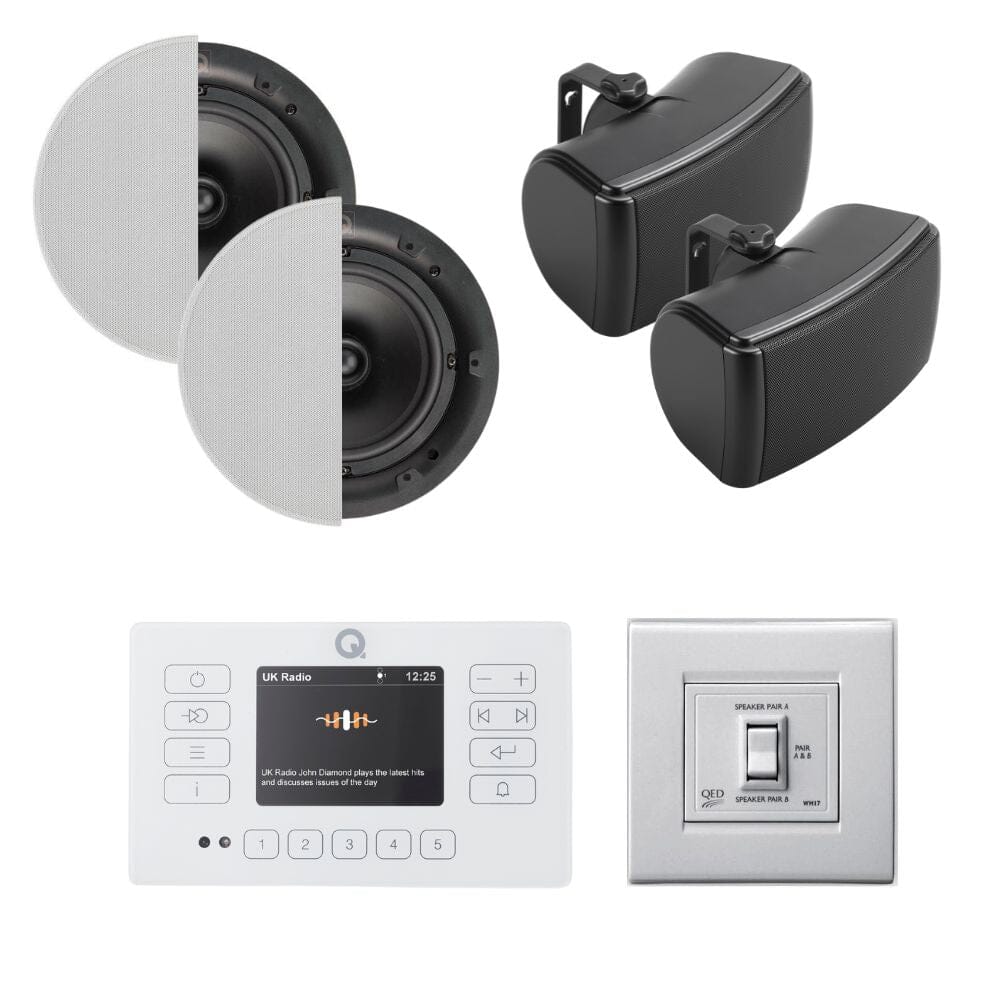

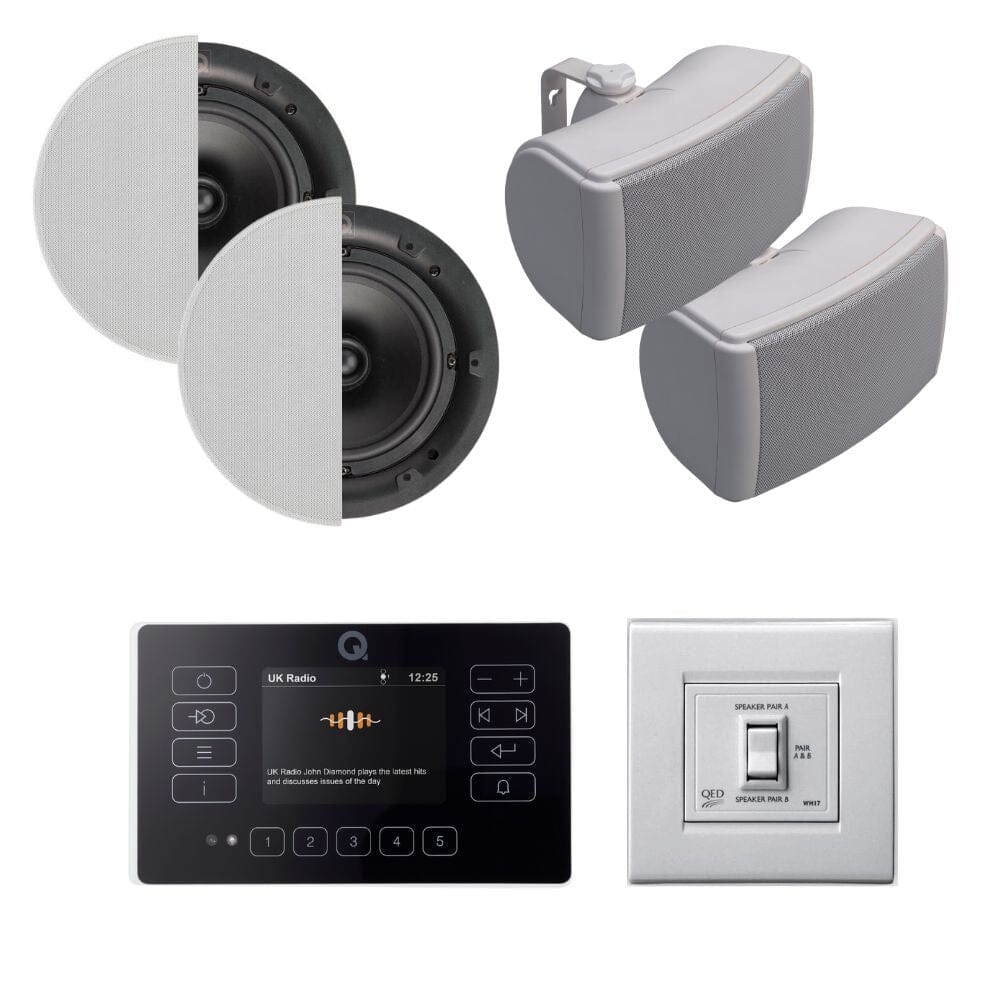

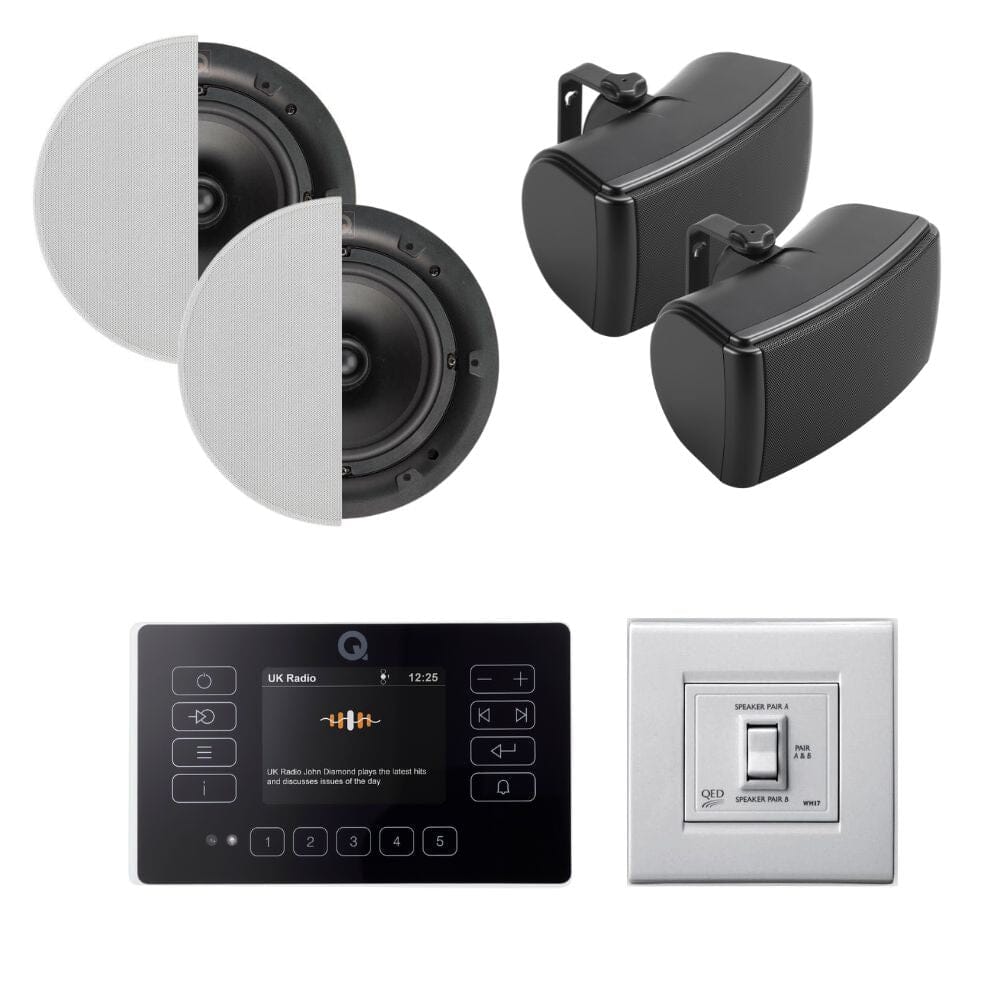

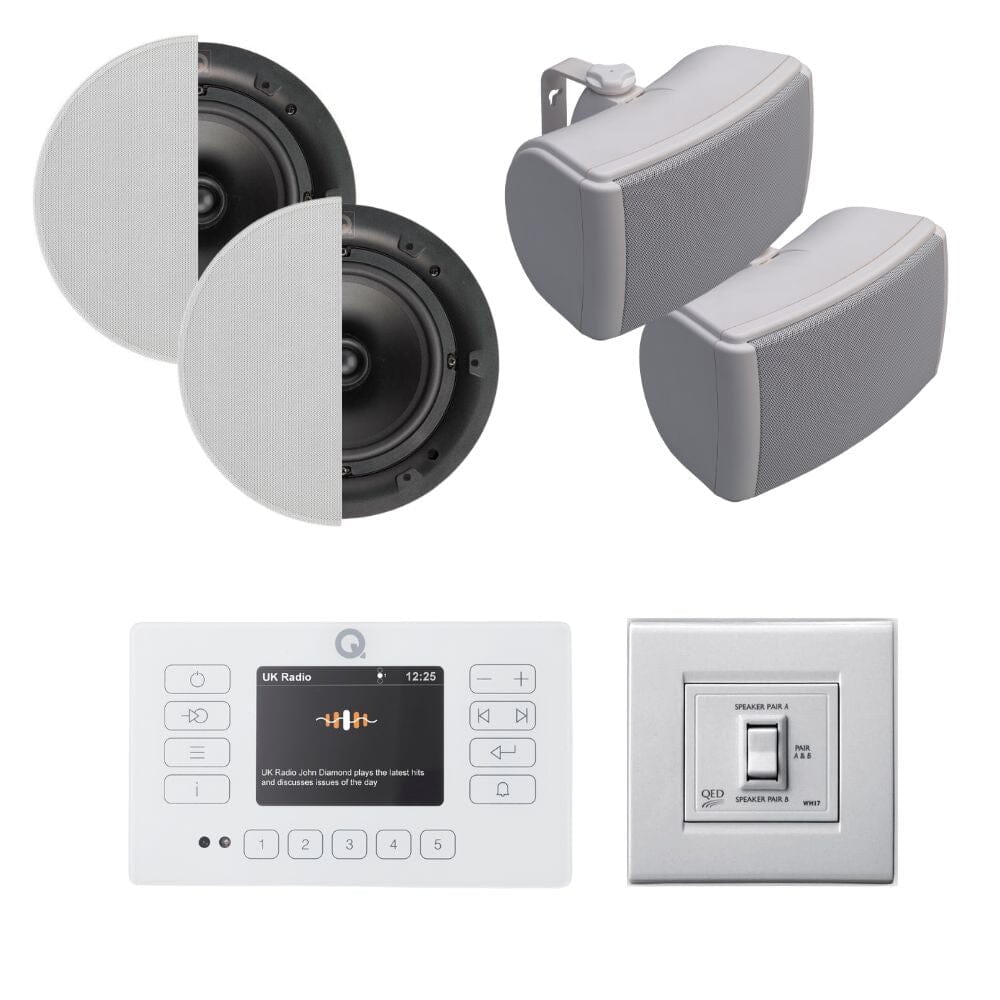

• 1 x E120 Wall Panel (Black or White)
• 2 x Q Acoustics QI65C 6.5" High Definition Ceiling Speakers
• 2 x Q Acoustics QI45EW 4.5" Wall Mount Outdoor Speakers
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable
• 1 x FM/DAB Antenna
• 1 x 5M Antenna Extension Cable
• 1 x Remote Control
• 1 x Instruction Manual
• 20m x Additional Speaker Cable
• 1 X QED WM17 In Wall Speaker Selector Switch
