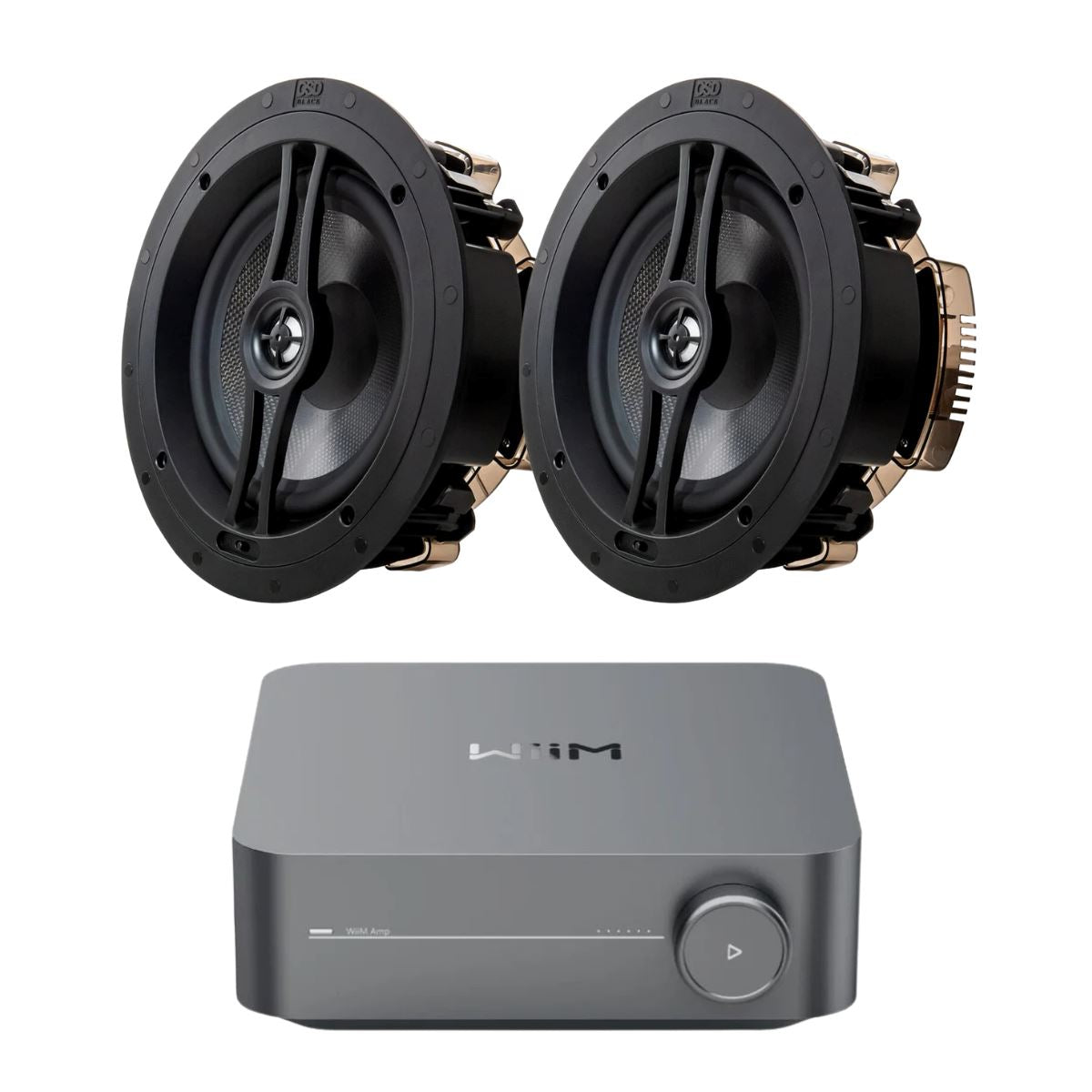

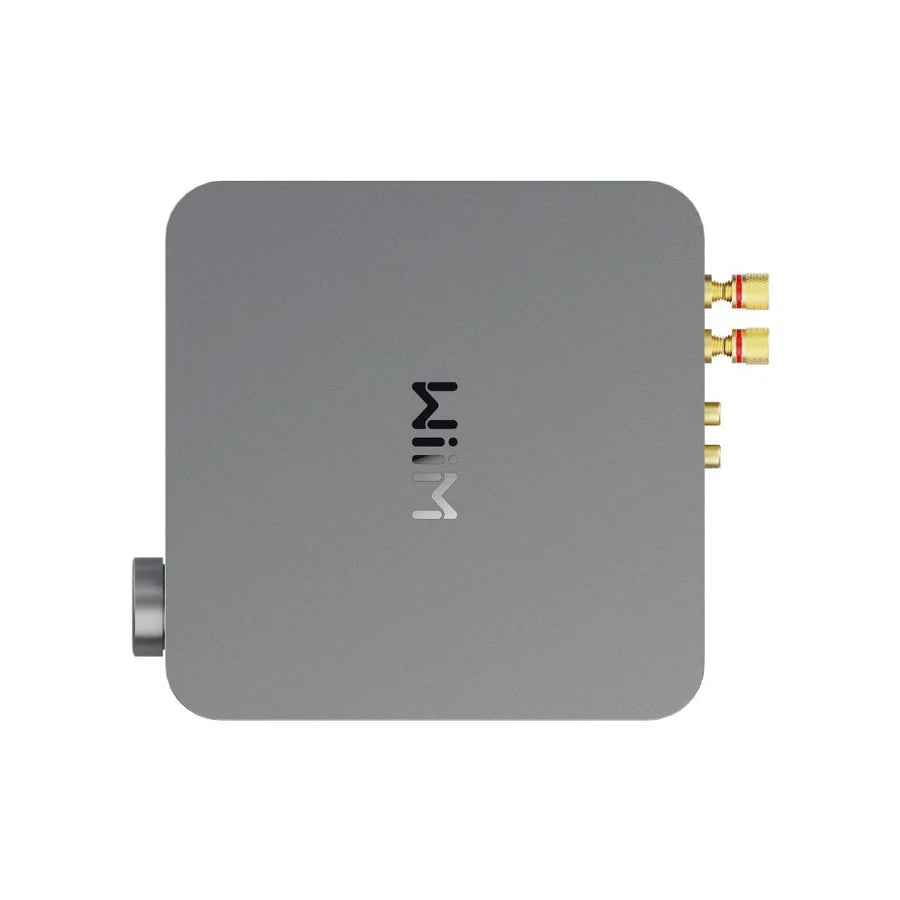

WiiM AMP Wi-Fi & Bluetooth Amplifier + OSD Audio Black Series R83 8" Ceiling Speakers

WiiM  |  SKU: KB01306
£799.00 £969.00
Speakers

GET 10% OFF FIRE HOODS When Bought With This Product (Add To Basket To Apply Discount)

60 Day Returns + 1 Year Warranty

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.

We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Warranty

K&B Audio are authorised dealers for WiiM. All sales come with a 1 Year manufacturers warranty and full technical support.

Spend £50 For Free UK Delivery

All orders to mainland UK over £50 are eligible for free standard delivery.

For orders under £50 we have delivery rates starting from just £2.99

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

Description

Elevate your audio experience with this premium bundle, featuring the WiiM AMP WiFi Multiroom Amplifier and the OSD Audio Black Series R83 8" Reference Ceiling Speakers.

Whether you're looking to enhance the sound in a single room or throughout your home, this combination offers exceptional sound quality, seamless integration, and cutting-edge features.

FEATURES

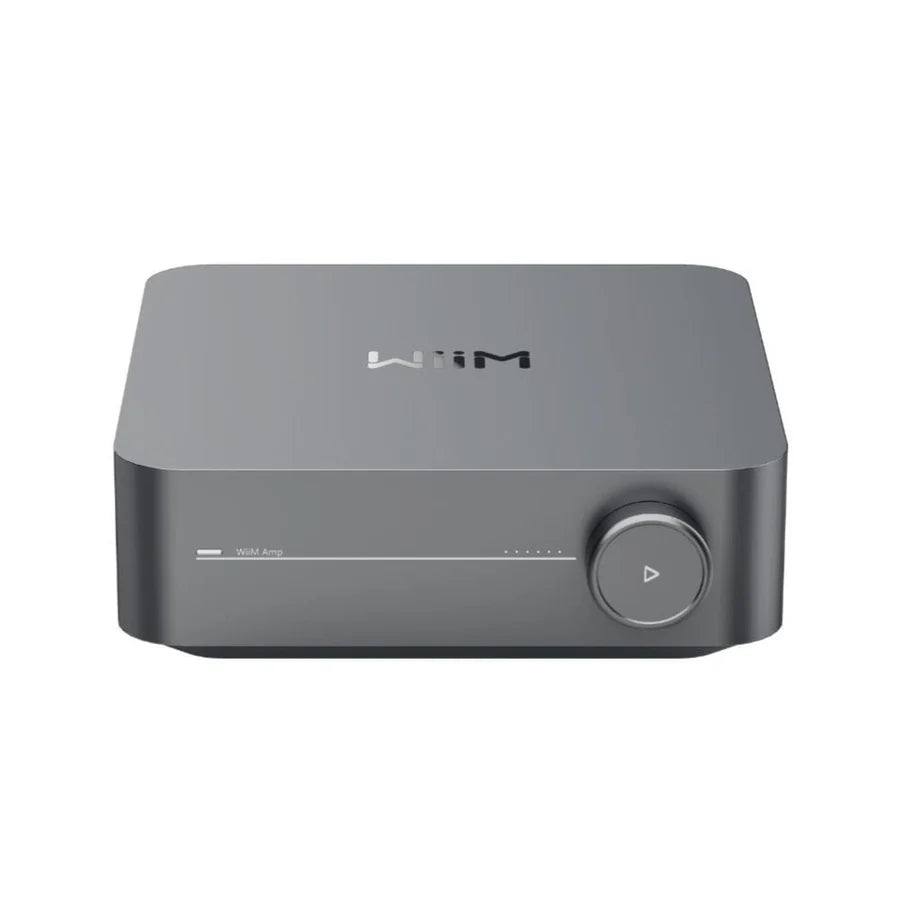

WIIM-AMP

  • Streaming Services: WiiM supports many top music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz Napster, Deezer, & more to come.
  • Spotify: Stream directly from the Spotify app using Spotify Connect for the ultimate streaming setup.
  • Internet Radio: Listen to any internet radio station using TuneIN radio.
  • Bluetooth: Stream from your smartphone or tablet via Bluetooth. Any app your phone can play will work through the WiiM system via Bluetooth including YouTube.

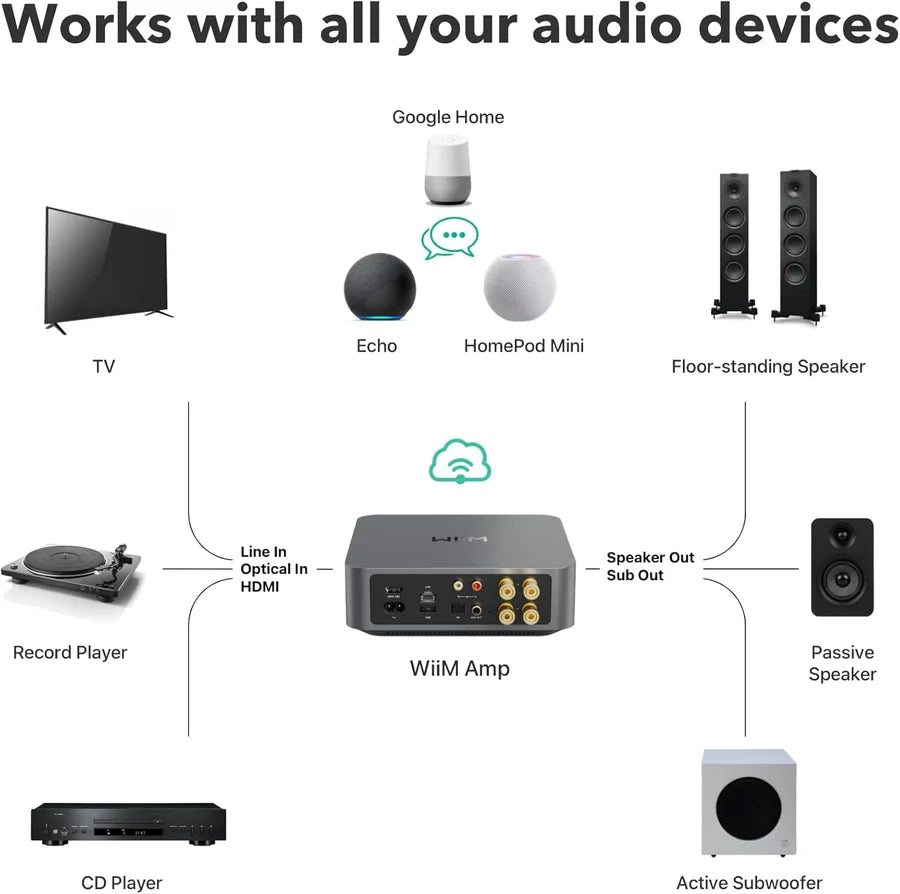

  • Wired Inputs: Connect an external audio device such as a turntable or TV to any WiiM device to enjoy your music. You can also group it with other WiiM devices.
  • Stored Music: Stream music stored on your phone or a network storage drive.

View All Product Details

OSD R83 Ceiling Speakers

  • High-Quality Audio Components: Equipped with an 8" carbon fibre woofer with TPR thermal surround for robust and clear sound reproduction.
  • Advanced Tweeter: Features a 1" ceramic-coated aluminium pivoting dome tweeter with a 12dB crossover and contour switch, ensuring smooth and balanced high-frequency performance.
  • Wide Frequency Response: Covers an extensive frequency range from 28Hz to 20kHz, delivering detailed and rich audio.
  • Robust Power Handling: Capable of handling up to 175W, providing powerful and consistent sound performance.
  • High Sensitivity: With a sensitivity of 91dB, the speaker efficiently produces powerful sound with minimal power input.
  • 8 Ohm Impedance: Compatible with a wide range of amplifiers and audio systems.
  • Aesthetic Design: Flush-mount design ensures a sleek and unobtrusive appearance, seamlessly blending with any décor.
  • Optional Accessories: Compatible with an optional square-grille kit (sold separately) for enhanced aesthetic flexibility.
  • Compact Dimensions: Measuring 10.47" in diameter and 3.76" in depth, with a cutout diameter of 9.5", these speakers fit discreetly into your ceiling.
  • Sold as a Pair: Ideal for creating a balanced stereo sound in various audio setups.
  • Durable Construction: Built with high-quality materials to ensure long-lasting performance.
  • Limited Lifetime Warranty: Enjoy peace of mind with a limited lifetime warranty, guaranteeing long-lasting quality and reliability.

View All Product Details

Upgrade your home audio system with the BLACK Series R83 In-Ceiling Speaker, offering exceptional sound quality and a stylish, durable design that meets the demands of both homeowners and A/V integrators.

Key Features

  • Zones
    Multi Zone
  • Placement
    In Ceiling
  • Music Sources
    Bluetooth, WiFi, Airplay 2, Spotify Connect, Tidal Connect, Internet Radio, Alarm Clock, Chromecast, USB Stick, Roon

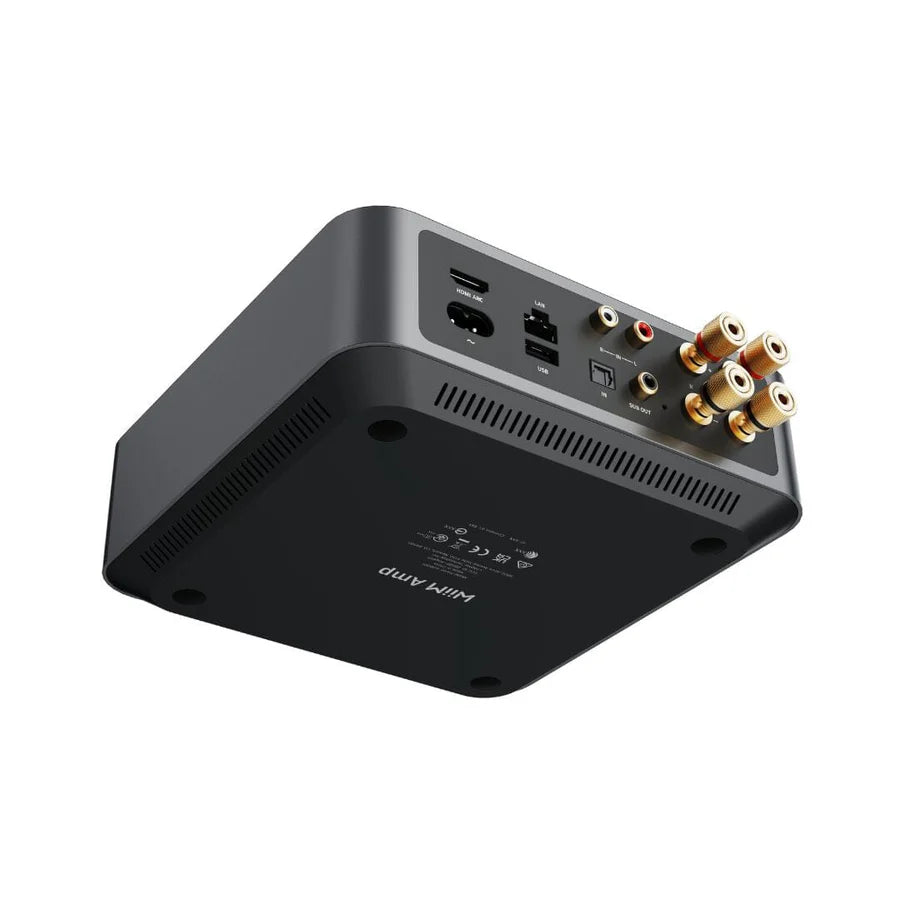

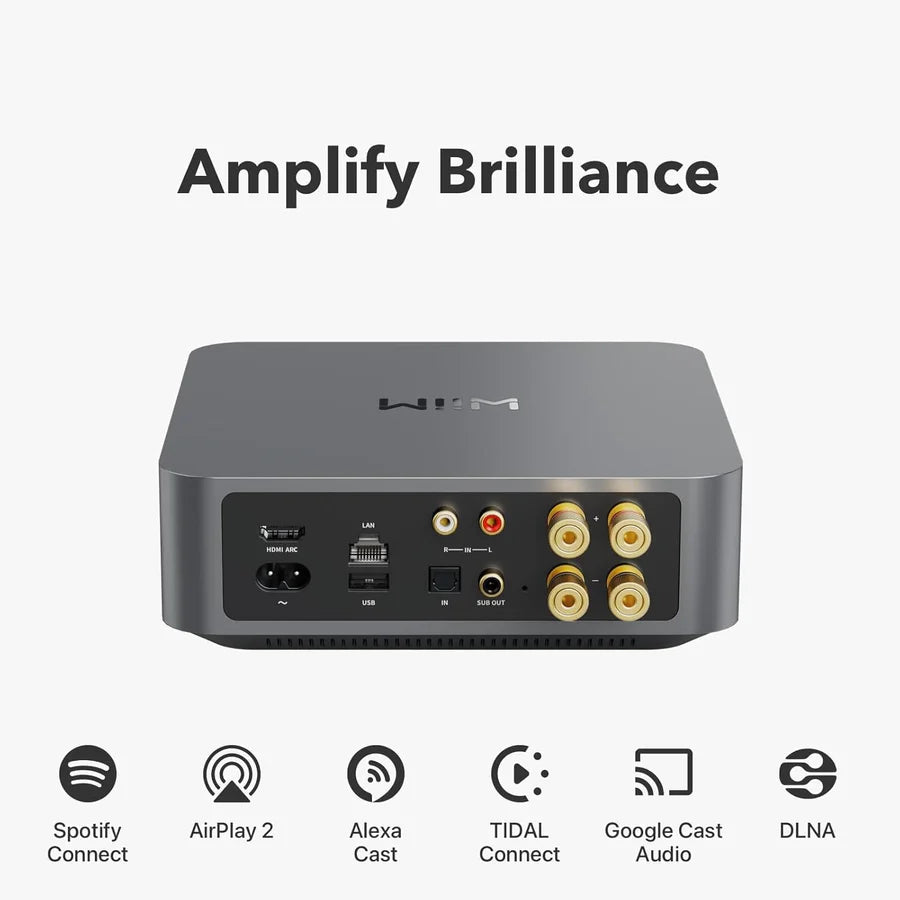

  • Inputs
    RCA, Optical, USB, HDMI, Ethernet
  • Outputs
    Subwoofer Out, Bluetooth Out
  • TV Connection
    Yes - HDMI (TV Controls Volume)
  • Smart Features
    Works With Alexa (WiFi), Works With Google (WiFi)
  • Power Handling
    120 Ws
  • Driver Size
    8"
  • Sensitivity
    91 dB
  • Frequency Response
    28Hz - 20kHz
  • Warranty
    1 Year

Specifications

    SPEAKERS

    • Speaker Type: 8" In-Ceiling Speaker
    • Woofer: 8" In-Ceiling Carbon Fibre w/TPR Thermal Surround
    • Tweeter: 1" Ceramic Coated Aluminium Pivoting Dome w/12dB Crossover and Contour Switch
    • Frequency Response: 28Hz - 20kHz
    • Power: 175W
    • Sensitivity: 91dB
    • Impedance: 8 Ohm
    • Diameter & Depth: 10.47" x 3.76"
    • Cutout Diameter: 9.5"
    • Selling Unit: Pair
    • Optional Square-Grille Kit: Sold Separately
    • Warranty: Limited Lifetime

    AMPLIFIER

    • Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
    • Apple AirPlay Support: AirPlay 2
    • Roon Support: Roon Ready + Roon Tested
    • Network Connectivity: Wi-Fi & Ethernet
    • Amplifier Class: D
    • Power Output (4Ω): 120 W

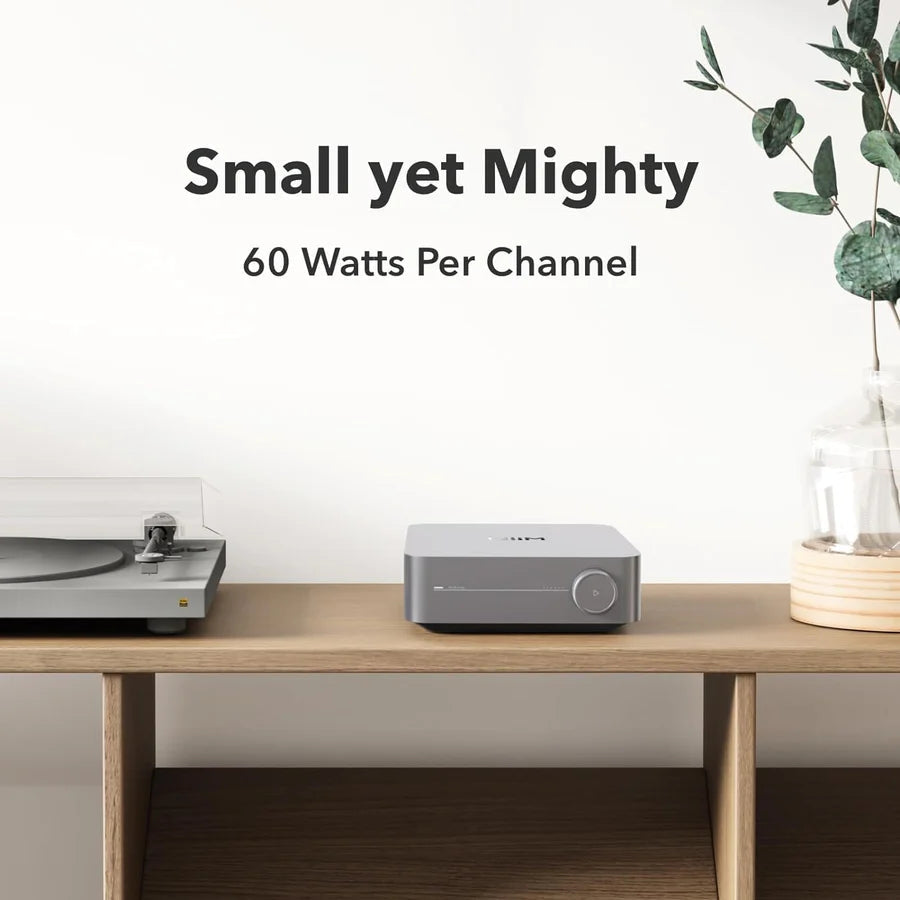

    • Power Output (8Ω): 60 W
    • Tone Control: Adaptive EQ and Graphic Equaliser built-in
    • Signal To Noise Ratio: 108 dB
    • THD + N: (-92dB) 0.0025 %
    • RCA Input(s): Yes
    • Bluetooth Input: Yes
    • Bluetooth Version: 5.1
    • HDMI Input(s): ARC Input
    • Optical Input(s): 1
    • DAC Chip: ESS 9018K2M
    • File Limit Support (PCM): 24-bit, 192kHz
    • Subwoofer Output(s): Yes
    • App Control: WiiM Home
    • Dimensions (W x H x D): 190 x 190 x 63 mm
    • Weight: 1.84 kg

What You Get

    AMPLIFIER

    • 1 x WiiM Amp
    • 1 x RCA Audio Cable
    • 1 x Optical Audio Cable
    • 1 x Remote Control
    • 1 x Power Cable
    • 1 x Quick Start Guide

    SPEAKERS

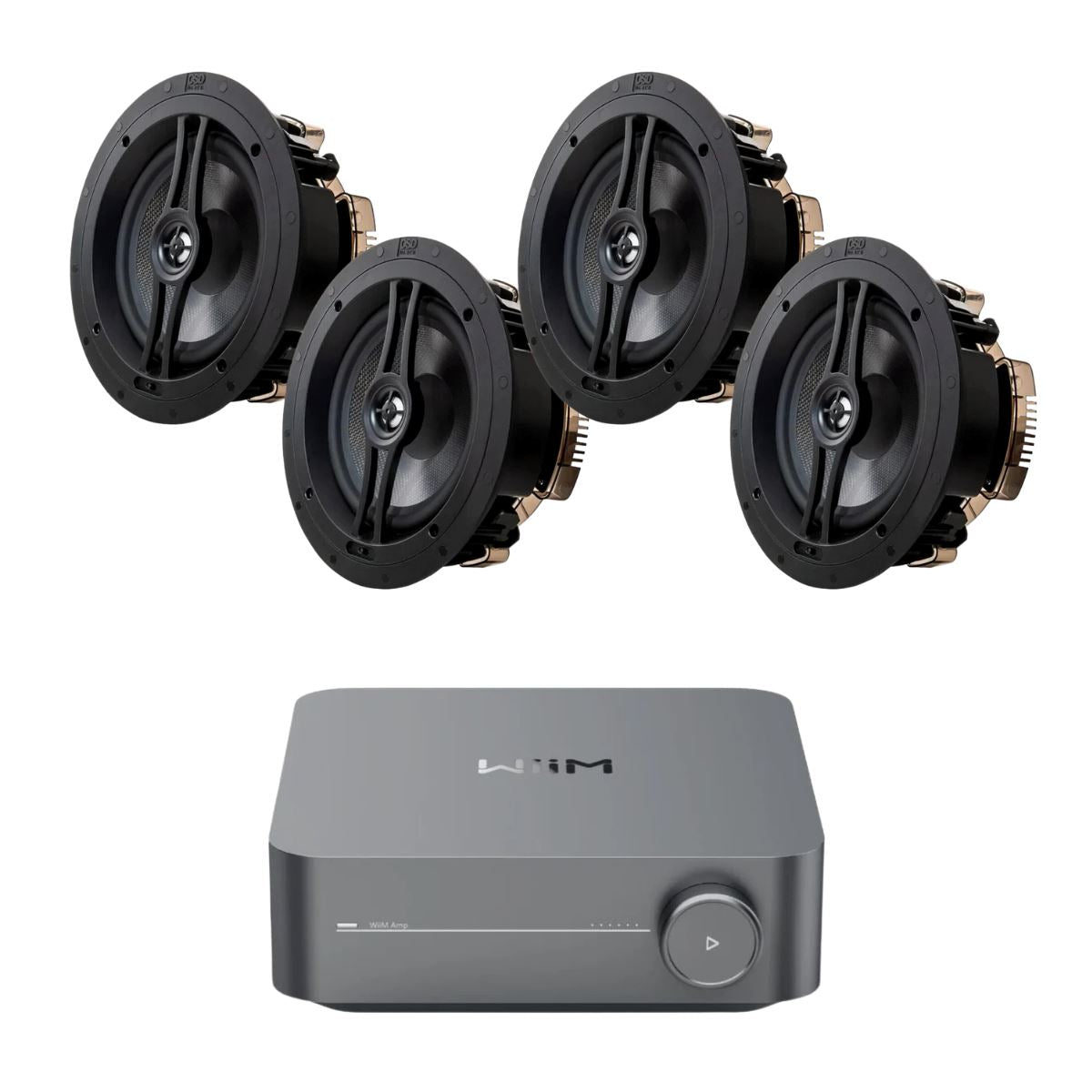

    • 2/4 x OSD R83 Speakers (depending on selected option)
    • 2/4 x White Speaker Grill (depending on selected option)
    • 1 x User Manual

Downloads

Payment & Security

Secure Payments

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Authorised Dealer

K&B Audio are authorised dealers for WiiM. All sales come with a 1 Year manufacturers warranty and full technical support.

WiiM Highlights

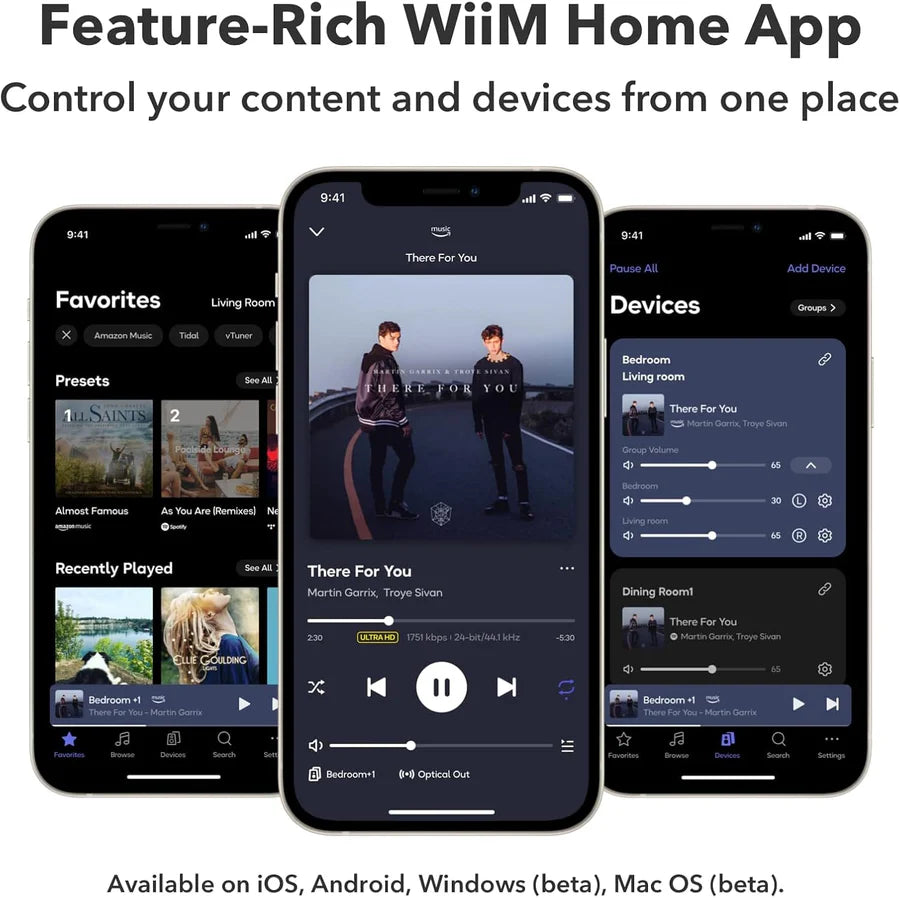

  • WiiM Home App
