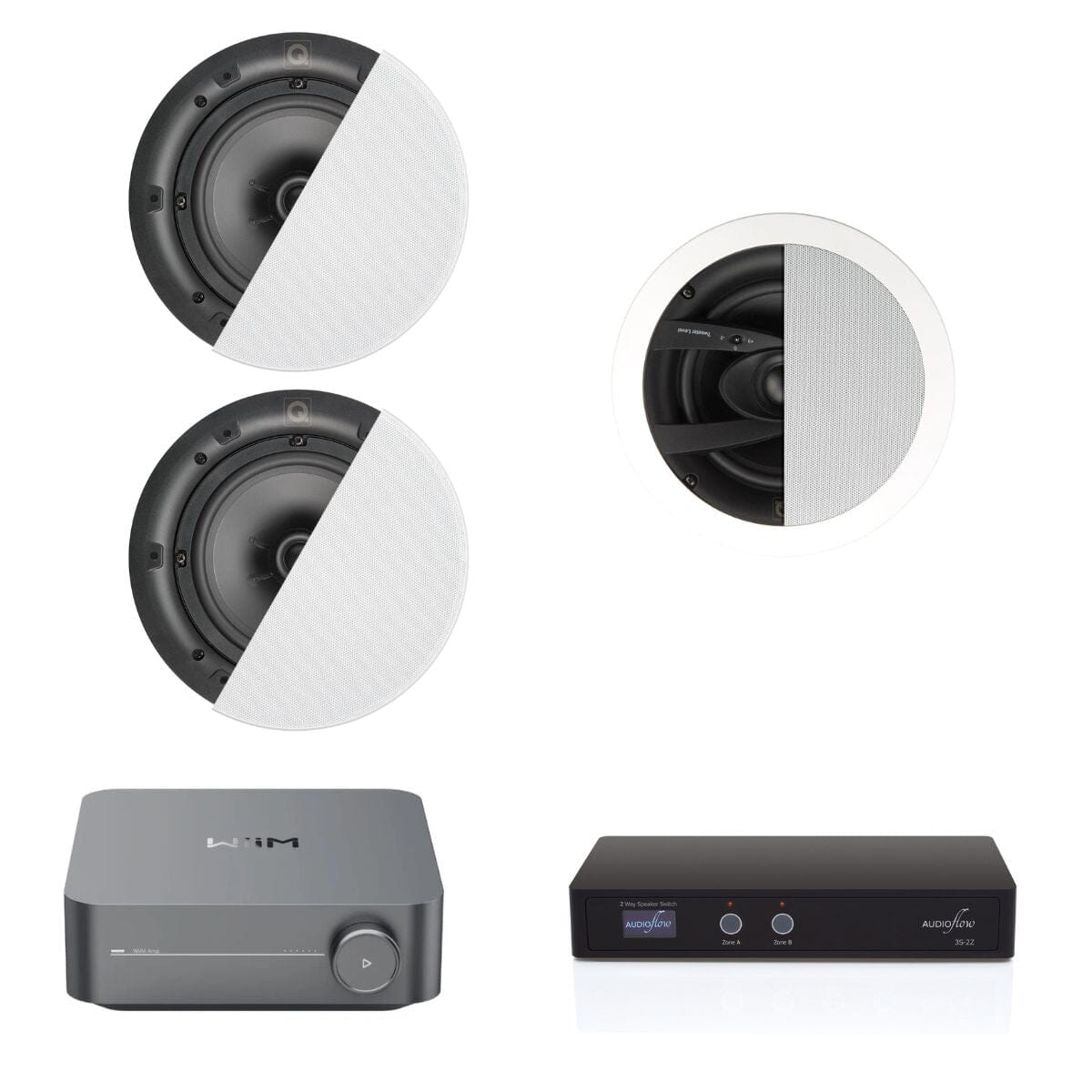

WiiM AMP + Q Acoustics QI65C + QI65CW-ST Bedroom & En-Suite Ceiling Speaker System

The perfect audio solution for your bedroom and en-suite, this bundle combines high-quality sound with smart functionality.

Featuring the versatile WiiM AMP, premium Q Acoustics ceiling speakers, and the innovative Audioflow smart speaker switch, this system lets you enjoy seamless control and crystal-clear sound in both spaces.

Whether you're relaxing in the bedroom or enjoying a soak in the bathroom, this setup ensures the perfect audio experience tailored to your needs.

FEATURES

• WiiM AMP WiFi Multiroom Amplifier: Delivers robust sound quality with Bluetooth, AirPlay 2, and Alexa support, allowing effortless wireless streaming from any device.
• Q Acoustics QI65C Ceiling Speakers (Bedroom): A pair of premium 6.5-inch speakers with exceptional audio clarity, ideal for immersive soundscapes in your bedroom.

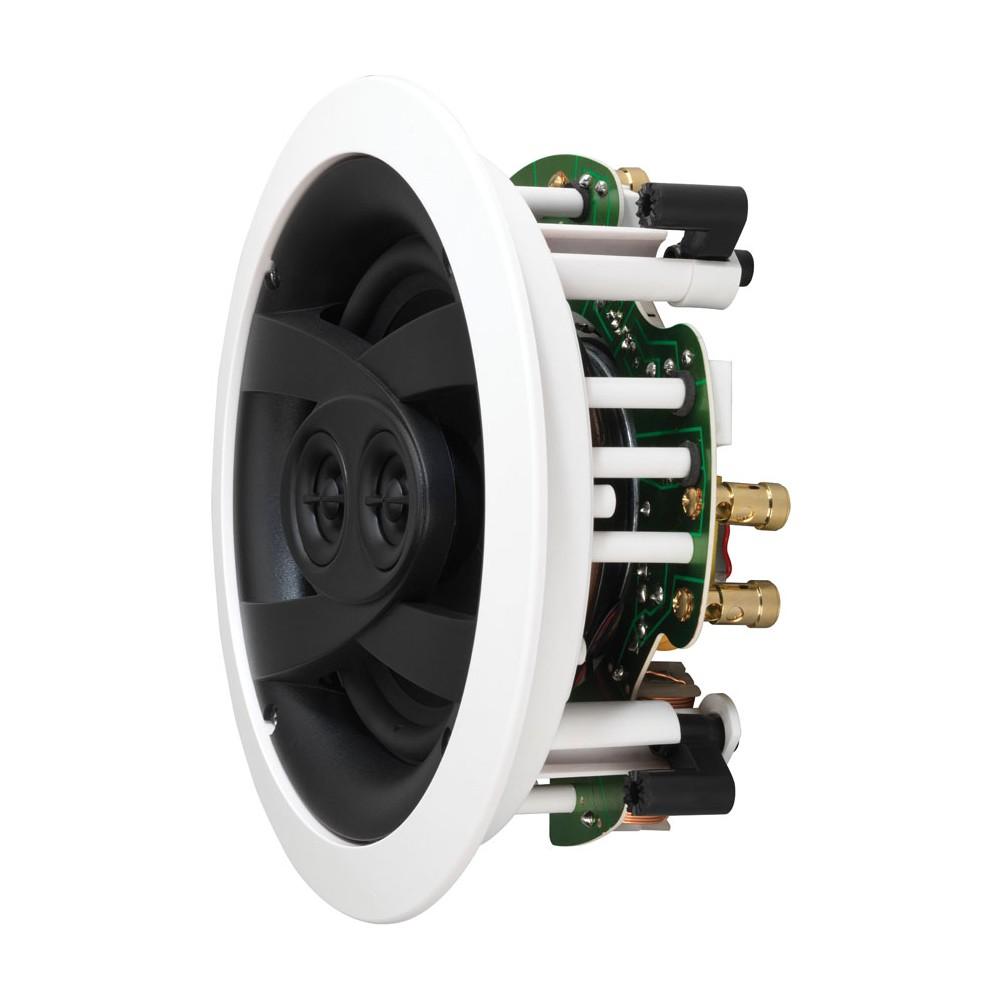

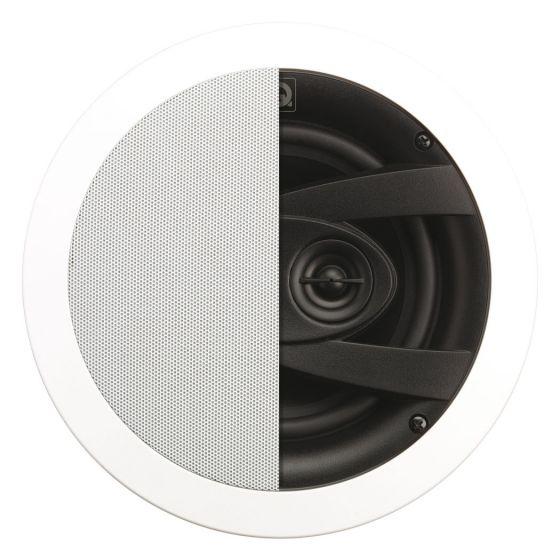

• Q Acoustics QI65CW-ST Stereo Ceiling Speaker (En-Suite): A weatherproof single stereo speaker designed for high-quality audio in wet areas, ensuring great sound in your en-suite.
• Audioflow 2-Way Smart Speaker Switch: Enables independent control of speakers in each room, allowing you to activate the bedroom, en-suite, or both at the touch of a button.
• Customisable Audio Zones: Adjust your soundscape effortlessly, whether you want music in just the bedroom, the en-suite, or both spaces simultaneously.
• Weatherproof Design: The QI65CW-ST speaker is rated IPX4, making it perfect for humid environments like bathrooms.
• Easy Installation: Designed for quick and hassle-free setup with minimal wiring and seamless integration into your home.

Note that this bundle features one amplifier, a pair of speakers and a single stereo speaker so all speakers will play the same music at the same volume. You can turn each set on / off but you cannot listen to different music in each area at the same time.

Dual zone bundles are perfect for open-plan areas or adjacent rooms where you want to play the same music, but not necessarily all the time.

AMPLIFIER

• Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
• Apple AirPlay Support: AirPlay 2
• Roon Support: Roon Ready + Roon Tested
• Network Connectivity: Wi-Fi & Ethernet
• Amplifier Class: D
• Power Output (4Ω): 120 W
• Power Output (8Ω): 60 W
• Tone Control: Adaptive EQ and Graphic Equaliser built-in
• Signal To Noise Ratio: 108 dB
• THD + N: (-92dB) 0.0025 %
• RCA Input(s): Yes
• Bluetooth Input: Yes
• Bluetooth Version: 5.1
• HDMI Input(s): ARC Input
• Optical Input(s): 1
• DAC Chip: ESS 9018K2M
• File Limit Support (PCM): 24-bit, 192kHz
• Subwoofer Output(s): Yes
• App Control: WiiM Home
• Dimensions (W x H x D): 190 x 190 x 63 mm
• Weight: 1.84 kg

SPEAKER SWITCH

• Model Number: 3S-2Z
• Product Dimensions, Weight: H38 x W216 x D100 mm, 286g
• Boxed Dimensions, Weight: H90 x W355 x D127 mm, 687g
• Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
• Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
• Switching Relays: Max 8A @ 250V AC
• Amplifier Power: Max 300W @ 8Ω
• Cable Connection: Max 2.5mm2 or 14AWG
• Speaker System Design: Series Switching
• All Zones Off: Amplifier Protection 200Ω Dummy Load
• Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
• Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 11.0+ (App Store)

CEILING SPEAKERS

• Tweeter: Swivel
• Tweeter diameter: 0.75" (19mm)
• Woofer diameter: 6.5"
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Cutout: 203mm
• Warranty: 5 Years

BATHROOM SPEAKER

• Tweeter: Swivel
• Tweeter diameter: 2 x 0.5" (13mm)
• Woofer diameter: 6.5"
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8 ohm
• Sensitivity dB spl (2.83V, 1m): 85
• Response(Low freq.) -3dB Hz: 65
• Cutout Size: 197mm
• Maximum rear depth: 84mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

AMPLIFIER

• 1 x WiiM Amp
• 1 x RCA Audio Cable
• 1 x Optical Audio Cable
• 1 x Remote Control
• 1 x Power Cable
• 1 x Quick Start Guide

SPEAKER SWITCH

• 2 Way Speaker Selector Switch
• Power Supply
• Connection Plugs
• Cable Ties
• Quick Start Guide

CEILING SPEAKERS

• 2 x Q Acoustics Install QI65C 6.5" In Ceiling Speakers

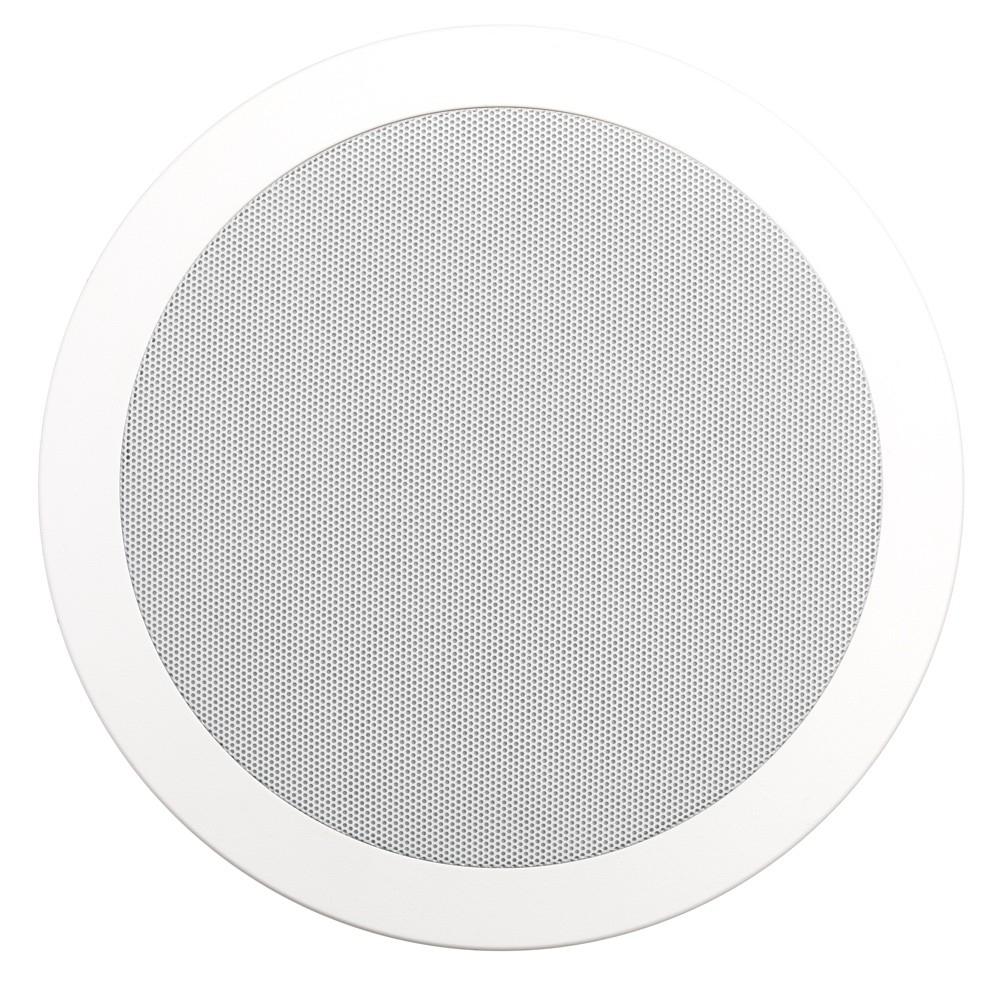

• 2 x White grille
• 1 x User Manual
• 1 x cut out template

BATHROOM SPEAKERS

• 1 x Q Acoustics Install QI65CW ST 6.5" In Ceiling Speaker
• 1 x Insert White Grille
• 1 x User Manual

ACCESSORIES

• 30M x 2 Core Speaker Cable
